Ultra High Brightness LCDs

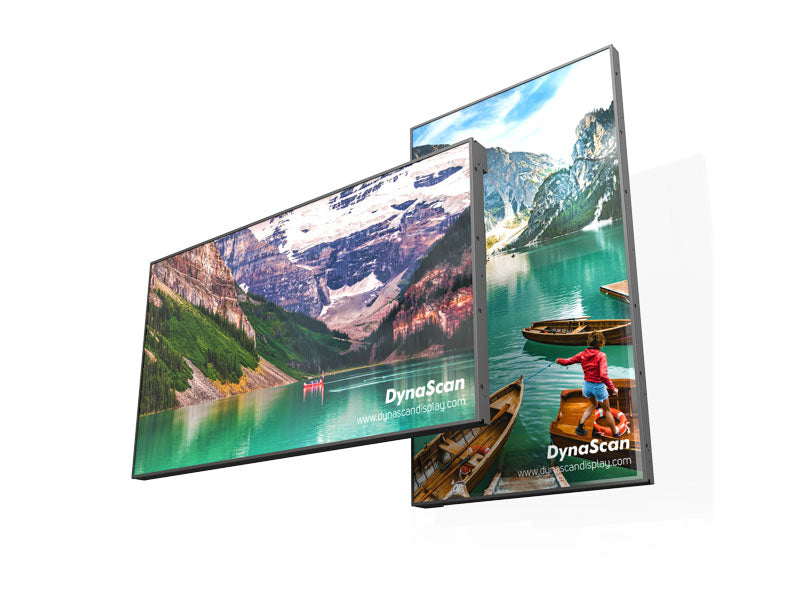

The DS491LT4 is a full HD 49-inch high brightness LCD featuring an LED backlight producing a 3500 nits sunlight viewable image. The DS491LT4 has been designed for applications in bright environments such as outdoor enclosures and storefront windows. A narrow bezel makes this model ideal for either single display or video wall applications. Each screen is individually color-calibrated to the D65 color standard to ensure uniformity among multiple displays.
The DS491LT4 features an integrated Android™ based media player with wireless connectivity offering users a complete media platform, allowing playback of local files and USB/SD card media.
SUNLIGHT VIEWABLE IMAGE
FANLESS THERMAL MANAGEMENT
BUILT-IN MEDIA PLAYER
TRUECOLOR™ CALIBRATED
24/7 OPERATION
BLACKENING DEFECT-FREE
Product Highlights
Sunlight readable 3500 nits brightness, Fanless thermal management, Integrated Android™ media player, Blackening defect-free in direct sunlight, Narrow 8.5 mm bezel for video wall applications, 1080p Full HD resolution.
TrueColor™ Calibrated
Each screen is individually color-calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Blackening Defect Free
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. The DS491LT4 is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Built-In Media Player
An integrated Android™ based media player offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
Narrow Bezel for Video Walls
The DS491LT4 features an 8.5 mm narrow bezel display – perfect for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 15×15 in size without the need for any additional external video wall controller.
-
| PANEL |
|
| LCD Panel Size |
48.5 inches LCD |
| Native Resolution |
1920 x 1080 |
| Backlight |
LED |
| Default Color Temperature |
D65 (6500 K) |
| Brightness |
3500 nits |
| Contrast Ratio |
3000:1 |
| Response Time (Typ.) |
8 ms |
| Viewing Angle |
178° / 178° |
| Light Lifetime (Typ.) |
100,000 hrs |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Polarized Sunglasses Support |
Yes |
| Panel Surface |
AR, 2H |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100 ~ 240 V, 50 Hz / 60 Hz |
| Power On Mode (Typ./Max.) |
160 W, 230 W |
| Power Saving Mode |
< 1 W |
| AC Out |
< 100 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
8.7 / 8.7 / 8.5 / 8.5 mm |
| Cabinet Color |
Black |
| Monitor Dimension (LxHxD) |
1096.7 x 627.2 x 82.3 mm |
| Monitor Weight |
19.6 kg |
| Orientation |
Portrait / Landscape |
| VESA Mounting (LxH) |
400 x 400 mm |
| Carrying Handles |
Yes |
| Fanless Design |
Yes |
| USER INTERFACE |
|
| Language |
English |
| Built-in Video Wall Support |
Up to 15x15 |
| Support SNMP (Up to V3.0) |
Yes |
| Dimming Control |
Yes |
| Image Retention Protection |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| Internal Temperature Sensor |
Yes |
| OSD Menu Rotation |
Yes |
| INPUT |
|
| HDMI 1.4 b (HDCP 1.4) |
x1 (1080p) |
| DVI-D |
x1 |
| DisplayPort |
x1 |
| USB |
x1 (For Internal Player) |
| SD Slot |
x1 (For Internal Player) |
| EXTERNAL CONTROL |
|
| RS-232 |
In x1, Out x1 |
| RJ-45 (LAN) |
x1 |
| INTERNAL PLAYER |
|
| Operating System |
Android 4.4.2 |
| Processor |
ARM Quad-Core Cortex-A9 |
| Clock Speed |
1.6 GHz |
| Main Memory Interface |
DDR3L-1066, 1GB |
| Graphics |
Mali400MP4, support OpenGL ES1.1/2.0, Open VG1.1 |
| Storage |
Internal: Nand flash 8GB(multi sources), External: Support SD, Up to 32GB |
| Multimedia |
Multi-format 1080P video decoders (H.264,VC-1, MPEG-1/2/4, H.263, H.264 MVC, AVS, VP8/6, RV) |
| Wireless Function |
Yes |
| ENVIRONMENT |
|
| Operating Temperature |
0°C ~ 45°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 80% RH Non-condensing |
| CERTIFICATION |
|
| CE |
FCC |
| RoHS |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
