Ultra High Brightness LCDs

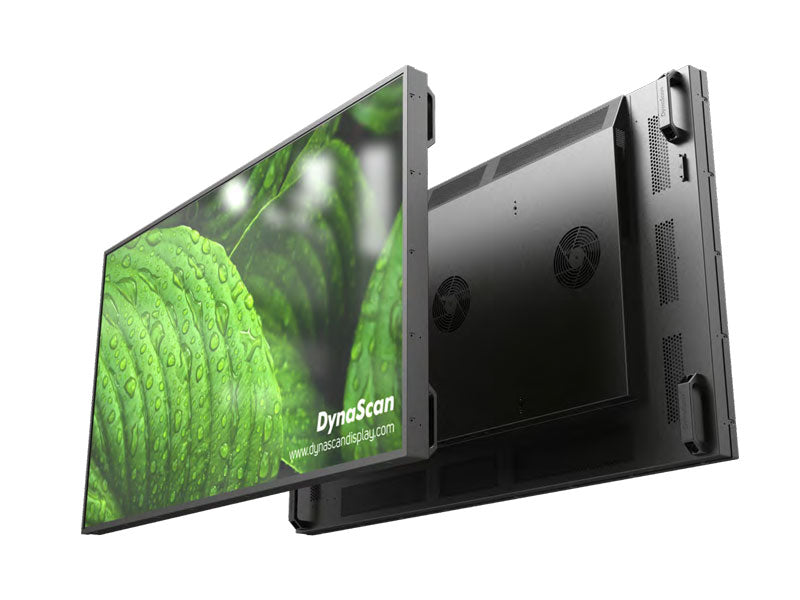

The DS552LT6-2 is a 55-inch ultra-high bright professional LCD. With a maximum brightness rating of 6000 nits, this display features a local dimming LED backlight technique for incredible, high-contrast picture quality and low power consumption.
The DS552LT6-2 features a 10.9 mm bezel width, perfect for video wall applications in bright environments. Designed for use in direct sunlight, the specially designed LCD panel prevents “blackening defect”.
SUNLIGHT VIEWABLE IMAGE
SUSTAINED HIGH BRIGHTNESS
BUILT-IN MEDIA PLAYER
24/7 OPERATION
TRUECOLOR™ CALIBRATED
BLACKENING DEFECT-FREE
Sunlight Viewable
Designed for applications in bright environments such as storefront windows, the DS552LT5-2 features a high brightness LED backlight producing a 6000 nits direct sunlight-viewable image.
Built-in Media Player
An integrated Android™ based media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
LED Backlit with Local Dimming
The display features a local dimming LED back light technique for a remarkably high contrast picture. With direct local dimming, darker areas of an image receive less backlighting than lighter areas, as opposed to edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.
TrueColor™ Calibrated
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Blackening Defect Free
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. The DS552LT6-2 is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
-
| PANEL |
|
| LCD Panel Size |
54.64" |
| Native Resolution |
1920 x 1080 |
| Brightness |
6000 nits |
| Color Depth |
8 bits |
| Contrast Ratio |
3000:1 |
| Response Time (Typ.) |
9 ms |
| Viewing Angle (H/V) |
178° / 178° |
| Light Lifetime (Typ.) |
100,000 hrs |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Polarized Sunglasses Support |
Yes |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100-240 V, 50/60 Hz |
| Power On Mode (Typ./Max.) |
275 W / 400 W |
| Power Saving Mode |
< 1 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
10.9 / 10.9 / 10.9 / 10.9 mm |
| Cabinet Color |
Black |
| Monitor Dimension (LxHxD) |
1239.4 x 710.0 x 87.7 mm |
| Monitor Weight |
29.5 kg |
| Orientation |
Portrait / Landscape |
| VESA Mounting (LxH) |
400 x 400 mm |
| Carrying Handles |
Yes |
| FEATURE |
|
| Language |
English |
| Support SNMP (Up to V3.0) |
Yes |
| Image Retention Protection |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| OSD Menu Rotation |
Yes |
| INPUT |
|
| HDMI 2.1 (HDCP 2.2) |
x2 |
| DisplayPort |
x1 |
| USB 3.0 |
x1 |
| Micro SD Slot |
x1 |
| EXTERNAL CONTROL |
|
| RS-232 |
x1 |
| RJ-45 |
x2 (LAN) |
| ETK Port (Thermal) |
x1 |
| ESK Port (IR, Ambient) |
x1 |
| ENVIRONMENT |
|
| Operating Temperature |
0°C ~ 45°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 80% RH Non-condensing |
| INTERNAL PLAYER |
|
| Operating System |
Android 8.0.0 |
| Processor |
Dual-core A73 and dual-core A53 |
| Clock Speed |
1.5 GHz |
| Main Memory Interface |
DDR4, 2G |
| Graphics |
Quad-core MaliG51 |
| Storage |
Internal: 16GB eMMC Flash External: Support Micro SD, Up to 32GB(exFAT) /128GB (FAT32) |
| Multimedia |
4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) |
| Wireless Function |
Yes |
| ACCESSORIES |
|
| Quick Start Guide |
Power Cord |
| Remote Control |
Batteries |
| IR & Ambient Sensor |
|
| CERTIFICATION |
|
| CE |
FCC |
| RoHS |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
