Ultra High Brightness LCDs

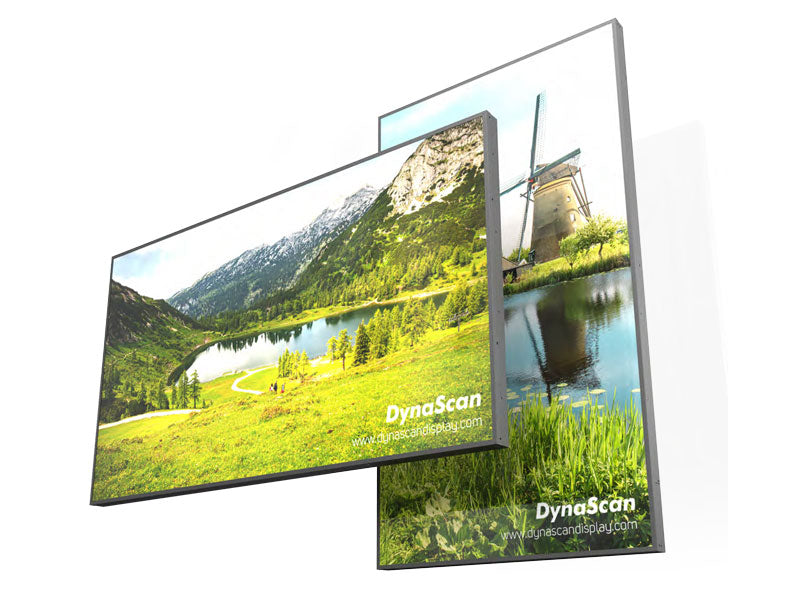

The DS653LT5 is a 65-inch professional high-brightness LCD. With a sunlight-viewable brightness rating of 4000 nits, this display features a local dimming direct LED backlight for incredible, high-contrast picture quality and low power consumption.
These displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers, and storefront windows.

SUNLIGHT VIEWABLE IMAGE

SUSTAINED HIGH BRIGHTNESS

LED BACKLIT WITH LOCAL DIMMING

BUILT-IN MEDIA PLAYER

TRUECOLOR™ CALIBRATION

BLACKENING DEFECT-FREE
Product Highlights
Sunlight viewable 4000 nits brightness, blackening defect-free, direct LED backlight, 1080p Full HD resolution, intelligent thermal management system.
TrueColor™ Calibrated
Each screen is individually color calibrated to accurately reproduce brand colors, skin tones, and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Built-In Media Player
An integrated Android™ based media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
LED Backlit with Local Dimming
The DS653LT5 utilizes a direct LED backlighting system with direct local dimming. Darker areas of an image receive less backlighting than lighter areas, as opposed to edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.
Intelligent Thermal Management
Heat generated by the display is radiated away from high-temperature areas while a sensor continuously monitors the internal temperature to protect the system from overheating. This is accomplished with ultra-quiet fans.




-
PANEL |
|
LCD Panel Size |
65" |
Native Resolution |
1920 x 1080 |
Brightness |
4000 nits |
Color Depth |
10 bits |
Contrast Ratio |
4000:1 |
Response Time |
8 ms (typ) |
Viewing Angle |
178° / 178° |
Light Life Time (typ.) |
100,000 hrs |
Blackening Defect Free |
Up to 110°C (230°F) |
Viewable with Polarized Sunglasses |
Yes |
POWER |
|
Power Supply |
Internal |
Rated Voltage |
100-240 V, 50 Hz/60 Hz |
Power On Mode (typ./max.) |
255 W / 550 W |
Power Saving Mode |
< 1 W |
AC Out |
< 100 W |
MECHANICAL SPECS |
|
Bezel Width (T/B/L/R) |
11.8 / 11.8 / 11.8 / 11.8 mm |
Cabinet Color |
Black |
Dimension (LxHxD, w/o stand) |
1456.7 x 829.7 x 89.6 mm |
Monitor Weight |
39.1 kg |
Orientation |
Portrait / Landscape |
VESA Mounting (LxH) |
400x400 mm, 600x400 mm |
Carrying Handles |
Yes |
FEATURE |
|
Language |
English |
Support SNMP (Up to V3.0) |
Yes |
Image Retention Protection |
Yes |
Auto Orientation Sensor |
Yes |
Ambient Light Sensor |
Yes |
Power On/Off Scheduling |
Yes |
OSD Menu Rotation |
Yes |
INPUT |
|
HDMI 2.1 (HDCP 2.3) |
x2 (1080p recommended) |
Display Port |
x1 |
USB 3.0 |
x1 |
Micro SD Slot |
x1 |
EXTERNAL CONTROL |
|
RS-232 |
In x1 |
RJ-45 |
x2 (LAN) |
ETK Port (Thermal) |
x1 |
ESK Port (IR, Ambient) |
x1 |
EXTERNAL SENSOR |
|
ETK (Thermal) |
x1 |
ESK (IR, Ambient) |
x1 |
ENVIRONMENT |
|
Operating Temperature |
0°C~45°C |
Storage Temperature |
-20°C~60°C |
Humidity |
10%~80% RH Non-condensing |
INTERNAL PLAYER |
|
Operating System |
Android 8.0.0 |
Processor |
Dual-core A73 and dual-core A53 |
Clock Speed |
1.5 GHz |
Main Memory Interface |
DDR4, 2G |
Graphics |
Quad-core Mali G51 |
Storage |
Internal: 16 GB eMMC Flash External: Support Micro SD, Up to 32 GB (exFAT) / 128 GB (FAT32) |
Multimedia |
4K 10 bits VP9/H.265/H.264 video decoders, up to 60 fps 1080p other video decoders (VC-1, MPEG-1/2/4, VP8) |
Wireless Function |
Yes |
ACCESSORIES |
|
Quick Start Guide |
Power Cord |
Remote Control |
Batteries |
IR & Ambient Sensor |
|
CERTIFICATION |
|
CE |
CB |
FCC |
ETL |
RoHS |
PSE |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
