Ultra High Brightness LCDs

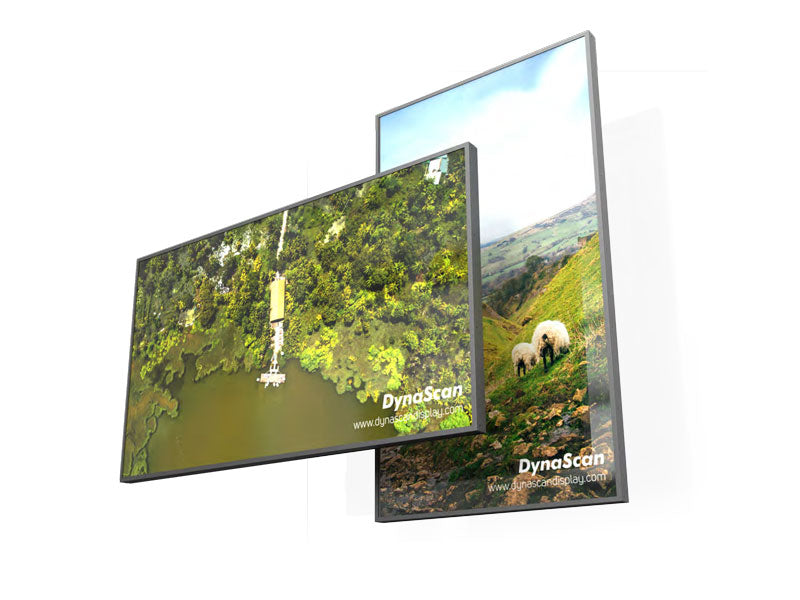

The DS752LT5 is an Ultra HD 4K 75-inch high brightness LCD featuring a 4500 nits sunlight viewable image. It is the ideal solution for large-scale display applications in bright environments such as outdoor enclosures and storefront windows. With TrueColor™ Calibration, every screen is individually color-calibrated for unparalleled color quality and ensures uniformity.
The DS752LT5 features an integrated Android™ based media player with wireless connectivity offering users a complete media platform, allowing playback of local files and USB/SD card media.
SUNLIGHT VIEWABLE IMAGE
4K UHD RESOLUTION
BUILT-IN MEDIA PLAYER
THERMAL MANAGEMENT
TRUECOLOR™ CALIBRATED
VIEWABLE WITH POLARIZED LENSES
Product Highlights
Sunlight viewable 4500 nits brightness, blackening defect-free in direct sunlight, LED backlight with local dimming, ultra HD 4K resolution, and intelligent thermal management system.
TrueColor™ Calibration
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
4K UHD Resolution
With Ultra HD 4K resolution, the DS752LT5 produces a super sharp image for easy-to-read text and incredible detail.
LED Backlit with Local Dimming
The DS752LT5 utilizes a direct local dimming LED backlight technique for a remarkably high-contrast picture. With direct local dimming, darker areas of an image receive less backlighting than lighter areas.
Intelligent Thermal Management
The heat generated by the display is radiated away from high-temperature areas while a sensor continuously monitors the internal temperature to protect the system from overheating. This is accomplished with ultra-quiet fans.
-
| PANEL |
|
| LCD Panel Size |
74.52" |
| Native Resolution |
3840 x 2160 |
| Brightness |
4500 nits |
| Color Depth |
10 bits |
| Contrast Ratio |
3000:1 |
| Response Time |
8 ms |
| Viewing Angle (H/V) |
178° / 178° |
| Light Life Time (typ.) |
100,000 hrs |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Viewable with Polarized Lenses |
Yes |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100 ~ 240 V, 50 Hz / 60 Hz |
| Power On Mode (Typ./Max.) |
420 W / 800 W |
| Power Saving Mode |
< 1 W |
| AC Out |
< 100 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
17.0 / 17.0 / 16.5 / 16.5 mm |
| Cabinet Color |
Black |
| Dimension (LxHxD) |
1688 x 967.5 x 93.6 mm |
| Monitor Weight |
58 kg |
| Orientation |
Portrait / Landscape |
| VESA Mounting (LxH) |
800 x 400 mm |
| Carrying Handles |
Yes |
| USER INTERFACE |
|
| Language |
English |
| Support SNMP (Up to V3.0) |
Yes |
| Image Retention Protection |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| Internal Temperature Sensor |
Yes |
| OSD Menu Rotation |
Yes |
| INPUT |
|
| HDMI 2.1 (HDCP 2.3) |
x2 (2160p) |
| DisplayPort 1.2 |
x1 |
| USB 3.0 |
x1 |
| Micro SD Slot |
x1 |
| EXTERNAL CONTROL |
|
| RS-232 |
In x1 |
| RJ-45 |
x2 (LAN) |
| ETK Port (Thermal) |
x1 |
| ESK Port (IR, Ambient) |
x1 |
| ENVIRONMENT |
|
| Operating Temperature |
0°C ~ 45°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 80% RH Non-condensing |
| INTERNAL PLAYER |
|
| Operating System |
Android 8.0.0 |
| Processor |
Dual-core A73 and dual-core A53 |
| Clock Speed |
1.5 GHz |
| Main Memory Interface |
DDR4, 2G |
| Graphics |
Quad-core MaliG51 |
| Storage (FDM) |
Internal: 16GB eMMC Flash External: Support Micro SD, Up to 32GB(exFAT) /128GB(FAT32) |
| Multimedia |
4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) |
| Wireless Function |
Yes |
| CERTIFICATION |
|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
