Ultra High Brightness LCDs

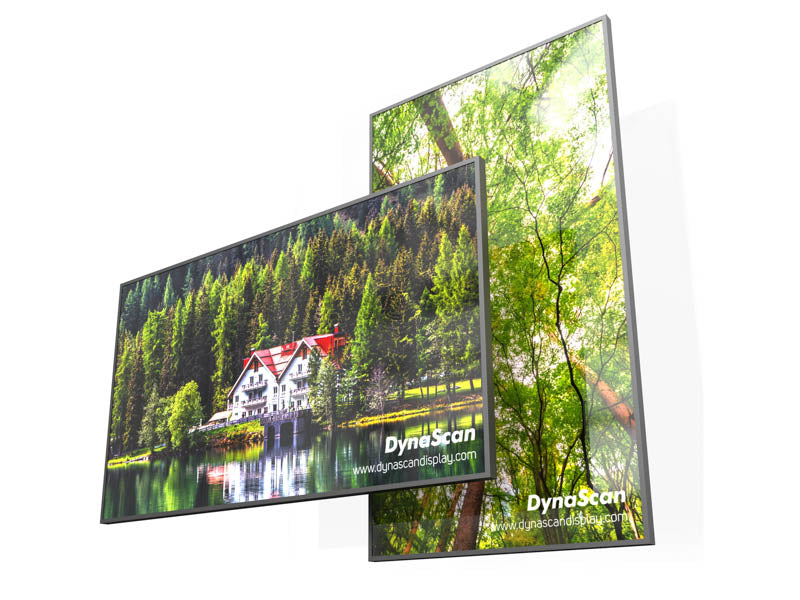

Measuring 86 inches, the DS861LR4 is the largest high-brightness professional LCD offering from DynaScan. The display features 4K UHD resolution with a high brightness LED backlight producing a 3500 nits sunlight-viewable image. Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, each screen is TrueColor™ calibrated for remarkable color reproduction.
SUNLIGHT VIEWABLE IMAGE
LOCAL DIMMING LED BACKLIGHT
4K UHD RESOLUTION
TRUECOLOR™ CALIBRATED
BUILT-IN MEDIA PLAYER
INTEL® SDM READY
Sunlight Viewable
Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, the DS861LR4 features a high-brightness LED backlight producing a 3500 nits sunlight-viewable image.
TrueColor™ Calibrated
Each screen is individually color-calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Ultra HD 4K Resolution
With 4K Ultra HD resolution, the DS861LR4 provides a super sharp image for easy-to-read text and incredible detail.
Built-In Media Player
An integrated Android™ media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
Intel® SDM Ready
An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems, Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification, but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.
-
| PANEL |
|
| LCD Panel Size |
85.6" |
| Native Resolution |
3840 x 2160 |
| Brightness |
3500 nits |
| Color Depth |
10 bits |
| Contrast Ratio |
3000:1 |
| Response Time (Typ.) |
8 ms |
| Viewing Angle |
178° / 178° |
| Light Life Time (Typ.) |
100,000 hrs |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Polarized Sunglass Support |
Yes |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100 ~ 240 V, 50 Hz / 60 Hz |
| Power On Mode (Typ./ Max) |
750 W / 1300 W |
| Power Saving Mode |
< 1 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
Even Bezel 17.8 mm |
| Cabinet Color |
Black |
| Dimension (LxHxD) |
1935.8 x 1106.8 x 79.0 mm |
| Monitor Weight |
77 kg |
| Orientation |
Portrait / Landscape |
| VESA Mounting |
600 x 400 mm |
| Carrying Handles |
Yes |
| USER INTERFACE |
|
| Language |
English |
| Support SNMP (Up to V3.0) |
Yes |
| Image Retention Proof |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| OSD Menu Rotation |
Yes |
| EXPANSION SLOT FOR INTEL® SDM |
|
| SDM Slot |
SDM-S (support with DynaScan extended board) & SDM-L Compatible (Not included) |
| Power Support |
Up to 45 W |
| INPUT |
|
| HDMI 2.1 (HDCP 2.3) |
x2 (2160p) |
| DisplayPort 1.2 |
x1 |
| USB 3.0 |
x1 |
| Micro SD Slot |
x1 |
| EXTERNAL CONTROL |
|
| RS-232 |
In x1 |
| RJ-45 |
x2 (LAN) |
| ETK Port (Thermal) |
x1 |
| ESK Port (IR, Ambient) |
x1 |
| INTERNAL PLAYER |
|
| Operating System |
Android 8.0 |
| Processor |
Dual-core A73 and dual-core A53 |
| Clock Speed |
1.5 GHz |
| Main Memory Interface |
DDR4, 2G |
| Storage |
Internal: 16GB eMMC Flash External: Support Micro SD, 128GB(FAT32) |
| Multimedia |
4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) |
| Wireless Function |
Yes |
| ENVIRONMENT |
|
| Operating Temperature |
0° C ~ 45° C |
| Storage Temperature |
-20° C ~ 60° C |
| Humidity |
10% ~ 80% RH Non-condensing |
| CERTIFICATION |
|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
