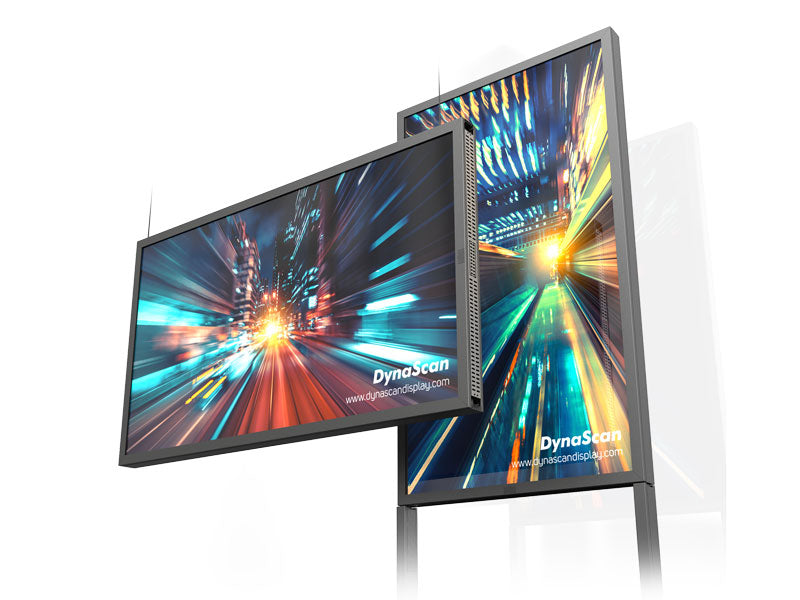

DynaScan DW551DR4
55″ Dual-Sided High Brightness Display
Ultra High Brightness Displays
DynaScan introduces a revolutionary leap for window-facing display technology. The DW551DR4 is a dual-sided professional ultra-high brightness LCD. This all-in-one solution features back-to-back display surfaces in a single, ultra-slim form factor.
With a sunlight-viewable brightness 3000 nits side and a 1000 nits brightness side on the reverse, the DW551DR4 is an ideal fit for in-window display applications. Every display is factory color calibrated for remarkable color reproduction, high contrast, and superb picture quality.
3000/1000 NITS DUAL-SIDED DESIGN
PORTRAIT & LANDSCAPE
CEILING SUSPENDED
FLOOR MOUNTED
TRUECOLOR™ CALIBRATED
VIEWABLE WITH POLARIZED LENSES
BUILT-IN MEDIA PLAYER
BLACKENING DEFECT-FREE
Dual-Sided Design
The dual-sided design offers the flexibility to present different messaging points to viewers both inside and outside a retail location. Its sunlight-viewable side shines brightly to ensure visibility outdoors, while the reverse side offers a lower brightness for an indoor environment.
Floor Stand-Ready
An optional floor stand provides both stability and flexibility, allowing you to position the LCD display at the perfect height and angle to ensure an optimal line of sight for every viewer.
Available Ceiling Mount Kit
An optional ceiling mount kit offers a modern, versatile, and dynamic installation solution. Its space-saving design adapts to fit virtually any height to deliver impactful messaging.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
TrueColor™ Calibration
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Built-in Media Players
An integrated Android™ based media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
-
| PANEL |
|
| LCD Panel Type |
54.64 inches LCD (x2) |
| Native Resolution |
1920 x 1080 |
| Backlight |
LED |
| Default Color Temperature |
D65 (6500 K) |
| Brightness |
1000 nits / 3000 nits |
| Color Depth |
8 bits |
| Contrast Ratio |
3000:1 |
| Response Time (Typ.) |
9 ms |
| Viewing Angle (H/V) |
178° / 178° |
| Light Lifetime (Typ.) |
100,000 hrs |
| Panel Surface |
AR , 2H |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Viewable with Polarized Lenses |
Yes |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100-240 V, 50/60 Hz |
| Power On Mode (Typ./Max.) |
240 W / 380 W |
| Power Saving Mode |
< 1 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
Even bezel 29.5 mm |
| Cabinet Color |
Black |
| Monitor Dimension (LxHxD w/o Stand) |
1272.8 x 743.3 x 62.7 mm |
| Monitor Weight |
40 kg |
| Orientation |
Portrait & Landscape |
| Carrying Handles |
Yes |
| USER INTERFACE |
|
| Language |
English |
| Support SNMP (Up to V3.0) |
Yes |
| Dimming Control |
Yes |
| Image Retention Proof |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| Internal Temperature Sensor |
Yes |
| OSD Menu Rotation |
Yes |
| INPUT |
|
| HDMI 1.4b (HDCP 1.4) |
x2 (1080p) |
| DisplayPort |
x2 |
| DVI-D |
x2 |
| Micro SD Slot |
x2 (For Internal Players) |
| USB |
x2 (For Internal Players) |
| EXTERNAL CONTROL |
|
| RS-232 |
In x2 |
| RJ-45 |
x2 (LAN) |
| INTERNAL PLAYERS (X2) |
|
| Operating system |
Android 7.1.2 |
| Processor |
ARM Quad-Core Cortex-A7 |
| Clock Speed |
1.2 GHz |
| Main Memory Interface |
DDR3L-1066, 1GB |
| Graphics |
Mali-400MP2 GPU, Support OpenGL ES1.1/2.0 |
| Storage |
Internal: Nand flash 8GB(multi sources) External: Support Micro SD, Up to 32GB |
| Multimedia |
VP8/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) |
| Wireless Function |
Yes |
| ENVIRONMENT |
|
| Operating Temperature |
0°C ~ 45°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 80% RH Non-condensing |
| CERTIFICATION |
|
| CE |
FCC |
| RoHS |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
