Ultra High Brightness Displays

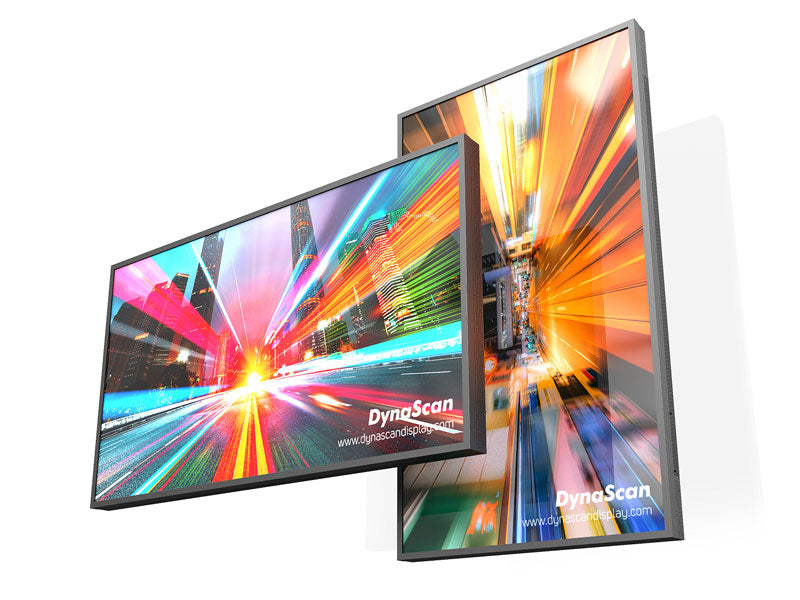

DynaScan introduces a revolutionary leap for window-facing display technology. The DW651LR5 is a clean back ultra-high brightness LCD with a sunlight-viewable 4000-nit brightness designed for in-window applications.
The DW Series offers users a complete window-facing display solution with high-end design features such as hidden cable management, portrait and landscape orientations, and versatile mounting options such as ceiling mount and floor stand compatibility.
Every display is factory color calibrated for remarkable color reproduction, high contrast, and superb picture quality.
SUNLIGHT VIEWABLE IMAGE
PORTRAIT & LANDSCAPE
CEILING SUSPENDED
CLEAN-BACK DESIGN
TRUECOLOR™ CALIBRATED
VIEWABLE WITH POLARIZED LENSES
BUILT-IN MEDIA PLAYER
BLACKENING DEFECT-FREE
Product Highlights
High-brightness 4000 nits, blackening defect-free in direct sunlight, integrated cable management, clean back design, integrated media player, 3840×2160 4K UHD resolution, all-metal construction.
Clean Back Design
Designed to hang in a storefront window with its back exposed, the DW651LR5 features a clean-back design, ensuring an elegant and clutter-free appearance from all angles.
Blackening Defect-Free
The DW651LR5 is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
TrueColor™ Calibration
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Built-in Media Player
An integrated Android™ based media player with wireless connectivity offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
-
| PANEL |
|
| LCD Panel Size |
64.53 inches |
| Native Resolution |
3840 x 2160 |
| Backlight |
LED |
| Default Color Temperature |
D65 (6500 K) |
| Brightness |
4000 nits |
| Color Depth |
10 bits |
| Contrast Ratio |
3000:1 |
| Response Time (Typ.) |
8 ms |
| Viewing Angle (H/V) |
178° / 178° |
| Light Lifetime (Typ.) |
100,000 hrs |
| Panel Surface |
AG Haze 3%, 2H |
| Blackening Defect Free |
Up to 110°C (230°F) |
| Viewable with Polarized Lenses |
Yes |
| POWER |
|
| Power Supply |
Internal |
| Rated Voltage |
100-240 V, 50/60 Hz |
| Power On Mode (Typ./Max.) |
510 W / 740 W |
| Power Saving Mode |
< 1 W |
| MECHANICAL SPECS |
|
| Bezel Width (T/B/L/R) |
Even bezel 19.0 mm |
| Cabinet Color |
Black |
| Monitor Dimension (LxHxD w/o Stand) |
1472.5 x 847.4 x 74.6 mm |
| Monitor Weight |
43 kg |
| Orientation |
Portrait & Landscape |
| Carrying Handles |
Yes |
| USER INTERFACE |
|
| Language |
English |
| Support SNMP (Up to V3.0) |
Yes |
| Dimming Control |
Yes |
| Image Retention Proof |
Yes |
| Auto Orientation Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| Power On/Off Scheduling |
Yes |
| Internal Temperature Sensor |
Yes |
| OSD Menu Rotation |
Yes |
| INPUT |
|
| HDMI 2.1 (HDCP 2.3) |
x2 (2160p) |
| DisplayPort |
x1 |
| USB 3.0 |
x1 |
| Micro SD Slot |
x1 |
| EXTERNAL CONTROL |
|
| RS-232 |
In x1 |
| RJ-45 |
x2 (LAN) |
| INTERNAL PLAYERS |
|
| Operating system |
Android 8.0.0 |
| Processor |
Dual-core A73 and dual-core A53 |
| Clock Speed |
1.5 GHz |
| Main Memory Interface |
DDR4, 2G |
| Graphics |
Quad-core MaliG51 |
| Storage |
Internal: 16GB eMMC Flash External: Support Micro SD, Up to 32GB(exFAT) /128GB(FAT32) |
| Multimedia |
4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) |
| Wi-Fi Specification |
802.11 b/g/n |
| ENVIRONMENT |
|
| Operating Temperature |
0°C ~ 45°C |
| Storage Temperature |
-20°C ~ 60°C |
| Humidity |
10% ~ 80% RH Non-condensing |
| CERTIFICATION |
|
| CE |
FCC |
| RoHS |
-
DynaScan’s warranty obligations are limited to the terms set forth below:
DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.
If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.
-
