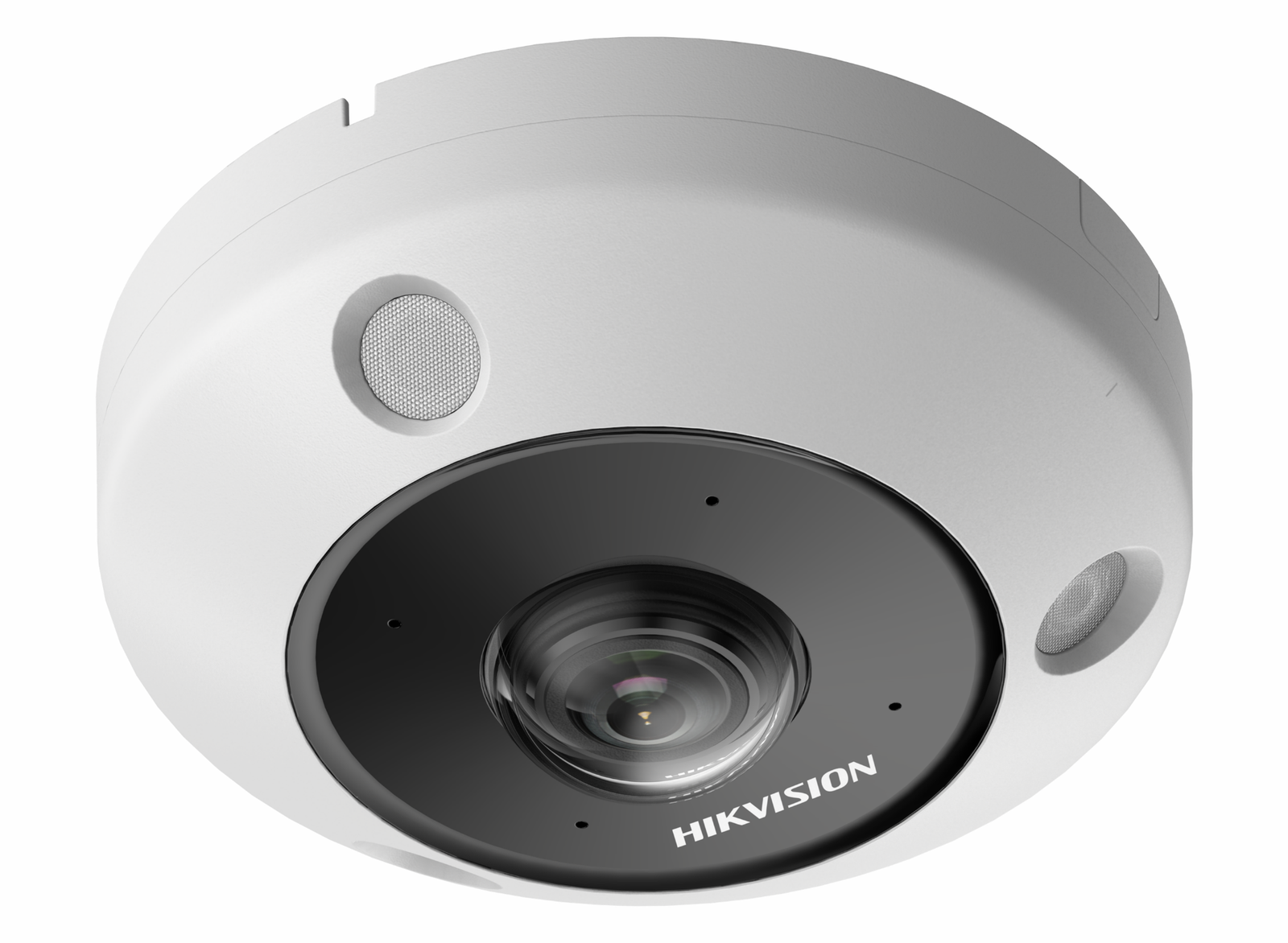

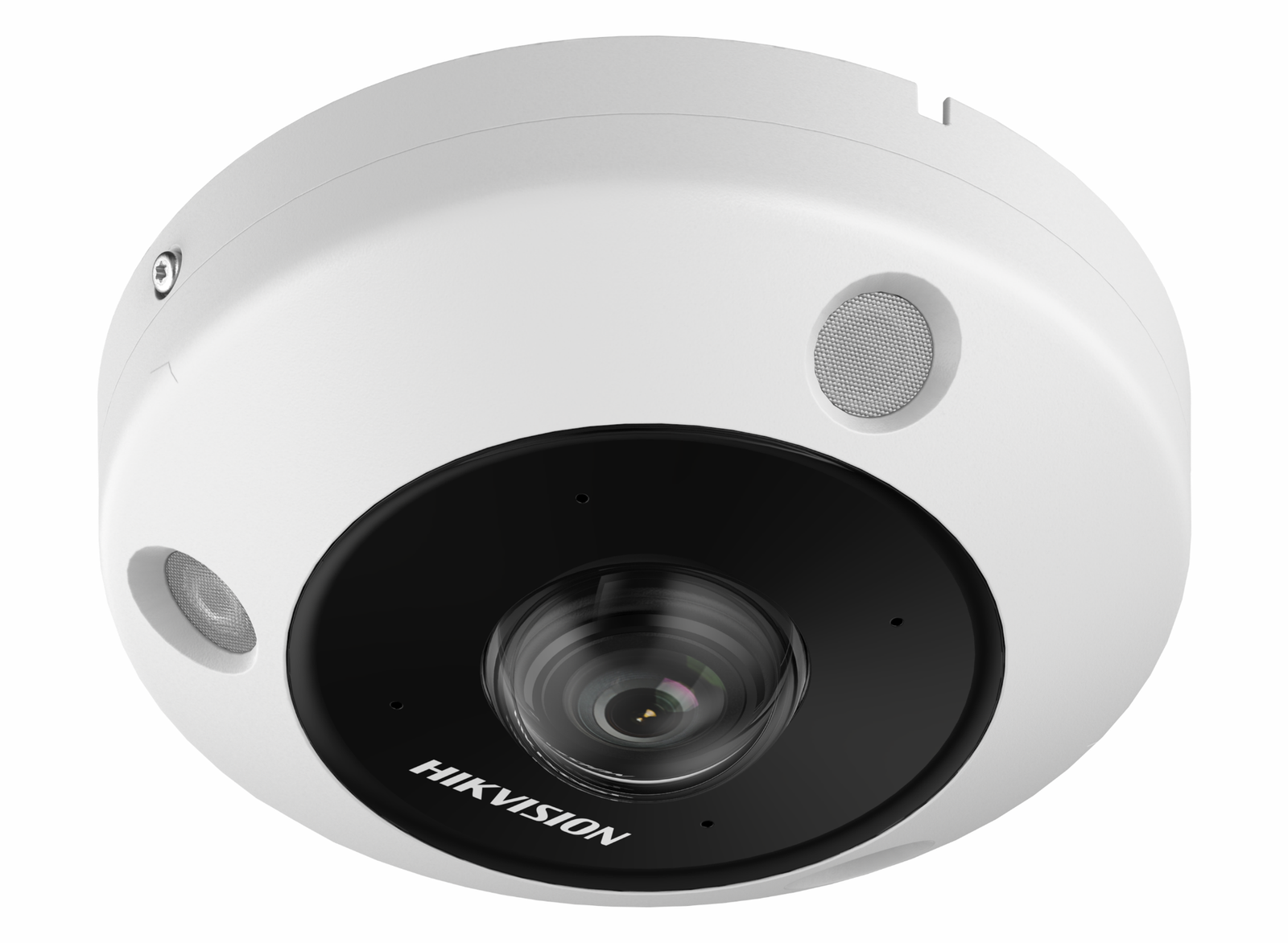

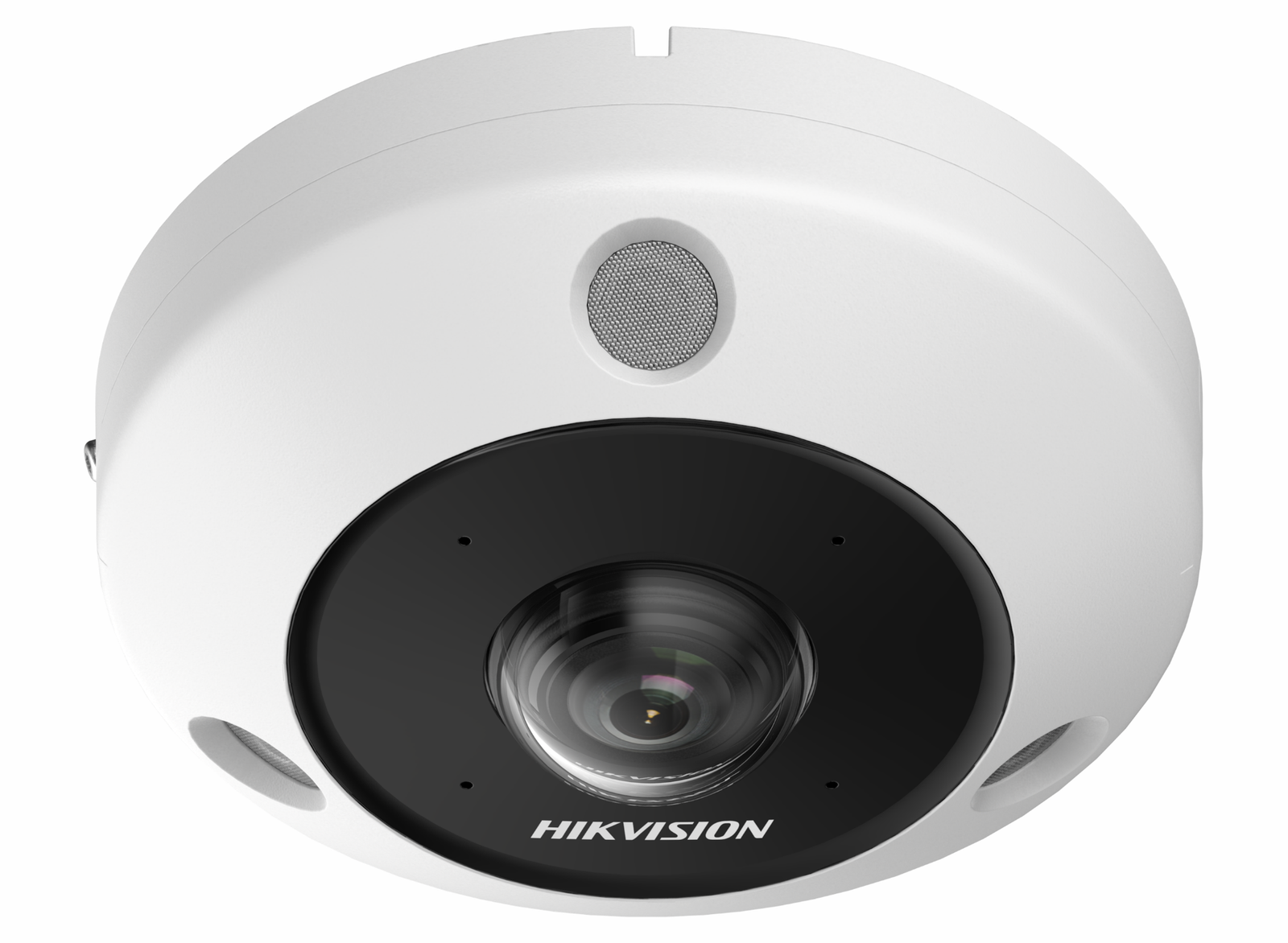

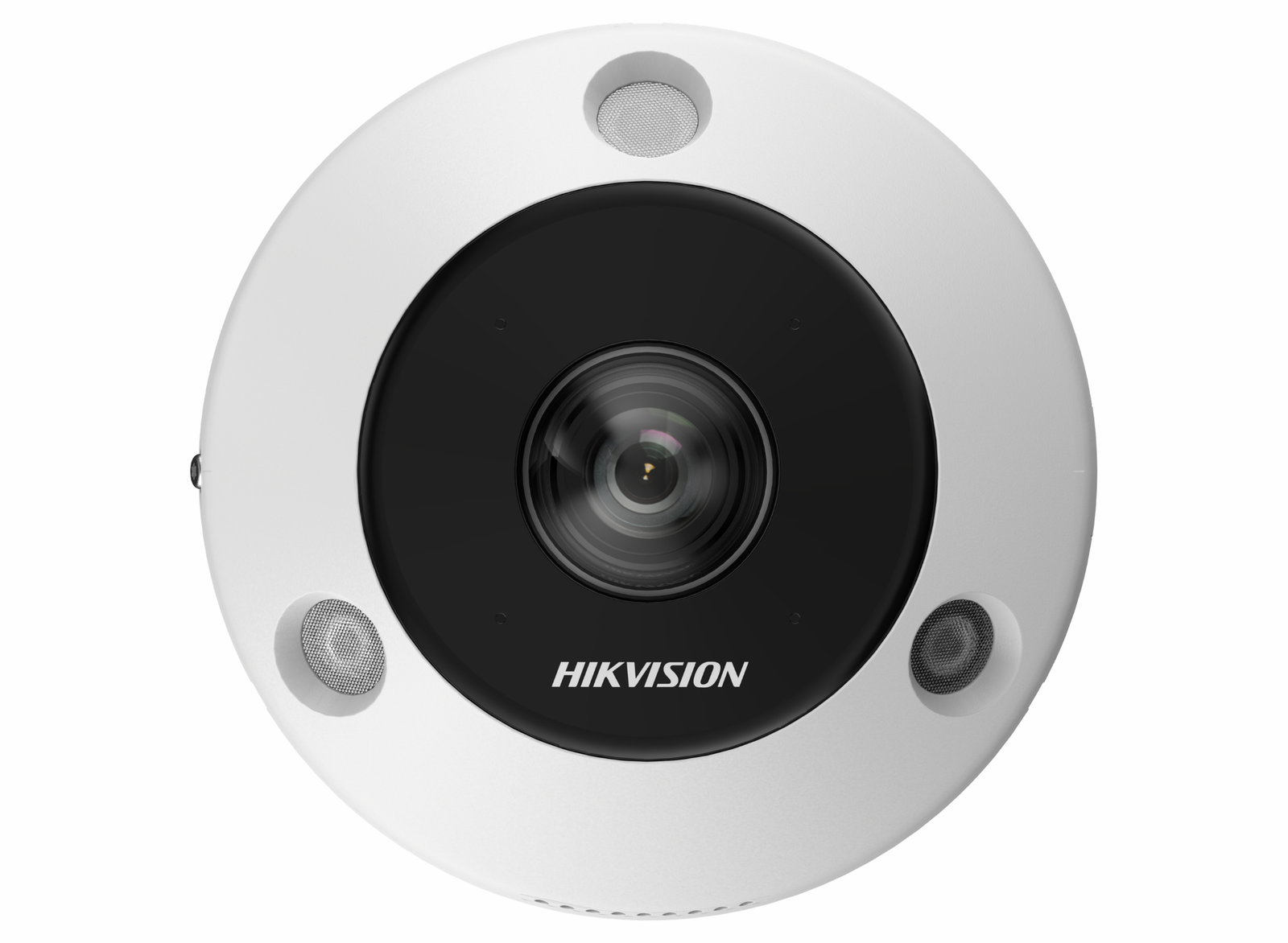

Hikvision DS-2CD63C5G1-IVS 12 MP DeepinView Fisheye Network Camera
SKU: 311324115
£695.42 (Excl. VAT)
- Description
- Specifications
- Downloads
-
12MP Fisheye Camera with AI Heatmap and People Counting
Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Panomorph lens RPL: 89VVT
Water and dust resistant (IP67) and vandal resistant (IK10)
-
Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3504 × 3504 Min. Illumination Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.006 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Lens Type Fixed focal lens, 1.29 mm Focal Length & FOV 1.29 mm, horizontal FOV 180°, vertical FOV 180° Iris Type Fixed Aperture F2.2 Depth of Field 0.2 m to ∞ DORI D: 27.9 m
O: 11.1 m
R: 5.6 m
I: 2.8 mSupplement Light Type IR Supplement Light Range Up to 15 m Supplement Light Number 3 IR Wavelength 850 nm Smart Supplement Light Yes Open Resources Memory: 60 MB
Smart RAM: 800 MB
eMMC: 2 GBComputing Power 2 TOPS Open Capability HEOP 2.0 OpendevSDK Deep Learning Structure Caffe, TensorFlow, PyTorch Programming Language C, C++ Main Stream 50 Hz: 25 fps / 60 Hz: 30 fps
Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
180 Panorama View: 3072 × 2304, 2048 × 1536
180 Dual Channel Panorama View: 3072 × 1152
Panorama View: 3072 × 2304, 2048 × 1536
4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200
Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280; camera 02/camera 03/camera 04: 1600 × 1200
4PTZ Fusion View: 3200 × 2400, 2048 × 1536Sub-Stream 50 Hz: 25 fps / 60 Hz: 30 fps
Fisheye View: 720 × 720, 480 × 480
180 Panorama View: 640 × 480, 320 × 240
180 Dual Channel Panorama View: 640 × 480, 320 × 240
Panorama View: 640 × 360, 320 × 240
4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Fisheye + 3PTZ View: camera 01: 720 × 720; camera 02/camera 03/camera 04: 640 × 480, 320 × 240Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed regions for each stream Mount Type Support wall/table/ceiling mounting Decoding Mode Support hardware decoding and software decoding Display Mode 20 display modes in total
Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder
Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusionAudio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP Simultaneous Live View Up to 20 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBXUser/Host Up to 32 users
3 user levels: administrator, operator, and userSecurity Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger Wide Dynamic Range (WDR) Digital WDR Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog Privacy Mask 8 programmable polygon privacy masks Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Built-in Microphone Yes, 4 built-in microphones Built-in Speaker Yes, 1 built-in speaker Audio Interface 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibriumAlarm 2 inputs, 2 outputs (max. 24 VDC, 1 A) RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Reset Key 1 Reset Key Basic Event Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture People Counting Counts people entering, exiting and passing by separately (The data is stored in the flash.)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports up to 3 detection regions, and independent arming schedule and linkage methodQueue Management Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than thresholdHeat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
Two report types are available, space heat map and time heat map line chart.Intersection Analysis Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 waysPower 12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block
PoE: IEEE 802.3af, Class 3, max. 12.5 WMaterial Metal Dimension Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") Package Dimension 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") Weight Approx. 715 g (1.58 lb.) With Package Weight Approx. 1206 g (2.66 lb.) Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding Heater Yes Cable Length 0.31 m (1.02 ft.) EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015Safety UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002 -
Description Downloads User manual Download Datasheet Download
