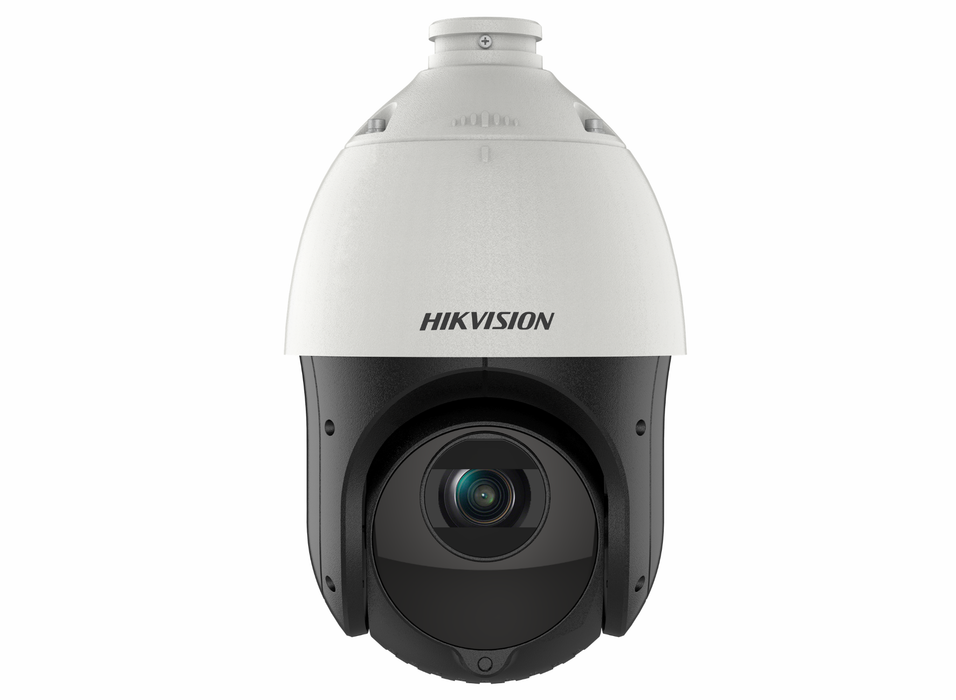

Hikvision DS-2DE4425IW-DE(T5) 4MP 25X AcuSense PTZ Camera with DarkFighter IR
SKU: 327000240
£375.29 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Hikvision 4MP PTZ Speed Dome with 25X Zoom & DarkFighter Night Vision
4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome
Focuses on human and vehicle targets classification based on deep learning
Support face capture. Up to 5 faces captured at the same time
1/2.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 100 m IR distance
Support H.265+/H.265 video compression
-
Image Sensor 1/2.8" progressive scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed 1 s to 1/30,000 s Day & Night IR cut filter Zoom 25x optical, 16x digital Slow Shutter yes Focal Length 4.8 mm to 120 mm FOV Horizontal field of view: 55° to 2.4° (wide-tele)
Vertical field of view: 33° to 1.4° (wide-tele)
Diagonal field of view: 61.5° to 2.8° (wide-tele)Focus Auto, semi-auto, manual Aperture Max. F1.6 Zoom Speed Approx. 3.6 s Supplement Light Type IR Supplement Light Range IR Distance: up to 100 m Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speed Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Proportional Pan Yes Presets 300 Preset Freezing yes Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning yes PTZ Status Display yes Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output Power-off Memory yes Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEGVideo Bit Rate 32 kbps to 16384 kbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream Audio Compression G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live View Up to 20 channels API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host Up to 32 users, 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, HikCentral Pro, Hik-Connect Web Browser Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11 Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB SNR > 52 dB Defog Digital defog Image Stabilization EIS Image Enhancement BLC, HLC, 3D DNR Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus Yes Regional Exposure Yes Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Audio Interface 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 ΩAlarm 1 input, 1 output SIFIRLA Yes Basic Event Motion detection, video tampering alarm, exception, alarm input and output Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Face Capture Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the facePerimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)Power 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
PoE (802.3at)Dimension Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42") Weight Approx. 2 kg (4.41 lb.) Material ADC12 Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Demist Yes EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection -
Description Downloads User manual Download Datasheet Download
