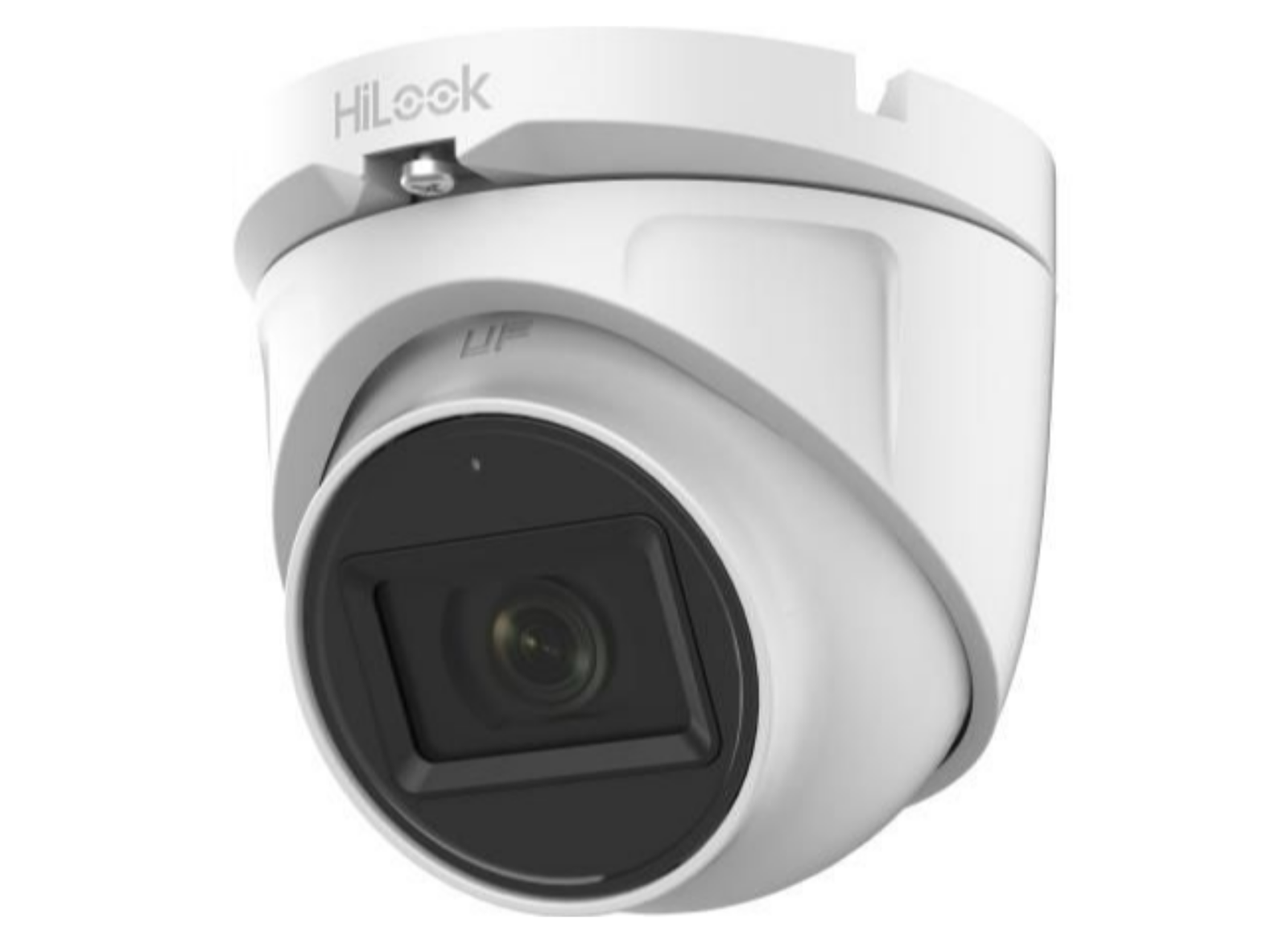

1080p turret camera
Smart IR, up to 20 m IR distanceWater resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together
| Image Sensor | 2 MP CMOS | Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR | Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter | Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC | Lens Type | Fixed focal lens, 2.8 mm optional Varifocal lens, motor-driven lens, 3.6 mm Varifocal lens, manual adjustment, 6 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° |
Lens Mount | M12 |
| Supplement Light Range | Up to 30 m | Smart Supplement Light | Yes |
| Image Parameters Switch | STD/HIGH-SAT | Image Settings | Brightness; Sharpness; Mirror; Smart IR; AGC |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range | Digital WDR | Image Enhancement | DWDR; BLC; HLC; Global |
| Noise Reduction | 2D DNR | White Balance | Auto/Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS | Built-in Microphone | Yes |
| Power | 12 VDC ± 25%, max. 3.7 W | Material | Metal |
| Dimension | 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12") | Weight | Approx. 292 g (0.64 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | Communication | HIKVISION-C |
| Language | English | Protection | IP66 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| Dimensions | Download |
