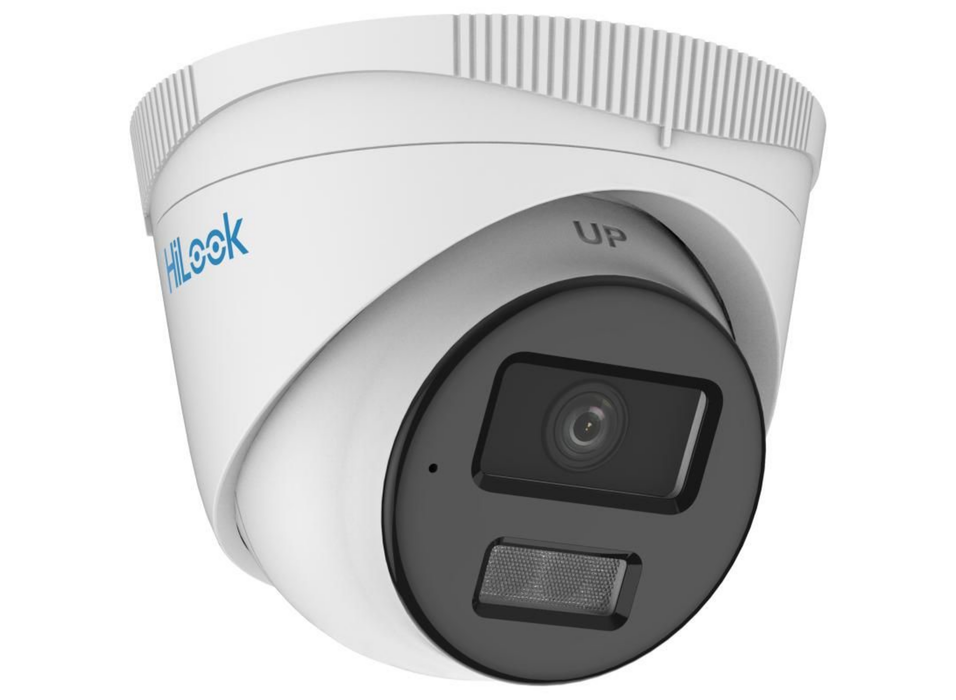

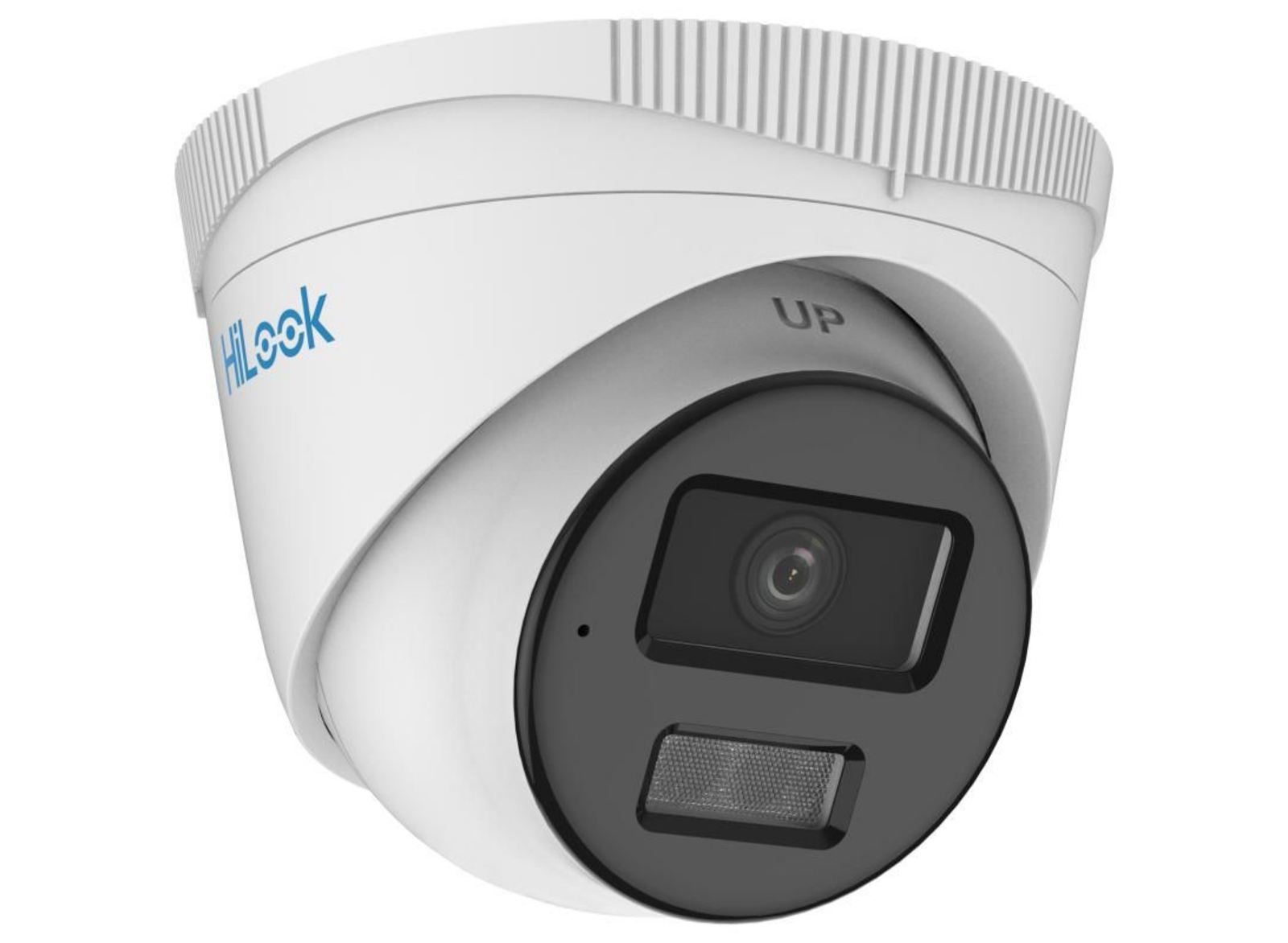

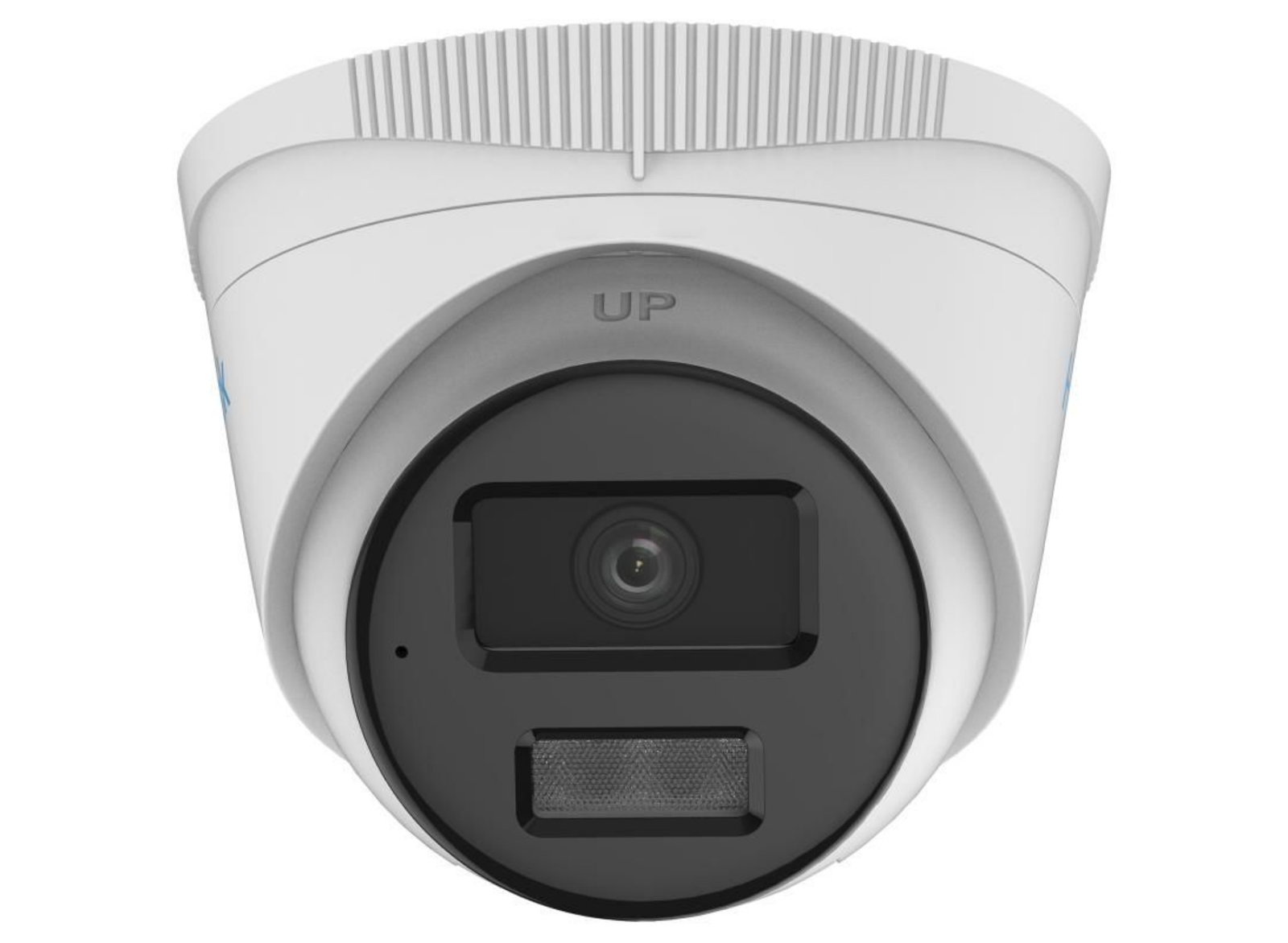

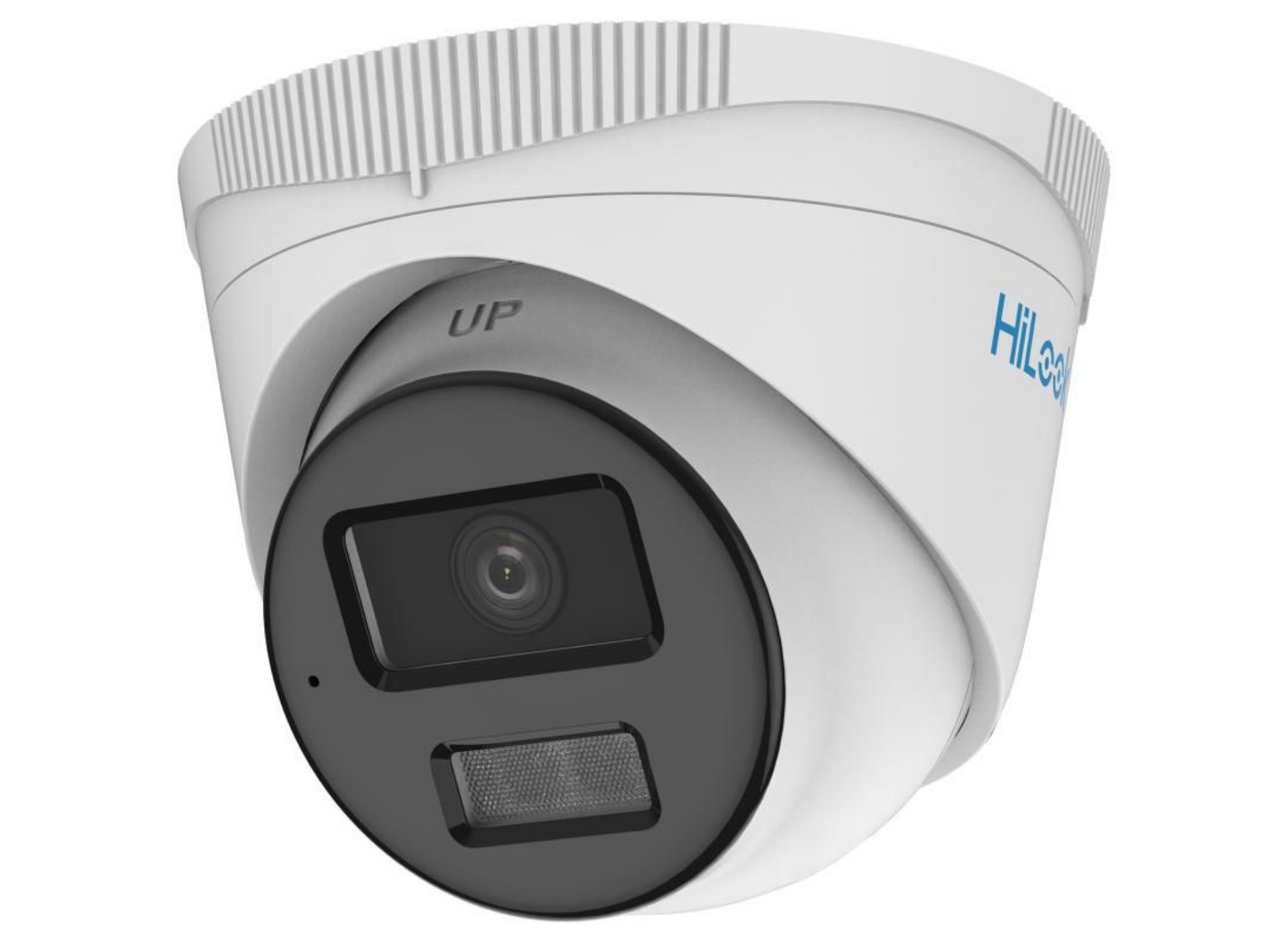

Hikvision HiLook 4MP Dome IP PoE Outdoor ColorVu Camera 2.8mm White | IPC-T249HA-LU-2.8MM
SKU: IPC-T249HA-LU-2.8MM
£66.10 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional AI Surveillance with Smart Hybrid Light
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
-
Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°Lens Mount M12 Iris Type Fixed Aperture F1.0 DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 mSupplement Light Type IR, White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEGVideo Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding H.264 and H.265 encoding Region of Interest 1 fixed region for main stream Audio Type Mono sound Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz Environment Noise Filtering Yes Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) User/Host Up to 32 users
3 user levels: administrator, operator, and userClient iVMS-4200, HiLookVision Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range 120 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR Privacy Mask 4 programmable polygon privacy masks Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in Microphone Yes Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Linkage Upload to FTP, notify surveillance center, send email, trigger capture Power 12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5 WMaterial Metal & Plastic Dimension Ø112 mm × 82 mm (Ø4.41" × 3.23") Package Dimension 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") Weight Approx. 375 g (0.8 lb.) With Package Weight Approx. 610 g (1.3 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat, anti-banding, mirror, password protection, password reset by email EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7Safety CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006Protection IP67: IEC 60529-2013 -
Description Downloads Datasheet Download User Manual Download Quick Start Guide Download Dimensions Download
