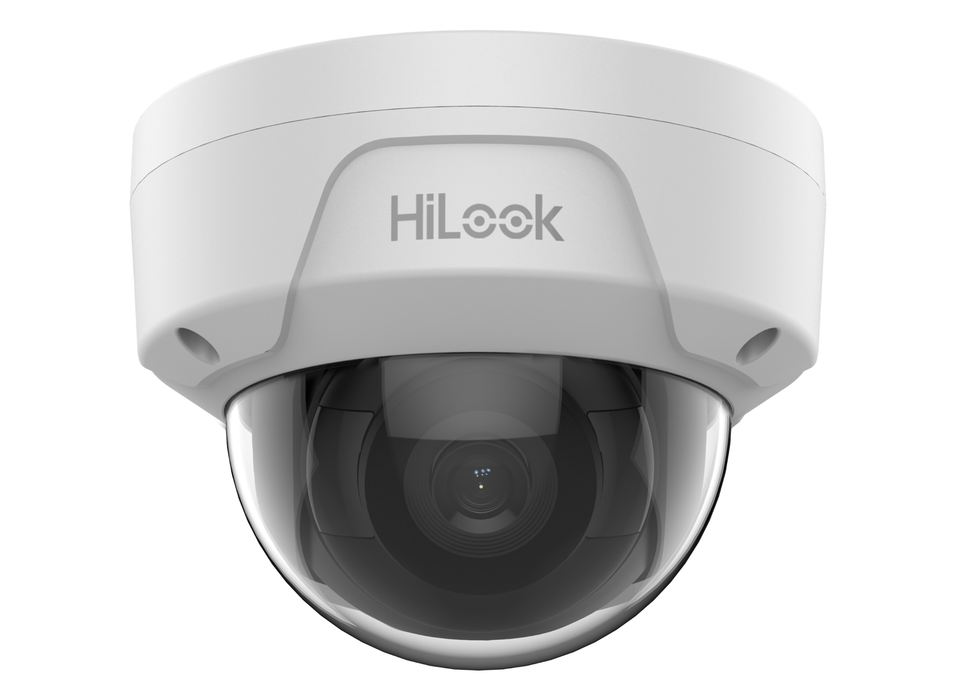

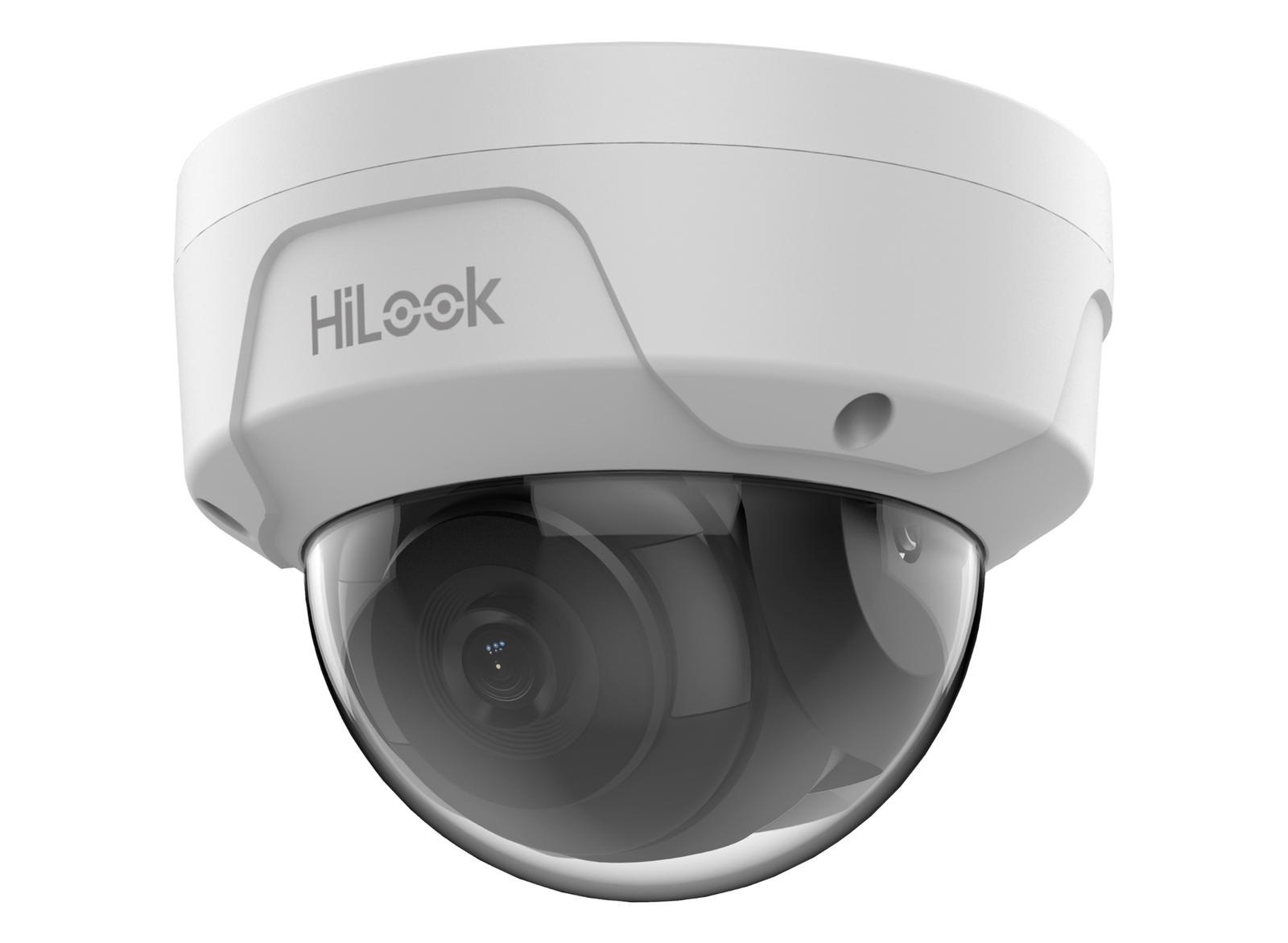

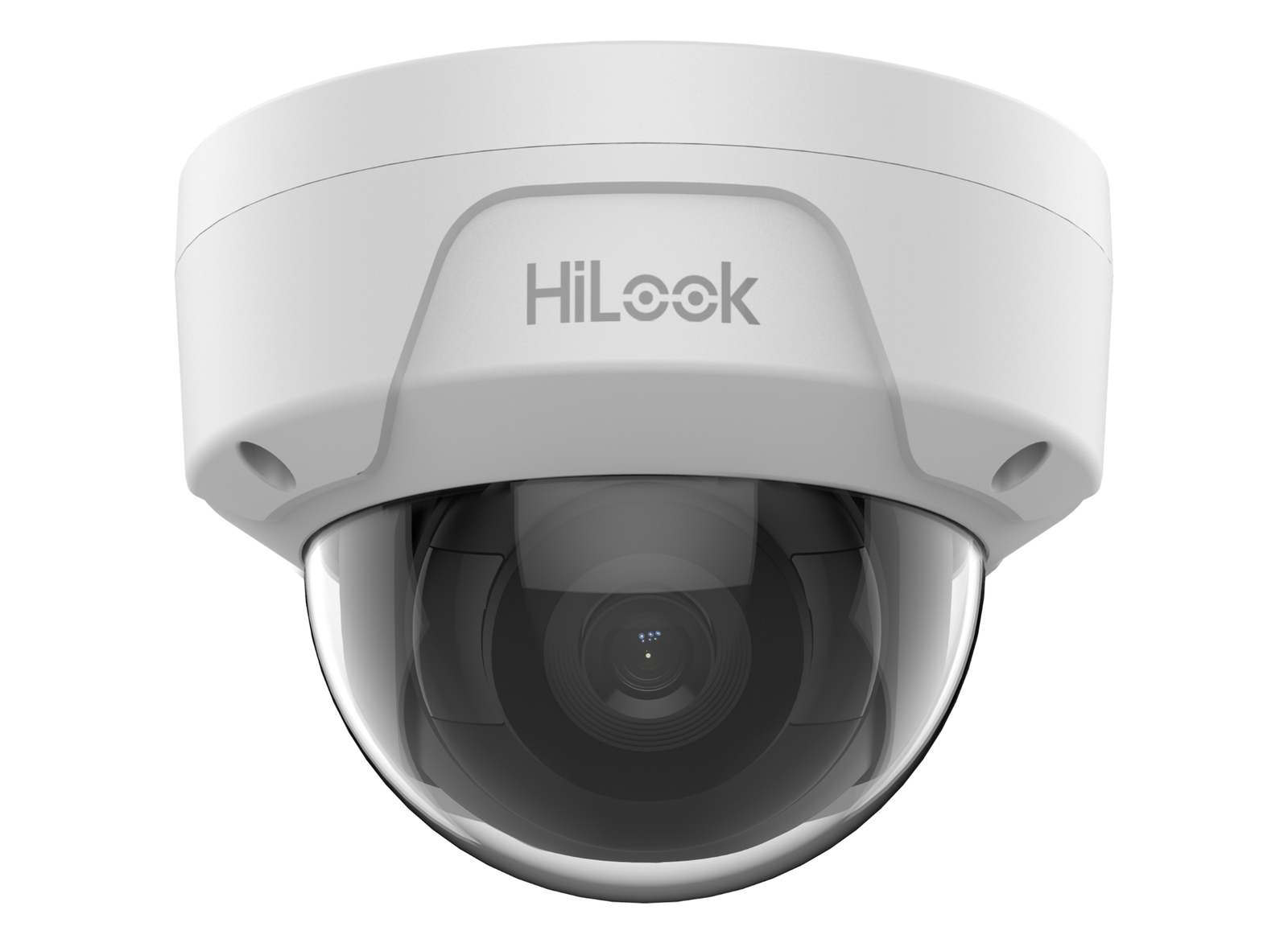

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Water and dust resistant (IP67) and vandal resistant (IK10)
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Easy installation with Power over Ethernet (PoE) technology
| Image Sensor | 1/3" Progressive Scan CMOS | Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR | Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter | Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | Focal Length & FOV | 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90° |
| Lens Mount | M12 | Iris Type | Fixed |
| Aperture | F2.0 | DORI | 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m |
| Supplement Light Type | IR | Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes | IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile | H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR | Region of Interest | 1 fixed region for main stream |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) | Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK | Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 levels: administrator, operator and user |
Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB | Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks | Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event | Motion detection (support alarm triggering by specified target types: human and vehicle), video tampering alarm, exception | Linkage | Upload to FTP, notify surveillance center, trigger capture, send email |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
Material | Metal & Plastic |
| Dimension | Ø110.8 mm × 84.7 mm (4.4" × 3.3") | Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 520 g (1.1 lb.) | With Package Weight | Approx. 720 g (1.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian | General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC | FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 |
Safety | CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
