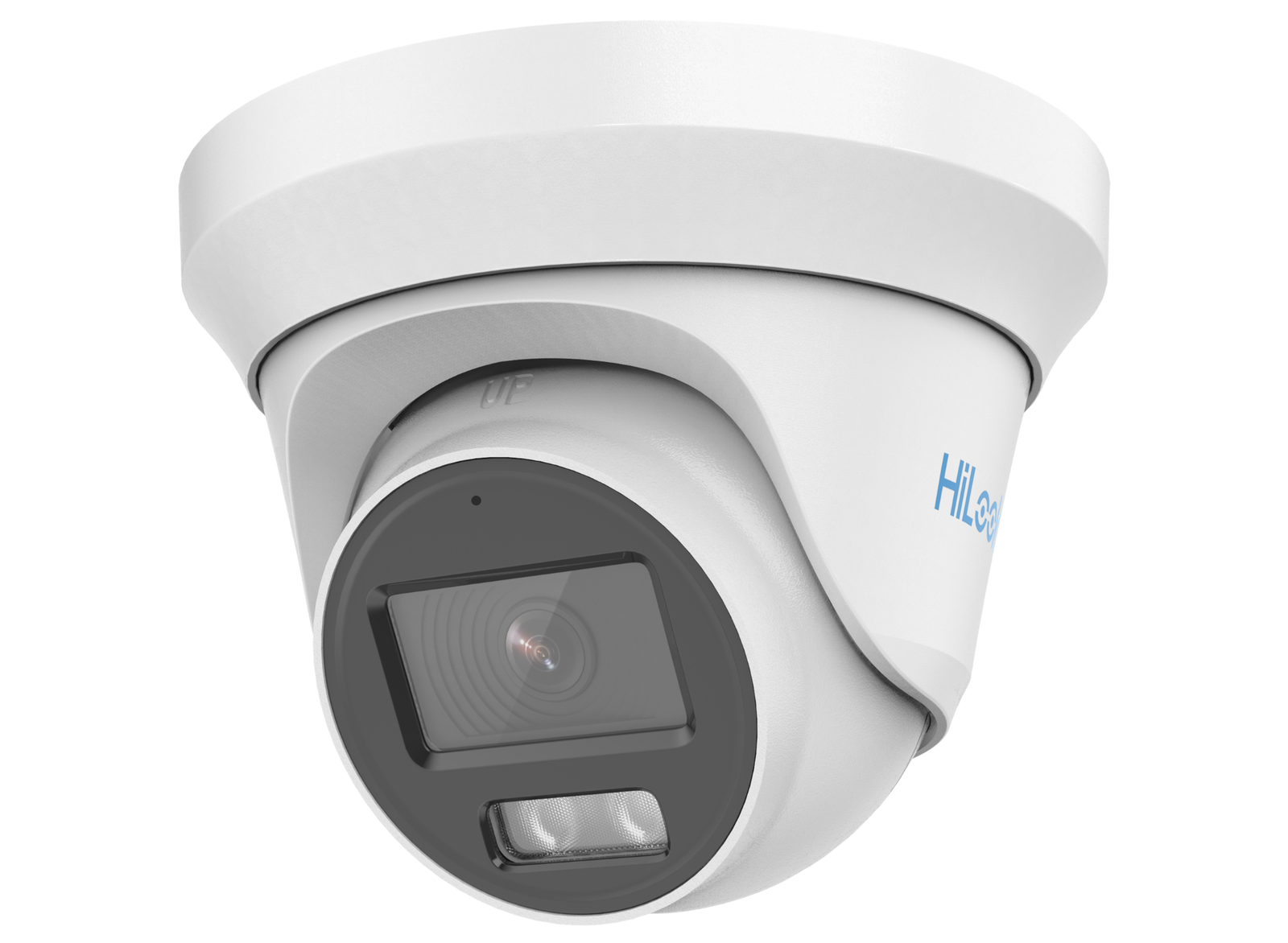

Official Partner
High quality imaging with 3K, 2960 × 1665 resolution
24/7 color imaging with F1.0 aperture
2.8mm fixed focal lens
Up to 40 m white light distance for bright night imaging
High quality audio with audio over coaxial cable
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
| Image Sensor | 3K CMOS | Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) | Frame Rate | TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light | Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm/3.6 mm fixed focal lens | Field of View | 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137° 3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108° |
| Lens Mount | M12 | Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | 24/7 Color Imaging | WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT | AGC | Yes |
| Day/Night Mode | Color | White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR; BLC; HLC; Global | Noise Reduction | 2D DNR |
| Language | English | Function | Brightness; Sharpness; Anti-Banding |
| Lighting Mode | White Light | Video Output | Switchable TVI/AHD/CVI/CVBS |
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) | Power Supply | 12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 4.2 W | Protection Level | IP66 |
| Material | Metal | White Light Range | Up to 40 m |
| Dimension | Φ 127.92 mm × 97.8 mm (Φ 5.04" × 3.86") | Weight | Approx. 480 g (1.06 lb.) |
| Description | Downloads |
|---|---|
| User Manual | Download |
| Dimensions | Download |
