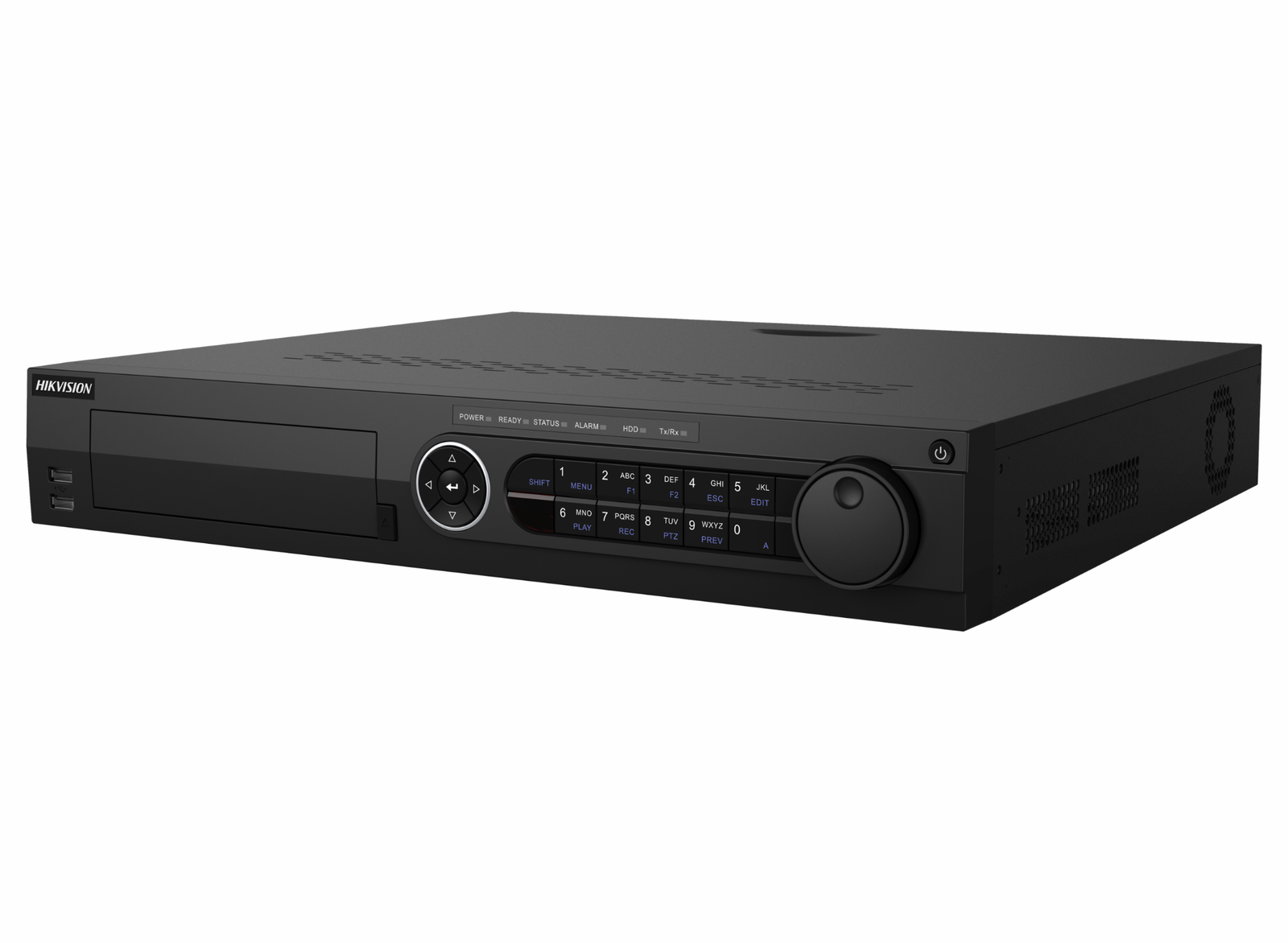

32-ch 5MP 1.5U H.265 AcuSense DVR
Deep learning-based perimeter protection
Deep learning-based motion detection 2.0 for all analog channels
Up to 32-ch analog camera inputs and 4 SATA interfaces
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 64-ch network camera inputs
POS triggered recording and POS information overlay
| Perimeter Protection | Human/Vehicle Analysis | Perimeter Protection Channels | Up to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only |
| Motion Detection 2.0 | Human/Vehicle Analysis | Motion Detection Details | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, classifies human and vehicle, and reduces false alarms caused by objects like leaves and lights |
| Quick Search | Quick search by object or event type is supported | IP Video Input | 32-ch (up to 64-ch); up to 12 MP resolution; supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 256Mbps | HDTVI Input | 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC | CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI 1 Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | HDMI 2 Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2 independent output | Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) |
| Synchronous Playback | 16-ch | VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | Encoding Resolution | 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Main Stream Frame Rate | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | Sub-Stream Frame Rate | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps | Dual-Stream | Support |
| Stream Type | Video, Video & Audio | Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps | Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP | Network Interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| SATA | 4 SATA interfaces | eSATA | Support |
| Capacity | Up to 12 TB capacity for each disk | Serial Interface | RS-232, RS-485 (full-duplex), Keyboard |
| Alarm In/Out | 16/4 | USB Interface | Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz | Consumption | ≤ 55 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) | Weight | ≤ 7 kg (without HDD, 15.4 lb.) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
