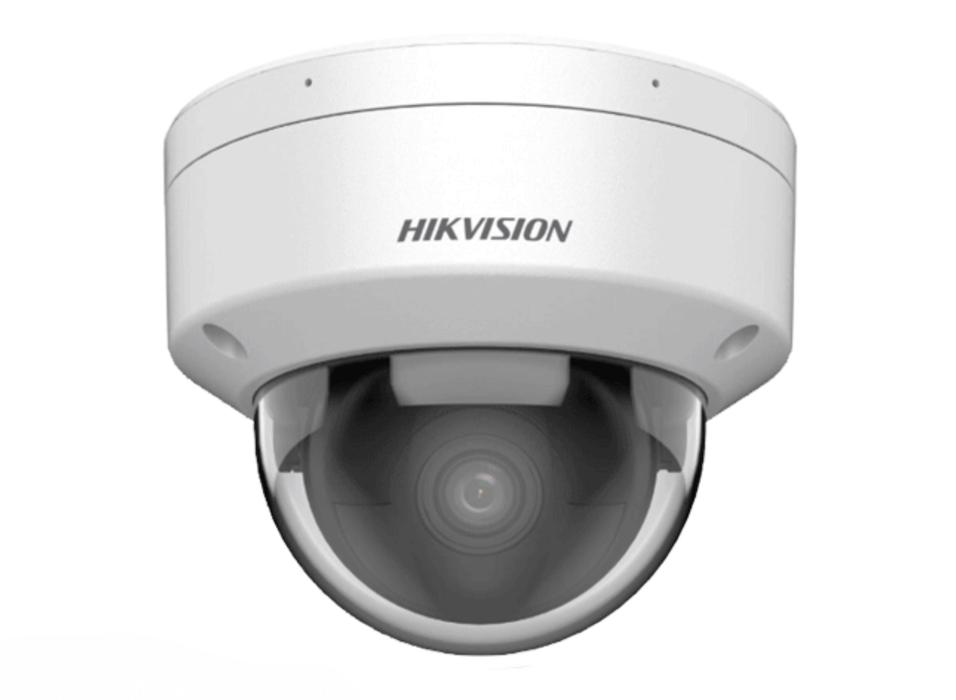

Hikvision 6MP DarkFighter AcuSense Vandal-Resistant Dome IP Camera with Built-in Mic, 2.8mm White | DS-2CD2166G2H-ISU-2.8MM-WHITE
SKU: DS-2CD2166G2H-ISU-2.8MM-WHITE
£139.96 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Advanced 6MP DarkFighter Dome Camera for 24/7 IP Surveillance
6 MP Powered by Darkfighter Fixed Dome Network Camera
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal-resistant (IK10)
-
Image Sensor 1/2.4" Progressive Scan CMOS Max. Resolution 3200 × 1800 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5°
4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth of Field 2.8 mm: 1.7 m to ∞
4 mm: 2.2 m to ∞DORI 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 mSupplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type -U: Mono sound Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering -U: Yes Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host Up to 32 users
3 user levels: administrator, operator, and userSecurity Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR SNR ≥ 52 dB Wide Dynamic Range (WDR) 120 dB Privacy Mask 4 programmable polygon privacy masks Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone -U: Yes Audio Interface -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key Yes Basic Event Motion detection (support alarm triggering by specified target types human and vehicle), video tampering alarm, exception Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email Smart Event Scene change detection Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggered by specified target types: human and vehiclePower 12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 9.5 WMaterial Base: aluminum alloy, cover: aluminum alloy Dimension Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") Package Dimension 150 mm × 150 mm × 142 mm (9.2" × 4.7" × 4.6") Weight Approx. 525 g (1.2 lb.) With Package Weight Approx. 750 g (1.7 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
RCM: AS/NZS CISPR 32: 2015Safety CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
LOA: IEC/EN 60950-1Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002 -
Description Downloads Datasheet Download User Manual Download
