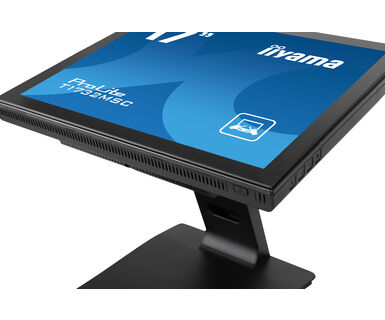

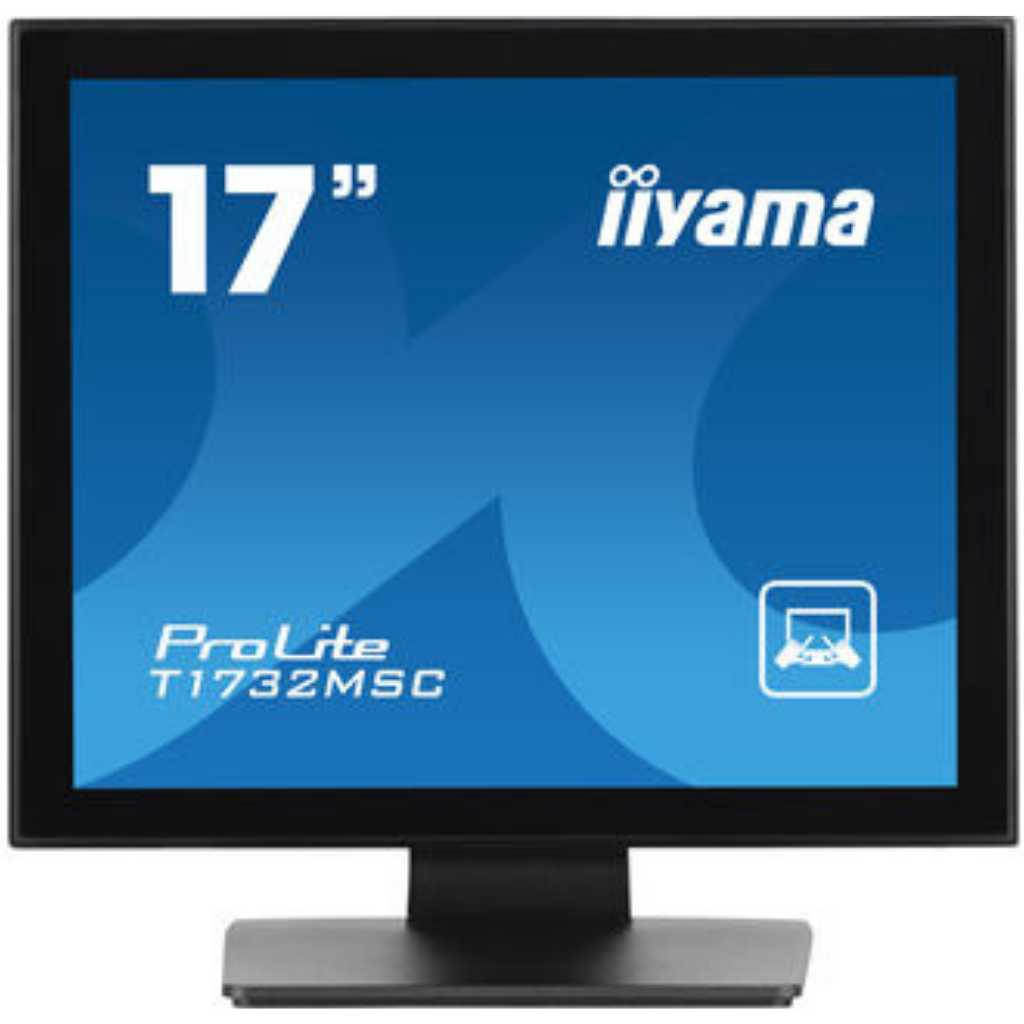

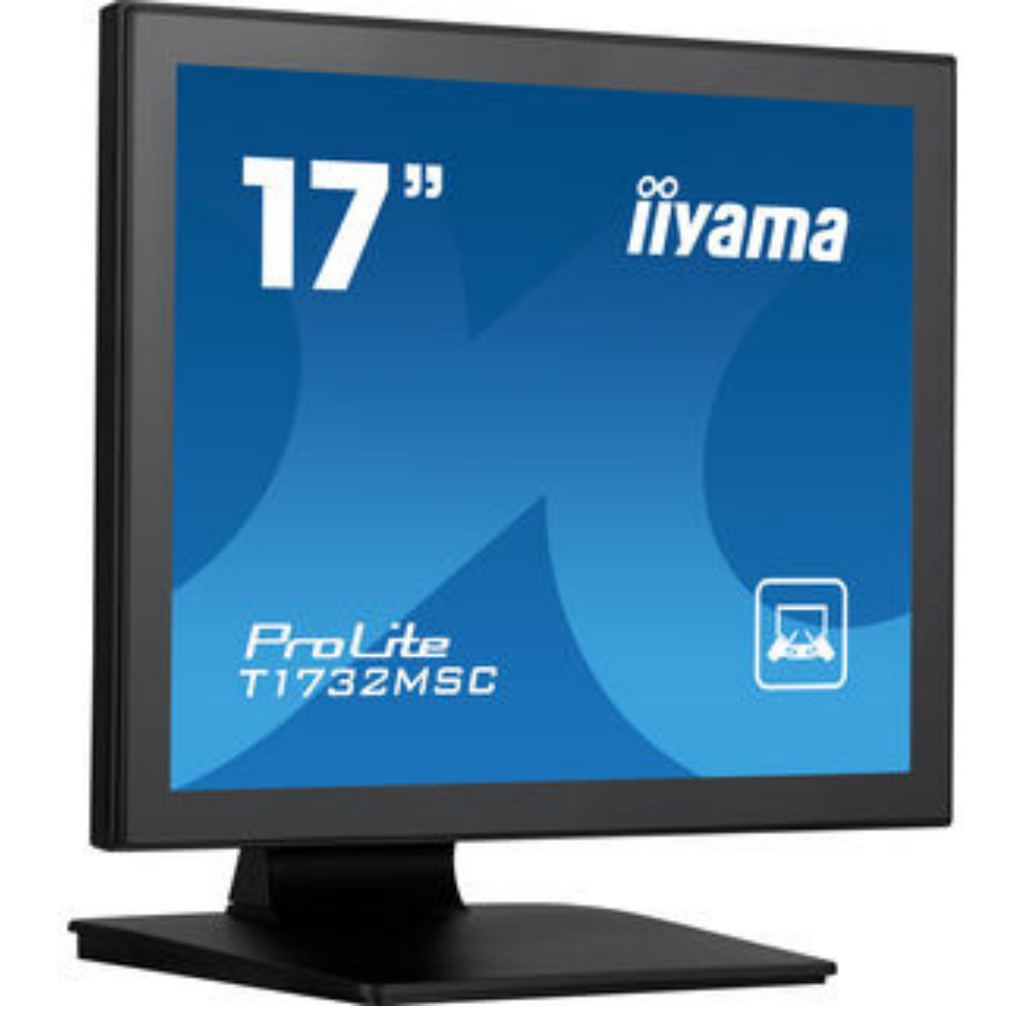

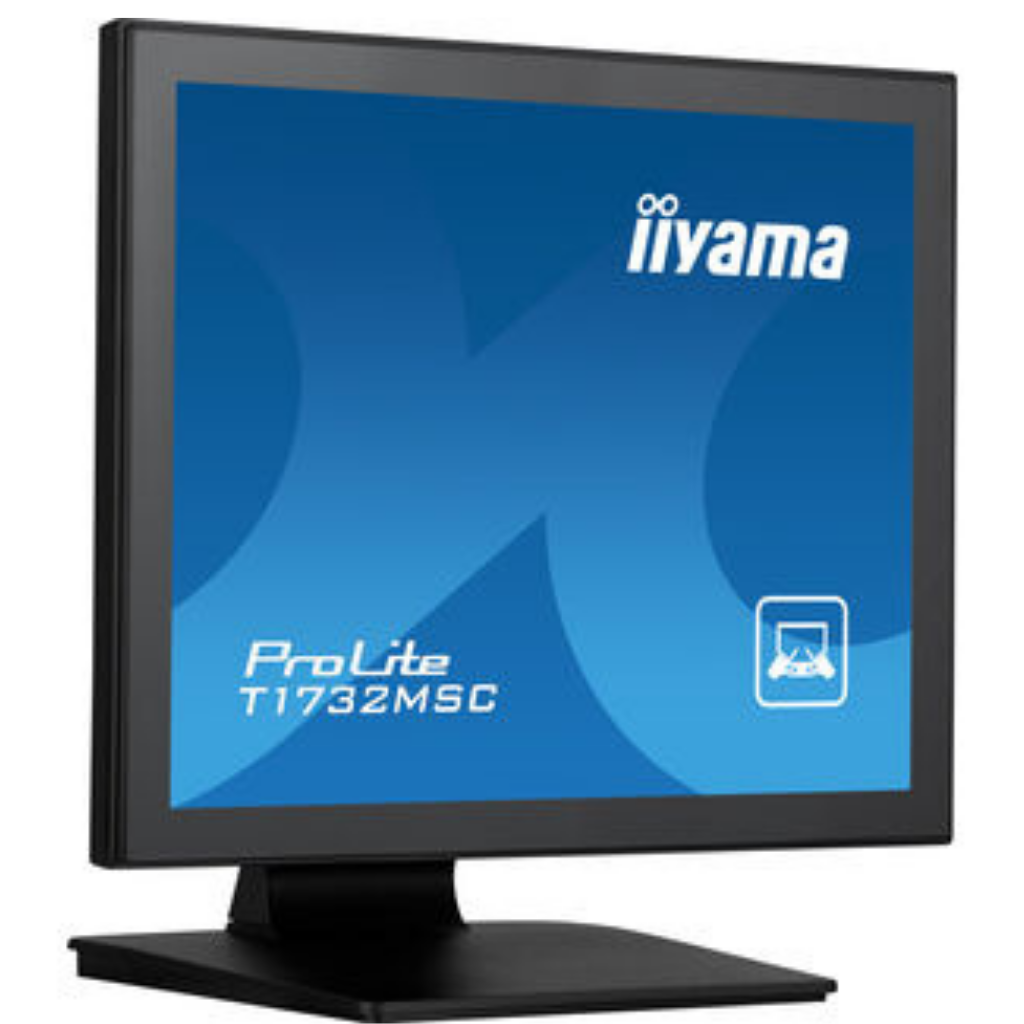

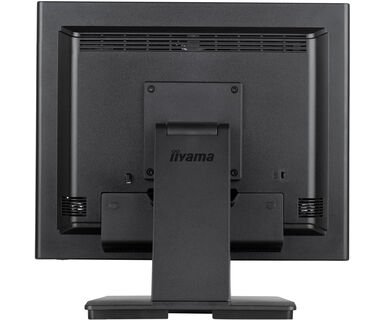

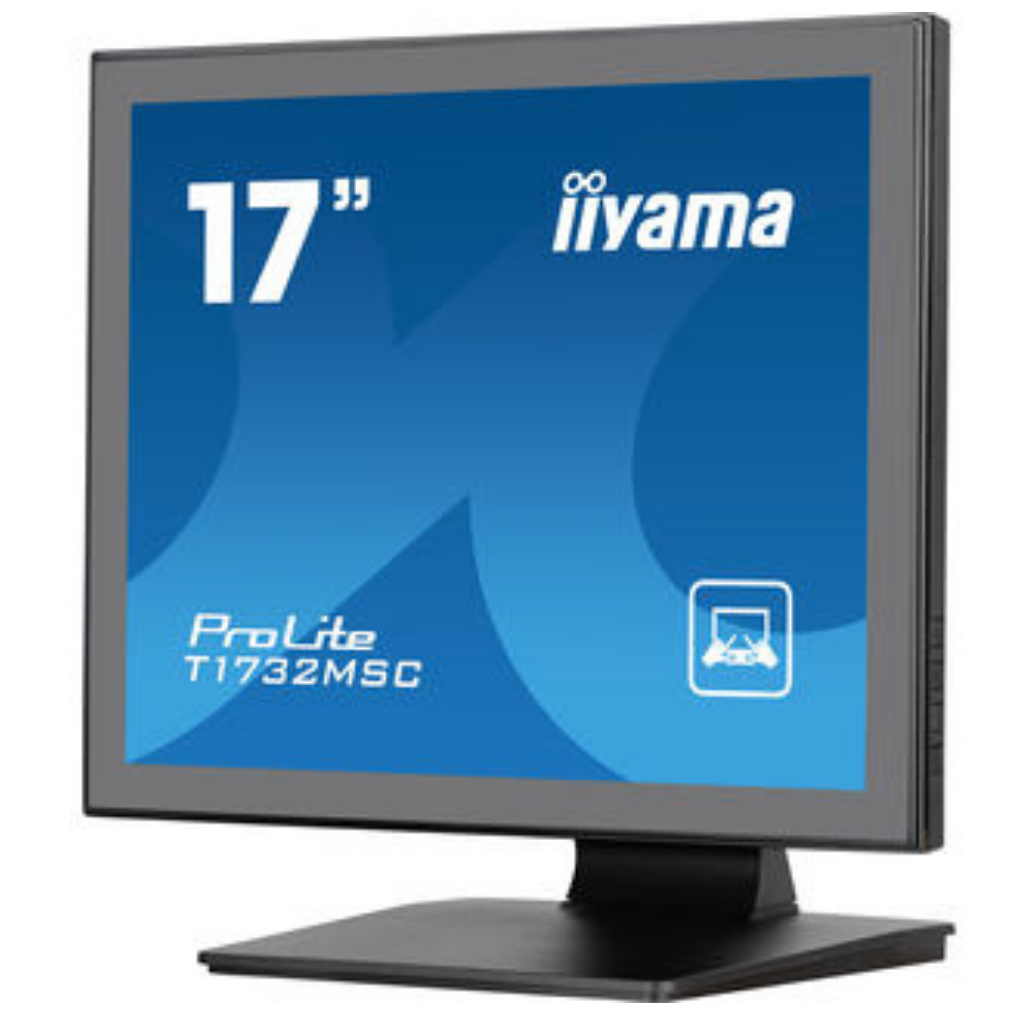

iiyama ProLite T1732MSC-B1S 17" Projective Capacitive 10pt Touchscreen Monitor

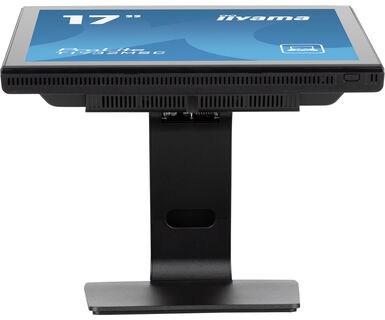

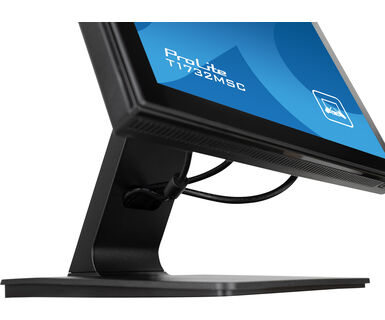

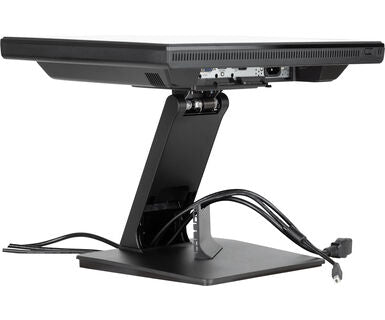

The T1732MSC-B1S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS
This LED monitor is equipped with two stereo speakers.

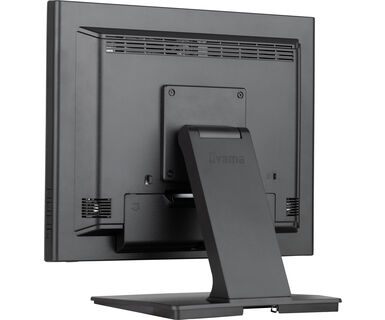

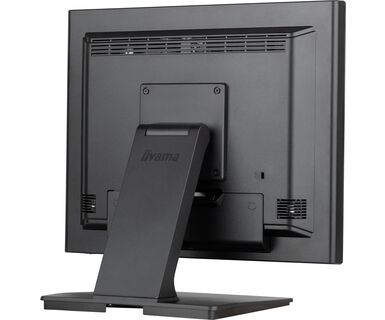

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

CATEGORY	SPECIFICATIONS
DISPLAY CHARACTERISTICS
Design	Edge to edge glass
Diagonal	17", 43cm
Panel	TN
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Panel brightness	250 cd/m²
Brightness	225 cd/m² with touch
Light transmittance	90%
Static contrast	1000:1 with touch
Response time (BTB)	5ms
Viewing zone	Horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support	16.7 million
Horizontal Sync	31 - 80kHz
Viewable area W x H	338 x 270.5mm, 13.3 x 10.6"
Pixel pitch	0.264mm
Bezel colour and finish	Black, matte
TOUCH
Touch technology	Projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	Stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
INTERFACES / CONNECTORS / CONTROLS
Analog signal input	VGA x1
Digital signal input	HDMI x1, DisplayPort x1
Audio input	Mini jack x1
Audio output	Speakers 2 x 1W
HDCP	Yes
FEATURES
Water and dust protection	IP54 (front)
OSD key lock	Yes
GENERAL
OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power
User controls	Contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience	Kensington-lock™ prepared
Plug&Play	DDC2B
MECHANICAL

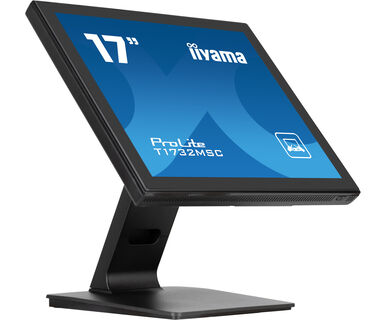

Tilt angle	90° up; 5° down
VESA mounting	100 x 100mm
Cable management system	Yes
ACCESSORIES INCLUDED
Cables	Power, USB, HDMI, Audio, DP
Guides	Quick start guide, safety guide
Cable cover	Yes
POWER MANAGEMENT
Power supply unit	Internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	20W typical, 1.5W standby, 0.3W off mode
SUSTAINABILITY
Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class	E
REACH SVHC	Above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D	387 x 378 x 240mm
Weight (without box)	4.9kg
EAN code	4948570122141

Warranty	Product	Cover
Visioncare	Desktop LCD products (Monitors) (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

HOW TO ACTIVATE YOUR WARRANTY

There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

Step one - Check that all connections have been properly made.

Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

* Proof of purchase may be required
