LG 86BH5F 2.18 m (86") IPS 500 cd/m² Ultra Stretch Signage Display
SKU: 86BH5F
£3,226.96 (Excl. VAT)
- Description
- Specifications
- Downloads
-

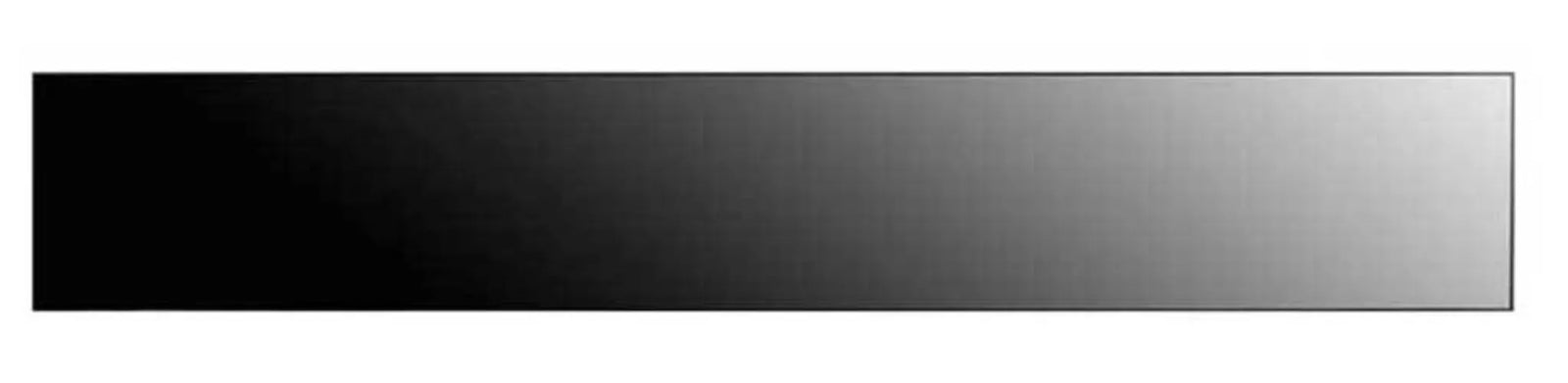

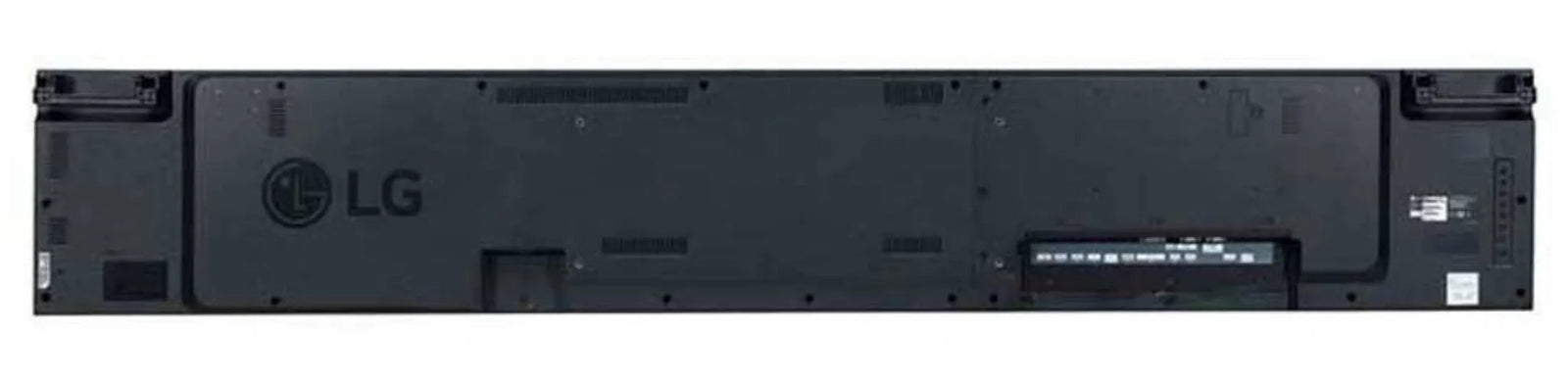

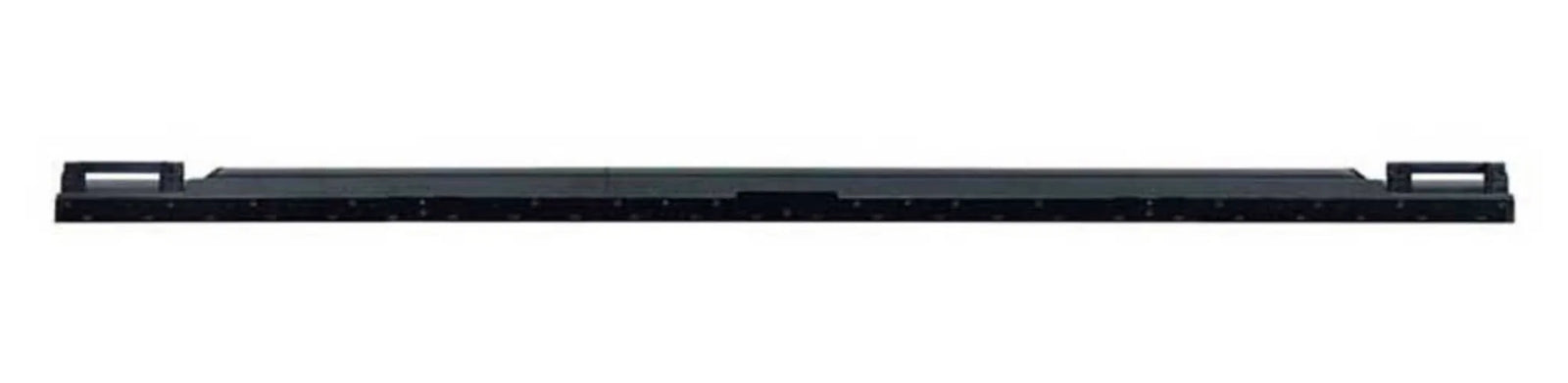

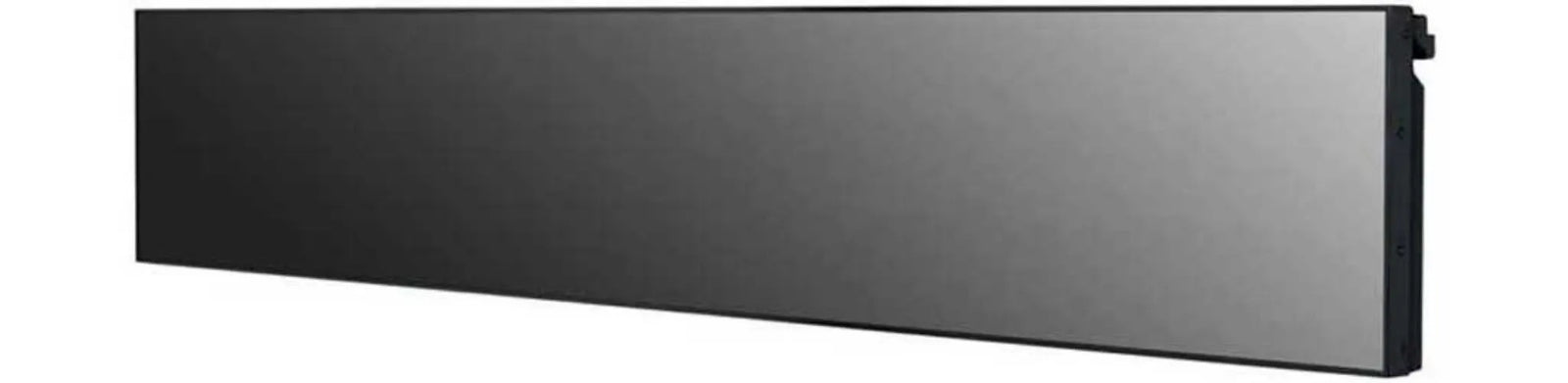

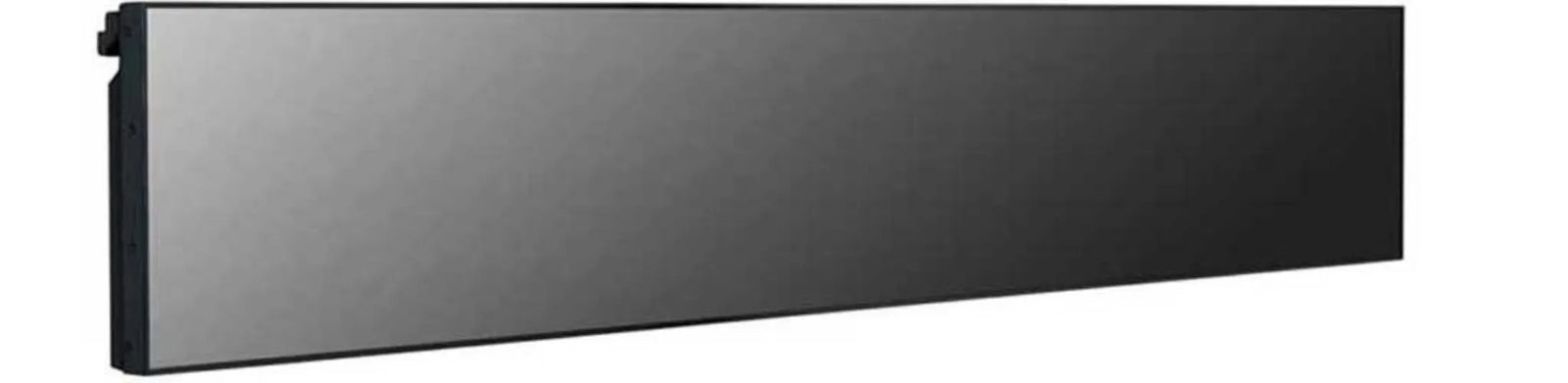

LG 86BH5F 2.18 m (86") IPS 500 cd/m² Ultra Stretch Signage Display
Product Overview
Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
Extraordinary Viewing Experience
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 32:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colours and clear images.
Effective Content Delivery
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
Operational Efficiency
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with Signage365Care
Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses. -
Category Description General Product Type LED-backlit LCD flat panel display Energy Class Class G Power Consumption Operational 240 Watt Power Consumption (On mode) 142.6 W Power Consumption SDR (On mode) 142.6 kWh/1000h Energy Consumption per Year 208 kWh Diagonal Class 86" Commercial Use Yes - digital signage Platform webOS Video Processor Quad-Core TV Tuner No tuner TV Tuner Presence No Sensors Temperature sensor, auto brightness sensor Video Interface HDMI HDMI Ports Qty 3 ports PC Interface DVI, DisplayPort Modes Portrait mode, landscape mode, Tile Mode Protection Dustproof Dimensions Without stand Width 215.83 cm Depth 8.17 cm Height 34.85 cm Weight 20.5 kg Enclosure Colour Black Display LCD Display Technology IPS Resolution 3840 x 600 Image Aspect Ratio 58:9 LCD Backlight Technology LED backlight Image Contrast Ratio 1100:1 Brightness 500 cd/m² Viewing Angle 178 degrees Viewing Angle (Vertical) 178 degrees Response Time 8 ms Backlight Life 50,000 hour(s) Commercial Features Local Contents Scheduling, Sync Mode, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), FailOver Settings Cloning Capability Yes Operation Hours / Days 24 / 7 Features Crestron Connected Compatible, Daisy Chain, picture by picture (no tuner) Video Wall Max Number of Screens 225 Stands & Mounts Flat Panel Mount Interface 600 x 200 mm VESA Compatibility Yes Media Player USB Port Yes USB Ports Qty 1 Configuration 8 GB Storage Drive Capacity 8 GB Remote Control Type Remote control Network & Internet Multimedia Connectivity Wi-Fi, LAN Connections Connector Type Audio line-in, Audio line-out, DisplayPort output, DisplayPort input, DVI-D input, 3 x HDMI input, Infrared (IrDA), USB 2.0, RS-232C input, RS-232C output, 2 x LAN Miscellaneous Included Accessories Infrared / light sensor receiver Cables Included DisplayPort cable, Serial cable Compliant Standards Plug and Play, FCC Class A certified, CB, EMC, KC, NRTL, IP5X Power Power Device Power supply Input Voltage AC 120/230 V (50/60 Hz) Power Consumption Stand by 0.5 Watt Features Smart energy saving, WOL (Wake on LAN) Dimensions & Weight (Shipping) Width (Shipping) 229 cm Depth (Shipping) 22.8 cm Height (Shipping) 59.9 cm Weight (Shipping) 38.2 kg Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 40 °C Humidity Range Operating 10 - 80% -
Description Downloads LG 86BH5F 2.18 m (86") IPS 500 cd/m² Digital Signage Display DataSheet Downloads LG 86BH5F 2.18 m (86") IPS 500 cd/m² Digital Signage Display User Manual Downloads
