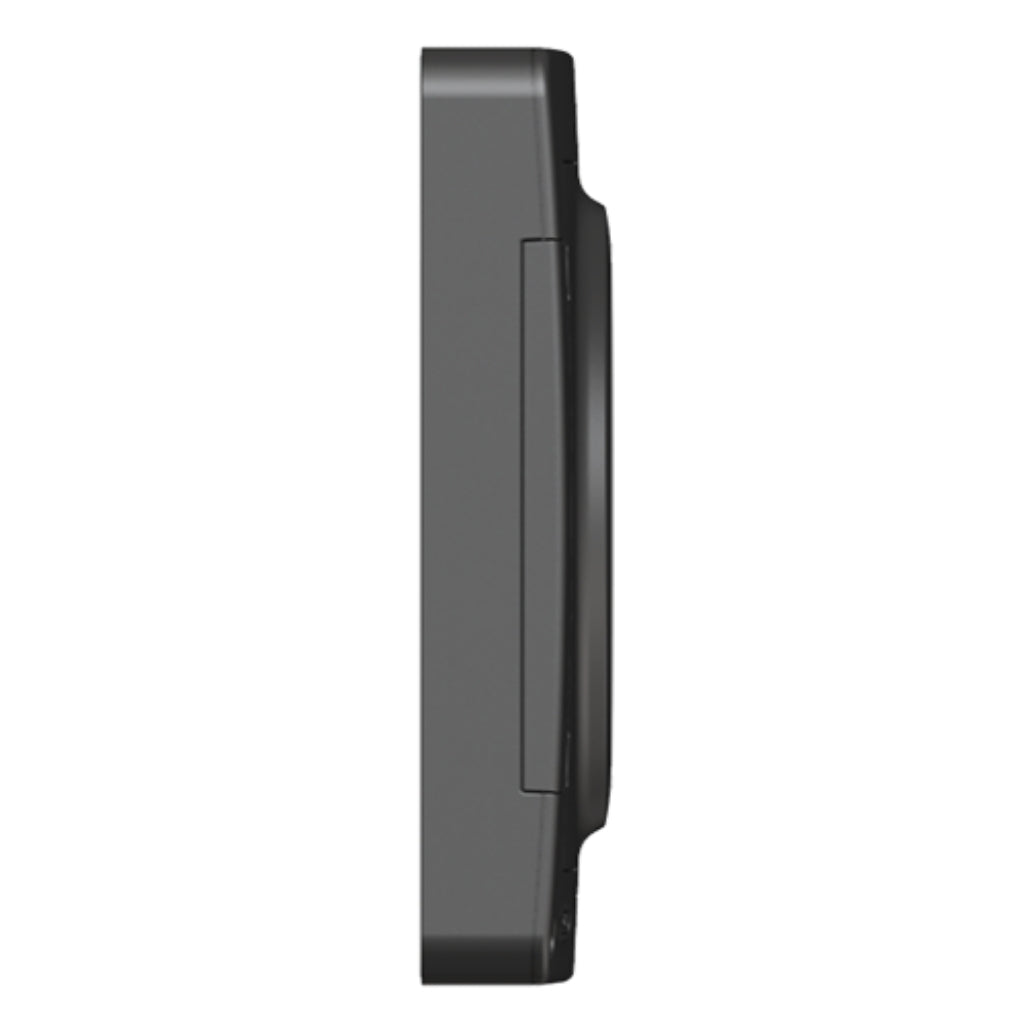

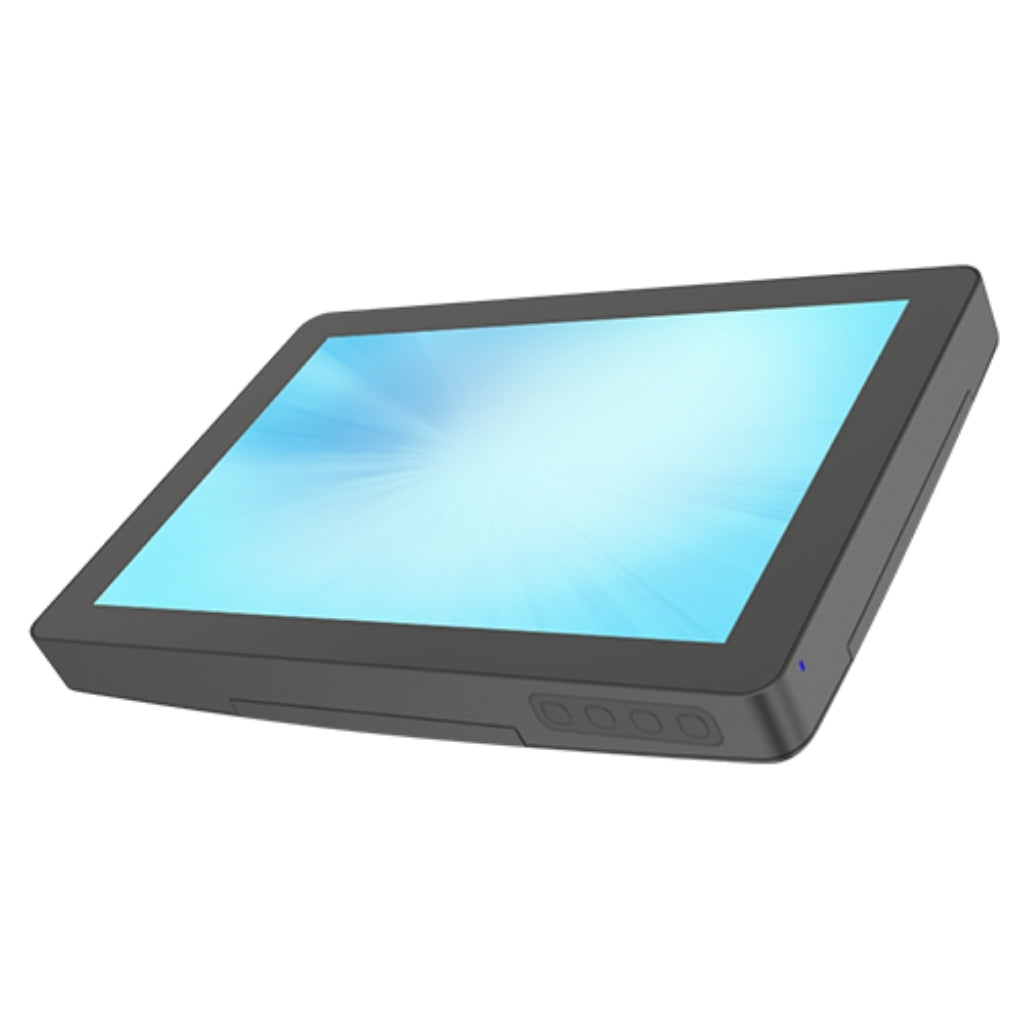

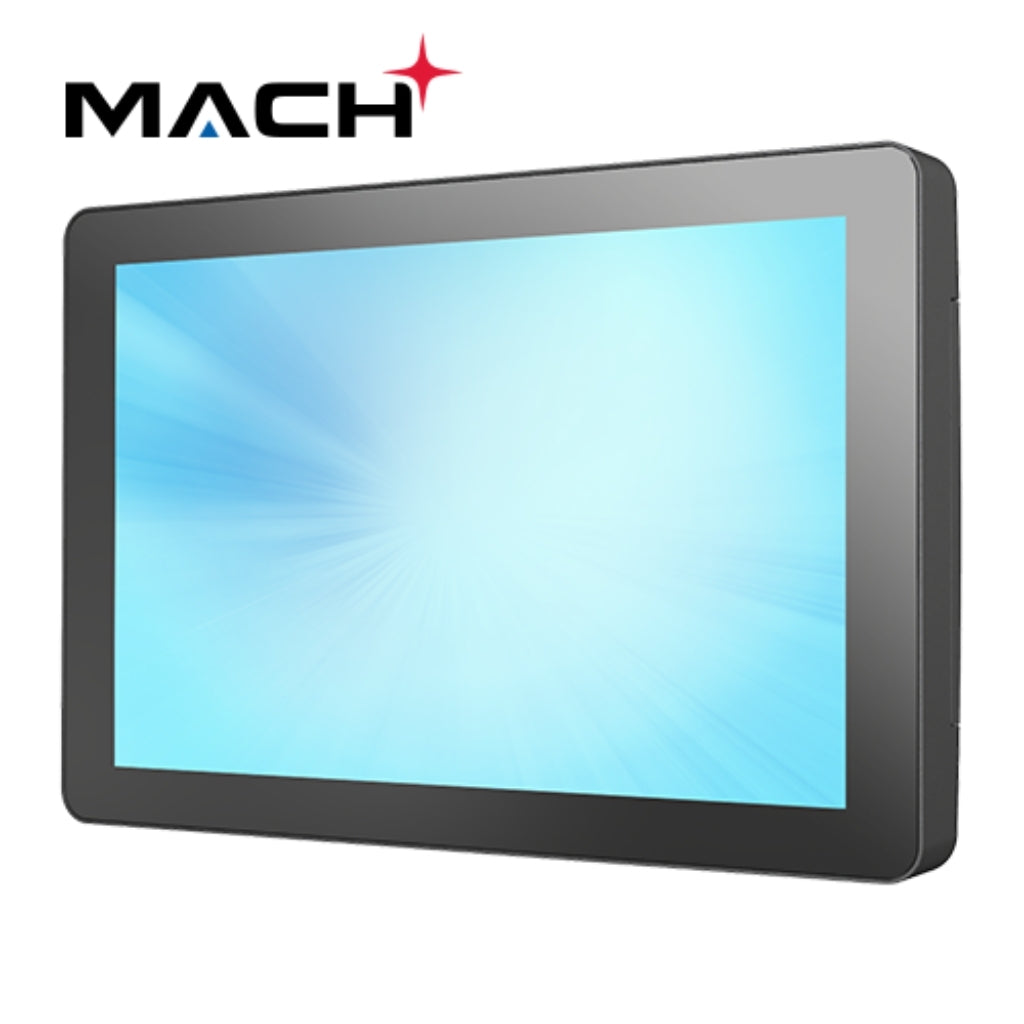

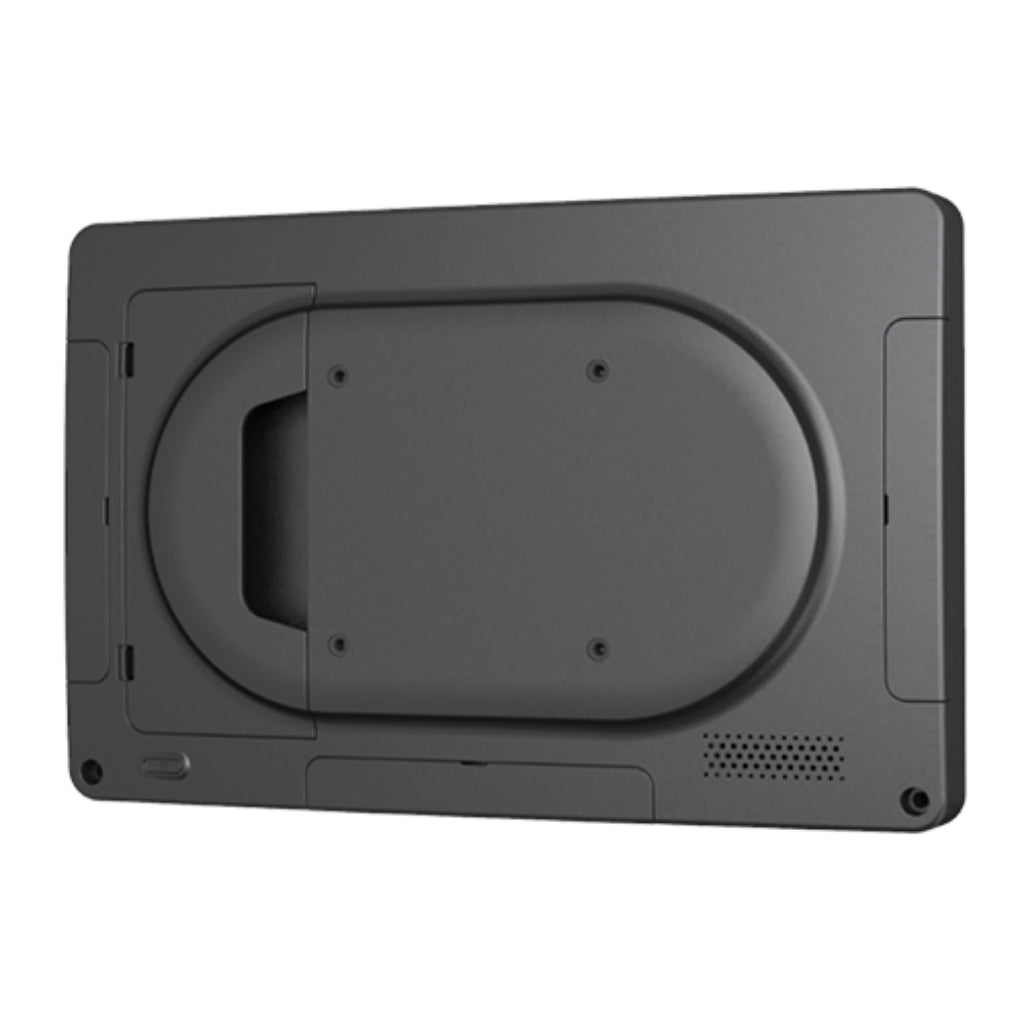

The new M1-101DT-A2 10.1″ desktop touch monitor is designed to bridge the gap between consumer aesthetics and the next generation of interactive commercial technologies. Engineered for durability and performance, the M1-101DT-A2 features an optically bonded touch screen. This drives industry leading optical clarity, picture quality and touch targeting while increasing durability. With our advanced etched anti-glare process, customers benefit from improved light dispersion and wear overtime. Ranging from bright retail environments to harsh industrial applications, this display has the versatility and performance that sets the standard. Featuring 3 x USB-C peripheral connections and a versatile I/O design, this display is a perfect fit for a variety of applications.
| Size | 10.1" TFT LCD | Maximum Resolution | 1280 × 800 |
| Contrast Ratio | 1000:1 | Aspect Ratio | 16:10 |
| Brightness | 350 nits (No Touch), 290 nits (P-CAP) | View Angle | H:160°, V:160° |
| Video Port | HDMI, USB-C | Warranty | 3 year |
| Touch Screen | Projected Capacitive | Touch Points | 10 |
| Touch Screen Interface | USB-HID | Display Surface | 7H Hardness Durable Glass |
| USB Port | 2 × USB-C (ALT Mode for DP), 3 × USB-C (Peripheral), 1 × USB-A | Video Port (I/O) | HDMI, USB-C |
| Audio Port | 1 × 3.5 mm Mini-Jack (Audio Input) | Power Input | 1 × DC In 12V Jack Power Input |
| Power Supply | 36W (12V, 3A) External Power Adaptor | Speaker | 2 × 2W Stereo |
| Housing Color | Black | Material | Plastic, Glass, SECC Metal |
| Compliance | IP65 – Front Only | Dimensions (W × H × D) | 255.8 × 169.4 × 34.5 mm (monitor only) |
| Net Weight | 0.95 kg (monitor only) | Gross Weight | 1 kg |
| Carton (W × H × D) | 320 × 265 × 120 mm (monitor only) | VESA Mount | 75 × 75 mm |
| Certifications | CE, FCC, UL, CB, UKCA | Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH (Non-Condensing) |
| Storage Temperature | -20°C ~ 60°C, 10% ~ 90% RH (Non-Condensing) | MSR | MA-MSR-A1 |
| Camera | MA-CAM-A1 | Light Bar | MA-LBAR-A1 |
| Bar Code Scanner | MA-SCAN-A1 | Video Port (Main Spec) | HDMI, USB-C |
| Description | Downloads |
|---|---|
| MicroTouch 10.1" TFT LCD Desktop Touch Monitor | M1-101DT-A2 DataSheet | Download |
