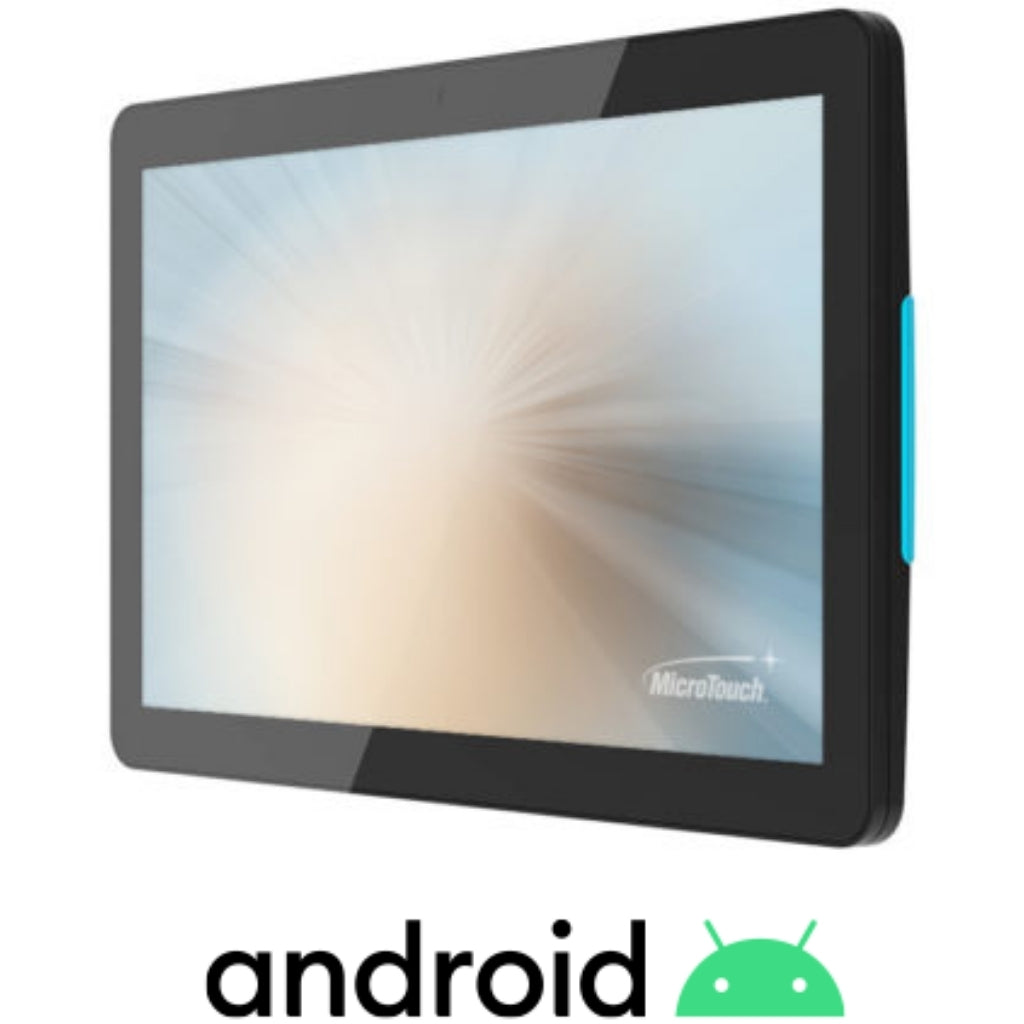

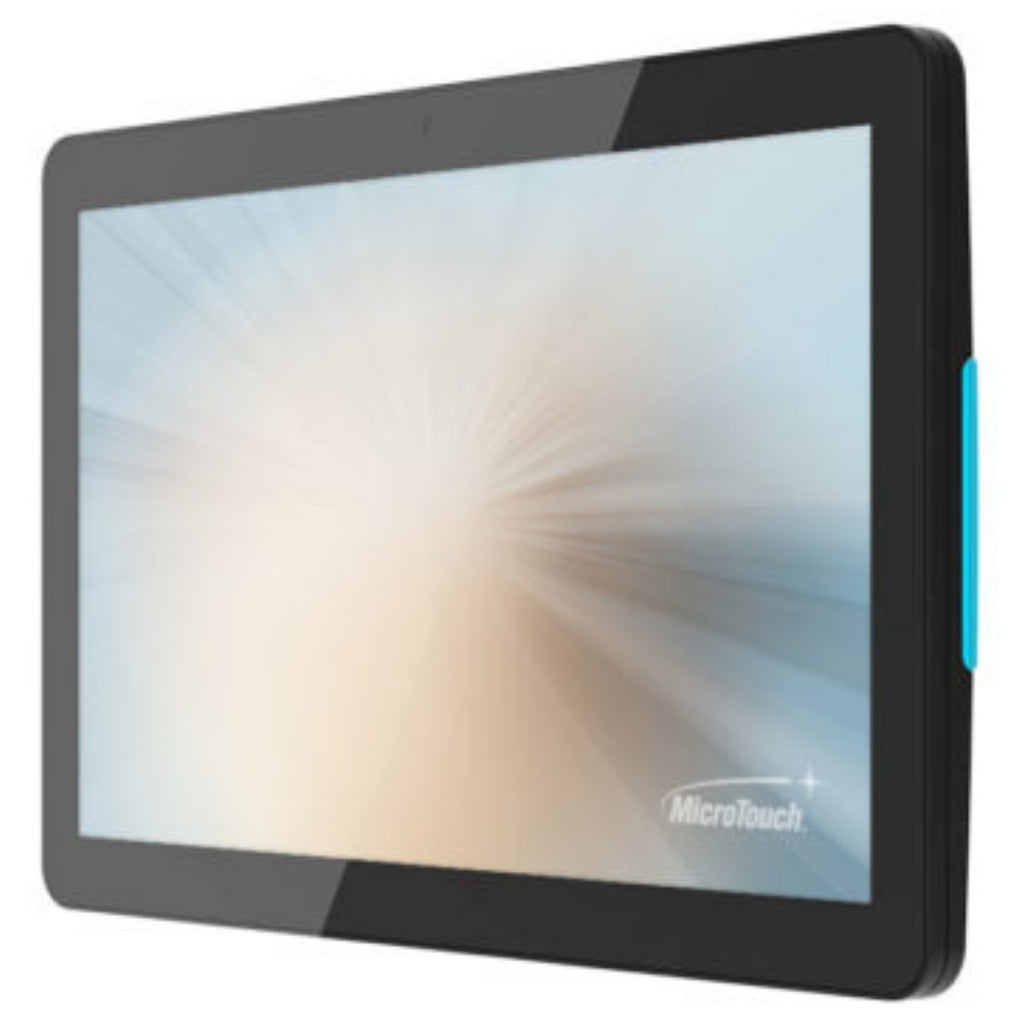

The 10.1″, IC-100P-AA1, equipped with Rockchip’s high-performance Quad-core Cortex-A17 is dynamic and light-scale. The ultra-modern design, embedded SoC architecture, wide format, and optional PoE versatility make this a seamless fit for many applications. From corporate room scheduling to self-service engagement, the IC-100P-AA1 will meet your needs of computing efficiency, design, and functionality.
| Size | 10.1” TFT LCD | Processor | Rockchip RK-3288, Quad-core Cortex-A17 up to 1.8GHz |
| Maximum Resolution | 1280 x 800 | Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:10 | Brightness | 450 nits (No Touch), 382 nits (P-CAP) |
| View Angle | H:160˚, V:160˚ | Video Port | 1 x HDMI Type-C (Mini HDMI), 1 x USB 2.0 Type A, 1 x USB 2.0 Type C (OTG support), 1 x RJ45 Giga LAN, PoE 48V/56V support |
| Warranty | 3 year | GPU | Mali-T760 MP4 |
| System Memory | 2GB DDR3 | Storage Device | 16GB eMMC |
| Wi-Fi & Bluetooth | 802.11 a/b/g/n, Bluetooth 4.0 (Support BLE) | GPS | Enabled |
| NFC | MILFARE Classic/DESFire/NTAG/ultralight/CPU card 13.56Mhz, 125KHz | Camera | Fixed Focus 2M Pixel Front Camera |
| Touch Screen | Projected Capacitive Touch, 10 Points | Display Surface | 7H Hardness Durable Glass |

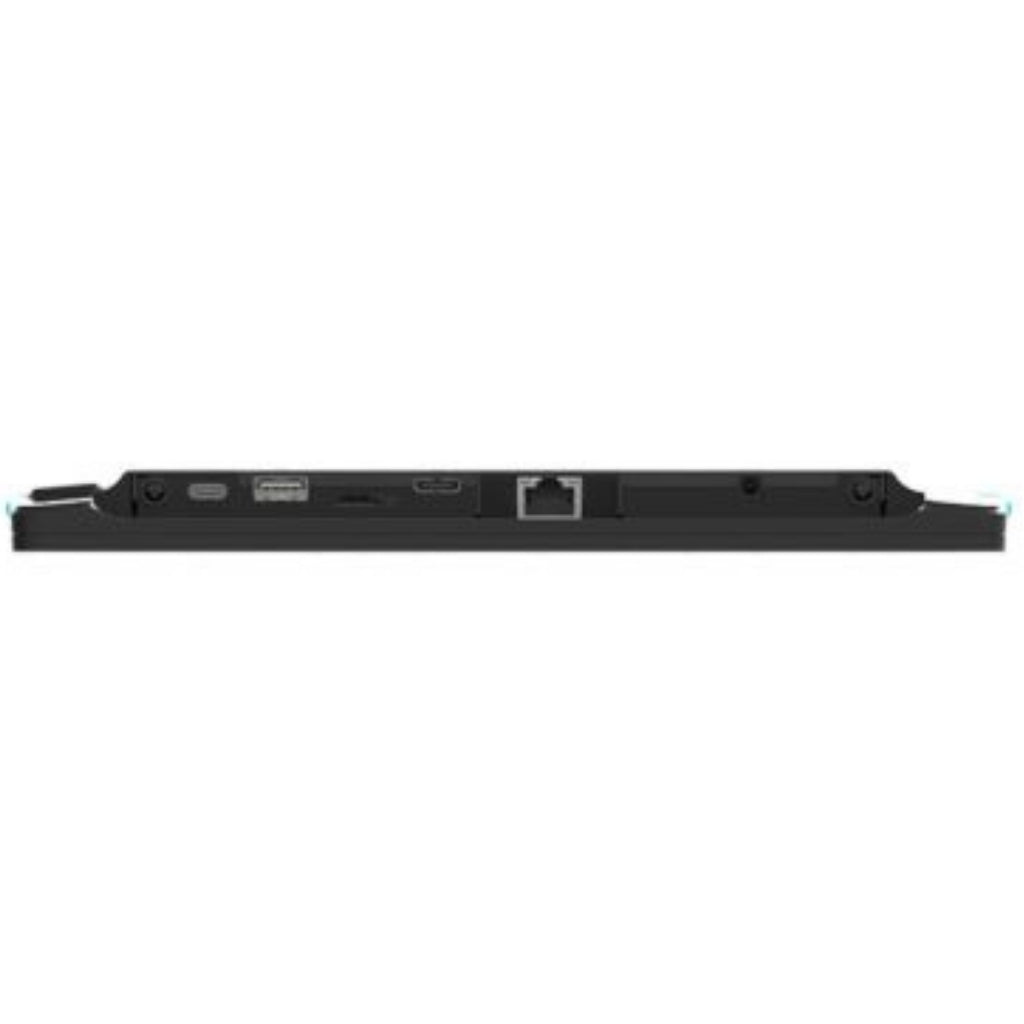

| Serial Port | – | USB Port | 1 x USB 2.0 Type A, 1 x USB 2.0 Type C (OTG support) |
| LAN Port | 1 x RJ45 Giga LAN, PoE 48V/56V support | Power Input | 1 x DC in 12V/2A 2 pin |
| SD Slot | 1 x Micro SD Slot (SDHC 2.0 support) | OS | Android 8.1 with GMS |
| Speaker | 1 x 2W | Light Bar | 2 x Multi-Color LED Light Bar |
| Housing Color | Dark Gray | Material | Plastic + Glass + SECC Metal |
| Dimensions (W x H x D) mm | 247.4 x 170.5 x 25.7 mm | Net Weight (kg) | 0.94 kg |
| Gross Weight (kg) | 6.80 kg (5 in 1 carton) | Carton (W x H x D) mm | 320 x 265 x 87 mm |
| VESA | 75 x 75 mm | Certifications | CE, FCC, LVD, RoHs |
| Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing | Storage Temperature | -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing |

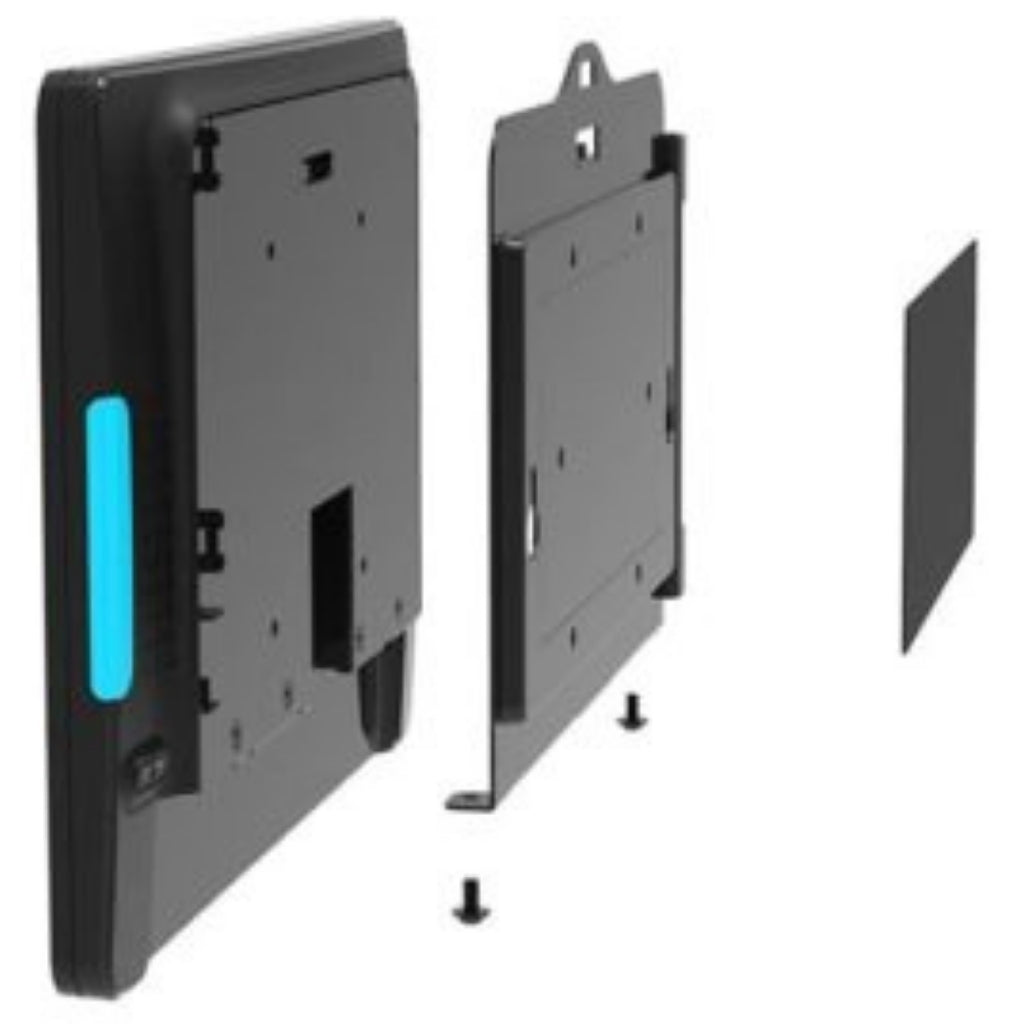

| Box Contents | Touch Computer, DC Power Supply, Screw & IO Cover, Wall Mount Kit | Optional Peripheral | N/A |
| Optional/Replacement Accessories | Adapter 12V 24W E99-ABL024F-A064 UL CWT: PS-3316002403F0, Adapter 12V 24W E99-ABL024F-B045 EU CWT: EPS-3316002402F0 | ||
| Description | Downloads |
|---|---|
| MicroTouch 10.1" TFT LCD Android Touch Panel PC | IC-100P-AA1 DataSheet | Download |
| MicroTouch 10.1" TFT LCD Android Touch Panel PC | IC-100P-AA1 User Manual | Download |
