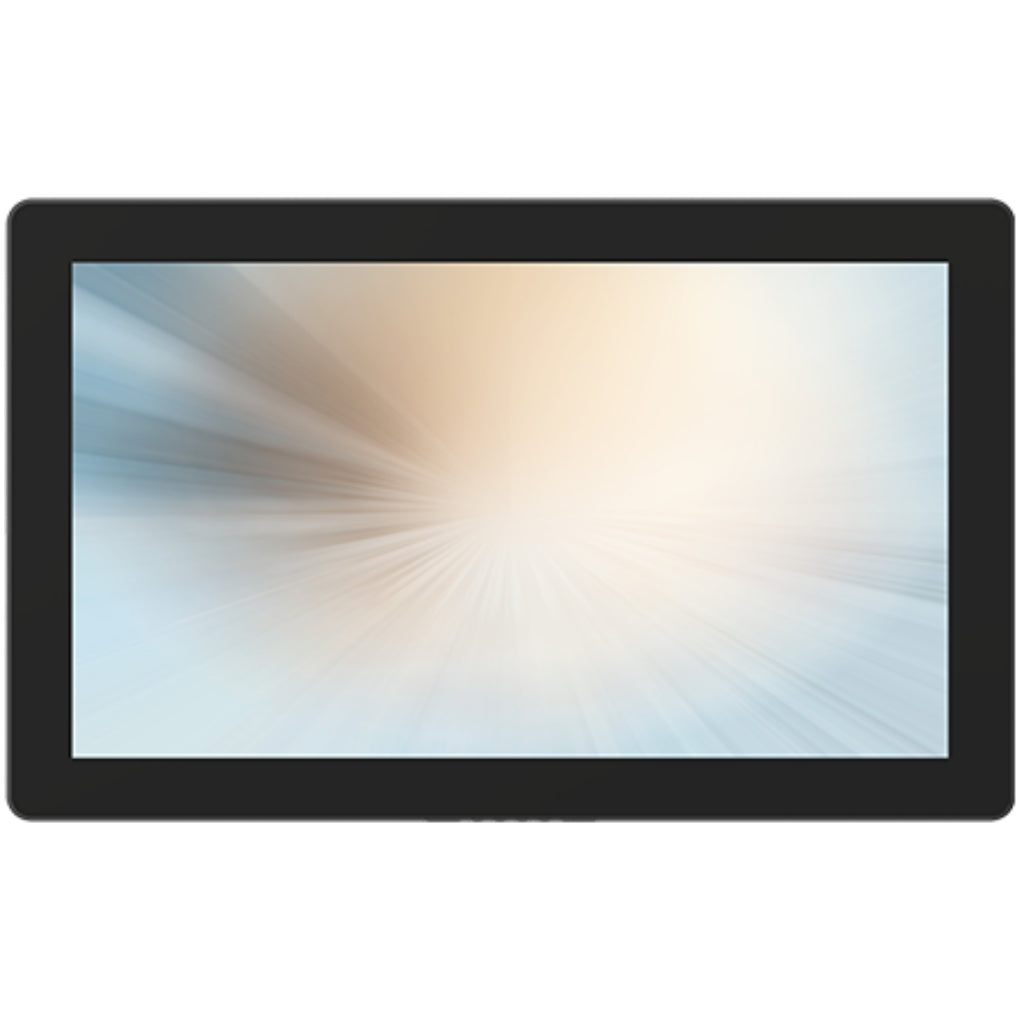

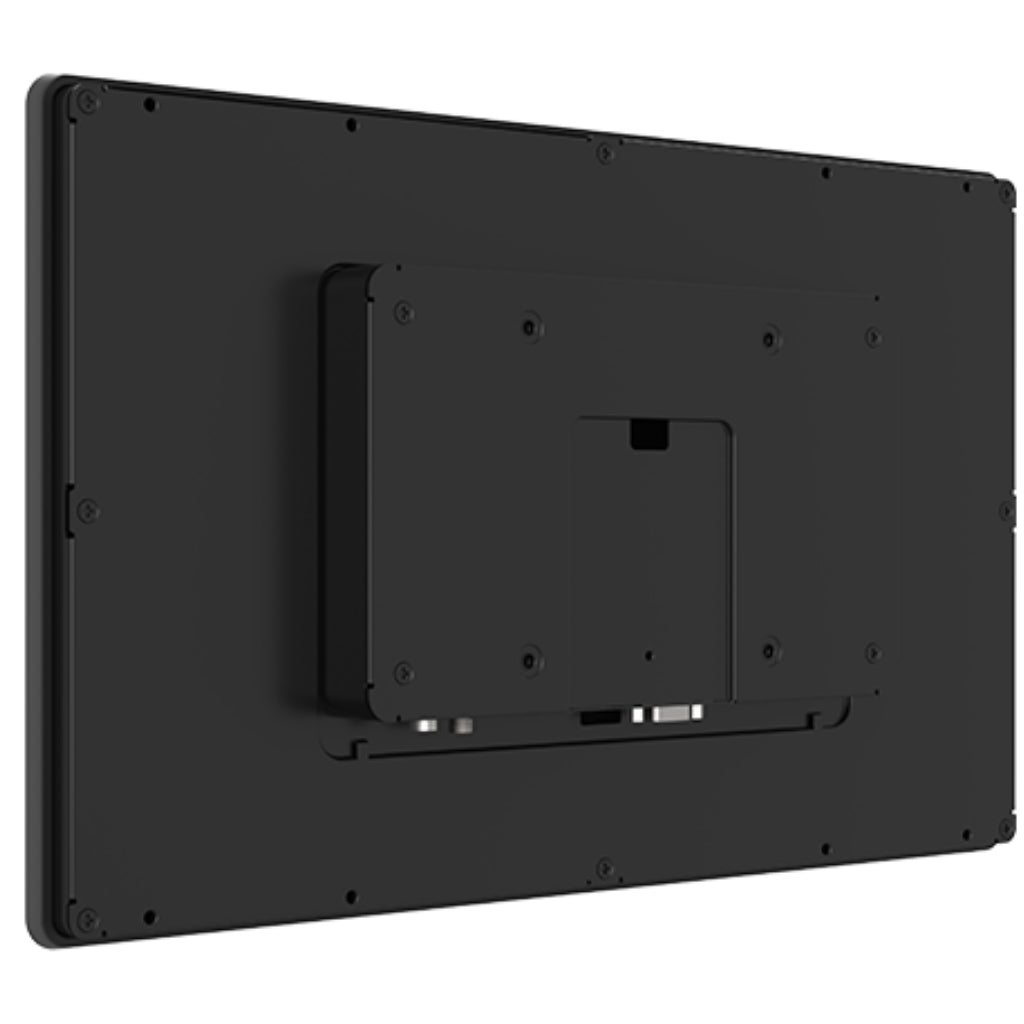

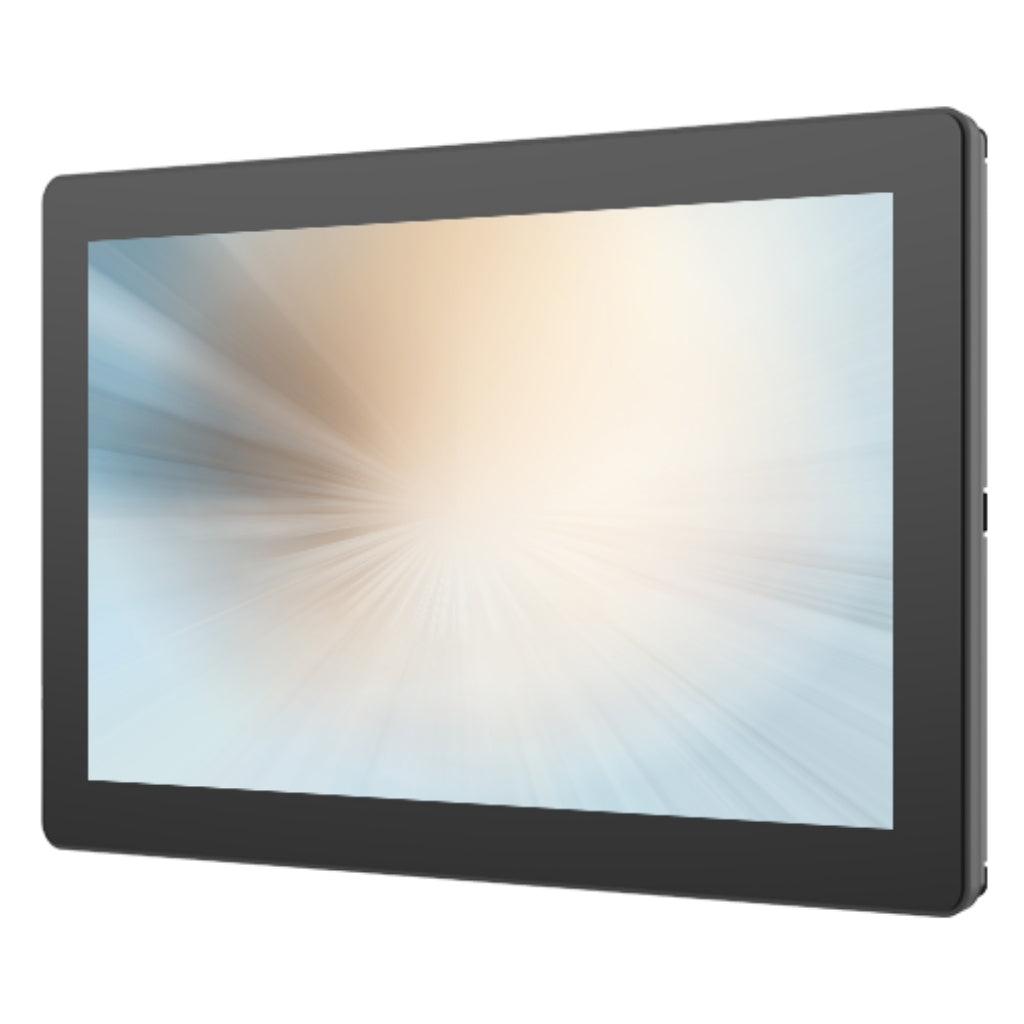

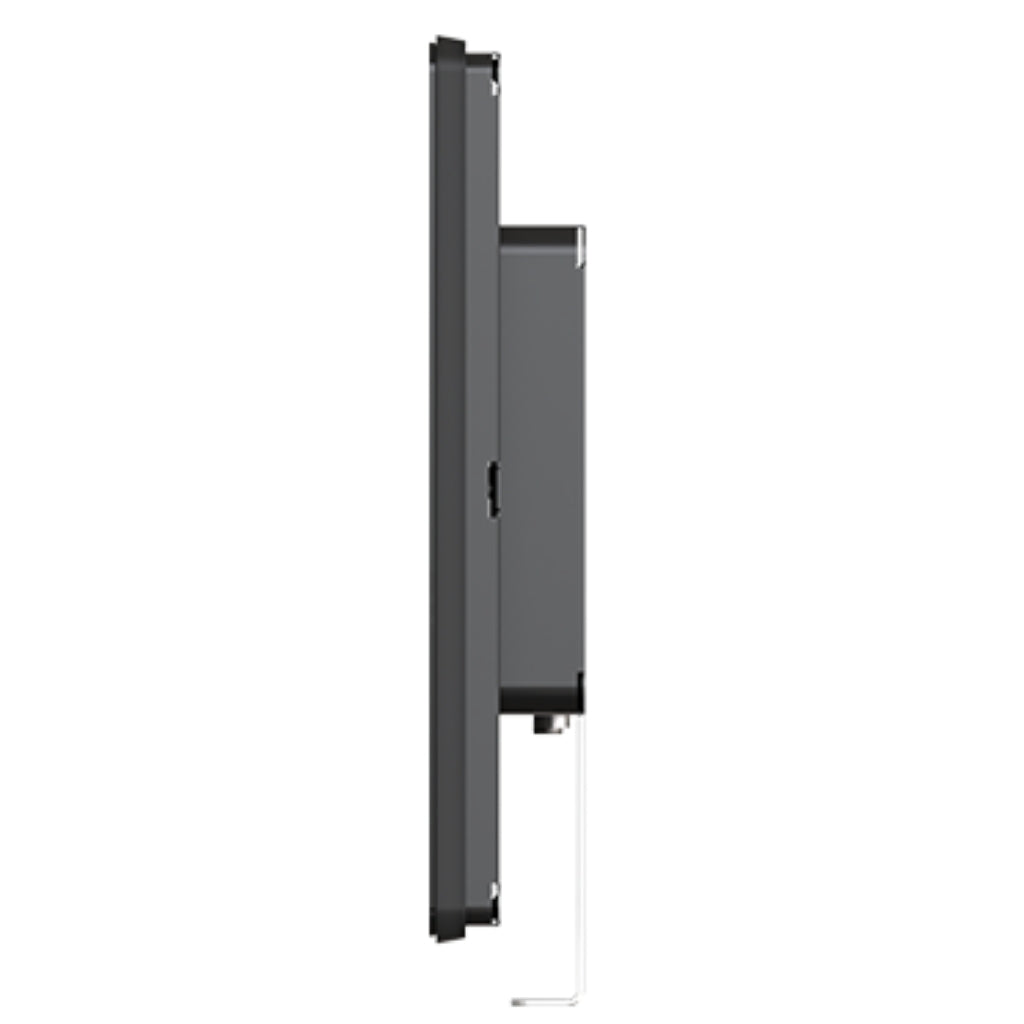

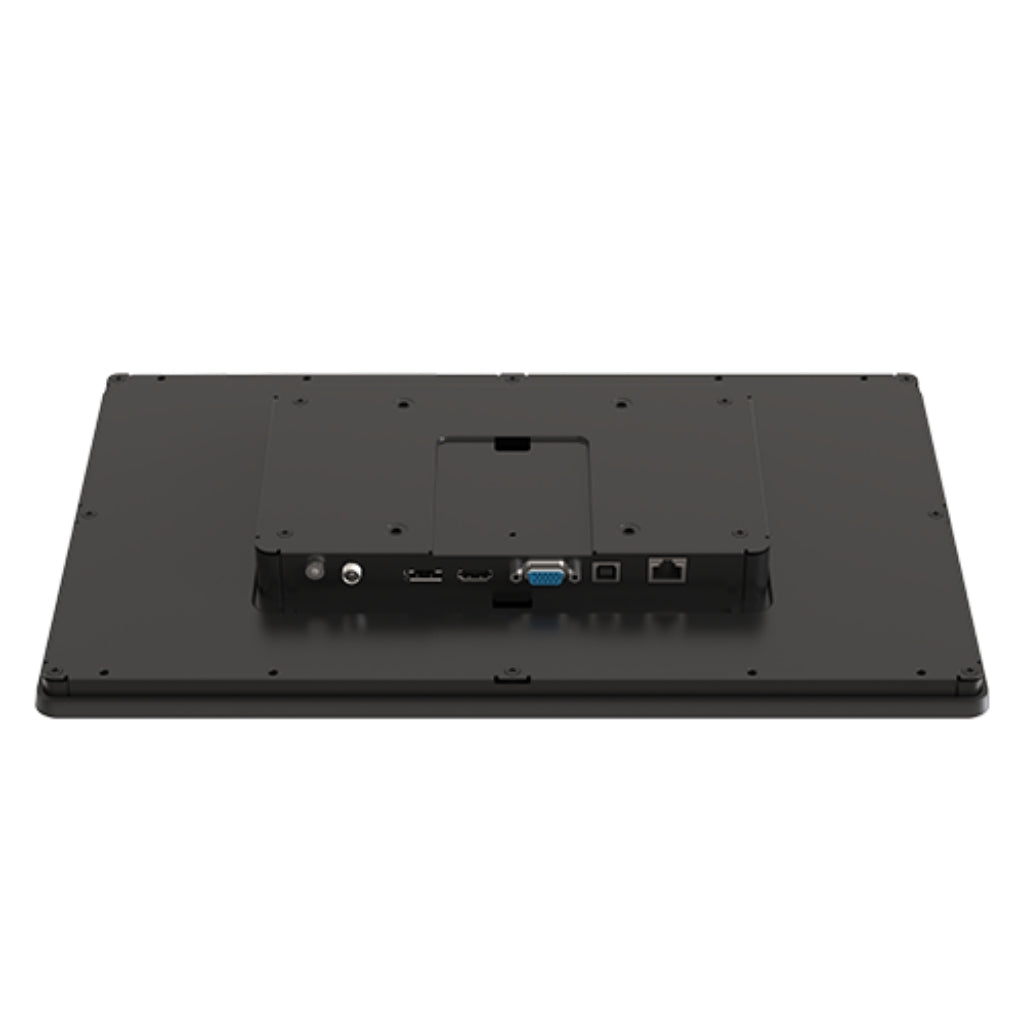

MicroTouch 15.6" TFT LCD PCAP Touch Monitor | OF-156P-A1
SKU: OF-156P-A1
£281.08 (Excl. VAT)
- Display Size15.6"
- Touch Capabilities10pt multi-touch
- Net Weight2.67 kg
- Operating SystemNone
- VESA Patterns100x100
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response TimeN/A
- Screen Ratio16:9
- Brightness400 cd/m2
- Operating HoursN/A
- Description
- Specifications
- Downloads
-
MicroTouch OF-156P-A1 15.6" Open Frame Touch Monitor with 450 nits Brightness, HDMI/DP/VGA Inputs & 10-Point PCAP Touch
This industrial-grade, OF-156P-A1, 15.6” open frame monitor is the perfect solution for a wide variety of embedded applications. Uniquely designed with the glass settling proud of the bezel allowing for a seamless fit into a broad range of kiosks and fixtures, exceeding your integration expectations – The IP65 rating, 10-point touch, 1920 x 1080 resolution and innovative bezel design encourages a memorable end-user experience that outperforms the competition with a dependable, reliable, performance driven product.
-
Size 15.6" TFT LCD Maximum Resolution 1920 x 1080 Contrast Ratio 1000:1 Aspect Ratio 16:9 Brightness 450 nits (No Touch), 400 nits (PCAP) View Angle H: 178˚, V: 178˚ Video Port 1 x VGA, 1 x DP+, 1 x HDMI Warranty 3 Year Touch Screen Projected Capacitive Touch Points 10 Touch Screen Interface USB-HID (Type B) Serial Port 1 x RJ45 (Remote Key) USB Port 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) Audio Port Audio-out Power Input 1 x 12V DC Jack with lock Speaker – Power Supply 36W (12V, 3A) External Power Adaptor Housing Color Black Construction Glass, SECC Metal Compliance Front Panel IP65 Compliant Dimensions (W x H x D) 398.4 x 245.8 x 42.2 mm (without stand) Carton (W x H x D) 470 x 343 x 150 mm Product Weight 2.46 kg Carton Weight 4.25 kg VESA 100 x 100 Ball Drop IK08 Certifications CE, FCC, CCC, UL/cUL, RoHS Operating Temperature 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing Storage Temperature -20˚C ~ 60˚C, 10% ~ 95% RH. Non-Condensing -
Description Downloads MicroTouch 15.6" TFT LCD PCAP Touch Monitor | OF-156P-A1 DataSheet Download
