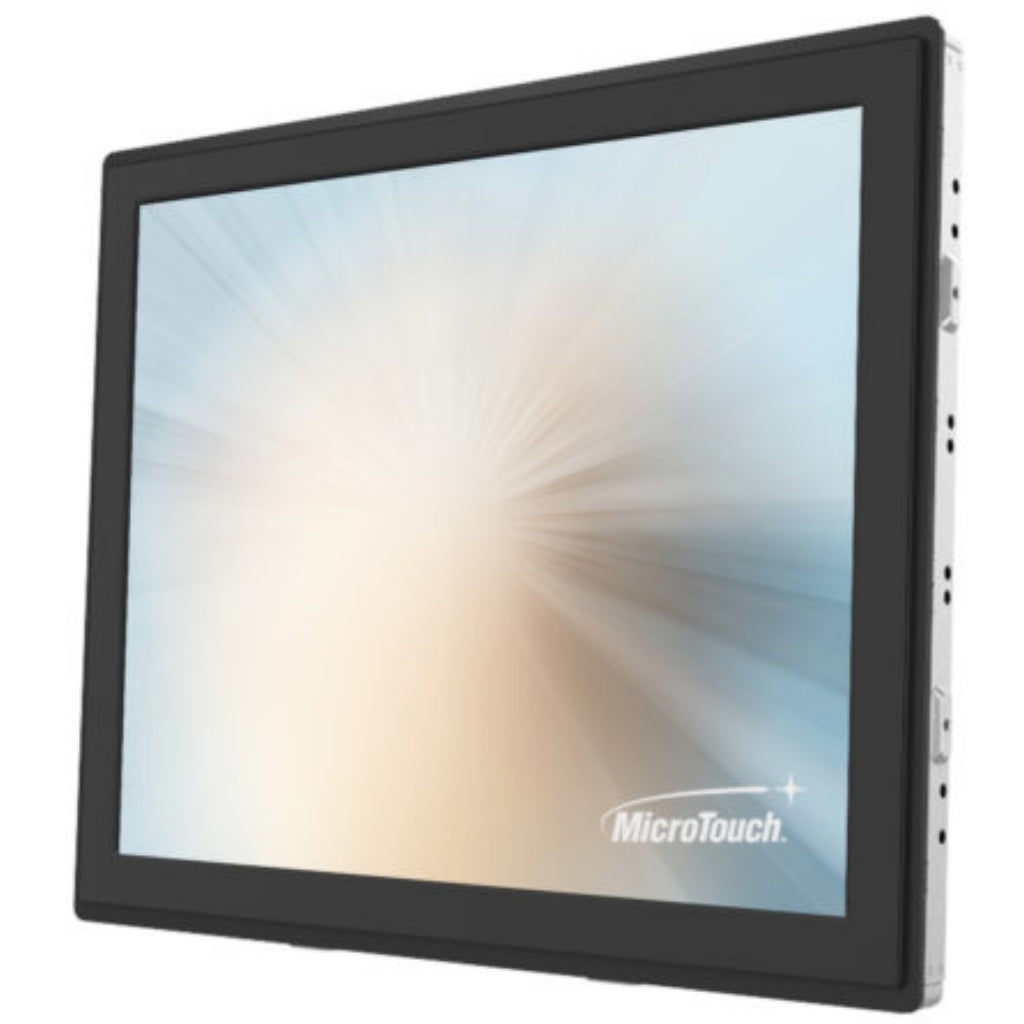

This industrial-grade, OF-170P-A1, 17″ open frame monitor is the perfect solution for a wide variety of embedded applications. Uniquely designed with the glass settling proud of the bezel allowing for a seamless fit into a broad range of kiosks and fixtures, exceeding your integration expectations – The IP65 rating, 10-point touch, 1280 x 1024 resolution and innovative bezel design encourages a memorable end-user experience that outperforms the competition with a dependable, reliable, performance driven product.
| Size | 17" TFT LCD | Maximum Resolution | 1280 x 1024 |
| Contrast Ratio | 800:1 | Aspect Ratio | 5:4 |
| Brightness | 250 nits (No Touch), 215 nits (P-CAP) | View Angle | H:160˚, V:160˚ |
| Video Port | 1 x VGA, 1 x DVI | Warranty | 3 Year |
| Touch Screen | Projected Capacitive | Touch Points | 10 |
| Touch Screen Interface | USB-HID (Type B) | USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) |
| Audio Port | – | Remote Port | RJ11 |
| Power Input | 1 x 2.1 mm 12V DC Jack | Power Supply | 50W (12V, 4.16A) External Power Adaptor |
| Speaker | – | Housing Color | Dark Gray |
| Construction | Glass, SECC Metal, Plastic (ABS) | Compliance | Front Panel IP65 Compliant, Rear IPX1 |
| Dimensions (W x H x D) | 394.0 x 330.0 x 57.1 mm | Net Weight | 4.8 kg |
| Gross Weight | 7.0 kg | Carton (W x H x D) | 480.0 x 415.0 x 160.0 mm |
| VESA | 75 x 75 mm, 100 x 100 mm | Ball Drop | – |
| Certifications | UL, CE, FCC | Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing | Box Contents | LCD Touch Monitor, Power Cord, DC Power Supply, USB Cable (A to B), VGA Cable, DVI Cable, Side Brackets, Bracket Screws |
| Optional Accessories | 50W Power Supply: PS-3316005049F0, DVI Cable: DVI-5313118141FH, Power Cable: PC-5330001214FI, EU Power Cable: EPC-5331021201FI, USB Cable: USB-5313118047FV |
| Description | Downloads |
|---|---|
| MicroTouch 17" TFT LCD Open Frame Touch Monitor | OF-170P-A1 DataSheet | Download |
| MicroTouch 17" TFT LCD Open Frame Touch Monitor | OF-170P-A1 User Manual | Download |
