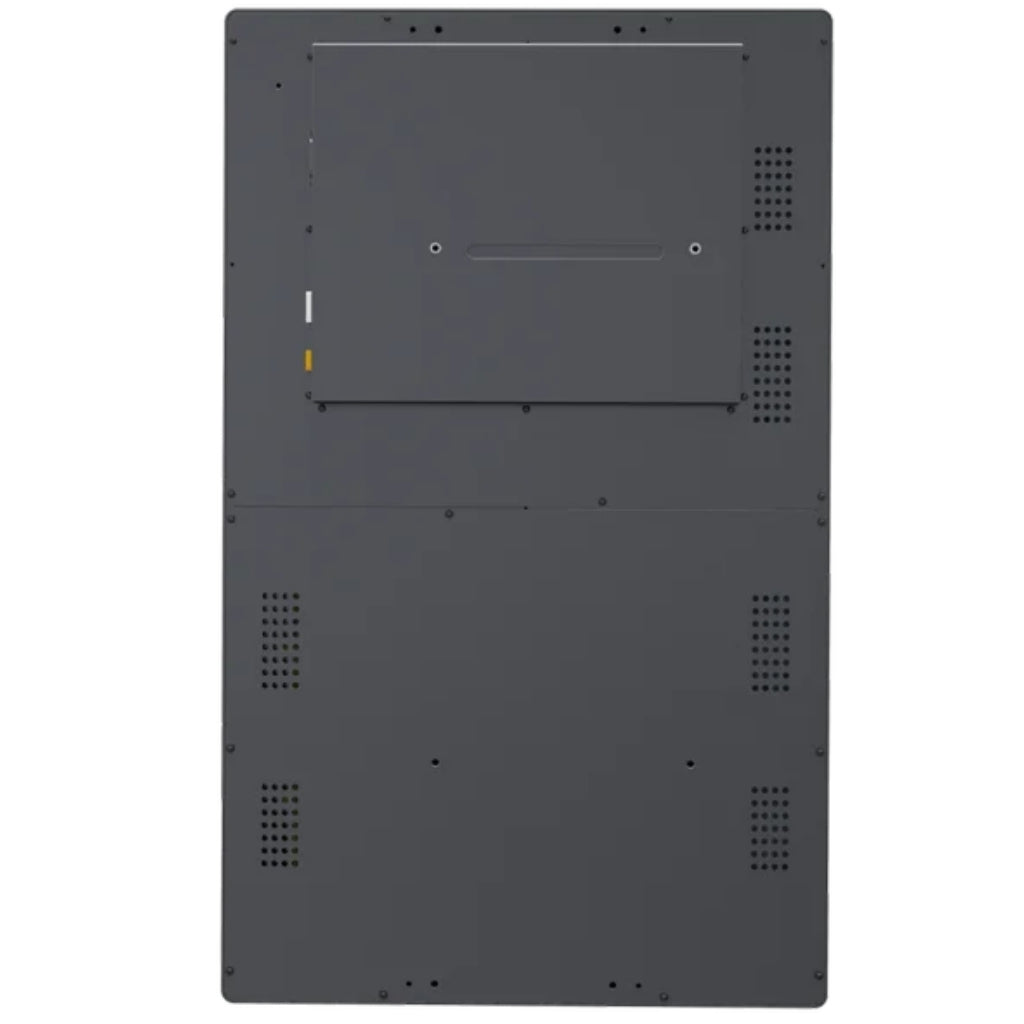

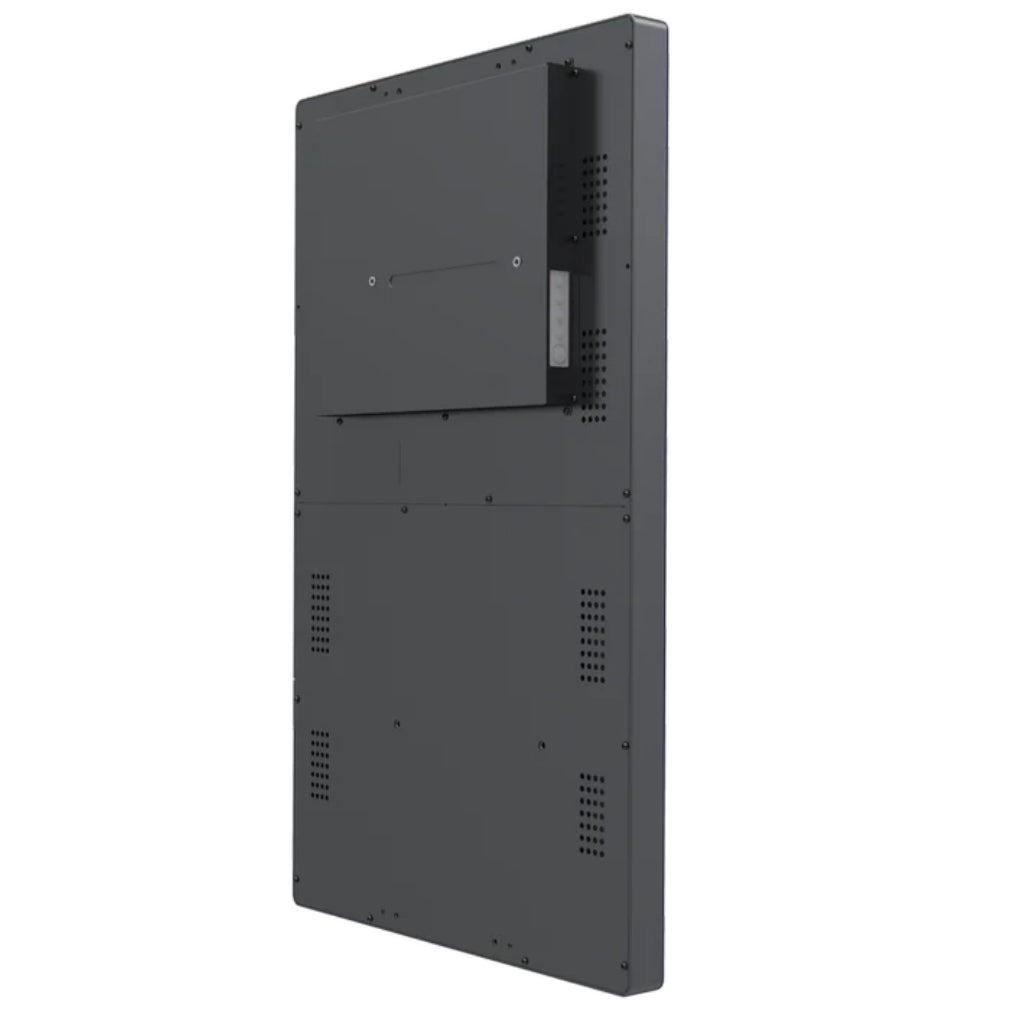

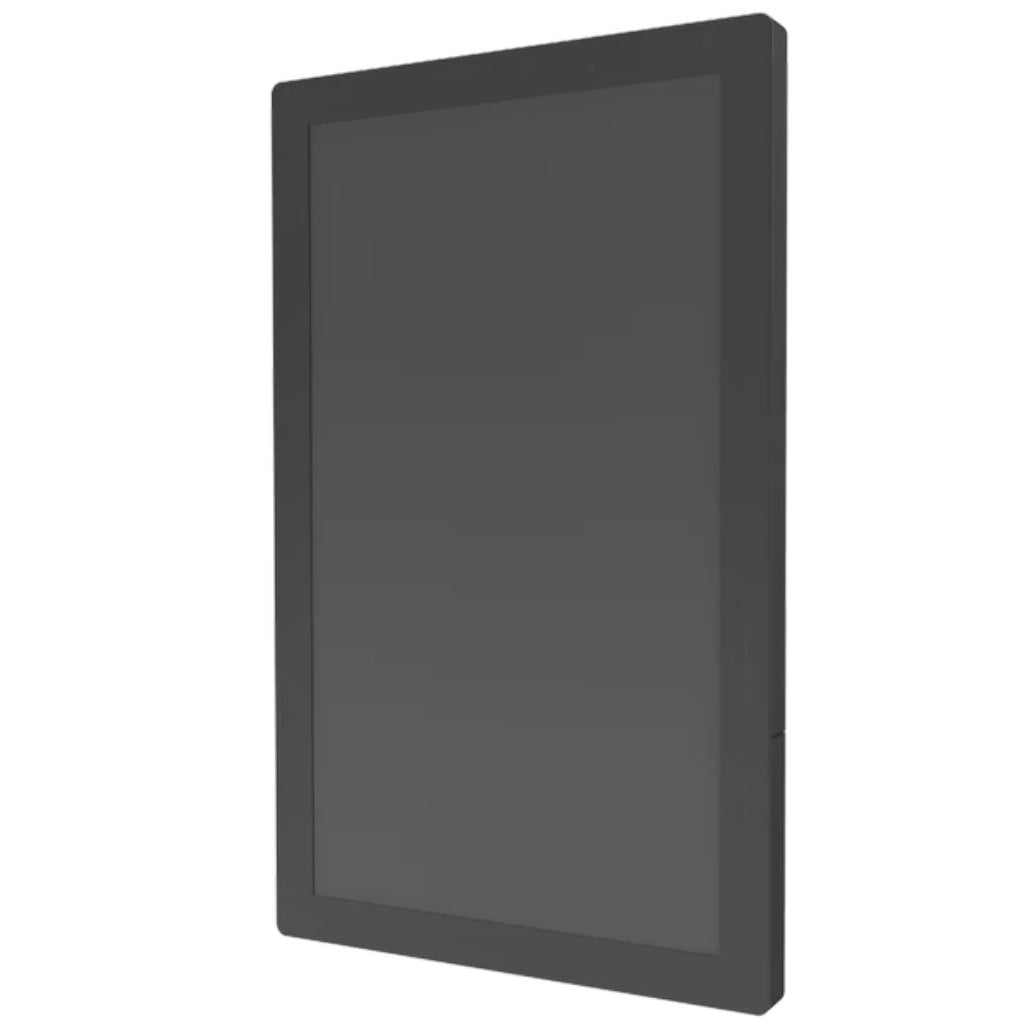

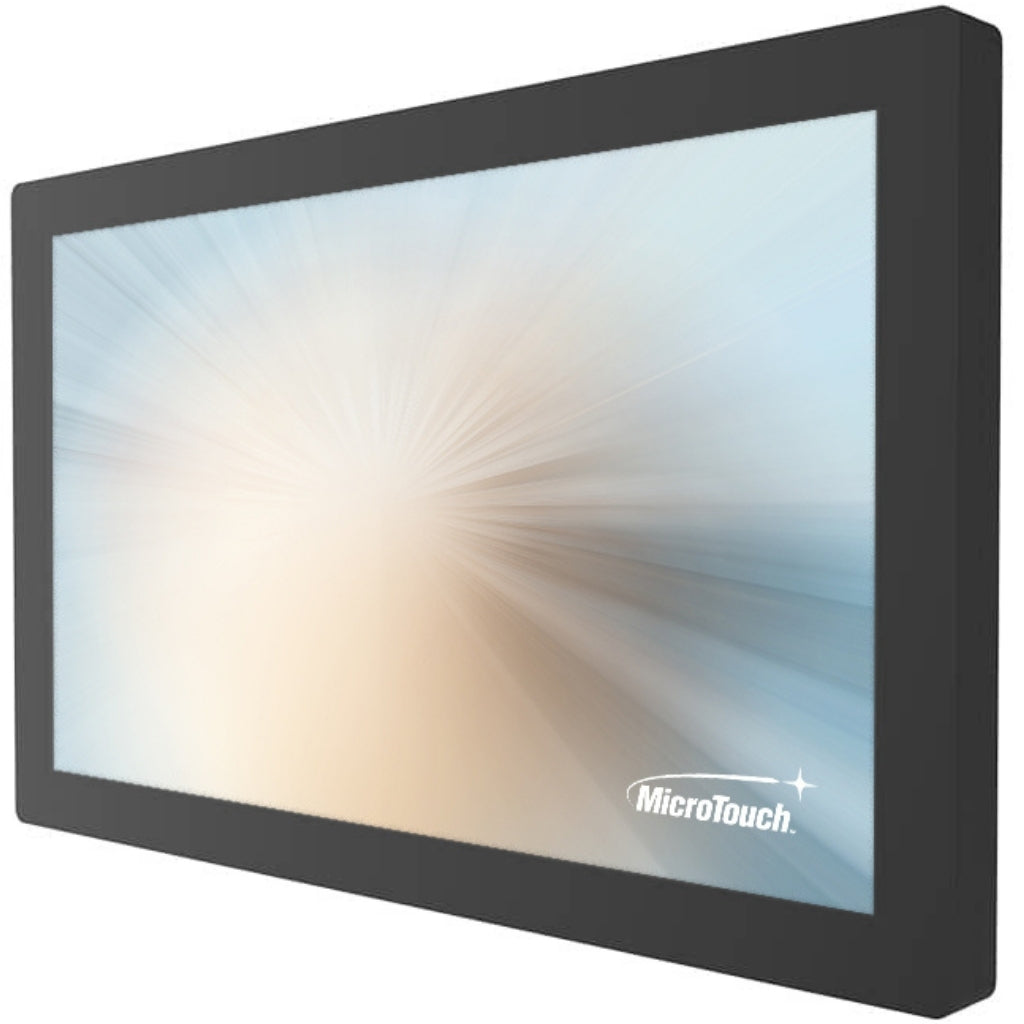

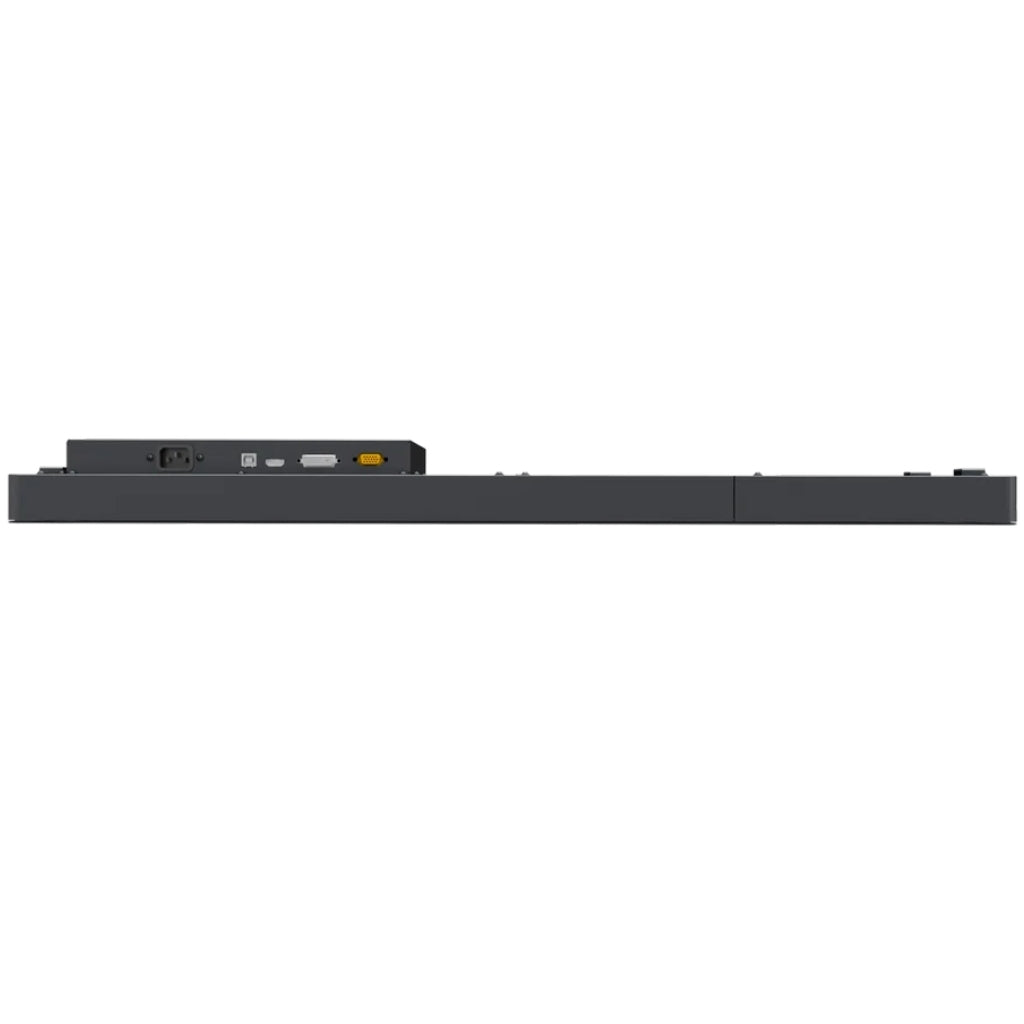

The digital signage, DS-320P-A2, is a 32″ Full HD (1920 x 1080) projected capacitive, 10 touch solution. This digital signage solution encourages effective and efficient user collaboration and engagement. The ultra slim build coupled with advancements in touch technology, ensures that every user interaction is effortless and effective. Whether it is collaborative applications, way-finding capabilities, or custom branded kiosks, the DS-320P-A2 solution retains everything desired in a large format touchscreen.
| Size | 31.5" TFT LCD | Maximum Resolution | 1920 x 1080 |
| Contrast Ratio | 1200:1 | Aspect Ratio | 16:9 |
| Brightness | 400 nits (w/o Touch), 360 nits (P-CAP) | View Angle | H: 178˚, V: 178˚ |
| Video Port | 1 x VGA, 1 x DVI-D, 1 x HDMI | Warranty | 3 Year |
| Touch Screen | Projected Capacitive | Touch Points | 10 |
| Touch Screen Interface | USB-HID (Type B) | Screen Treatment | – |
| Serial Port | – | USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) |
| Audio Port | – | Power Input | 1 x AC Power Input |
| Power Supply | AC Input 100~240Vac, 50~60Hz | Speaker | – |
| Housing Color | Black | Construction | Glass, SECC Metal |
| Compliance | Front Panel IP65 Compliant | Dimensions (W x H x D) mm | 781.5 x 476.6 x 66.8 |
| Net Weight (kg) | 15.0 | Gross Weight (kg) | 18.0 |
| Carton (W x H x D) mm | 650 x 945 x 185 | VESA | 400 x 200 mm |
| Ball Drop | IK07 | Certifications | CE, UL/CUL, FCC, RoHS |
| Operating Temperature | 0° C ~ 40° C, 20% ~ 80% RH. Non-Condensing | Storage Temperature | -20° C ~ 60° C, 20% ~ 90% RH. Non-Condensing |
| Optional Peripheral | N/A |
| Description | Downloads |
|---|---|
| MicroTouch 32" Full HD PCAP Touch Display | DS-320P-A2 DataSheet | Download |
| MicroTouch 32" Full HD PCAP Touch Display | DS-320P-A2 User Manual | Download |
