MicroTouch 49" 4K UHD Interactive Touch Display | M1-490DS-A1
SKU: M1-490DS-A1
£1,778.59 (Excl. VAT)
- Display Size49"
- Touch Capabilities55pt multi-touch
- Net Weight30 kg
- Operating SystemNone
- VESA Patterns300x300
- Panel TypeTFT Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness450 cd/m2
- Operating HoursN/A
- Description
- Specifications
- Downloads
-

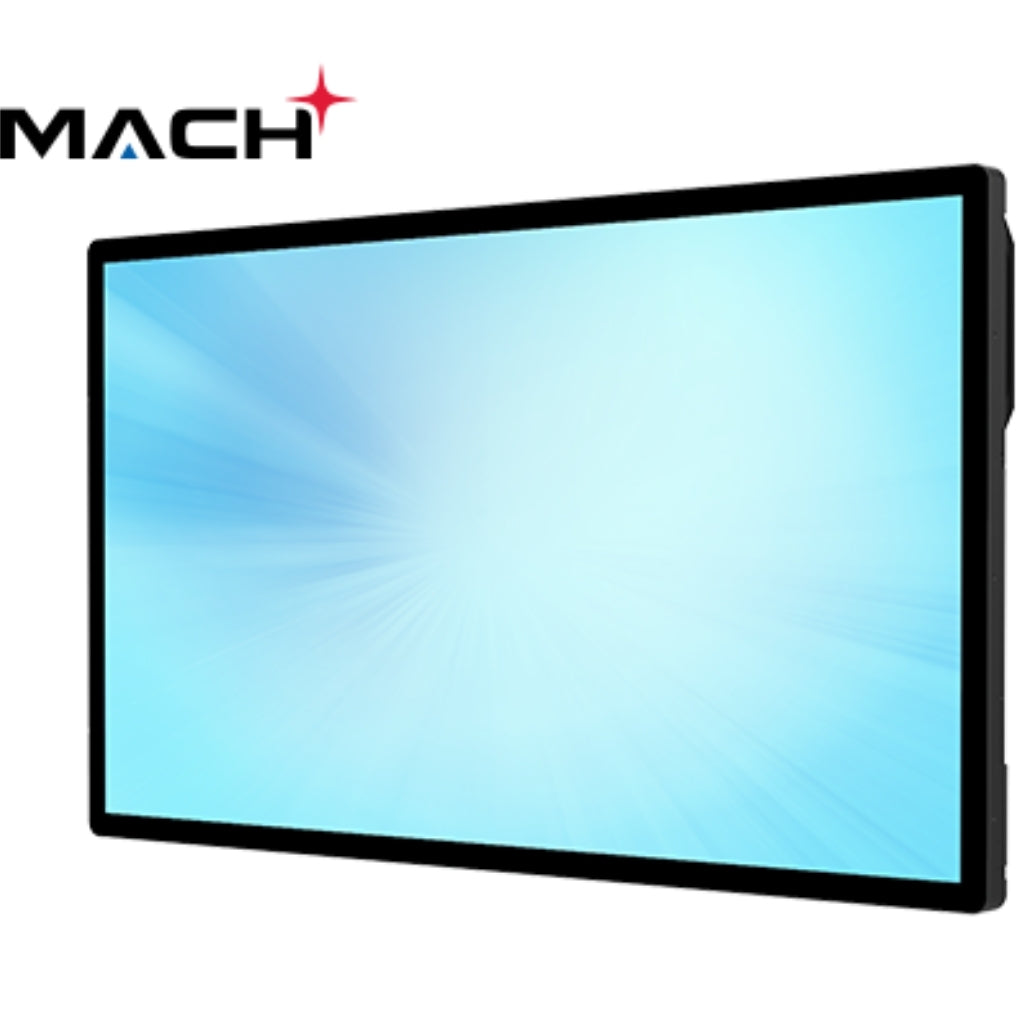

MicroTouch M1-490DS-A1 49" 4K Interactive Touch Monitor with 55-Point PCAP Touch, Anti-Glare Glass & Slim Design (IP65 Front)
The new M1-490DS-A1 49″ interactive touch monitor is a newly designed solution for a variety of applications. Engineered with an improved airgap between the sensor and LCD, improving optical clarity, protection against dust and moisture build-up over time, while increasing touch accuracy. The M1-490DS-A1 features a premier anti-glare finish, driving better light dispersion and viewing performance in high ambient light applications. Supporting more than 40 touch points, multiple styli and erasers, this display is a drop-in solution for not only retail/hospitality signage and wayfinding, but collaboration applications as well. Combining the ultra-slim design, enhanced anti-glare finish, the versatile I/O selection, peak optical performance with 4k resolution, this display is a solution that can exceed a wide range of application requirements.
-
Size 49" TFT LCD Maximum Resolution 3840 x 2160 Contrast Ratio 1100:1 Aspect Ratio 16:9 Brightness 500 nits (No Touch), 450 nits (P-CAP) View Angle H: 178˚, V: 178˚ Video Port 2 x HDMI / 1 x DisplayPort / 1 x VGA Warranty 3 Year Touch Screen Projected Capacitive Touch Points 55 (with stylus support) Touch Screen Interface USB-HID (Type B) Surface Treatment Anti-Glare Number of Colors 1.07 billion (8-bit+FRC) Response Time 8 ms (typical) USB Port 2 x USB Type B (touch), 1 x USB 2.0 Type A Video Port 2 x HDMI / 1 x DisplayPort / 1 x VGA Audio Port PC Audio in/out, SPDIF out Power Input AC Input 100~240Vac, 50~60Hz Power Output AC output IEC C13 type Other Port 1 x RS232 (DB9) Power Supply Max. 150W Power Consumption Max. 150 W, Typical 85 W, Stand by ≤0.5 W Speaker 10W x 2 Orientation Portrait/Landscape/Tabletop Housing Color Black Construction Glass, SECC Metal Compliance IP65 – Front only Dimensions (W x H x D) 1127.6 x 657.8 x 78.8 mm / 44.4″ x 25.9″ x 3.10″ Active Area 1073.80 x 604 mm Net Weight 30.0 kg Gross Weight 36.0 kg Carton (W x H x D) 1274 x 227 x 824 mm VESA 300 x 300 mm Ball Drop IK07 Certifications FCC, CE, UL, NOM, CEC, UKCA Operating Temperature 0˚C ~ 40˚C, 35% ~ 85% RH. Non-Condensing Storage Temperature -20˚C ~ 60˚C, 35% ~ 85% RH. Non-Condensing MTBF 50,000 hours Box Contents NA Power cord, HDMI Cable, IR Extender, Remote Controller, USB Cable, Cable Clip (4), QR Sheet, Passive Pen (2), Batteries (2) Optional Accessories US Cable: PC-5330001214FI, EU Cable: EPC-5331021201FI, UK Cable: UKPC-5331010207FI, HDMI: HDMI-5313118134FH, DP: DP-5313118123FV, VGA: VGA-5313118072FH, USB A-B: USB-5313118047FV -
Description Downloads MicroTouch 49" 4K UHD Interactive Touch Display | M1-490DS-A1 DataSheet Download MicroTouch 49" 4K UHD Interactive Touch Display | M1-490DS-A1 User Manual Download
