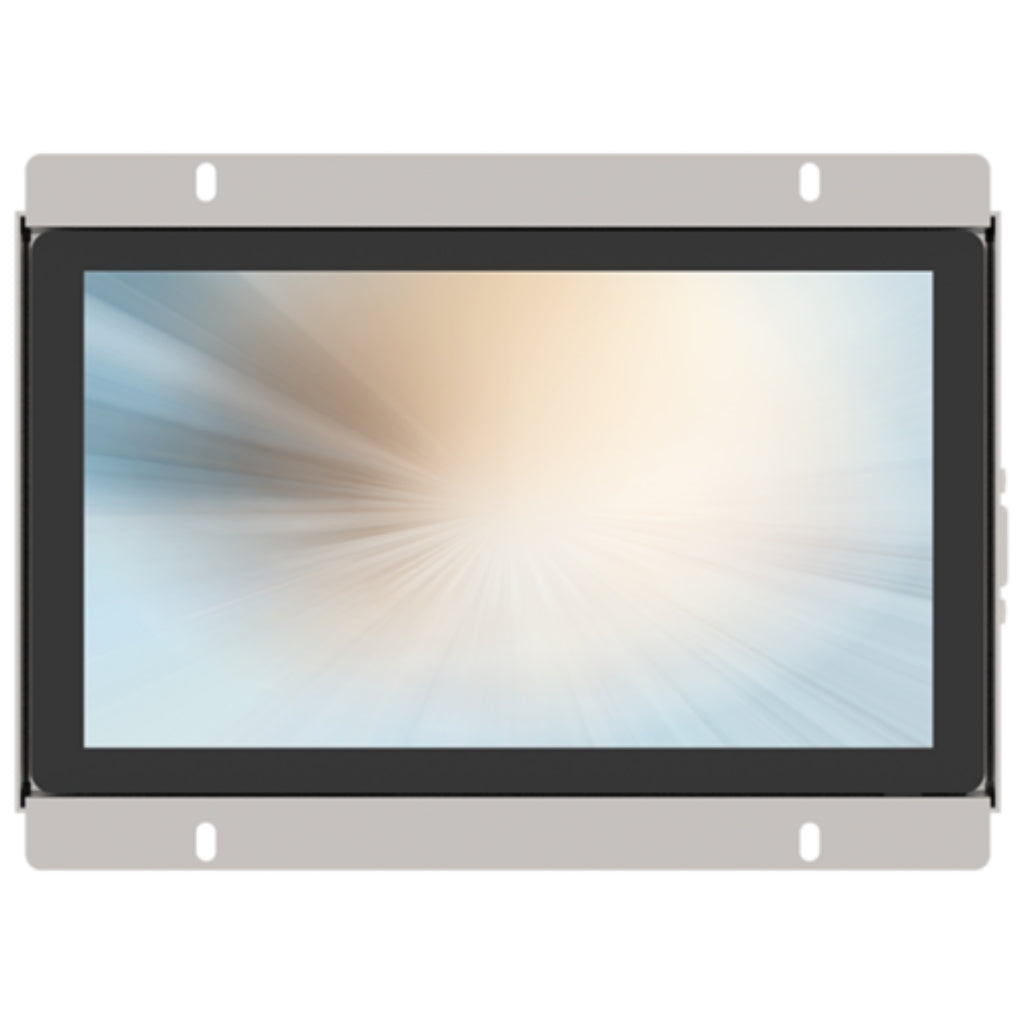

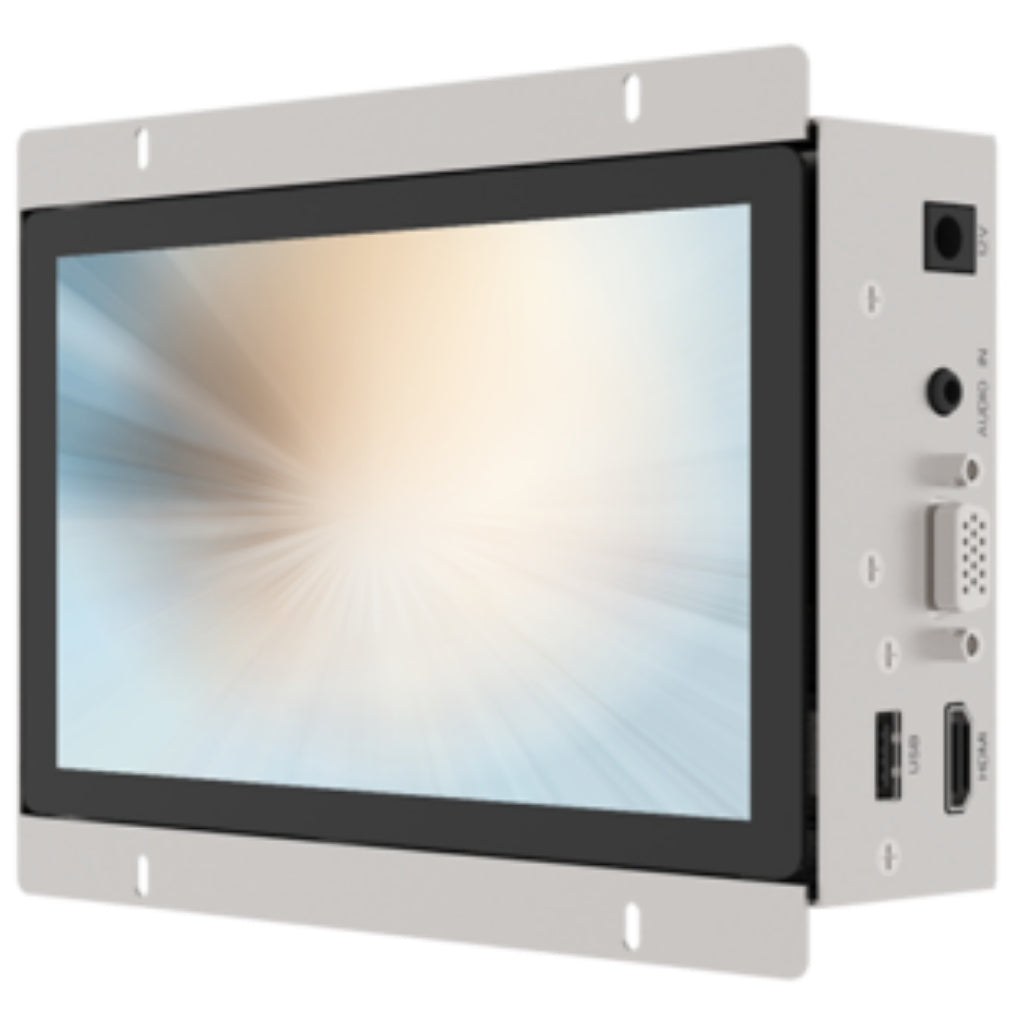

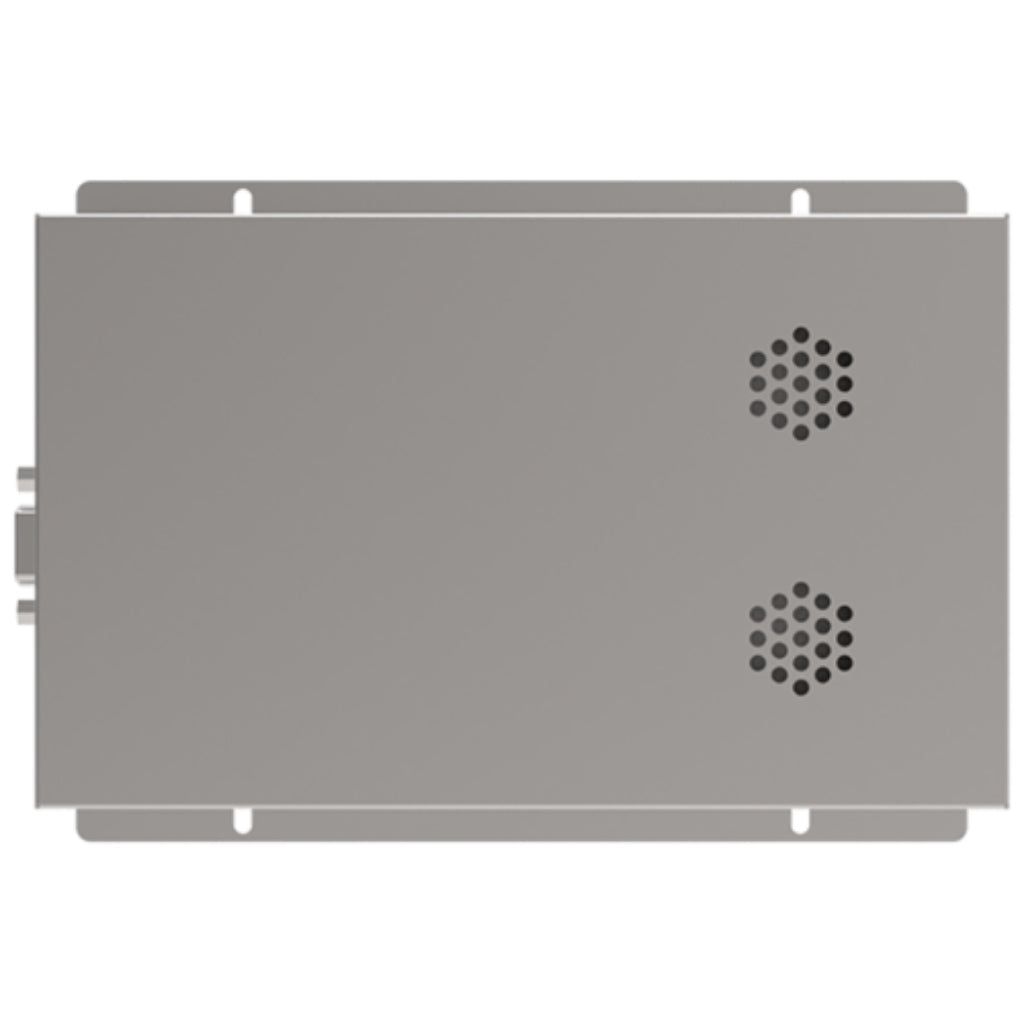

The OF-070P-A1 is a 7″, newly designed, commercial-grade open frame solution. The refined aesthetics, industrial design and built-in mounting system ensures ease of installation, with the ability to endure harshest of environments. With this stylish small form factor design, the OF-070P-A1 is an exceptional choice for a variety of applications requiring a small footprint. It is well suited for point-of-information, point-of-service and small form factor interactive signage. The OF-070P-A1 retains all capabilities to mold a reliable solution for any customer application.
| Size | 7" TFT LCD | Maximum Resolution | 1024 x 600 |
| Contrast Ratio | 400:1 | Aspect Ratio | 16:9 |
| Brightness | 400 nits (No Touch), 340 nits (P-CAP) | View Angle | H: 170°, V: 160° |
| Video Port | 1 x VGA, 1 x HDMI | Warranty | 3 Year |
| Touch Screen | Projected Capacitive | Touch Points | 10 |
| Touch Screen Interface | USB-HID (Type A) | USB Port | 1 x USB Type A for Touch Function |
| Video Port | 1 x VGA, 1 x HDMI | Audio Port | 1 x Audio Input |
| Power Input | 1 x 12VDC Jack | Power Supply | 50W (12V, 4.16A) External Power Adapter |
| Speaker | 2 x 3W (8R) | Housing Color | Silver |
| Construction | SPCC + Painting | Dimensions (W x H x D) | 185.4 x 130.5 x 41.6 mm |
| Net Weight | 0.86 kg | Gross Weight | 2.15 kg |
| Carton (W x H x D) | 285 x 200 x 210 mm | VESA | – |
| Ball Drop / IK | – | Certifications | CE, FCC, CB, UL, RoHS, REACH |
| Operating Temperature | -20°C ~ 70°C, 5% ~ 95% RH. Non-Condensing | Storage Temperature | -30°C ~ 80°C, 5% ~ 95% RH. Non-Condensing |
| Box Contents | LCD Monitor, HDMI Cable, VGA Cable, USB A-A Cable, Power Adaptor, Power Cable | Optional Peripheral | Remote Key: No |
| Accessories | 1x USB A-B, 1x VGA, 1x HDMI, US Power Cord |
| Description | Downloads |
|---|---|
| MicroTouch 7" TFT LCD Open Frame Touch Monitor | OF-070P-A1 DataSheet | Download |
