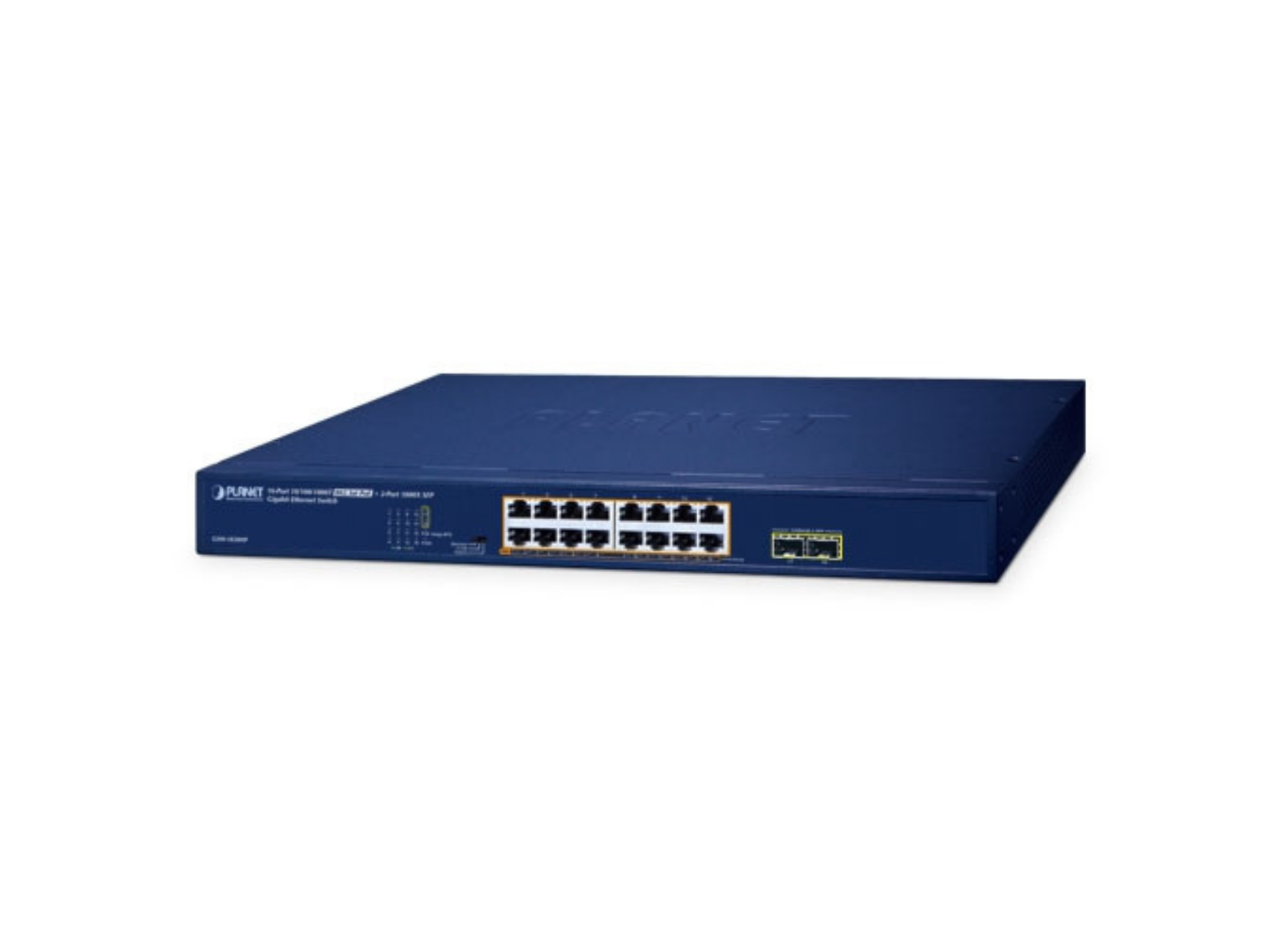

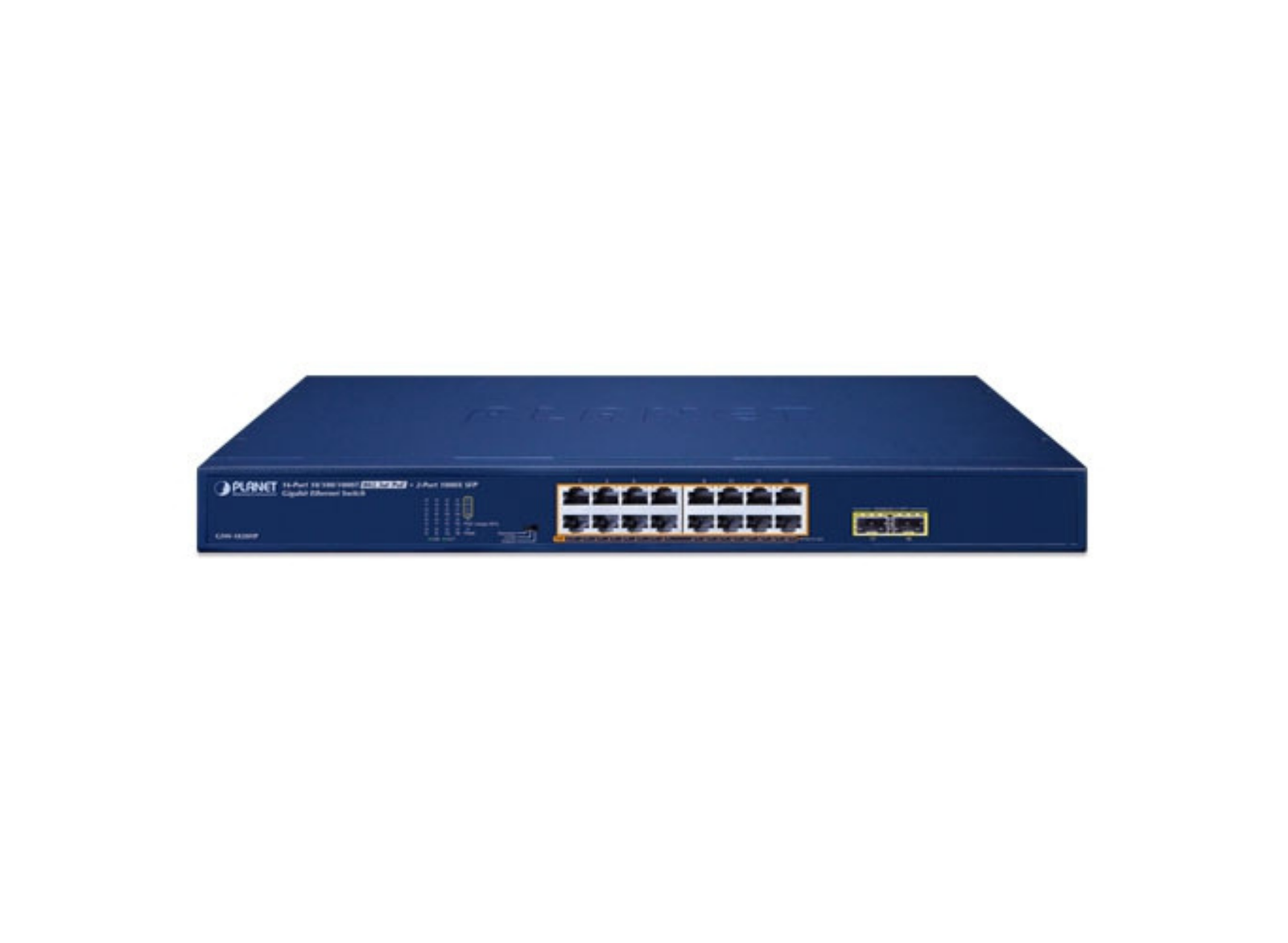

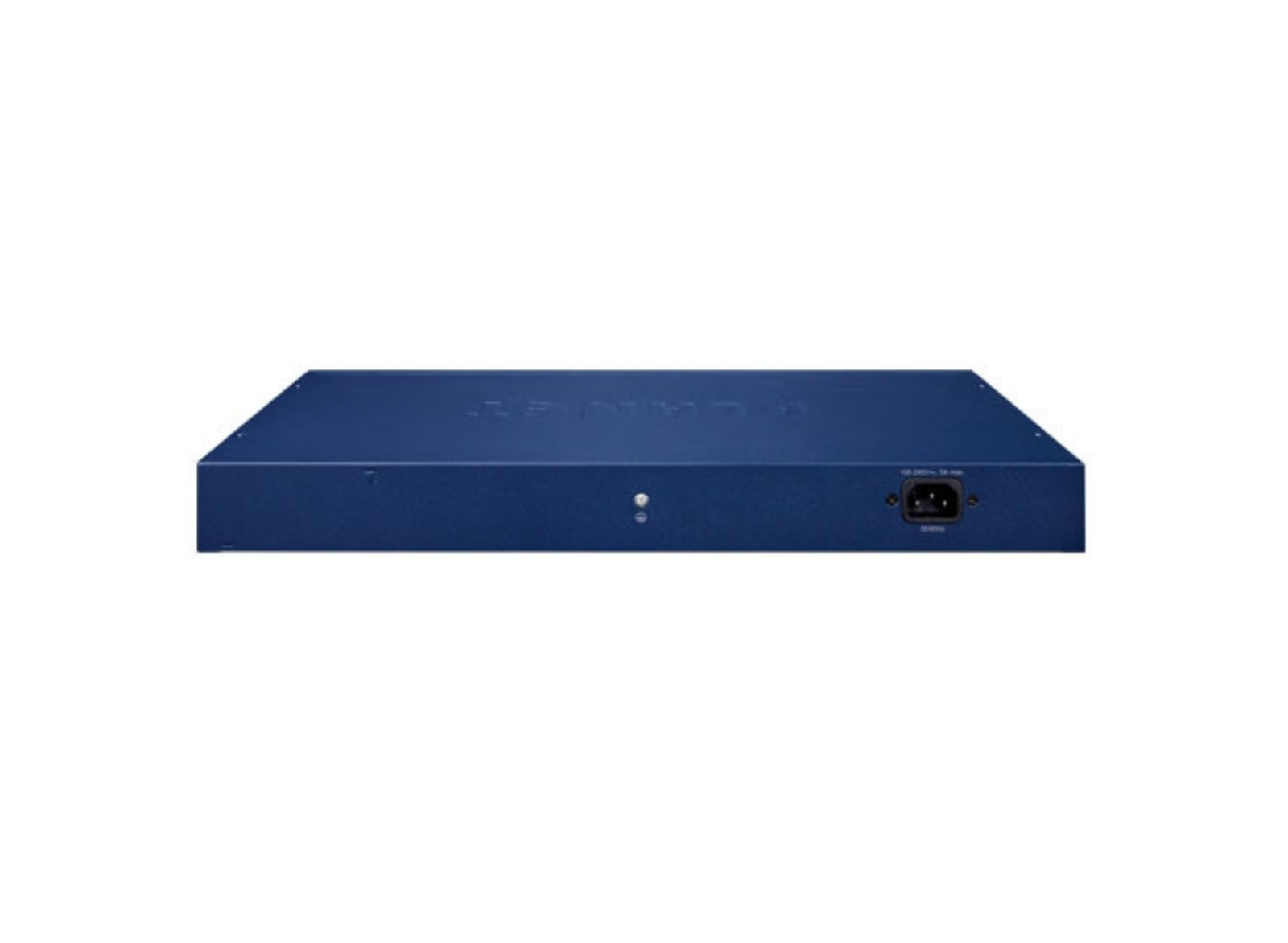

Planet 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch | GSW-1820HP

SKU: GSW-1820HP
Part Number: GSW-1820HP
Condition: Brand New
Purchase Orders Accepted
Save £36.08 Save £36.08
Original price £279.90
Inc. VAT
Original price £279.90 - Original price £279.90
Original price £279.90

£203.18 (Excl. VAT)

Current price - £243.82 Inc. VAT
£243.82 - £243.82
Current price- - £243.82
(Inc. VAT )
Availability:
Only 2 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch | GSW-1820HP

    Centralized Power Management for Gigabit Ethernet PoE Networkin
    To facilitate 30W PoE power network applications with Gigabit speed transmission, PLANET GSW-1820HP is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with the inner power system. With a total of 250 watts of PoE budget, it features high-performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 30W) capabilities on all ports.

    By offering reliable switching technology and advanced networking features, the GSW-1820HP optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.

    Perfect Integrated Solution for PoE IP Surveillance
    The GSW-1820HP brings an ideal secure surveillance system at a lower total cost. The GSW-1820HP provides 16 10/100/1000Mbps 802.3at PoE+ ports able to feed sufficient PoE power for 16 IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with one 16-channel NVR or two 8-channel NVRs, uplinked to backbone switch and the monitoring center. With such high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites


    Ethernet Data Transmission Distance Extension

    The DIP switch provides “Standard”, “VLAN” and “Extend” operation modes.

    The GSW-1820HP operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode.
    The “VLAN” operation mode features with port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.
    In the “Extend” operation mode, the GSW-1820HP operates on a per-port basis at 10Mbps duplex operation but supports 25-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable.
    With this brand-new feature, the GSW-1820HP provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation.



    Intelligent Powered Device Alive Check

    The GSW-1820HP can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the GSW-1820HP will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


    Energy-saving Design

    The GSW-1820HP uses new engine that incorporates two advanced Green Networking technologies:

    Idle Mode Link Down power savings
    Intelligent Scales Power based on cable length

    The Idle mode Link Down power savings of the GSW-1820HP complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. The Intelligent Scales Power technology actively determines the appropriate power level based on the cable length. When connecting to the GSW-1820HP with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the GSW-1820HP would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings

    Flexible Extension Solution
    The two mini-GBIC slots built in the GSW-1820HP are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  • Specification Details
    10/100/1000BASE-T Copper Ports 16 auto-MDI/MDI-X ports
    802.3af/802.3at PoE+ Injector Port 16
    1000BASE-X SFP/mini-GBIC Slots 2
    DIP Switch Selectable operation mode:
    Standard
    VLAN
    Extend
    Dimensions (W x D x H) 441 x 207 x 44 mm (1U height)
    Enclosure Metal
    Weight 2.35kg
    Power Requirements 100~240V AC, 50/60Hz, 5A max.
    Power Consumption/Dissipation Max. 262 watts / 893 BTU
    Thermal Fan 2
    Protection 6KV surge protection
    8KV ESD protection
    LED Indicators System: Power (Green), PoE Usage 80% (Green)
    10/100/1000T RJ45 Interfaces (Ports 1 to 16):
    10/100/1000 LNK / ACT (Green), PoE-in-Use (Amber)
    1000X SFP Interfaces (Ports 17 to 18):
    1000 LNK / ACT (Green)
    Switching
    Switch Architecture Store-and-Forward
    Switch Fabric 36Gbps/non-blocking
    Switch Throughput@64bytes 26.8Mpps
    MAC Address Table 8K entries
    Jumbo Frame 9216 bytes
    Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
    Power over Ethernet
    PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
    Backward compatible with IEEE 802.3af Power over Ethernet
    PoE Power Supply Type End-span: 1/2 (+), 3/6 (-)
    PoE Power Output Per port 54V DC, 300mA, max. 15.4 watts (IEEE 802.3af)
    Per port 54V DC, 600mA, max. 30 watts (IEEE 802.3at)
    PD Alive Check Yes
    PoE Power Budget 250 watts
    Number of PDs, 7 watts 16
    Number of PDs, 15.4 watts 16
    Number of PDs, 30 watts 8
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab Gigabit 1000BASE-T
    IEEE 802.3z Gigabit SX/LX
    IEEE 802.3x flow control and back pressure
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3az Energy-Efficient Ethernet
    Environment Operating:
    Temperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
    Storage:
    Temperature: -10 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
