Marketing Name |
BRAVIA 9 |
8 digit code |
12649510 |
Model Year |
2024 |
TV System |
|
TV System (Analog) |
B/G, D/K |
Tuner Channel Coverage (Analog) |
45.25MHz-863.25MHz (Depend on country selection) |
TV System (Digital Terrestrial) |
DVB-T / T2 |
Tuner Channel Coverage (Digital Terrestrial) |
VHF / UHF (Depend on country selection) |
TV System (Digital Cable) |
DVB-C |
Tuner Channel Coverage (Digital Cable) |
VHF / UHF / cable (Depend on country selection) |
TV System (Digital Sat) |
DVB-S / S2 |
Tuner Channel Coverage (Digital Sat) |
Intermediate Frequency 950-2150MHz |
Number of Tuners (Terrestrial/Cable) |
2 (Digital) / 1 (Analog) |
Number of Tuners (Sat) |
2 |
Color System |
PAL/SECAM |
CI+ |
Yes |
Color Space |
sRGB / BT709, BT2020, AdobeRGB, DCI |
Operating System |
Android 12 |
On-board Storage (GB) |
32GB |
Display Features |
|
X-Anti Reflection |
Yes |
Display type |
LCD |
X-Wide Angle |
Yes |
Rich Color Enhancer |
N/A |
Backlight dimming type |
Local Dimming |
Display Specs |
|
Screen Size (inch, measured diagonally) |
85" (84.6") |
Screen Size for WEB (diagonal, cm, integer or 1st decimal) |
215 cm |
Backlight type |
Direct (Full Array Mini LED) |
Display resolution (H x V, pixels) |
3840 x 2160 |
Viewing Angle (Right / Left) |
178 (89 / 89) degree |
Viewing Angle (Up/Down) |
178 (89 / 89) degree |
Display Resolution |
QFHD |
Aspect Ratio |
16:9 |
Video Features |
|
XR Backlight Master Drive |
Yes |
Peak Luminance |
XR Contrast Booster 30 |
TRILUMINOS |
XR Triluminos Pro |
Features for PlayStation®5 Auto HDR Tone Mapping |
Yes |
Features for PlayStation®5 Auto Genre Picture Mode |
Yes |
XR Clear Image |
Yes |
High Peak Luminance |
Yes |
Picture modes |
Vivid, Standard, Cinema, Professional, Calm, Photo, IMAX Enhanced, Dolby Vision (Vivid / Bright / Dark / Game), FPS game, RTS game |
Auto Wide |
Yes |
Wide Mode |
Full / Vertical Fit / Horizontal Fit / Original |
Motion enhancer |
XR Motion Clarity, Auto mode |
Blinking Type |
Line Blinking |
24p True Cinema |
Yes |
Live Colour™ Technology |
Yes |
CineMotion / Film Mode / Cinema Drive |
Yes |
4K Processor |
XR Processor |
HDR (High Dynamic Range) compatibility |
Yes (HDR10, HLG, Dolby Vision) |
Panel Refresh Rate (Native Hertz) |
120Hz |
Dynamic Contrast Enhancer |
Yes |
Audio Specs |
|
Channel |
2.2.2ch |
Audio Power Output |
10W + 10W + 10W + 10W + 10W + 10W + 5W + 5W *1 |
Speaker Position |
Front + Side + Top |
Bass / Treble / Balance |
Balance |
Speaker Type |
Acoustic Multi-Audio+ |
Speaker Configuration |
Multi way Multi-amplifier connections (Tweeter x 2, Mid Range x 2, Subwoofer x 2, Beam Tweeter x 2) |
Digital audio out (Optical) format |
Two channel linear PCM: 48kHz 16bits, Dolby Audio, DTS |
Audio Features |
|
Acoustic Center Sync |
Yes (S-CENTER SPEAKER IN) |
Ready for 360 Spatial Sound Personalizer |
Yes (via Bluetooth) |
Simultaneous Sound Output with TV Speaker |
Bluetooth A2DP Device |
Vertical Surround Engine |
Vertical Surround Engine |
Acoustic Auto Calibration |
Room & User Position Compensation |
Speaker Type-2 |
Frame Tweeter, Beam Tweeter |
Clear Phase |
Yes |
S-Master |
S-Master Digital Amplifier |
Auto Surround |
Yes |
DTS audio format support |
DTS Digital Surround, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS
|
Simulated surround sound |
S-Force Front Surround |
Dolby audio format support |
Dolby Audio, Dolby Atmos |
Voice Zoom |
Voice Zoom 3 (Also available with compatible Sony Soundbar) |
HDMI Audio Return Channel (ARC) |
Yes (eARC / ARC) |
Advanced Auto Volume |
Yes |
Auto Mute (on no signal) |
Yes |
HDMI input Audio format |
7.1 channel linear PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz 16 / 20 / 24bits, Dolby Audio, Dolby Atmos, DTS, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS
|
ARC output format |
Two channel linear PCM: 48kHz 16bits, Dolby Audio, Dolby Atmos, DTS |
Network Features |
|
Control Menu |
Yes |
ECO Dashboard |
Yes |
Apple AirPlay |
Yes |
Apple HomeKit |
Yes |
Home Network Feature |
Home Network Client, Home Network Renderer |
Wi-Fi Certified |
Yes |
Wi-Fi Standard |
a / b / g / n / ac / ax |
Wi-Fi Frequency |
2.4GHz / 5GHz / 6GHz (Depend on country) |
Internet Browser |
Yes |
Codec for Home Network |
MPEG1
/ MPEG2PS
/ MPEG2TS (HDV,AVCHD): MPEG2,AVC / MP4 (XAVC S): AVC,MPEG4,HEVC / AVI
,MotionJpeg / ASF (WMV): VC1 / MOV
,MPEG4,MotionJpeg / MKV
,AVC,MPEG4,VP8.HEVC / WEBM
/ 3GPP
,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG,WEBM: VP9 / AC4 / ogg / AAC / ARW (Screen nail only) |
Wireless LAN |
Integrated |
Convenience Features |
|
Optimization of HDMI input |
Prioritize HDMI content type information |
Source-Based Tone Mapping (SBTM) |
Yes (for HDMI3 / 4) |
UVC / UAC support |
Yes |
Variable Refresh Rate (VRR) |
Yes (for HDMI3 / 4) |
Auto Low Latency Mode (ALLM) |
Yes (for HDMI1 / 2 / 3 / 4) |
Features specified in HDMI2.1 |
4K120 / eARC / VRR / ALLM / SBTM (Source-Based Tone Mapping) |
Built-in Mic switch |
Yes (Left) |
X-Protection PRO |
Y (with Lightning, Surge, Humidity Protection) |
Electronic Program Guide (EPG) |
Yes |
USB HDD Recording |
Yes (1Rec) (Except Italy) |
USB playback codecs |
MPEG1
/ MPEG2PS
/ MPEG2TS (HDV,AVCHD): MPEG2,AVC / MP4 (XAVC S): AVC,MPEG4,HEVC / AVI
,MotionJpeg / ASF (WMV)
/ MOV
,MPEG4,MotionJpeg / MKV
,AVC,MPEG4,VP8.HEVC / WEBM
/ 3GPP
,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC,JPEG / HEIF / WEBM
/ AC4 / ogg / AAC / ARW (Screen nail only) |
Built-in Mic |
Yes |
Text Input Language |
ARA / BUL / CAT / HRV / CES / DAN / DUT / ENG / EST / FIN / FRA / GER / GRK / HEB / IND / ITA / JPN / NOR / FAS / POL / POR / RON / RUS / SLK / SLV / SPA |
Chromecast built-in |
Yes |
Application Store |
Yes (Google Play Store) |
BRAVIA Sync (including HDMI-CEC) |
Yes |
i-Manual |
Yes |
Parental Control |
Yes |
Channel Block (with password) |
Digital |
On Screen Clock |
Yes |
Sleep Timer |
Yes |
On/Off Timer |
Yes |
USB drive format support |
Yes (Supported File System: FAT16 / FAT32 / exFAT / NTFS) |
Display Language |
AFR,AMH,ARA,ASM,AZE,BEL,BUL,BEN,BOS,CAT,CZE,DAN,DEU,GRE,ENG,SPA,EST,BAQ,PER,FIN,FRA,GLG,GUJ,HIN,HRV,HUN,IND,ISL,ITA,HEB,JPN,KAZ,KAN,KOR,KIR,LAO,LIT,LAV,MAC,MAL,MON,MAR,MAY,BUR,NOB,NEP,NLD,ORI,PAN,POL,POR,RUM,RUS,SOL,SLV,ALB,SRP,SWE,SWA,TAM,TEL,THA,TGL,TUR,UKR,URD,UZB,VIE,zh_CN,zh_HK,zh_TW,ZUL |
Sensing Features |
|
Sensor |
Light / Color |
Energy Saving & Efficiency |
|
SORPLAS |
Yes |
EEA SDR RANK |
D |
On mode power 1000h SDR (New lot5) |
99 kWh / 1000h |
Mercury content (mg) |
0.0 |
Lead Content |
Yes |
Dynamic Backlight Control |
Yes |
Power Saving Mode / Back Light Off Mode |
Yes |
General Features |
|
Smart TV |
Google TV |
SONY PICTURES CORE Calibrated mode |
Yes |
Prime Video Calibrated mode |
Yes *2 |
Auto Calibration with CalMAN |
Yes |
Netflix Calibrated mode |
Yes (Adaptive Calibrated Mode) |
IMAX Certified Model |
Yes |
SONY PICTURES CORE |
10 credits / 24 months |
Demo Mode |
Yes (e-POP only) |
Accessibility Features |
|
Color Inversion |
Yes |
Screen Reader |
Yes |
Audio Description |
Yes |
Closed Captions (Digital) |
Subtitle |
Text Magnification |
Yes |
Accessibility Shortcut |
Yes |
Voice Search |
Yes |
Menu timeout settings |
Yes |
Power-on Volume settings |
Yes |
TalkBack |
Yes |
Switch Access |
Yes |
Broadcast Features |
|
Teletext |
Yes |
Teletext number of pages |
1000 pages |
Design Features |
|

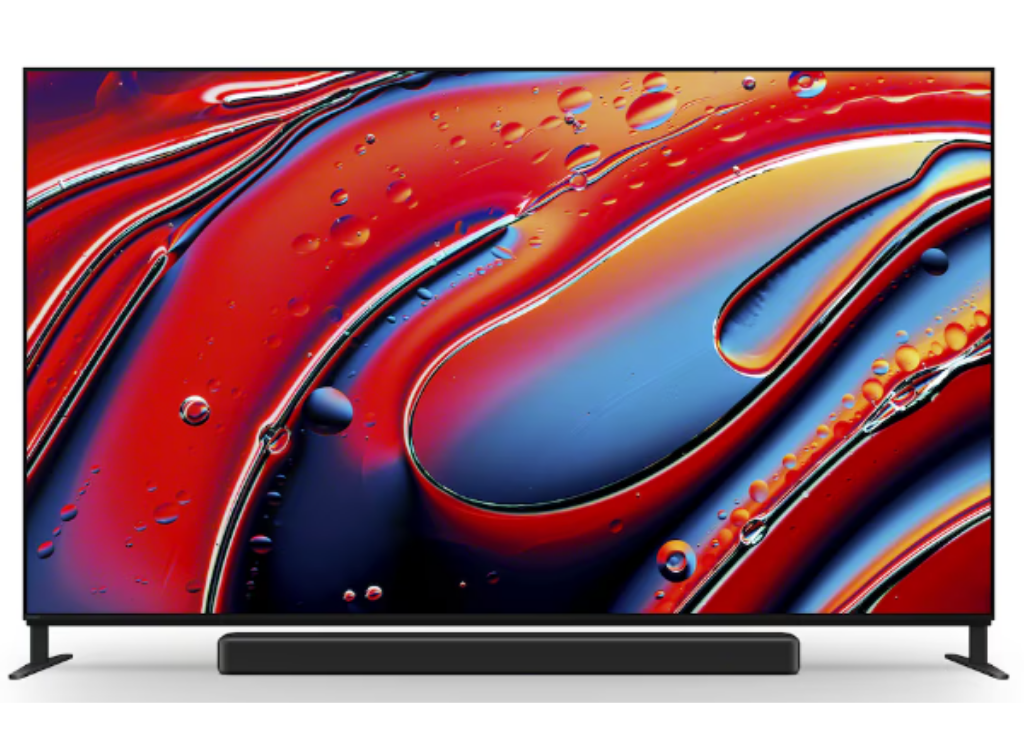

Stand Position |
4way position (Outside / Inside / Outside for Soundbar / Inside for Soundbar) |
Stand Color |
Dark silver / Hairline |

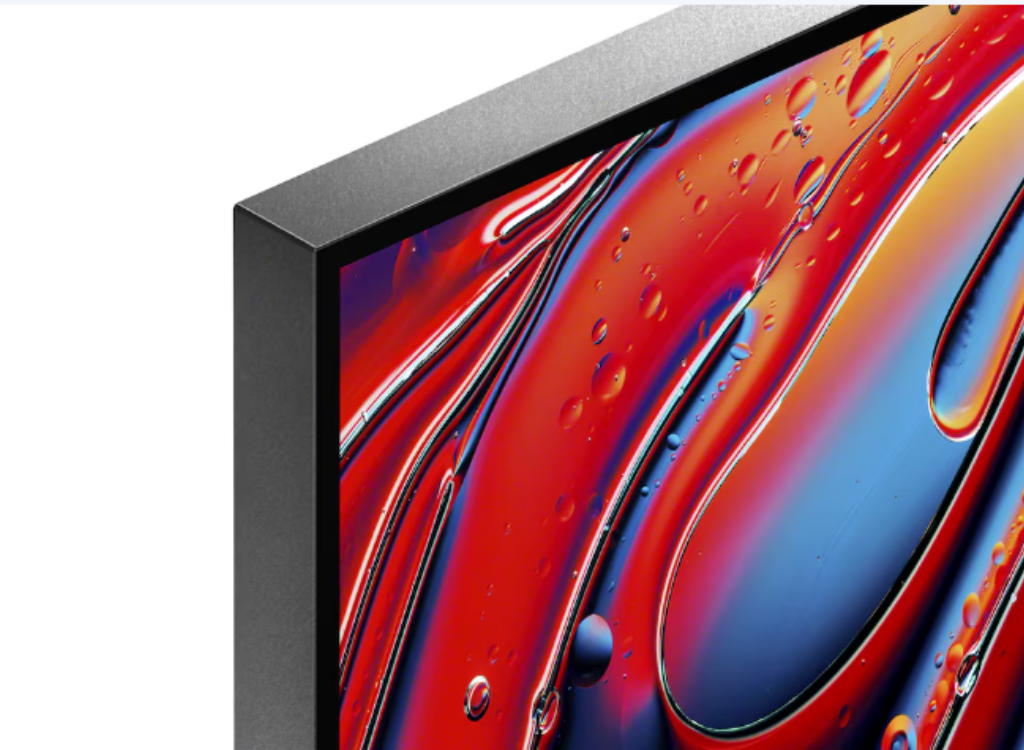

Bezel Design |
Seamless Edge |
Cable Management |
Yes |
Frame color |
Dark Silver / Vibration finish |
Stand Design |
Underlay stand |
Inputs and Outputs |
|
HDMI Signal |
4096x2160p (24,50,60Hz), 3840x2160p (24,25,30,50,60,100,120Hz) *3, 1080p (24,30,50,60,100,120Hz), 1080i (50,60Hz), 720p (24,30,50,60Hz), 576p, 480p |
HDCP |
HDCP2.3 (for HDMI1 / 2 / 3 / 4) |
Bluetooth profile support |
Version 5.3, HID / HOGP / SPP / A2DP / AVRCP |
4K 60P High-Quality formats |
HDMI IN1, IN2 ports for 4K (up to 18Gbps) signal, HDMI IN3, IN4 port for 4K (up to 48Gbps) signal |
AC Power Input |
Pigtail (REAR) |
RF (Terrestrial/Cable) Connection Input(s) |
1 (Side) |
IF (Satellite) Input(s) |
2 (Side) |
HDMI inputs total |
4 (4 Side) |
Digital Audio Output(s) |
1 (Side / Hybrid with S-Center Speaker Input) |
USB ports |
2 (Side) |
Ethernet inputs |
1 (Side) |
PCMCIA Slot(s) |
1 (Side) |
HDMI PC Input Format |
640x480 (31.5kHz, 60Hz), 800x600 (37.9kHz, 60Hz), 1024x768 (48.4kHz, 60Hz), 1280x1024 (64.0kHz, 60Hz), 1152x864 (67.5kHz, 75Hz), 1600x900 (55.9kHz, 60Hz), 1680x1050 (65.3kHz, 60Hz), 1920x1080 (67.5kHz, 60Hz) |
Power |
|
Power consumption (Networked Standby Mode) |
2.00W (Wi-Fi) / 2.00W (LAN) / 0.50W (CEC) |
Power Requirements (voltage) |
220 V - 240 V AC |
Power Requirements (frequency) |
50 Hz |
Rated Power Consumption |
528 W |
Power Consumption (Standby Mode) |
0.50 W |
Regulation and Standard Compliance |
|
VESA® Hole Spacing Compatible |
Yes |
VESA® Hole Pitch (W x H) |
40.0 x 40.0 cm |
Measurements (Approx.) |
|
TV with Stand (Inside for Soundbar) (W x H x D) |
Approx. 188.8 x 115.8 x 45.7 cm |
Dimension of TV without Stand (W x H x D) |
Approx. 188.8 x 108.5 x 4.9 (3.29) cm |
TV with Stand (Standard position) (W x H x D) |
Approx. 188.8 x 109.7 x 45.7 cm |
TV with Stand (Narrow position) (W x H x D) |
Approx. 188.8 x 109.7 x 45.7 cm |
TV with Stand (Soundbar position) (W x H x D) |
Approx. 188.8 x 115.8 x 45.7 cm |
Dimension of Package Carton (W x H x D) |
Approx. 200.4 x 122.0 x 22.6 cm |
Stand width (Standard position) |
Approx. 188.2 cm |
Stand width (Narrow position) |
Approx. 75.3 cm |
Stand width (Soundbar position) |
Approx. 188.2 cm |
AC Cable Length |
3500 mm |
Weights (Approx.) |
|
Stand Width (Inside for Soundbar) |
Approx. 75.3 cm |
TV with Stand (Inside for Soundbar) |
Approx. 55.7 kg |
Weight of TV without Stand |
Approx. 52.4 kg |
TV with Stand (Standard position) |
Approx. 55.7 kg |
TV with Stand (Narrow position) |
Approx. 55.7 kg |
TV with Stand (Soundbar position) |
Approx. 55.7 kg |
Weight of Package Carton (Gross) |
Approx. 67 kg |
Carton Spec |
|
Max Qty of carton stacking (vertical) |
2 |
Max Qty of carton stacking (horizontal) *only for Shop Front |
N/A |
Supplied Accessories |
|
Voice Remote Control (supply) included Rechargeable Battery |
Yes |
USB Type-C Cable |
Yes |
Voice Remote Control (Supply) |
RMF-TX920U |
Remote Control |
RMT-TX450E |
Batteries |
R03 |
AC Power Cord Spec |
Joint Type (Pig-tail43mm) (ASIA) (2pin) (C18) + Bundle (C17) (EUROPE) (2pin) (round pins Type F) + Bundle (C17) (SWISS) (2pin) (round pins Type C) |
Operating Instructions |
EN, FR, ES, NL, DE, PT, IT, SE, DK, FI, NO, PL, CZ, SK, HU, RO, BG, GR, TR |
Quick Setup Guide / Supplement CUE (GA) |
EN, FR, ES, NL, DE, PT, IT, DK, NO, SE, FI, PL, CZ, SK, HU, RO, BG, GR, TR, RU, UA, AR |
Table Top Stand |
Separate (Assembly required) |
