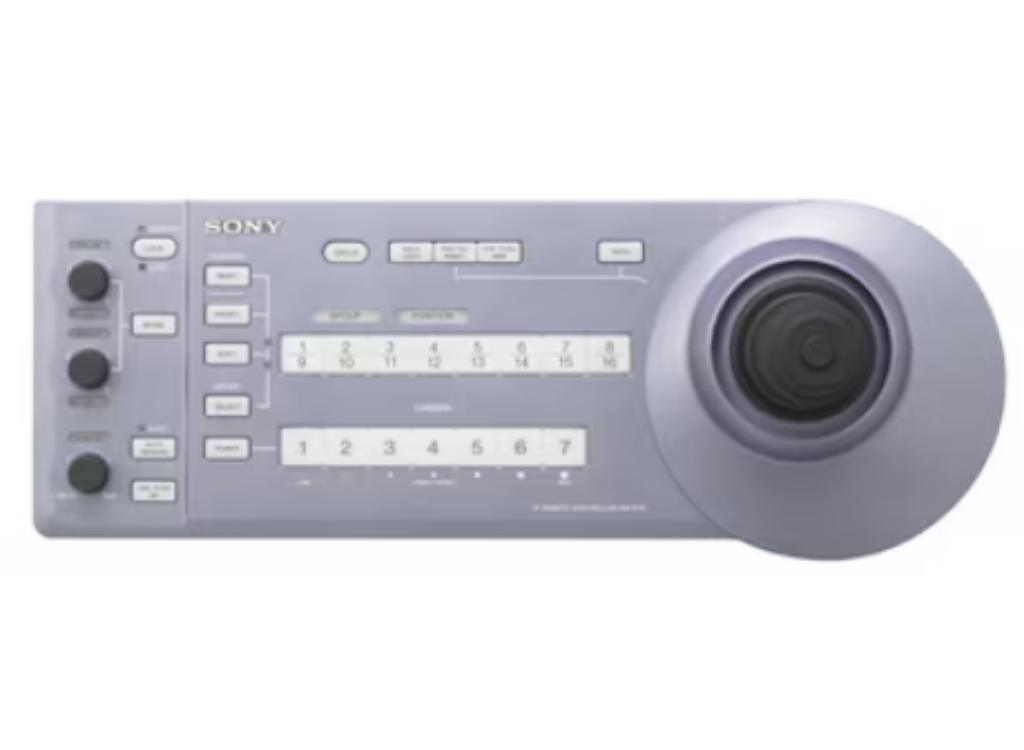

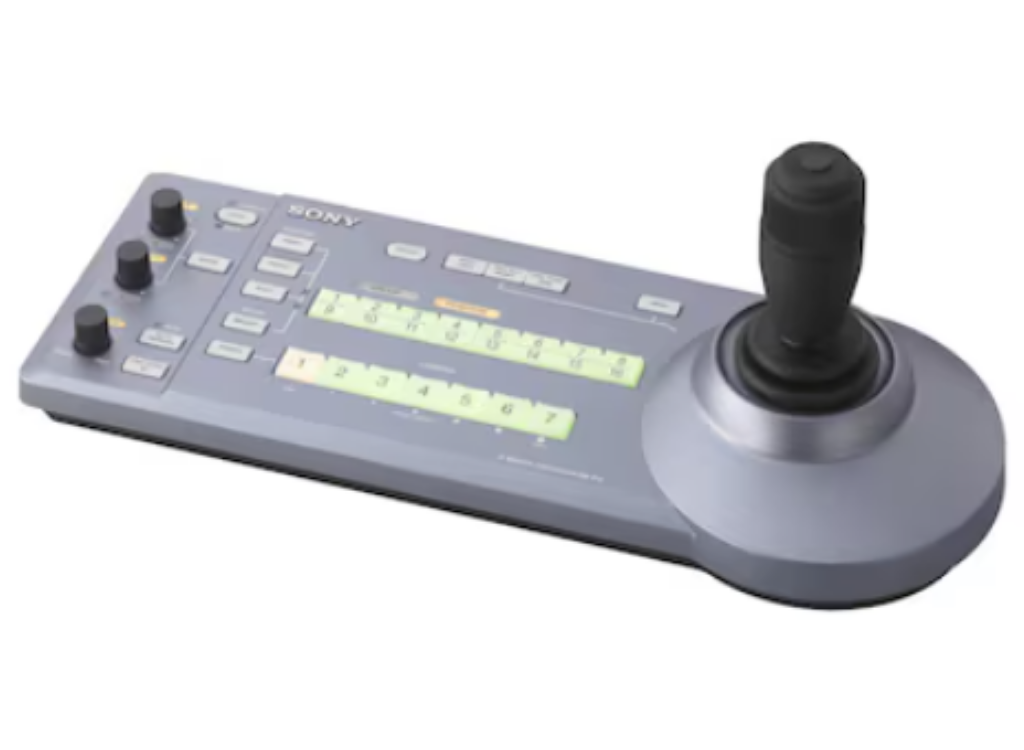

Sony RM-IP10 IP Remote Control Panel For BRC Cameras
SKU: RM-IP10
£1,198.34 (Excl. VAT)
- Description
- Specifications
-
Sony RM-IP10 IP Remote Control Panel For BRC Cameras
Control of up to 112 BRC cameras via an IP network
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system.Easy to install control for BRC-H900, BRC-Z330 and BRC-Z700 cameras
The RM-IP10 is compatible with Sony's BRC-X400*1, SRG-X400*1, SRG-X120*1, BRC-X401*1,*2, SRG-201M2*1,*2, SRG-HD1M2*1,*2, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS camera models.
Control with BRC-H900 and older BRC-Z330 camera models requires installation of camera option board BRBK-IP10, and the BRC-Z700 camera is controlled when it is fitted with the BRBK-IP7Z option board. Easy and economical installation and set-up saves you time and cost.*1 Requires firmware V2.17
*2 Model sold in China onlyControl of up to 112 BRC cameras via IP
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection

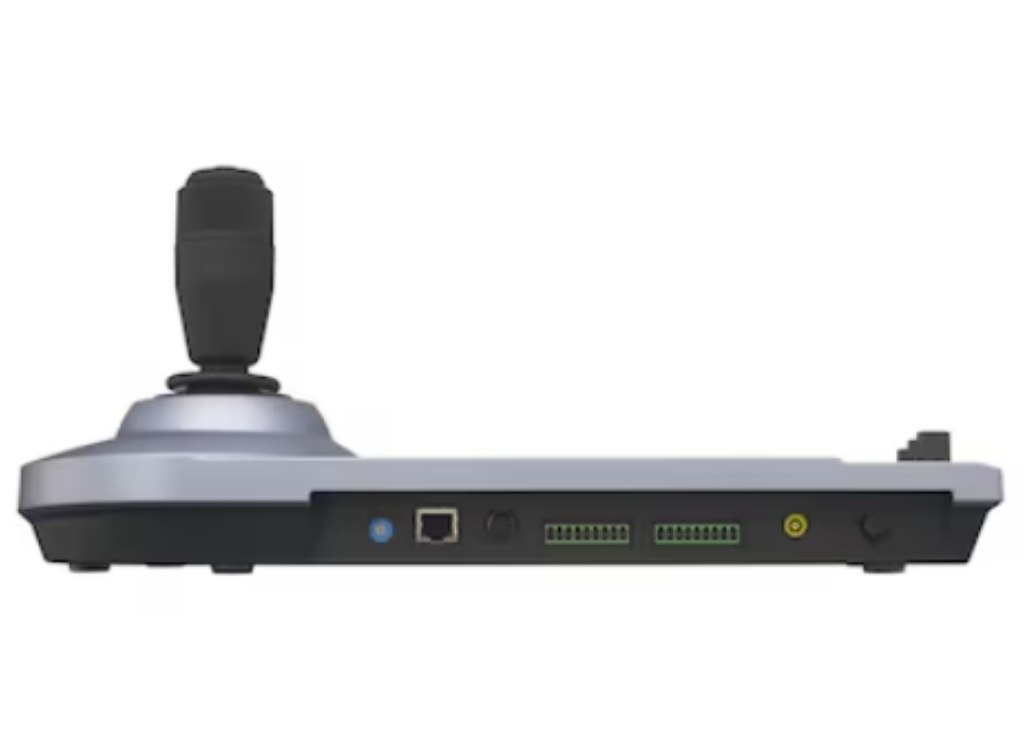

The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.Additional ability to use VISCA control
The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network.PC configuration software supplied
The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of anetwork.Compatible Sony cameras
The RM-IP10 is compatible with Sony‘s BRC-X400, SRG-X400, SRG-X120, BRC-X401*, SRG-201M2*, SRG-HD1M2*, BRC-H900, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board.*Model sold in China only
Up to 5 controllers can operate on a single network
Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.Simultaneous Preset recall to all cameras under control
Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments. -
Category Feature Details Input/output connectors Control input/output VISCA RS-232C OUT: Mini DIN 8-pin, VISCA RS-422: 9-pin, LAN: RJ-45 Tally In/Contact Out 9-pin type Control signal format Communication 9,600 bps/38,400 bps (RS-232C/RS-422), VISCA over IP Power Connector Type JEITA type 4 (DC IN 12V) General Input voltage 12V DC (10.8 to 13.2V DC) Current consumption 0.3A max. (at 12V DC), 3.6W Operating temperature 0℃ to 40℃ (32°F to 104°F) Storage temperature -20℃ to 60℃ (-4°F to 140°F) Dimensions (W x H x D) 391.3 mm x 165 mm x 145.9 mm (15 ½” x 6 ½” x 5 ¾”) Mass Approx. 950g (2 lb 15 oz) User Interface Display No Speed Control No Zoom Seesaw Lever No Zoom Ring of Joystick Yes Zoom Control selectable Ring of Joystick ASSIGN button 0 Kensington lock hole No Camera Control Maximum IP Connections 112 Maximum Serial Connections 7 Control Protocol VISCA over IP/VISCA RS-422/VISCA RS-232C switchable max Controller qty (/sys) 5 Toggle backlight compensation on/off Yes R gain and B gain adjustment Yes *1 R black and B black adjustment Yes *1 Iris value adjustment Yes *1 Gain value adjustment Yes *1 Shutter speed adjustment Yes *1 Supplied Accessories Included Operating Instructions (1), AC Power Adapter (SONY)(1), AC power cord (1), CD-ROM (1), RS-422 connector plug (attached to the unit) (2) Notes *1 Need multiple button/knob/DIP SW operation, Available functions/specifications depend on camera specification
