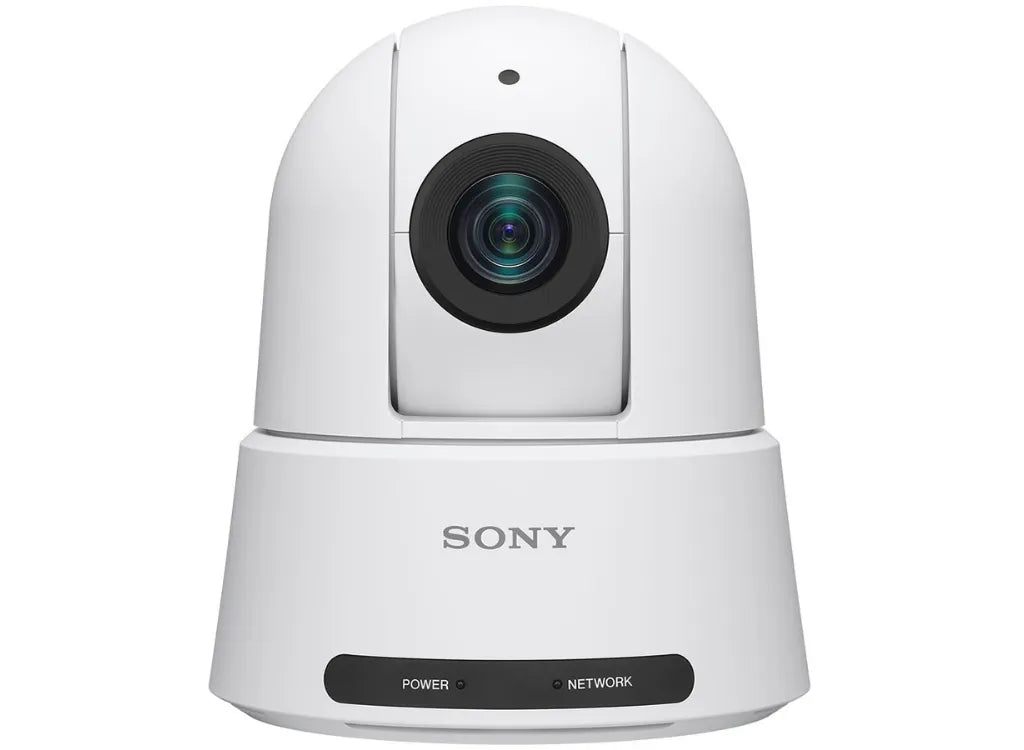

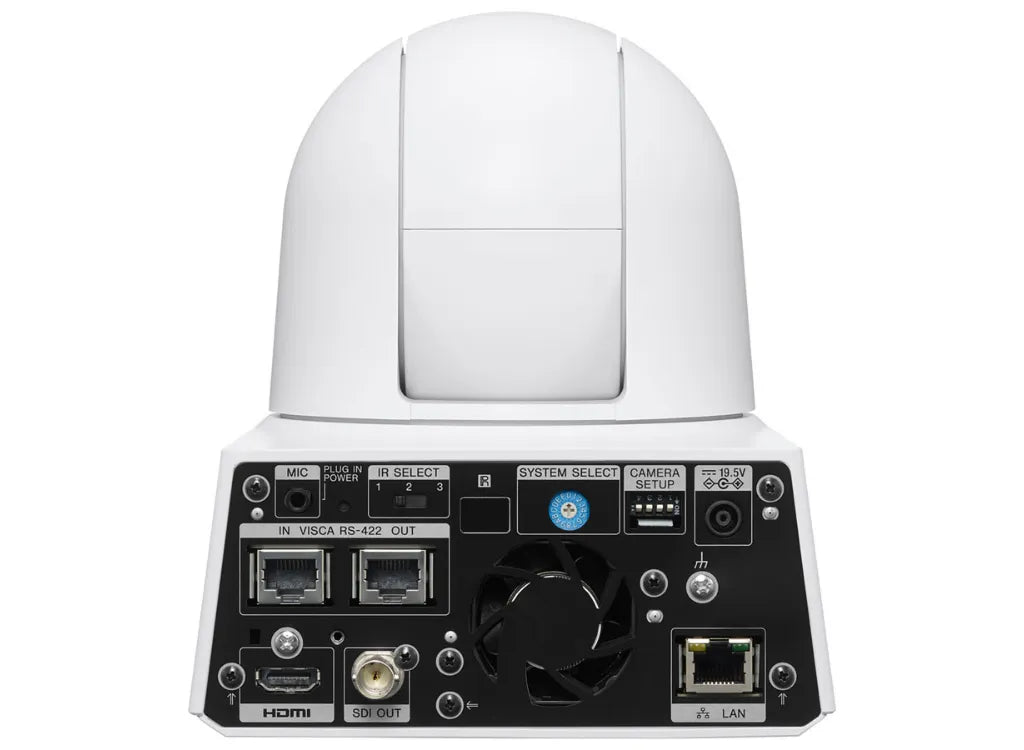

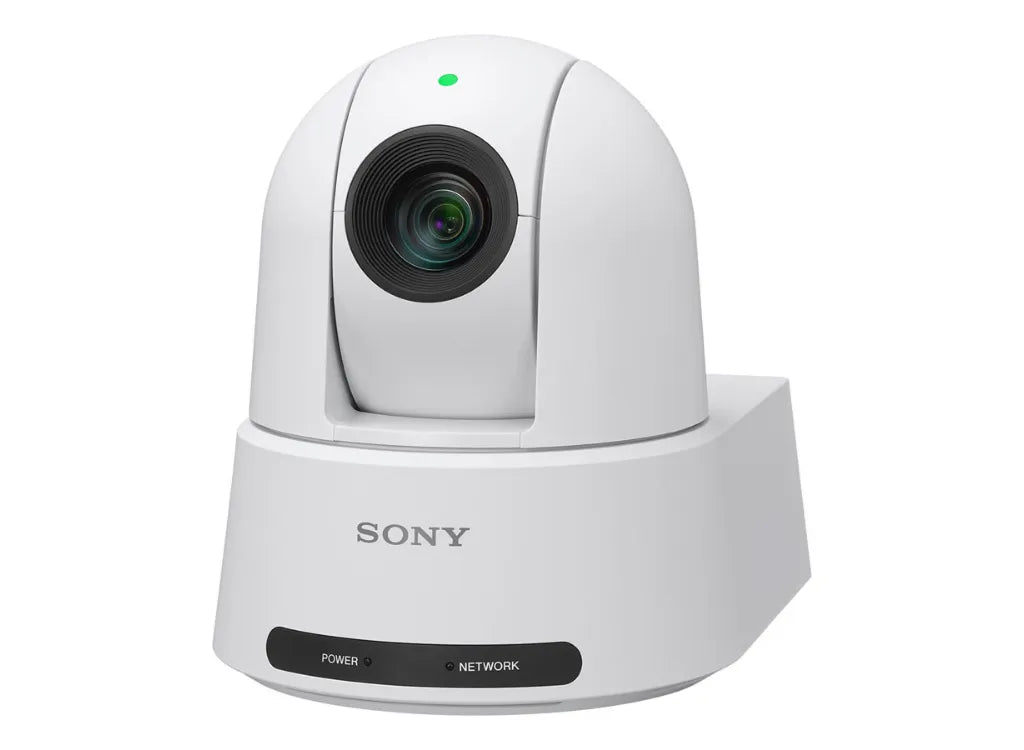

Sony SRG-A12WC 4K 12X Auto Framing PTZ Camera
SKU: SRG-A12WC
£2,700.83 (Excl. VAT)
- Description
- Specifications
-
Sony SRG-A12WC 4K 12X Auto Framing PTZ Camera
A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.Since the camera does most of the work automatically, the operator can spend its time efficiently.
PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.
Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can adjust picture composition (size, up & down, and left & right) and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.
Full Body
Waist
Close-upIntegrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).
-
Category Specification Camera Image Sensor 1/2.5 type Exmor R CMOS Image Sensor (Number of Effective Pixels) Approx. 8.5M pixels Signal System 2160/29.97p, 25p, 23.98p; 1080/59.94p, 50p, 29.97p, 25p, 23.98p; 1080/59.94i, 50i; 720/59.94p, 50p 4K Capability Yes Minimum Illumination (50IRE) 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF) Horizontal Resolution 1700 TV lines (Center)(4K), 1000 TV lines or higher (Center)(FHD) Gain Auto/Manual (0 to +48 dB) High Sensitivity On Shutter Speed 1/1 to 1/10000 sec (59.94 Hz system); 1/1 to 1/10000 sec (23.98 Hz system); 1/1 to 1/10000 sec (50 Hz system) Exposure Control Auto/Manual/Priority AE (Shutter, Iris) White Balance Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual Zoom Capability 12x, Max. 24x (HD with Tele Convert Mode) Focusing System Auto/Manual Horizontal Viewing Angle Approx. 70.0 degree (Wide) Focal Length f = 4.4mm (Wide) to 52.8mm (Tele) F-number F2.0 to F3.7 Minimum Object Distance 80 mm (Wide) ~ 400 mm (Tele) Pan/Tilt Angle Pan: ±170°; Tilt: +90°/-20° Pan/Tilt Speed (Max.) Pan: 300 degrees/sec; Tilt: 126 degrees/sec Pan/Tilt Speed Pan: 1.1° to 101°/s; Tilt: 1.1° to 91°/s Pan/Tilt Speed (Slow) Pan: 0.5° to 60°/s; Tilt: 0.5° to 60°/s Pan/Tilt Slow Mode Yes Pan/Tilt Operation Noise NC30 or less (*4) (*4 Sony measurement conditions) Preset Position 256 (CGI), 100 (VISCA) Picture Freeze Preset Yes PTZ Motion Sync Yes Network IP Video Resolution 3840x2160, 1920x1080, 1280x720, 640x360 Compression Format H.264: High/Main/Baseline Profile; H.265: Main Profile Maximum Frame Rate H.264: 60fps; H.265: 60fps Bitrate Compression Mode CBR/VBR (selectable) Range of Bitrate Setting 512Kbps~50 Mbps Multi Streaming Capability 3 Maximum Number of Clients 5 Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT NDI HX Capability Camera Features Auto ICR (Auto mode of IR Cut filter Removal) Yes Day/Night Yes Visibility Enhancer Yes Image Stabilizer Yes Image Flip Yes Picture Setting File Yes Flicker Cancel On/Off Hide OSD Menu On/Off Standby Mode Yes Remote Standby Yes PTZ Auto Framing Yes Web UI Ver Up Yes Languages Japanese, English, French, Spanish, German, Italian, Chinese, Traditional Chinese, Korean, Portuguese, Russian, Polish, Hindi, Turkish OS and Browser Windows 11 64-bit w/ Chrome; Windows 10 64-bit w/ Chrome; Windows 11 64-bit w/ Edge; Windows 10 64-bit w/ Edge; macOS 11 w/ Chrome; macOS 12 w/ Chrome Audio Channel 2ch Audio Codec AAC LC 128kbps/ST (IP); AAC LC 256kbps/ST (IP) Setting Option Auto level control: On/Off; Equalizer: Off/Low cut/Voice enhancement; Input selection: Microphone/Line; Mic volume: -10~+10 (21 steps) Embedded Audio in Baseband Video Yes (3G-SDI, HDMI) Embedded Audio in IP Streaming Yes Interface 4K Video Output HDMI x1; IP (streaming) x1 HD Video Output 3G-SDI x1; HDMI x1; IP (streaming) x1 SD Video Output IP (streaming) x1 Remote Video Format Switching Yes HDMI Color Space YCbCr, 4:2:2 8bit; RGB, 4:4:4 8bit Camera Control Interface VISCA RS-422 RJ45 (In/Out); VISCA over IP RJ45 IR Remote Control Yes Microphone Input Stereo Mini-phone (φ3.5mm) x1 (Mic/Line Selectable) Sync. System INT Tally Front x 1; Red/Green (for PTZ Auto Framing) Power Connector Type IEC60130-10 (JEITA standard RC-5320A) Type5 General Power Requirements DC 19.5V; PoE++ (IEEE802.3bt type4 class8) Power Consumption DC19.5V : 80W; PoE++ : 71.3W Operating Temperature 0 °C to 40 °C; 32 °F to 104 °F Storage Temperature -20 °C to +60 °C; -4 °F to +140 °F Dimensions (W x H x D)*3 156.7 x 184.0 x 200.0 mm; 6 1/4 x 7 1/4 x 7 7/8 inch *3: The values for dimensions are approximate Mass Approx. 2.0 kg; Approx. 4 lb 6.5 oz Body Color White / Black Size of Screw Hole for Tripod 1/4-20UNC x1 Mountable Angle < ±15° Ceiling Mount Yes Supplied Accessories AC power adaptor (1) Yes IR Remote Commander Unit (1) Yes Ceiling bracket (2) Yes Wire rope (1) Yes Screw M3 x 8 (9) Yes Screw M2.6 x6 BLACK (1) Yes HDMI cable fixing plate (1) Yes Safety regulation (1) Yes Download site information (1) Yes Warranty (1) Yes
