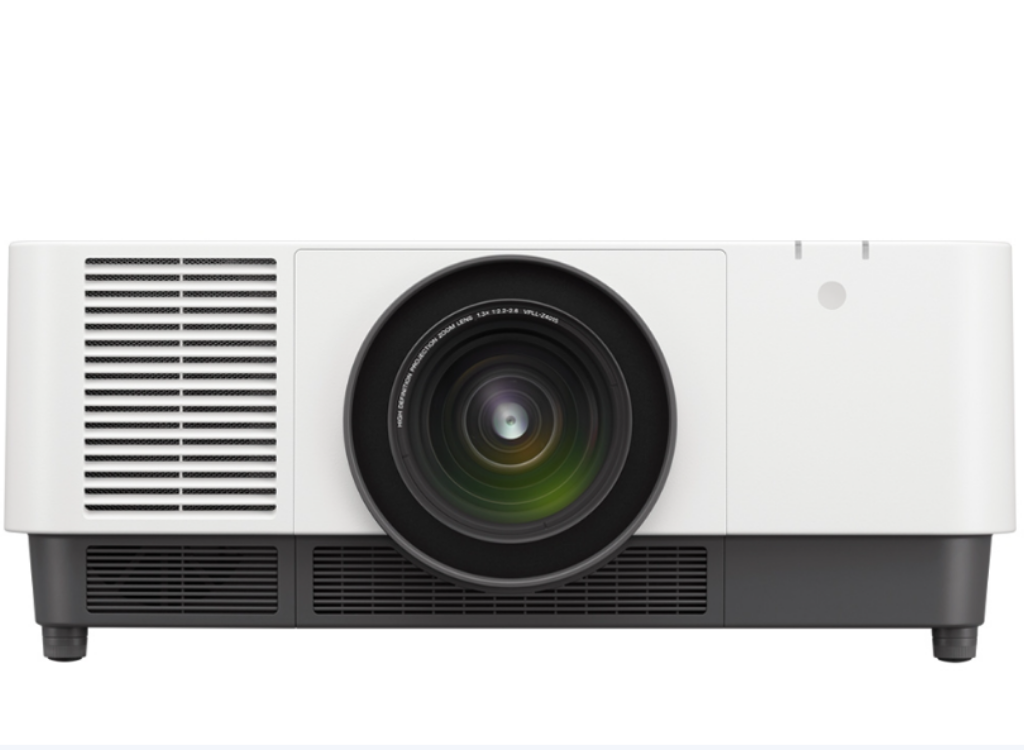

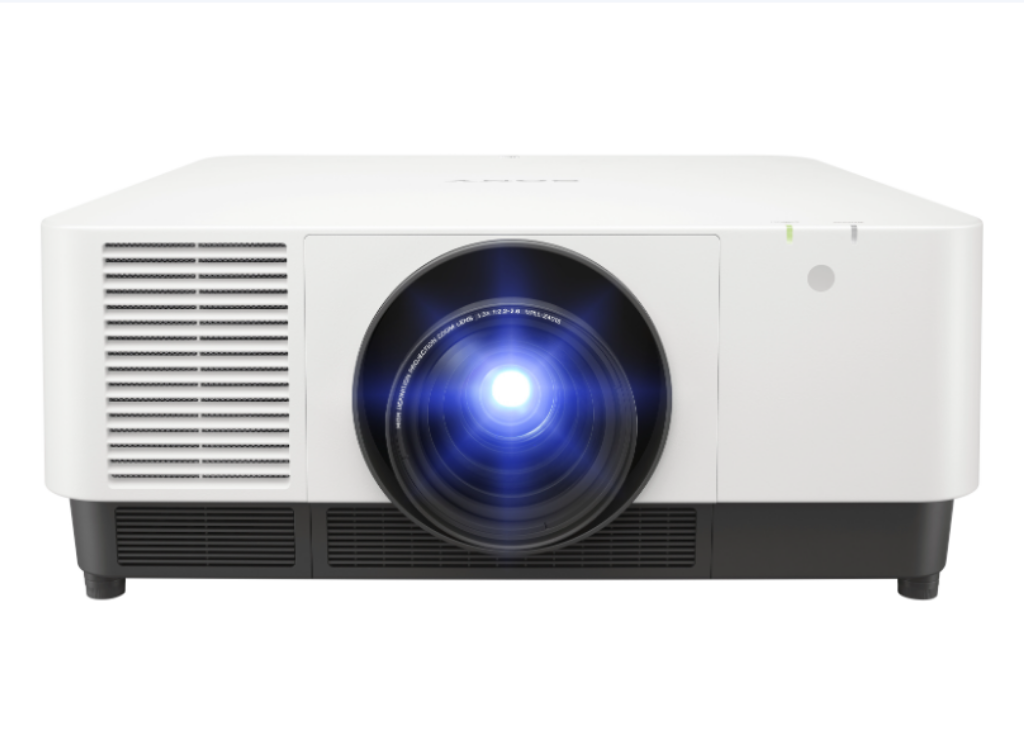

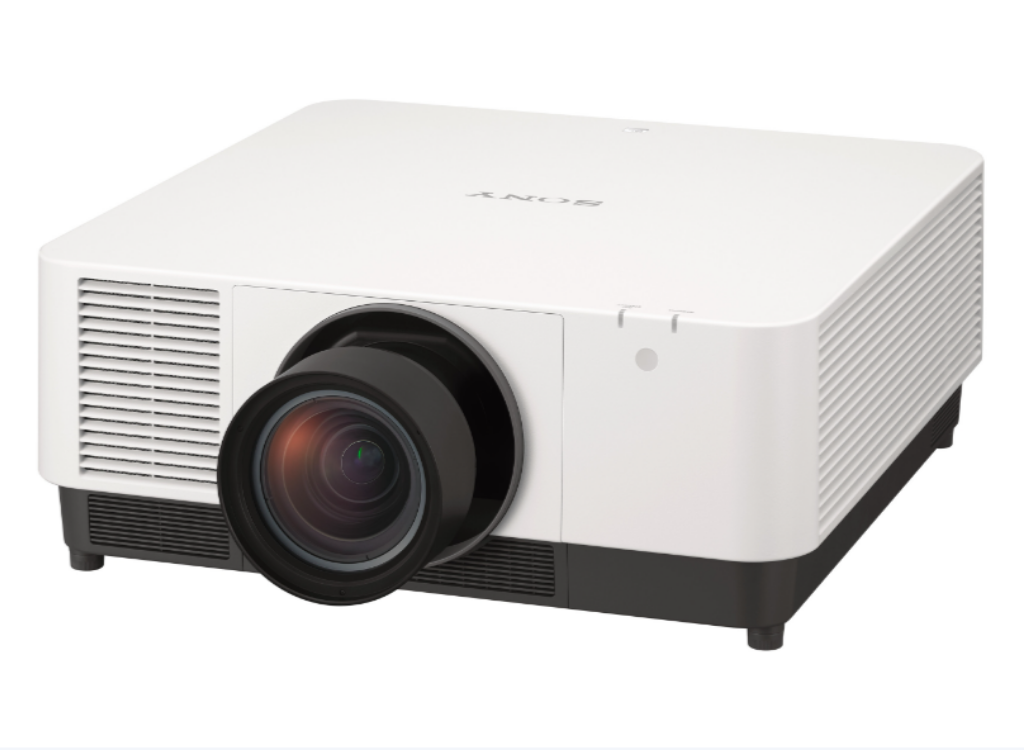

Sony VPL-FHZ131L Laser Installation Projector - 13000 Lumens
SKU: VPL-FHZ131L
£9,035.79 (Excl. VAT)
- Brightness (Lumens) 13000 - 16000
- Contrast Ratio Dynamic Contrast Ratio
- Native Resolution WUXGA
- Throw Ratio Based on the lens
- Light Source Laser
- Native Aspect Ratio 16:10 Widescreen
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Sony VPL-FHZ131L Laser Installation Projector - 13000 Lumens
Brighter images in bigger venues
Captivate your audience in conference halls, lecture theatres, galleries, museums, visitor attractions and other large spaces. Very high light output 13,000 lm (13,600 lm center) VPL-FHZ131L, 10,000 lm (10,400 lm center) VPL-FHZ101L, 9,000 lm (9,800 lm center) VPL-FHZ91L ensures big-screen presentations with extra presence, even in brightly lit rooms.
Get closer to reality
Impressive picture quality is boosted by Sony’s unique super resolution Reality Creation technology. This uses a powerful pattern-matching database to optimise lower-resolution images, enhancing clarity without increasing digital picture noise.
Faster, fuss-free set-up
Save time with Sony’s Intelligent Setting function that simplifies installation with pre-sets to optimise brightness, cooling, colour and other projector settings. You’ll be rewarded with great pictures in any environment – including meeting/classrooms, museums, entertainment venues and multi-screen setups.
For more flexible installation
Don’t restrict your thinking. You’ll appreciate an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, giving more options to install the projector in any space, including classrooms and halls with high ceilings. For extra flexibility the VPLL-Z4107 short throw lens is ideal when positioning the projector close to the screen to avoid ceiling-mounted obstructions.
With normal lens shift
The projector requires a mounting bracket, which obscures the audience’s view.
With wide lens shift
Lens shift gives greater installation flexibility, even in rooms with high ceilings. -
Category Details Display System 3 LCD system Display Device 1” x 3 BrightEra LCD Panel, Aspect ratio: 16:10 Number of Pixels 6,912,000 (1920 x 1200 x 3) pixels Resolution WUXGA (1920 x 1200 pixels) Projection Lens Powered / Manual (Depend on lens) Zoom - Ratio Depends on Lens Throw Ratio Depends on Lens Lens Shift - Powered / Manual Powered Lens Shift - Range Vertical: Depend on Lens Horizontal: Depend on Lens Light Source Laser diode Filter Replacement Cycle (Max.) 10,000 H (service maintenance) Screen Size Depends on Lens Light Output - Mode: Standard 13,000lm *2 / 13,600lm (Center)*3 - Mode: Middle 10,000lm - Mode: Low 8,600lm Colour Light Output - Mode: Standard 13,000lm - Mode: Middle 10,000lm - Mode: Low 8,600lm Contrast Ratio ∞ : 1 (full white / full black) Colour Space sRGB 100% (Picture mode: sRGB) Displayable Scanning Frequency - Horizontal: 15 kHz to 92 kHz - Vertical: 48 Hz to 92 Hz Accepted Signal Resolution - Computer Signal Input: Maximum signal resolution: 1920 x 1200 - Video Signal Input: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i 1080/60p, 1080/50p, 1080/24p, 1080/30p *4 Keystone Correction (Max.) - Horizontal: +/- 30 degrees - Vertical: +/- 30 degrees INPUT OUTPUT (Computer/Video/Audio/Control) - INPUT A: RGB / Y PB PR input connector: 5 BNC (female) - INPUT B: RGB input connector: Mini D-sub 15-pin (female) - INPUT C: DVI input connector: DVI-D 24-pin (single link), HDCP support - INPUT D: HDMI input connector: HDMI 19-pin, HDCP support - INPUT E: HDBaseT interface connector: RJ45, 3 play - INPUT F: Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20) - INPUT G: HTML Viewer - OUTPUT 1: Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female) - USB-1: Type-A x 1 - USB-2: Type-B x 1 (for service) - REMOTE: D-sub9pin male/RS232C - LAN: RJ45, 10BASE-T/100BASE-TX/1000BASE-T Acoustic Noise - Light Output Mode: Standard: 42dB - Light Output Mode: Middle: 39dB Operating Temperature / Humidity - Operating Temperature: 0°C to 45°C (32°F to 109°F) - Operating Humidity: 20% to 80% (no condensation) Storage Temperature / Humidity - Storage Temperature: -10°C to +60°C (14°F to +140°F) - Storage Humidity: 20% to 80% (no condensation) Power Requirements AC 100 V to 240 V, 10.8 A to 4.4 A, 50 Hz / 60 Hz Power Consumption (Maximum) - AC 100 V to 120 V: 1076W - AC 220 V to 240 V: 1033W Power Consumption (Standby Mode) - AC 100 V to 120 V: 0.50W (when “Standby mode” is set to “Low”) - AC 220 V to 240 V: 0.50W (when “Standby mode” is set to “Low”) Power Consumption (Networked Standby Mode) - AC 100 V to 120 V: 21.6W (LAN) - AC 220 V to 240 V: 21.3W (LAN) Heat Dissipation - AC 100 V to 120 V: 3671 BTU/h - AC 220 V to 240 V: 3524 BTU/h Dimensions (W x H x D) Approx. 544 x 205 x 564 mm (21 13/32 x 8 1/16 x 22 7/32 inches) Mass Approx. 27 kg (58 lb) Supplied Accessories Remote Commander: RM-PJ30 Projection Lens: VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045 -
Description Downloads Datasheet Download
