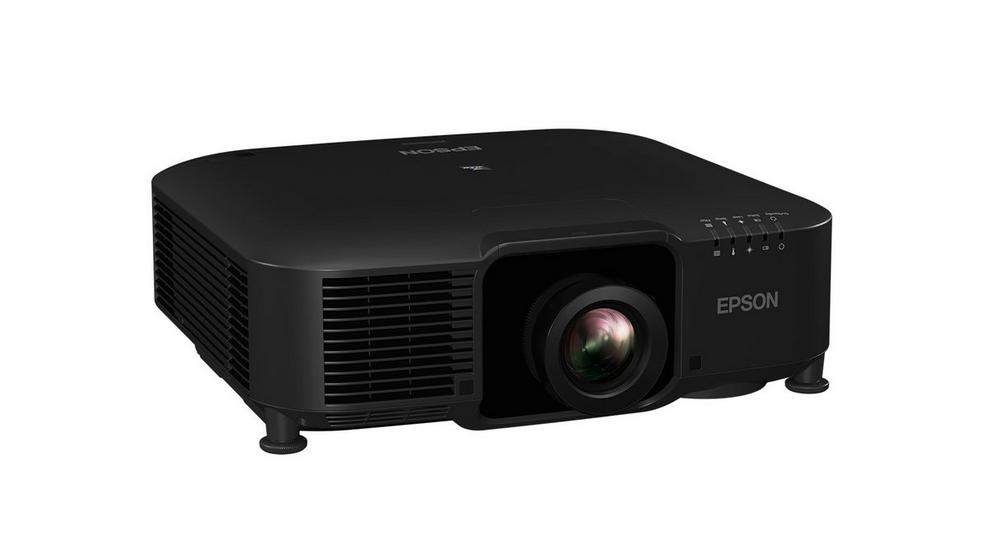

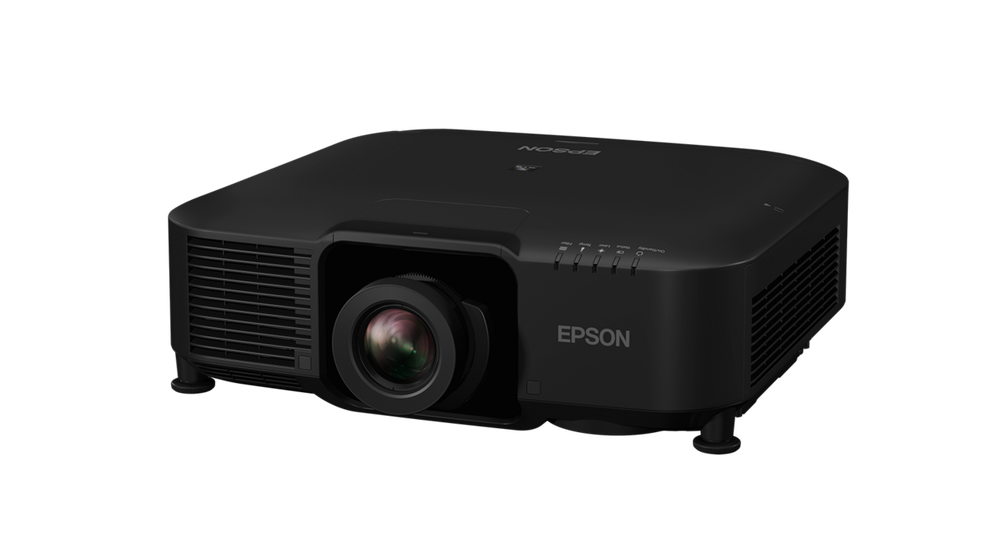

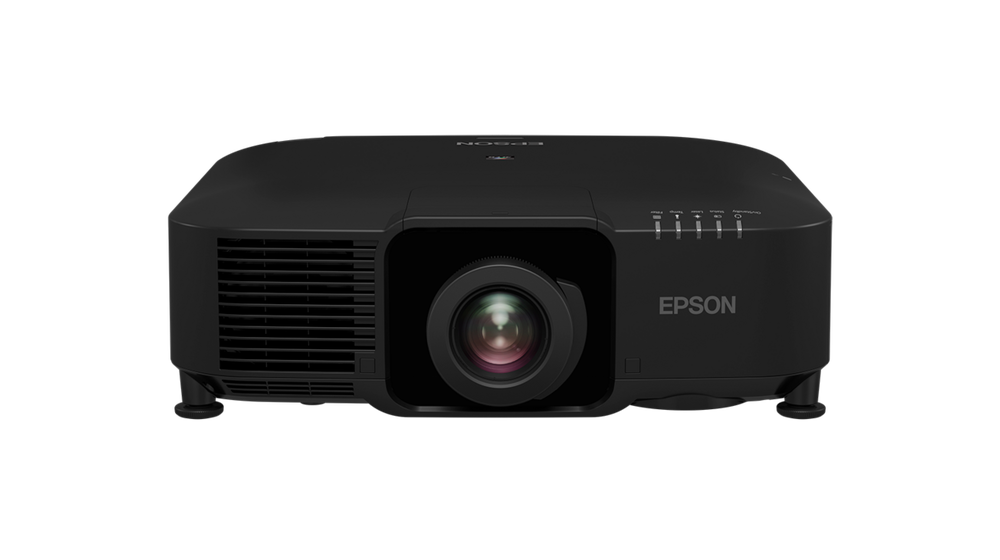

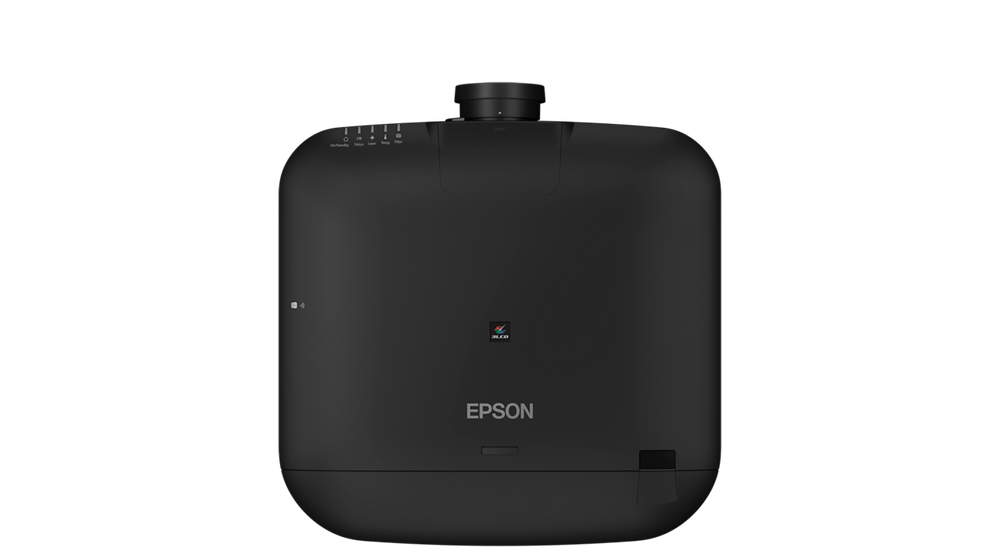

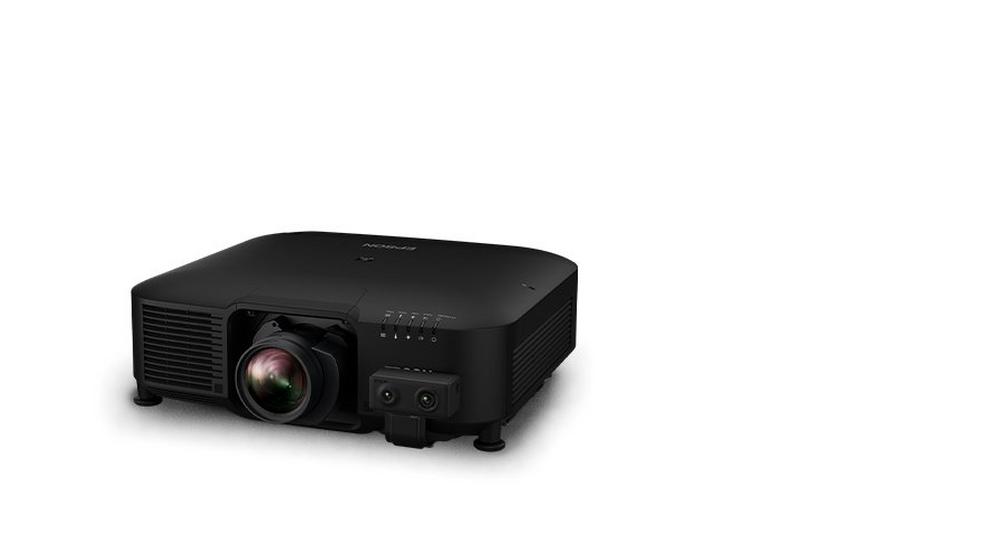

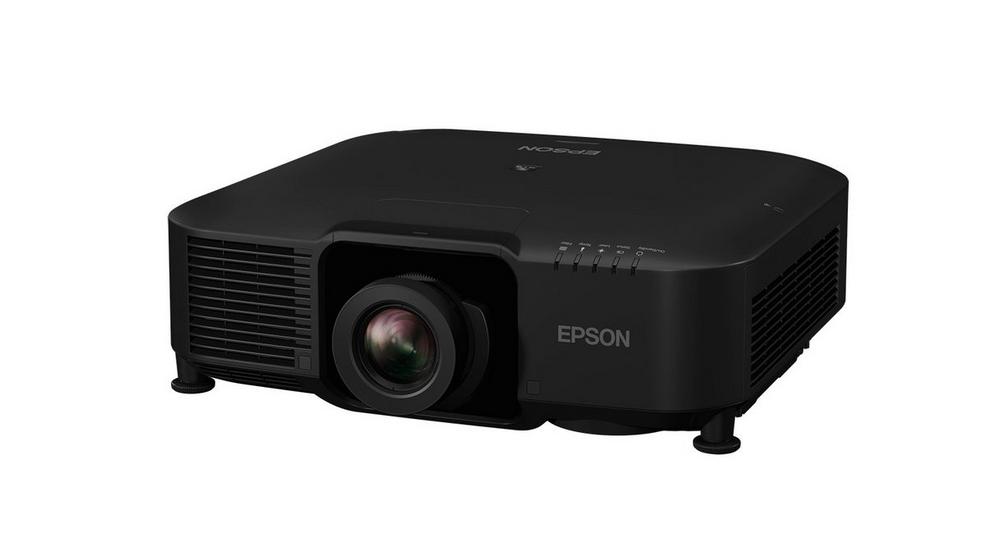

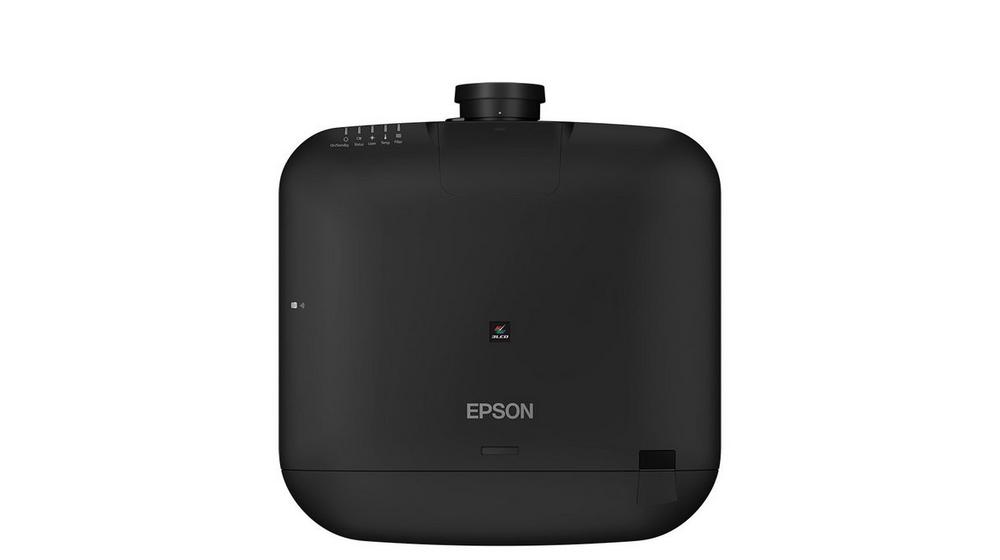

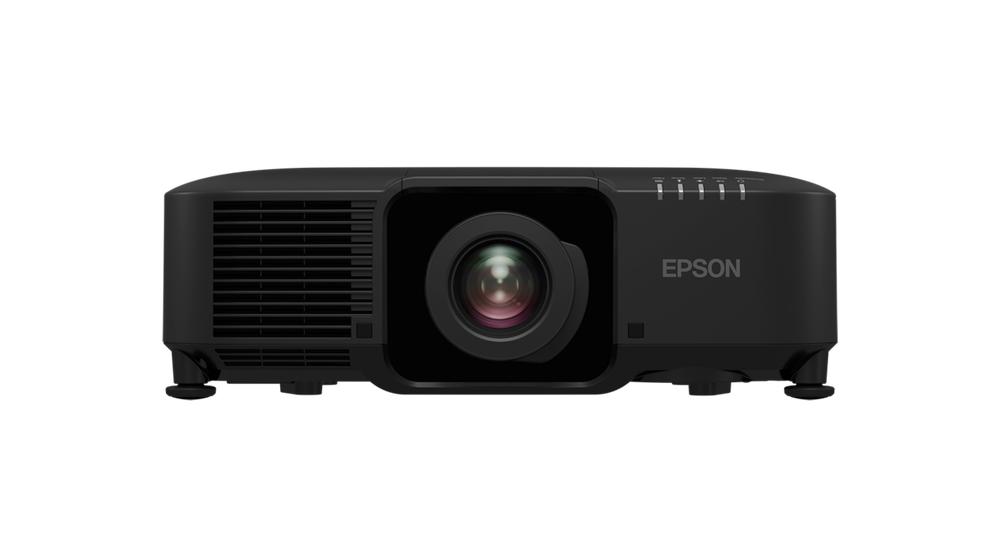

Epson V11HA52840/EB-PU2010B Installation Projector - 10000 Lumens

SKU: V11HA52840
5100 - 10000Brightness
2,500,000:1+Contrast ratio
WUXGANative resolution
0.35 - 7.41:1Throw ratio
LaserLight source
16:10 WidescreenAspect ratio
3 Year WarrantyWarranty

Product description

  • Description
  • Specifications
  • Downloads
  • Epson V11HA52840/EB-PU2010B Installation Projector - 10000 Lumens

    3LCD installation projector
    Compact and lightweight Unobtrusive and easier to transport

    Lens support Supports a wide selection of Epson interchangeable lenses

    Enhanced design Clean, simple, and discreet design. Black version.

    Image quality 10,000 lumens, 3LCD, WUXGA resolution with 4K enhancement

    Advanced installation tools A range of free software tools and an optional external camera module

    Produce vivid, engaging images
    Captivate customers and audiences with projections that will live long in the memory. The 10,000 lumens EB-PU2010B projects clear whites, vivid colour detail, deep blacks, defined shadows and high contrast imagery - thanks to HDR and 3LCD technology. Exceptional image detail and clarity is achieved with 4K Enhancement.

    Build your perfect projection solution
    The EB-PU2010B accommodates different lenses to suit your most challenging projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in your hands.

    Transport and store with ease
    As it's lightweight and compact, this installation projector is transportable and will save on valuable storage space, providing size and cost advantages to projector fleets. The projector's unobtrusive design also allows it to blend seamlessly into your chosen environment.

    Discover installation agility
    Produce large-scale, extremely bright displays, even as part of multi-projector
    installations where edge blending, stacking and lens flexibility is key. Epson
    Projector Professional Tool makes advanced installation techniques easy, such

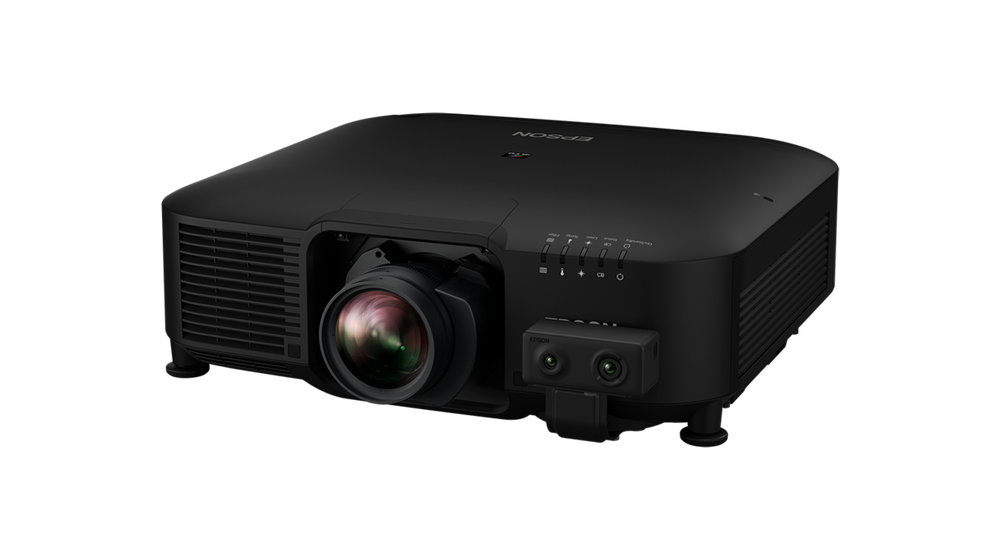

    as projection mapping, while the optional external camera module (ELPEC01)
    uses built-in processing for PC-free geometry correction for stacking. The EB-PU2010B features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool. It also includes SDI input and output connectivity.

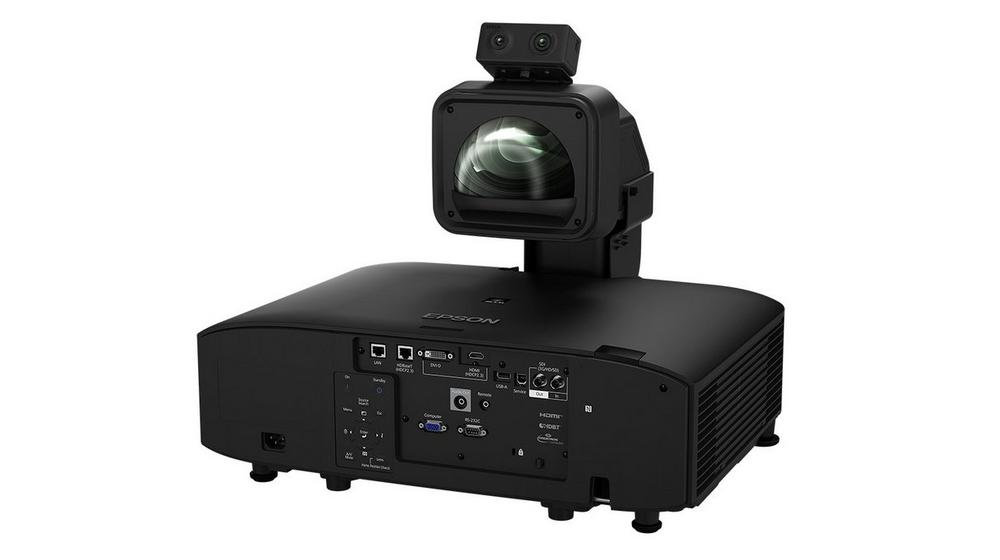

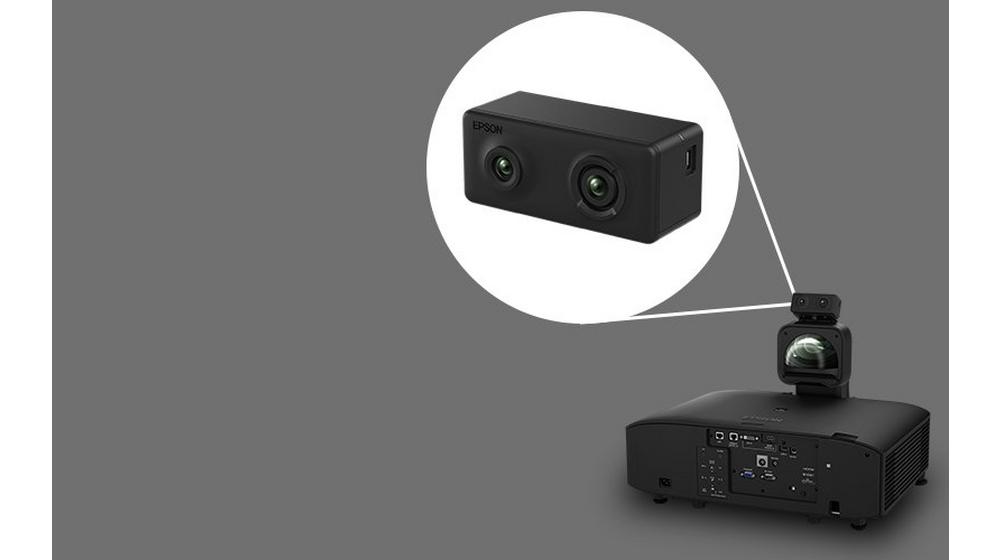

    Enjoy the benefits of PC-free stacking
    The ELPEC01 is an optional external camera module that can be easily integrated with EB-PU Series projectors and ELPLX Series lenses. It enables the use of in-built processing for PC-free stacking, which means two supported projectors can be stacked to double the brightness, without using external computerware. This reduces the need for additional external equipment and their associated costs.

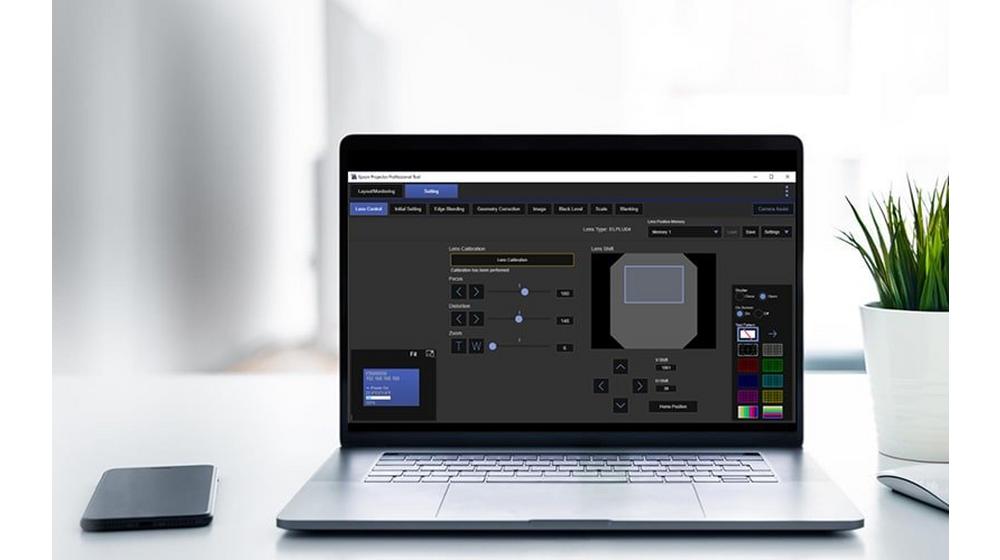

    Take control of your projected images
    Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, stacking, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.

    Create customised content
    The EB-PU2010B includes a built-in media player with network content upload capability. This allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App, or create and schedule playlists using Epson Projector Content Manager software.

    Trust in the world's No.1 projectors manufacturer¹
    Epson has been the world's No.1 projector manufacturer¹ since 2001. Our commitment to product quality, technology and relationships, is backed by unparalleled service and support.

  • Technology Projection System
    LCD Panel 1.03 inch with C2 Fine
    Color Light Output 10,000 Lumen- 7,000 Lumen (economy) In accordance with IDMS15.4
    White Light Output 10,000 Lumen - 7,000 Lumen (economy) In accordance with ISO 21118:2020
    Portrait Colour Light Output 10,000 lm
    Portrait White Light Output 10,000 lm
    Resolution WUXGA
    High Definition 4K enhancement
    Aspect Ratio 16:10
    Contrast Ratio Over 2,500,000 : 1
    Native Contrast 2,000 : 1
    Light source Laser
    Laser Light source 20,000 hours Durability High, 30,000 hours Durability Eco
    Keystone Correction Manual vertical: ± 45 °, Manual horizontal ± 30 °
    Colour Video Processing 10 Bits
    Colour Reproduction Upto 1.07 billion colours
    HDR support HDR10, HLG
    Optical
    Throw Ratio 0.35 - 7.41:1
    Zoom Motorized
    Lens Optical
    Lens Shift varies by lens
    Screen Size varies by lens
    Projection Distance Wide varies by lens
    Projection Distance Tele varies by lens
    Projection Distance Wide/Tele varies by lens
    Projection Lens F Number varies by lens
    Projection Lens Focal Length varies by lens
    Projection Lens Focus Motorized
    Offset varies by lens
    Interchangeable Lens Yes
    Standard Lens Not included
    Connectivity

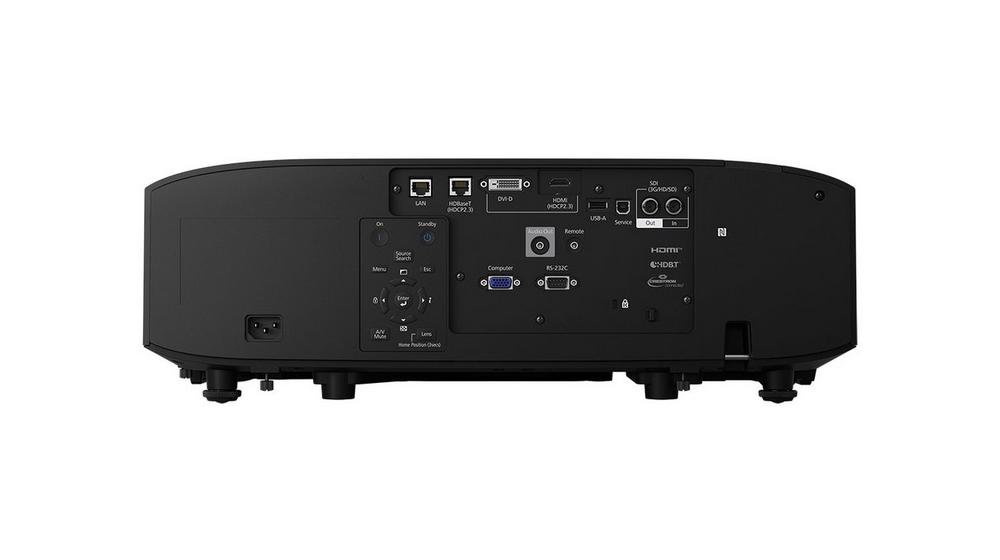

    Interfaces USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), VGA in, DVI in, HDBaseT, Jack plug out, HDMI (HDCP 2.3), 3G-SDI Input, 3G-SDI Output, Near Field Communication (NFC), USB content playback, Remote
    Network Protocol HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
    Advanced Features
    Security Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
    Other features 21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Super resolution, Web Control, Web Remote, iProjection App
    Video Color Modes Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
    Projector control via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
    General
    Power consumption 462 Watt - On mode power consumption (Normal)
    Heat Dissipation 1,819 BTU/hour (max)
    Supply Voltage AC 100 V - 240 V, 50 Hz - 60 Hz
    Product dimensions 545‎ x 436 x 189 mm (Width x Depth x Height)
    Product weight 16.8 kg
    Noise Level Normal: 37 dB (A) - Economy: 30 dB (A)
    Supported Temperature Storage -10° C - 60° C
    Supported Humidity Operation 20% - 80%, Storage 10% - 90%
    Included Software Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
    Options Camera module, Ceiling mount, Wireless LAN unit
    What's in the box Cable cover, Lens connector cap, Power cable, Remote control incl. batteries, User's Manual Set, Warranty Documents
    Room Type / Application Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
    Positioning Ceiling Mounted, Desktop, Flying Frame
    Colour Black
    Warranty 36 months Carry in
  • Description Downloads
    Product Guide Downloads
    Datasheet
    Downloads

Technical specifications

Warranty
3 Year Warranty
Brightness (lumens)
5100 - 10000
Contrast ratio
2,500,000:1+
Native resolution
WUXGA
Throw ratio
0.35 - 7.41:1
Light source
Laser
Native aspect ratio
16:10 Widescreen
