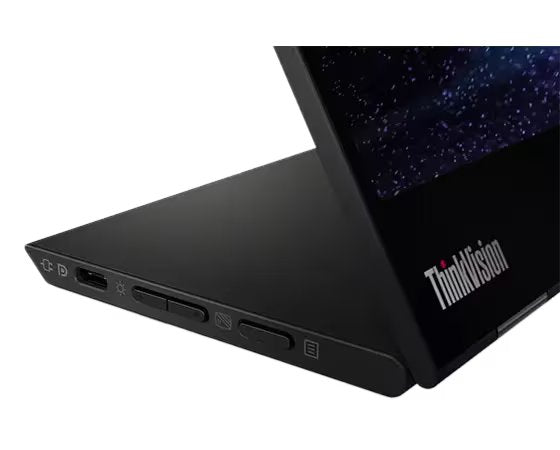

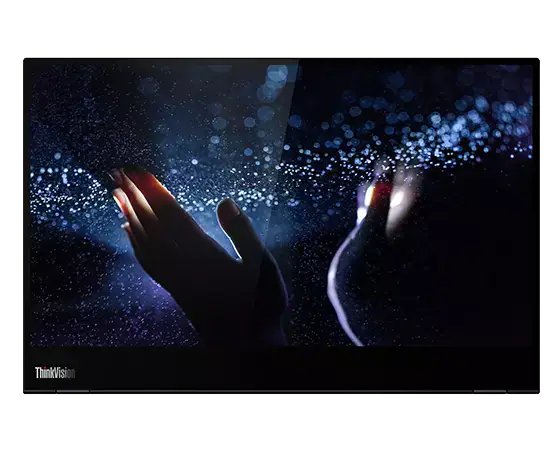

Lenovo M14t ThinkVision 14" 60Hz USB-C Mobile Monitor With Touch Screen | 62A3UAT1WL

SKU: 62A3UAT1WL
NoneOperating system

Product description

  • Description
  • Specifications
  • Downloads
  • 14" FHD Touch USB-C Portable Monitor with Active Pen

    Overview
    Scale new heights of productivity, flexibility, and style with a touch-enabled mobile monitor. The slim and light ThinkVision M14t is a 14-inch Full-HD display that provides you with an extra screen whenever you need it.

    With 10-point touch functionality, enjoy the freedom to design, animate, present, and annotate on an intuitive monitor interface. More than just a display, the M14t comes with a pressure-sensitive active pen for precise sketching and easy navigation, as well as a customised sleeve for protection and an L-shaped dongle for vertical deployment and better cable management.

    This compact USB-C Hub monitor with two USB-C ports works seamlessly with not only the Lenovo Think family laptops but also with your other compatible USB-C devices, like your smartphone. The monitor offers ease of use, especially while working on the go. Connect, present, pitch, and create with conviction on the M14t—at the office or on the go.

    SEE MORE EVERYWHERE YOU GO
    Built for mobile professionals, the M14t’s 14" Full-HD IPS panel display with super-narrow bezels ensures crisp and accurate visuals with impressive viewing angles, making it ideal for presentations. This sleek ultra-portable monitor with tilt function (-5° / 90°) and a height-adjustable stand (up to 11 mm) allows users to work in a flexible and comfortable viewing position in any work environment. Get a clear view of the display, whether you are outdoors or in an office, with 300 nits brightness capability. Moreover, the TÜV Rheinland Low Blue Light technology lets you work with minimal eyestrain.

    DELIVER AS ONLY YOU CAN
    Drag, draw, annotate, and collaborate, no matter where you are. The ThinkVision M14t is 10-point touch-enabled for an intuitive interactive experience even on the go, allowing you to create with a personal touch. It comes along with an active digital pen that supports 4096 levels of pressure, so you can draw and sketch with unmatched precision. Switch your view in no time with auto-rotation sensors that don’t require software or driver installation. Additionally, an intuitive on-screen-display (OSD) menu enables easy access to brightness, contrast, and rotation settings.

    CONNECT BETTER, WORK EASIER
    Built with an innovative dual USB-C design, the M14t can duplicate or extend your screen—be it your smartphone or laptop—so you’re always productive. With data, power, and media capabilities of USB-C, you can create a presentation, transfer data to a hard drive, and enjoy the unique power pass-through function. With dual USB-C port, the power pass-through function supplies power to the M14t and the compatible USB-C device connected to the monitor simultaneously via one AC/DC adapter. Enjoy the option of a vertical display setup and better cable management for a clean, easy desktop setup with the L-shaped dongle.

  • DISPLAY
    Panel Size 14-inch
    Screen Dimensions 309.31 mm x 173.09 mm
    Panel Type In-Plane Switching
    Backlight WLED
    Aspect Ratio 16:9
    Resolution 1920x1080
    Pixel Pitch 0.1611 x 0.1611 mm
    Dot/Pixel Per Inch (DPI/PPI) 157
    Viewing angle (H x V @ CR 10:1) 178 ° / 178 °
    Response Time 6ms (extreme mode), 8ms (normal mode)
    Refresh Rate 60 Hz
    Brightness (typical) 300 cd/m2
    Contrast Ratio (typical) 700:1
    Dynamic Contrast Ratio (typical) 3M:1
    Color Gamut 72% NTSC (CIE 1931)
    Color Support (typical) 16.7 Million
    Color Depth 8-bit (6-bit + FRC)
    Touch Yes (10-point touch)
    CONNECTIVITY
    Video Signal 2 x USB 3.2 Type-C (DP1.2 Alt Mode)
    USB Upstream 2 x USB 3.2 Type-C
    USB Downstream 2 x USB 3.2 Type-C
    SPECIAL FEATURES
    Pen/Digitizer Yes
    POWER
    Power Consumption (typ./max) 8W / 9.5W
    Power Consumption Sleep/Off Mode < 0.3W
    Power Consumption Switch-off Mode < 0.3W
    ENERGY STAR Power Consumption (Pon/ETEC) 7.22W / 25.5kWH
    Power Supply External
    USB Type-C Power Delivery (W) Up to 65 W
    Voltage Required DC 5 / 9 / 15 / 20 V
    MECHANICAL
    Tilt Angle (front/back) -5 ° / 90 °
    Lift (max range) 11 mm
    Pivot -90° / 90°
    Mounting Support Yes (2 screws holes, 100 mm)
    Kensington Lock Slot Yes
    Cable Management Yes
    Bezel Color Raven Black
    Bezel Width (side) 5.43 mm
    Bezel Width (top/bottom) 5.42 / 30.38 mm
    DIMENSION
    Size Packed (D x H x W, mm/inch) 377.0 x 68.0 x 267.0 mm / 148.43 x 26.77 x 105.12 inches
    Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position) 14.0 x 214.3 x 323.4 mm / 0.55 x 8.44 x 12.73 inches
    Size Unpacked w/ Stand (D x H x W, mm/inch)(highest position) 14.0 x 226.5 x 323.4 mm / 0.55 x 8.92 x 12.73 inches
    Weight Unpacked (kg/lbs.) 1.87 kg / 4.12 lbs.
    Weight Unpacked* (kg/lbs.) 0.698 kg* / 1.54 lbs.
    CERTIFICATIONS
    ENERGY STAR Rating 8.0
    CCC Yes
    EPEAT Silver
    RoHS (EU 2002/95/EC) Yes
    Windows Certification Windows 7, Windows 10
    China Energy Efficiency Standard Tier 2
    TÜV Rheinland Low Blue Light Yes
  • Description Downloads
    Lenovo M14t ThinkVision 14" 60Hz USB-C Mobile Monitor With Touch Screen | 62A3UAT1WL DataSheet Download

Technical specifications

Display size / Screen sizes
14"
Resolution
Full HD (1080p)
Panel type
IPS Panel
Screen type
Flat
Touch capabilities
10pt multi-touch
Brightness
300 cd/m2
Response time
8ms
Screen ratio
16:9
Refresh rate
60Hz
Display orientation
Landscape Only
Operating hours
N/A
Operating system
None
Player features
USB Plug and Play
VESA patterns
N/A
Net weight
1.6 kg
Warranty
3 Year Warranty
