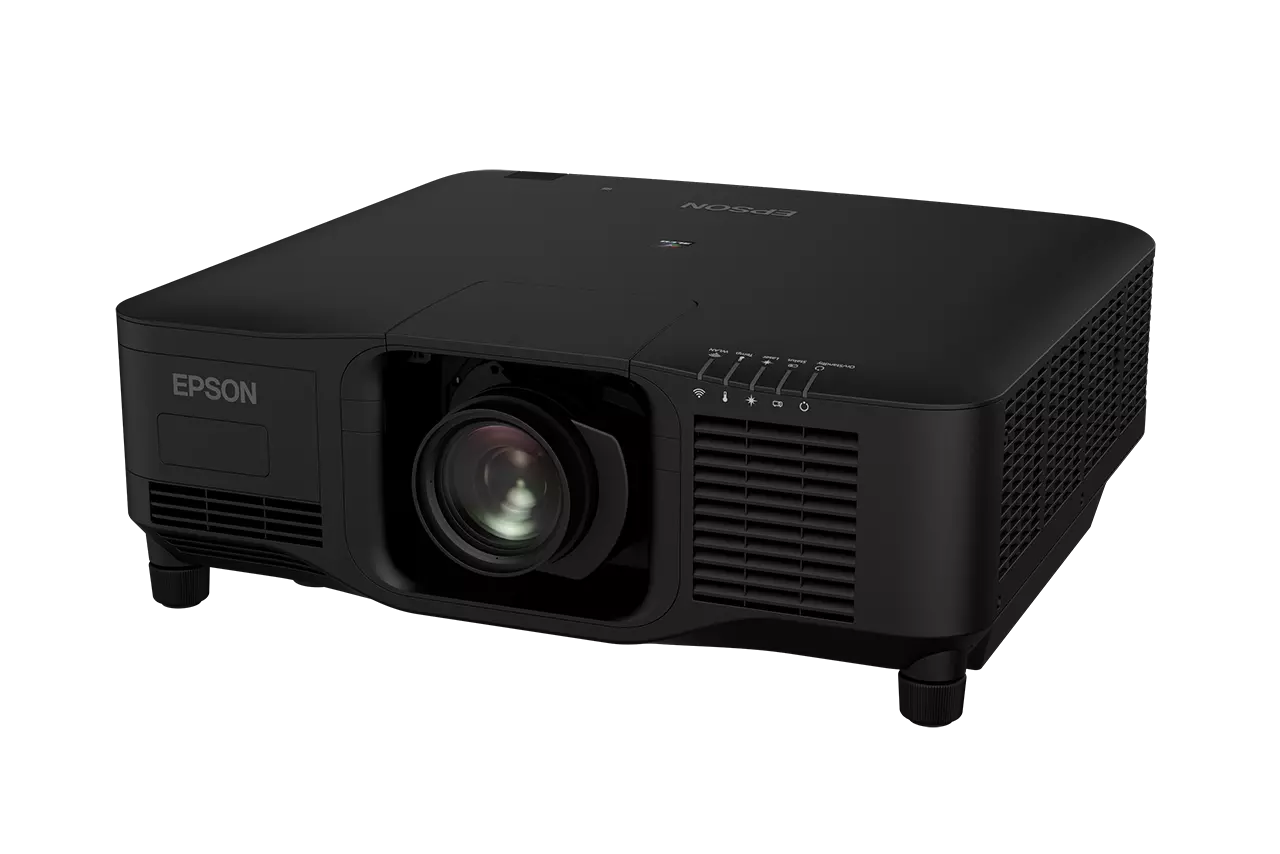

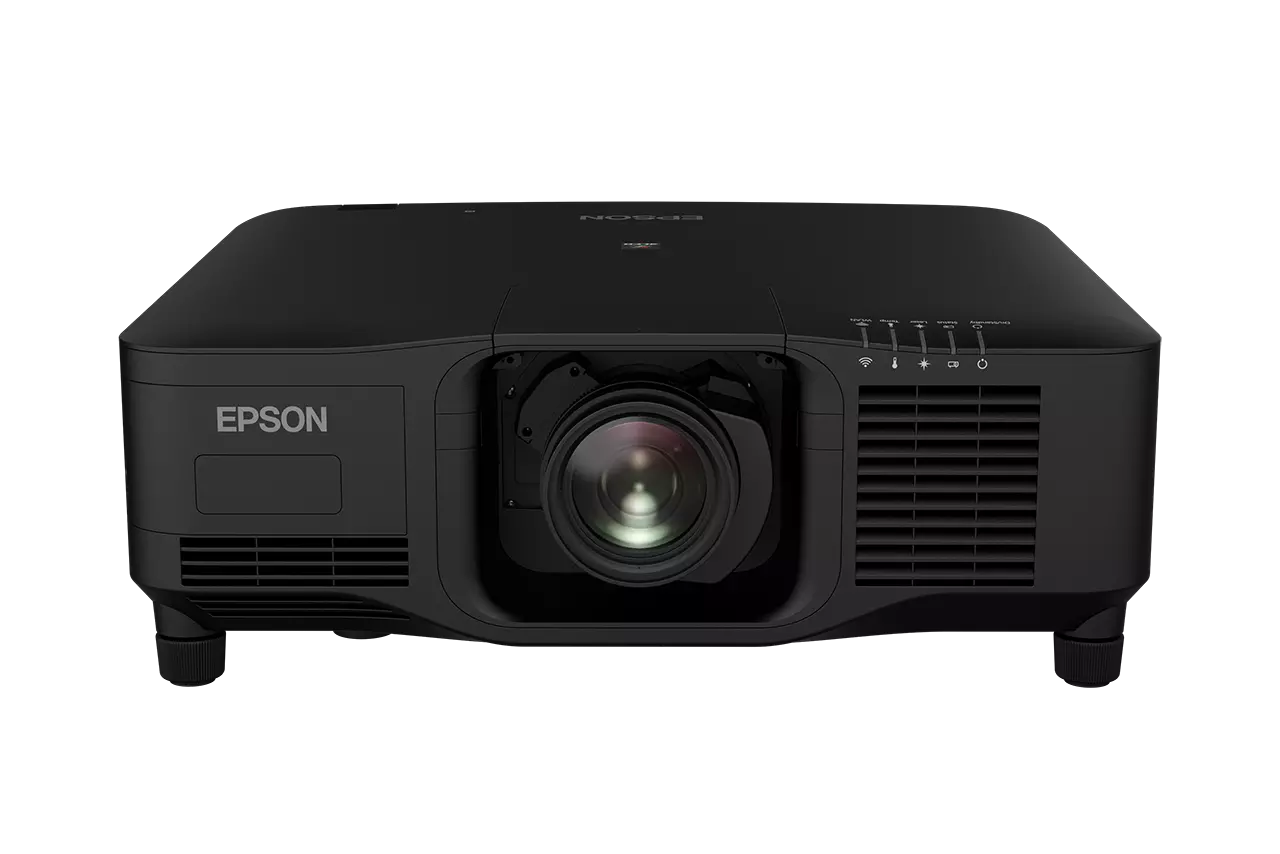

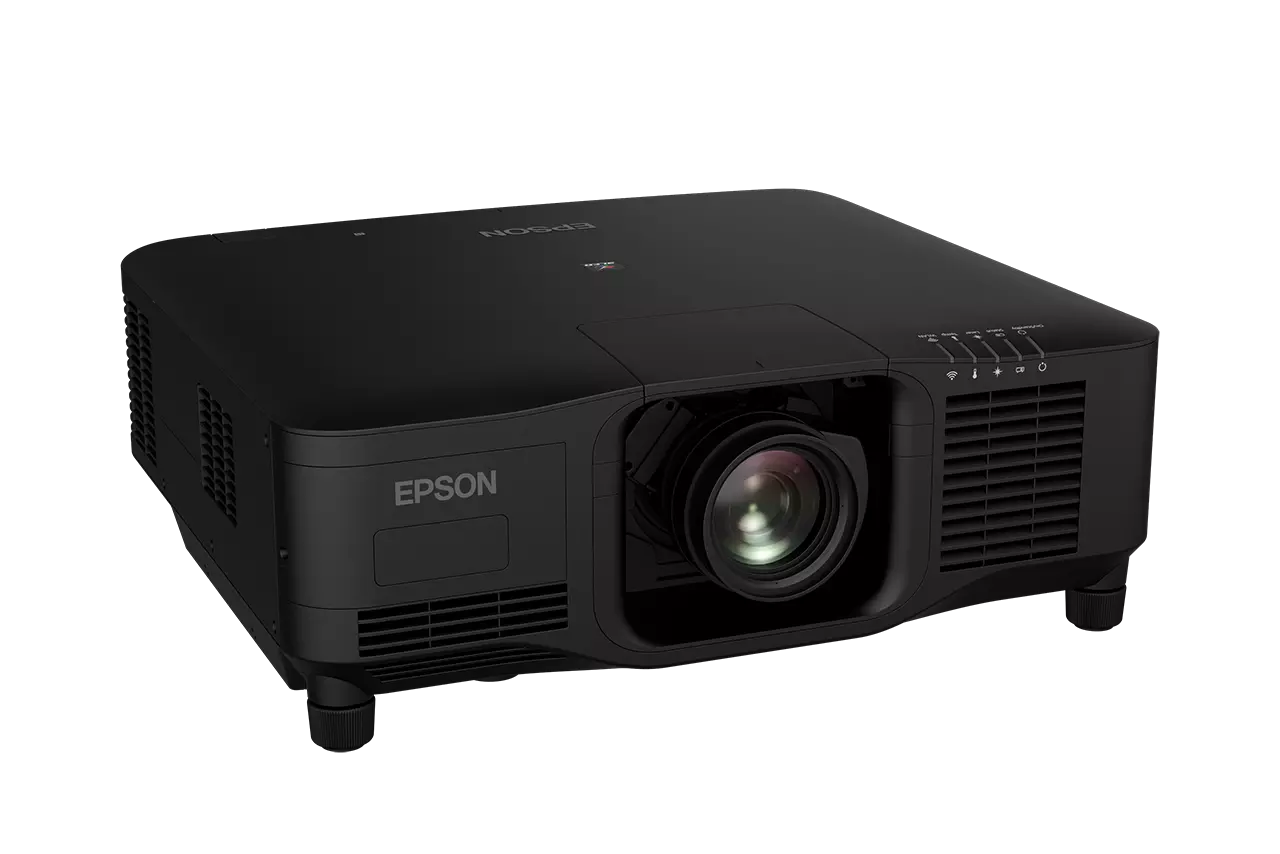

Epson EB-PQ2216B 4K Ultra HD Projector - 16000 Lumens
Limitless creativity
Building on the success of the EB-PU Series, the EB-PQ2216B is not only small and light, but is highly affordable, versatile, energy-efficient and packed with advanced features. Allowing you the freedom to create unforgettable immersive experiences.
A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.
Fantastically flexible

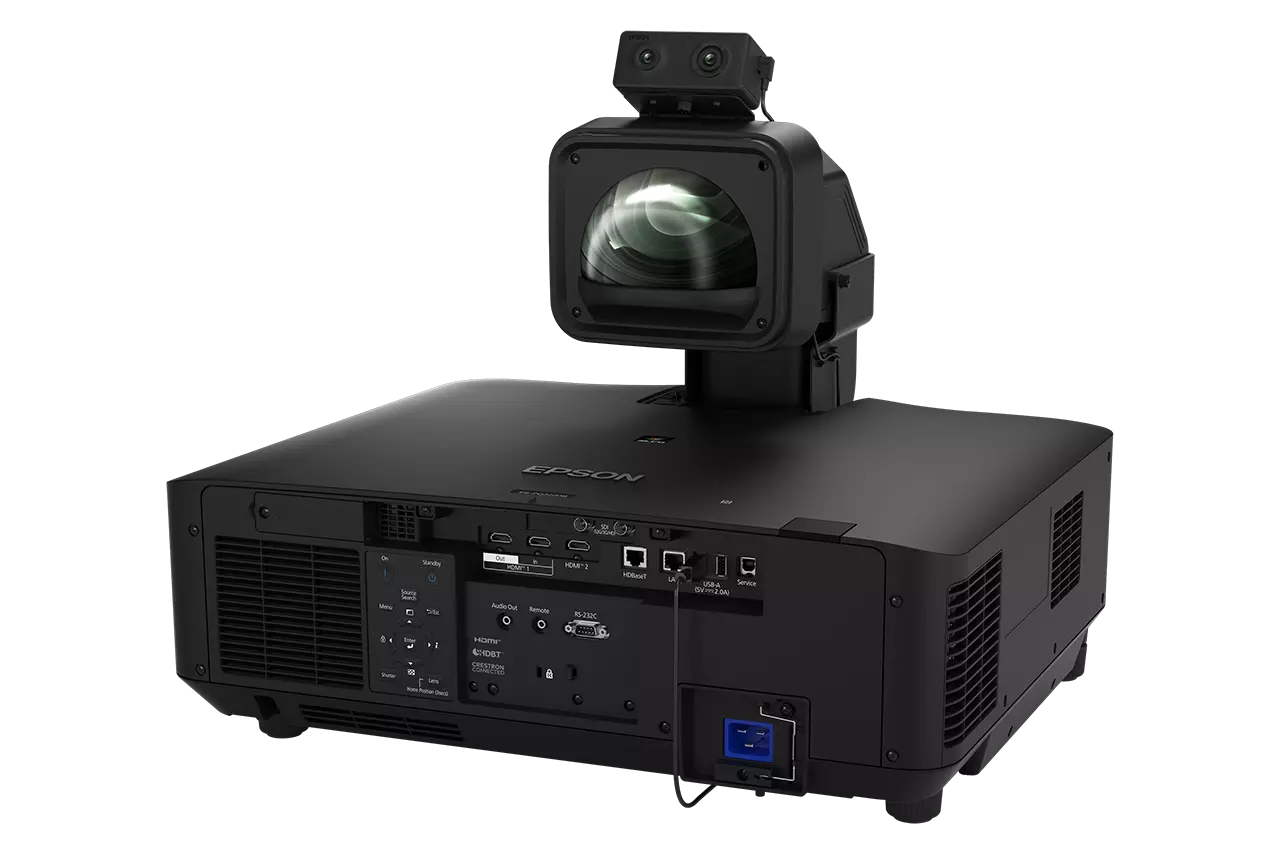

Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.
Reliable
Built for exceptional reliability, the EB-PQ2216B features IP5X rated dust resistance1 and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
| Feature | Details |
|---|---|
| Technology | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 1.04 inch with C2 Fine |
| Image | |
| Color Light Output | 16,000 Lumens - 11,200 Lumens (economy) In accordance with IDMS15.4 |
| White Light Output | 16,000 Lumens - 11,200 Lumens (economy) In accordance with ISO 21118:2020 |
| Portrait Colour Light Output | 16,000 lm |
| Portrait White Light Output | 16,000 lm |
| Resolution | 4K (3840 x 2160 pixels), 8.3 million pixels, 16:9 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Over 5,000,000 : 1 |
| Native Contrast | 3,000 : 1 |
| Light Source | Laser |
| Laser Light Source | 20,000 hours Durability (High), 30,000 hours Durability (Eco) |
| Keystone Correction | Manual vertical: ± 45°, Manual horizontal ± 30° |
| Colour Video Processing | 10 Bits |
| Colour Reproduction | Up to 1.07 billion colors |
| HDR Support | HDR10, HLG |
| Optical | |
| Throw Ratio | 0.34 - 7.16:1 |
| Zoom | Motorized |
| Lens | Optical |
| Lens Shift | Varies by lens |
| Screen Size | Varies by lens |
| Projection Distance | Varies by lens |
| Projection Lens F Number | Varies by lens |
| Projection Lens Focal Length | Varies by lens |
| Projection Lens Focus | Motorized |
| Offset | Varies by lens |
| Interchangeable Lens | Yes |
| Standard Lens | Not included |
| Mechanical Shutter | Yes |
| Connectivity | |

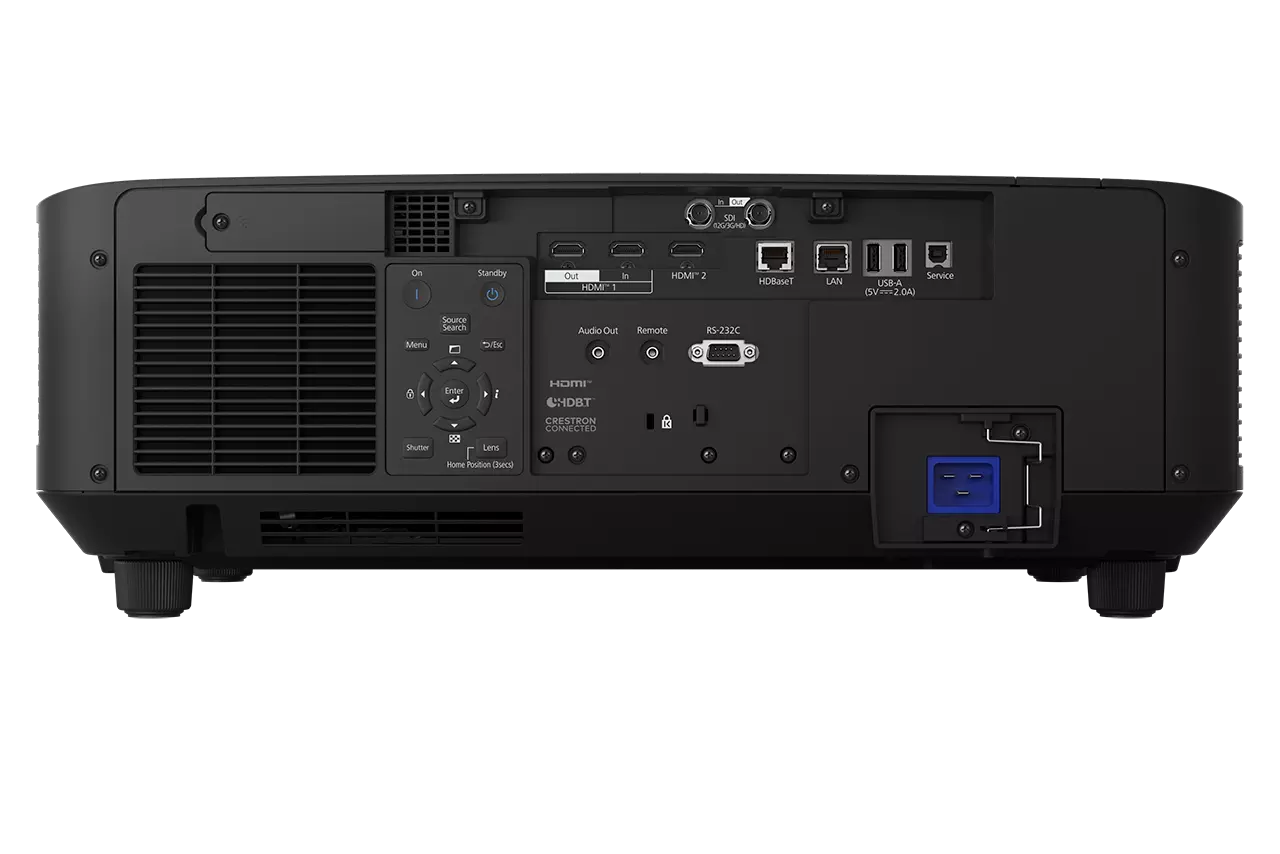

| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet, Wireless LAN, HDMI in (2x), HDMI out, HDBaseT, 12G SDI Input, 12G SDI Output, NFC, USB playback, Remote |
| Network Protocol | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | Security features, 21:9 aspect ratio support, A/V mute, Auto Power On/Off, Edge Blending, Frame interpolation, Freeze image, Keystone correction, Lens position memory, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App |
| Video Color Modes | Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709 |
| Projector Control | Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Sealed Light Source Module | Yes, IP5X rated |
| Sealed Optical Engine | Yes, IP5X rated |
| General | |
| Power Consumption | 1,003 Watt (Normal On-Mode), 1,114 Watt (Normal Peak-mode), 784 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Heat Dissipation | 3,788 BTU/hour (max) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product Dimensions | 586 x 492 x 218 mm (Width x Depth x Height) |
| Product Weight | 29.2 kg |
| Noise Level | Normal: 44 dB (A), Economy: 36 dB (A) |
| Supported Temperature | Storage: -10°C - 60°C, Operation: 20% - 80%, Storage: 10% - 90% |
| Included Software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Options | Camera module, Ceiling mount, Wireless LAN unit |
| Room Type / Application | Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction |
| Positioning | Ceiling Mounted, Desktop, Floor, Flying Frame, Table Mounted, Wall Mounted |
| Colour | Black |
| Warranty | 36 months Carry in |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
