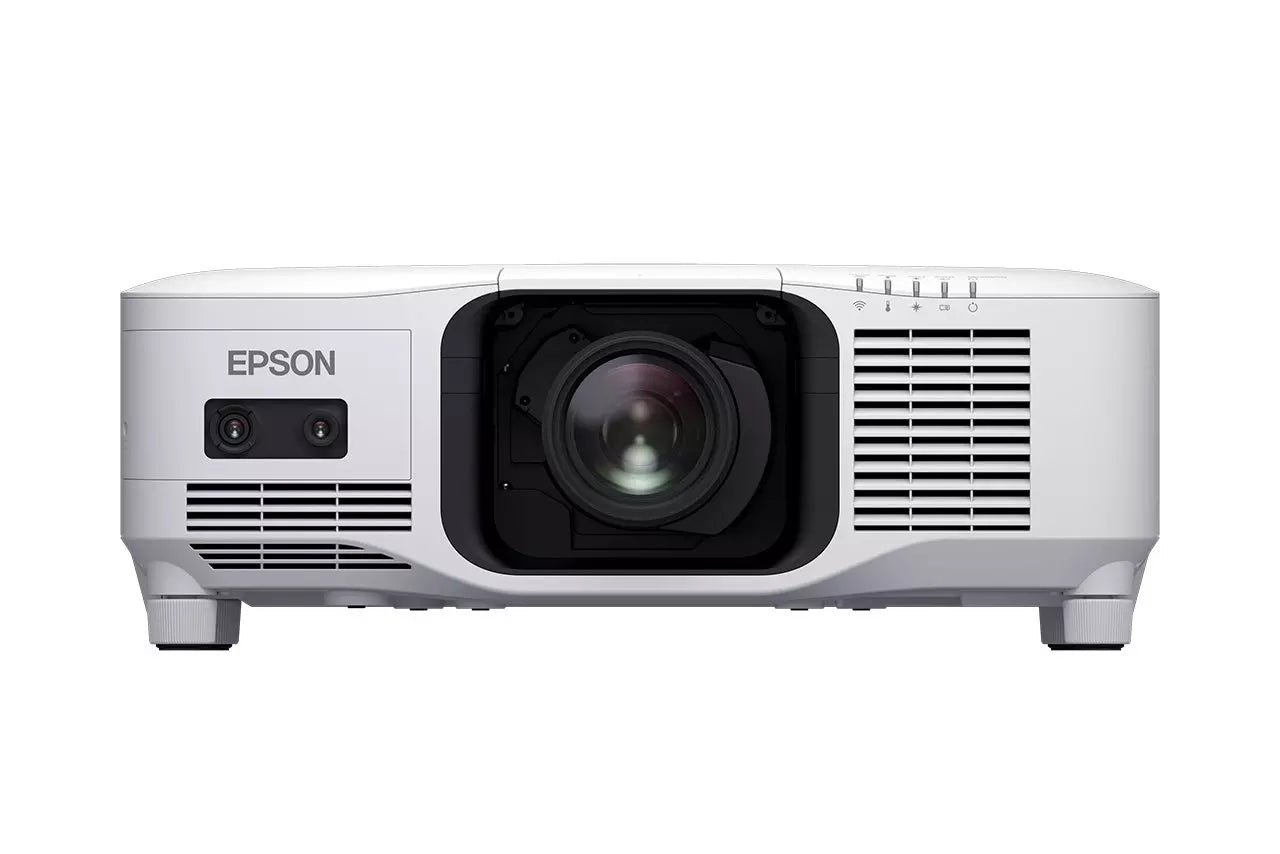

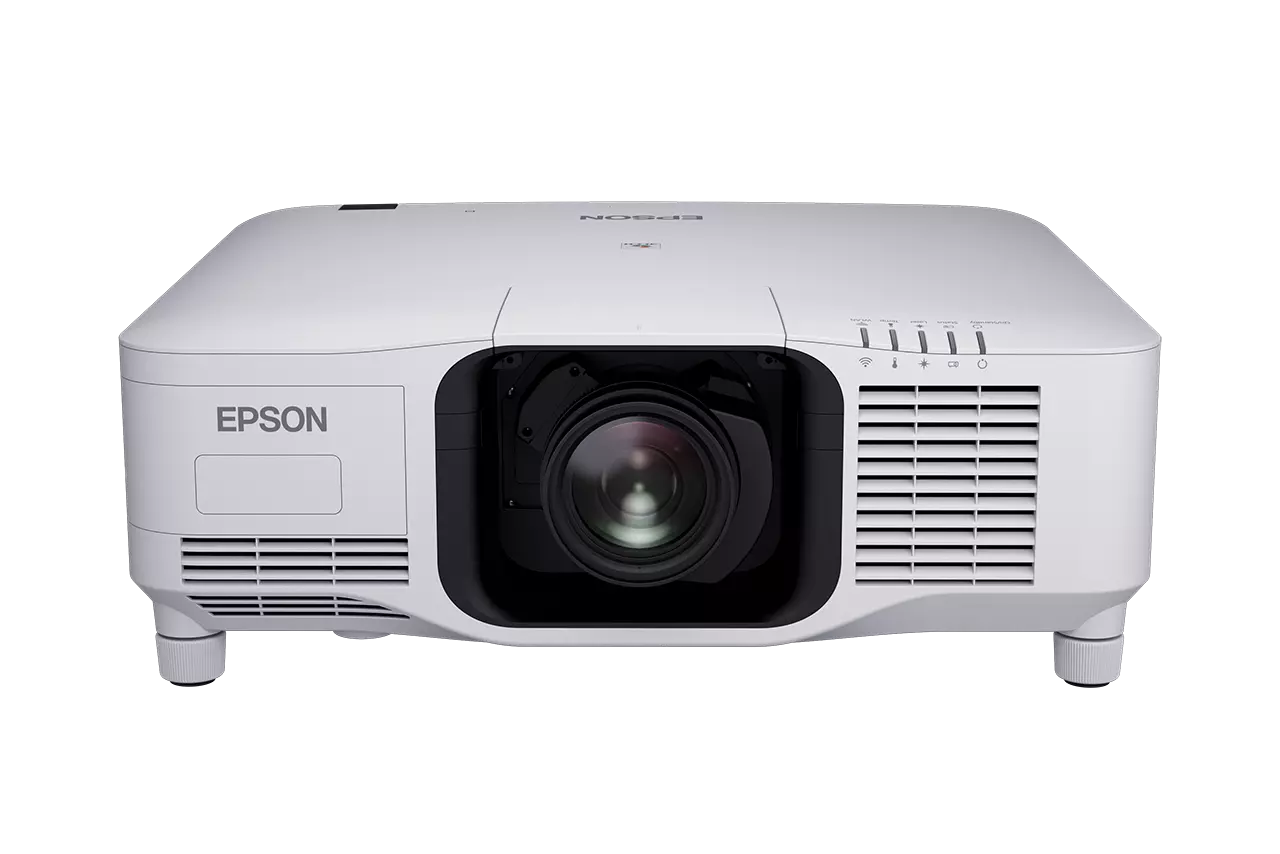

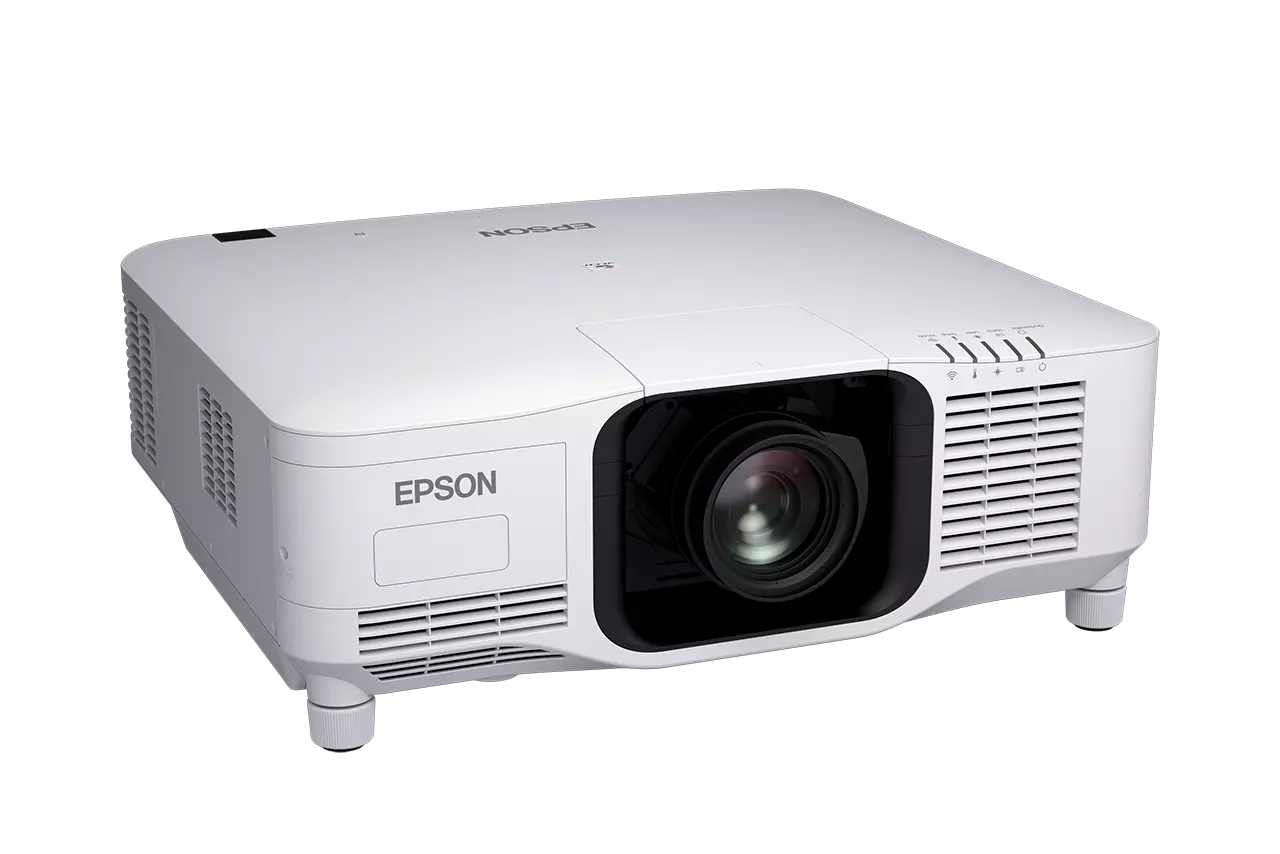

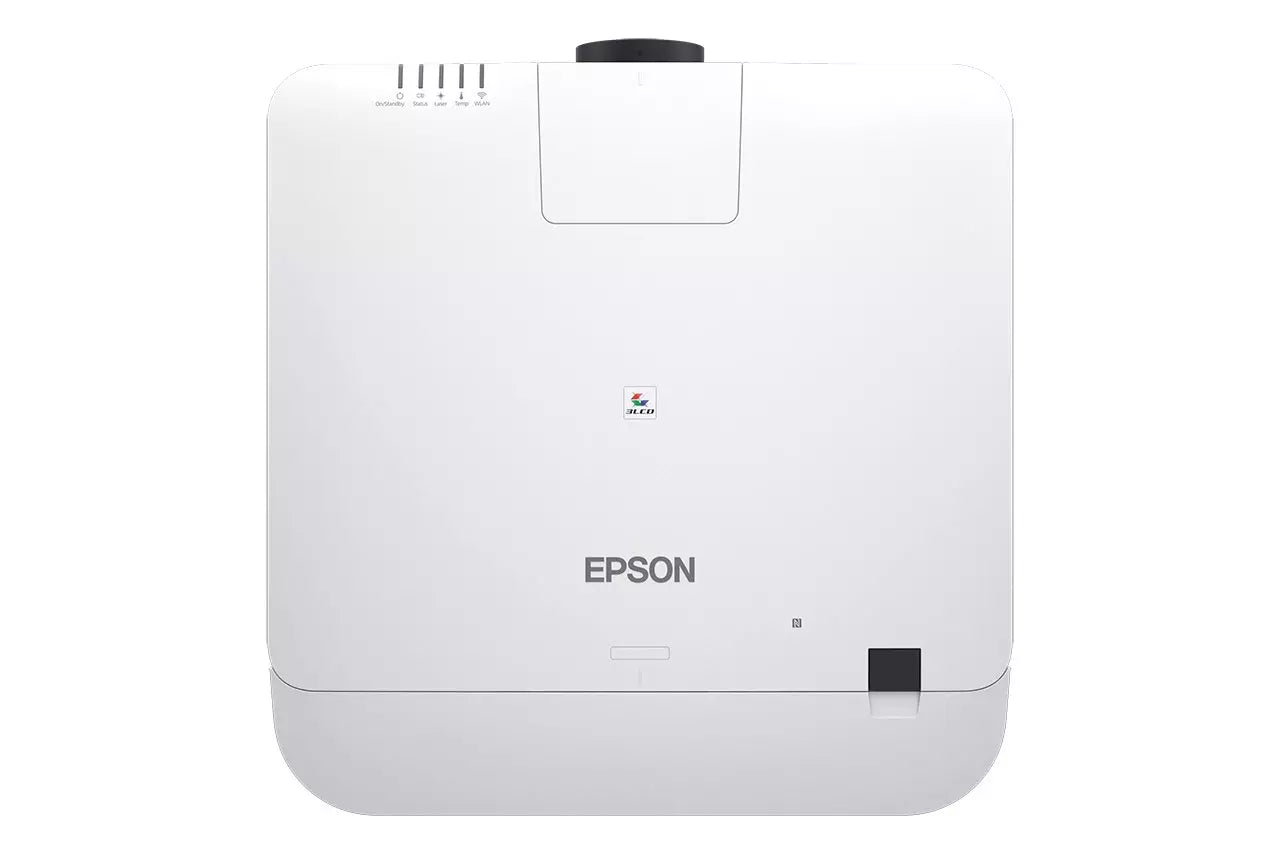

Epson EB-PU2120W Laser Projector - 20000 Lumens
Ultra-lightweight and compact The world's smallest 20,000lm projector1
Stunning image displays 20,000lm, 4K Enhancement technology, WUXGA resolution
Easy to use Simple installation, stacking, lens flexibility and control
Fit-and-forget reliability Enhanced dust resistant construction - IP5X certified
Environmental benefits Lower power consumption, reduced packaging, reduced weight
Compact and lightweight
The EB-PU2120W is around 60% smaller and 50% lighter than its predecessor, the EB-L20000U. The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.
Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.
Flexibility
The EB-PU2120W enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.
Reliability
Includes outstanding dust resistance as the hermetically sealed optical engine, and laser light source unit, ensure stable brightness output over long periods, even in high dust environments.
| Technology | |
|---|---|
| Projection System | 3LCD Technology |
| LCD Panel | 1.03 inch with C2 Fine |
| Image | |
| Color Light Output | 20,000 Lumen - 14,000 Lumen (economy) |
| White Light Output | 20,000 Lumen - 14,000 Lumen (economy) |
| Resolution | WUXGA |
| High Definition | 4K enhancement |
| Aspect Ratio | 16:10 |
| Contrast Ratio | Over 5,000,000 : 1 |
| Native Contrast | 2,000 : 1 |
| Light source | Laser |
| Laser Light source | 20,000 hours Durability High, 30,000 hours Durability Eco |
| Optical | |
| Throw Ratio | 0.35 - 7.41:1 |
| Zoom | Motorized, Factor: 1 - 1.6 |
| Lens | varies by lens |
| Lens Shift | Motorized - Vertical ± 60 %, horizontal ± 18 %, varies by lens |
| Lens position memory | 10 positions |
| Screen Size | 60 inches - 1,000 inches, varies by lens |
| Connectivity | |

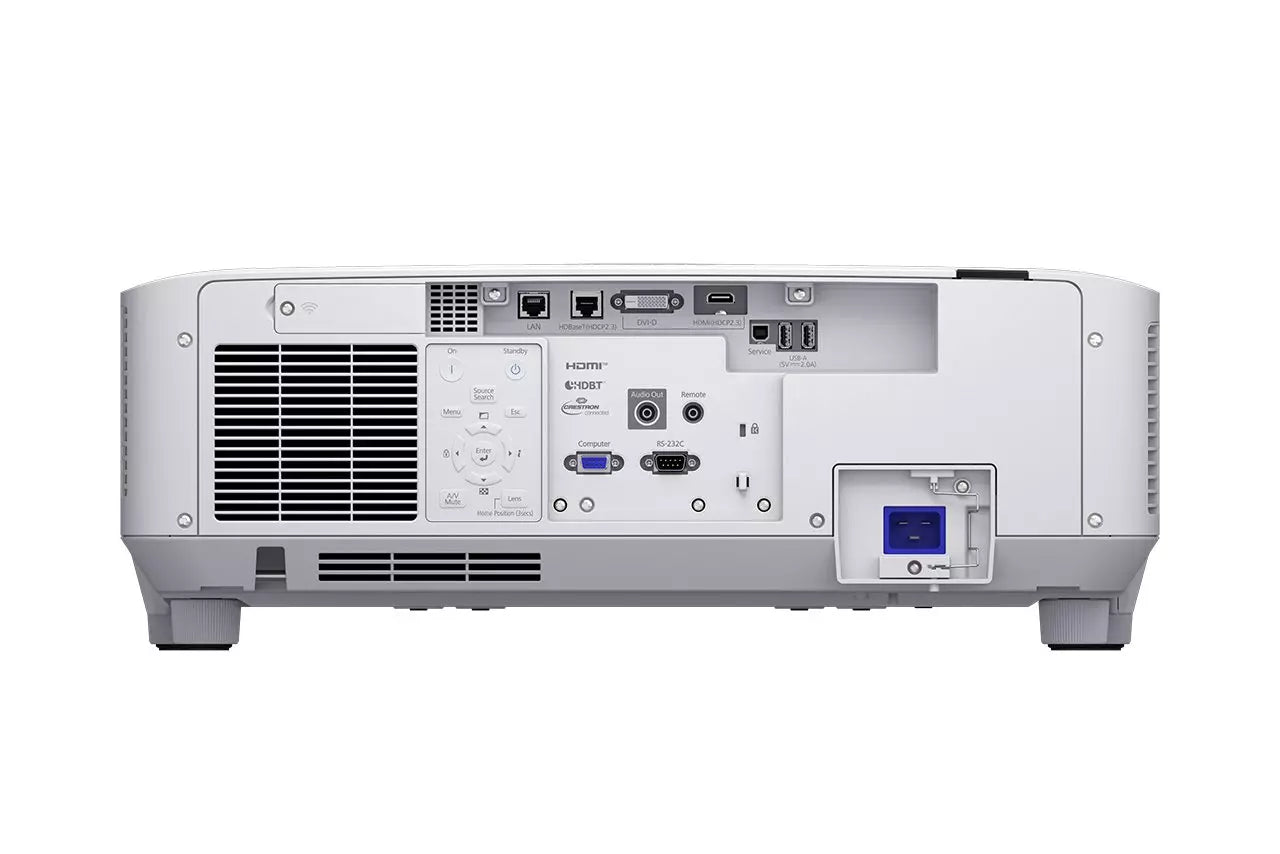

| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in, DVI in, HDMI in, HDBaseT, Jack plug out, Wireless LAN IEEE 802.11a/b/g/n (optional), Near Field Communication (NFC), USB content playback, Remote |
| Network Protocol | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | 21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App |
| Video Color Modes | Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709 |
| Projector control | via: AMX, Crestron, Extron |
| Sealed Light Source Module | Yes, IP5X rated |
| Sealed Optical Engine | Yes, IP5X rated |
| General | |
| Power consumption | 1,143 Watt (Normal On-Mode), 1,301 Watt (Normal Peak-mode), 899 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby) |
| Heat Dissipation | 4,423 BTU/hour (max) |
| Supply Voltage | AC 200 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 586 x 492 x 218 mm (Width x Depth x Height) |
| Product weight | 24.4 kg |
| Noise Level | Normal: 45 dB (A) - Economy: 37 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool |
| Options | Camera module, Ceiling mount, Wireless LAN unit |
| Room Type / Application | Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction |
| Positioning | Ceiling Mounted, Desktop, Flying Frame |
| Colour | White |
| Warranty | 36 months Carry in |
| Description | Downloads |
|---|---|
| EB-PU2120W Certificate | Downloads |
