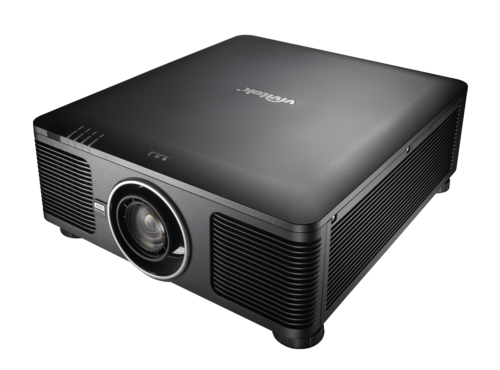

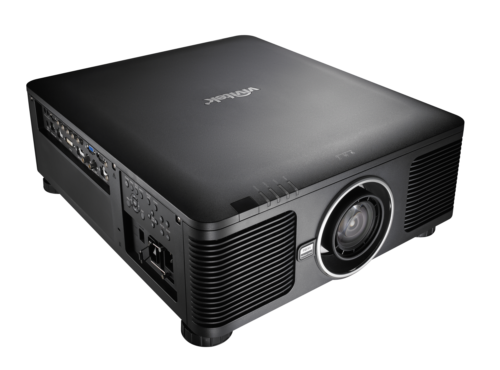

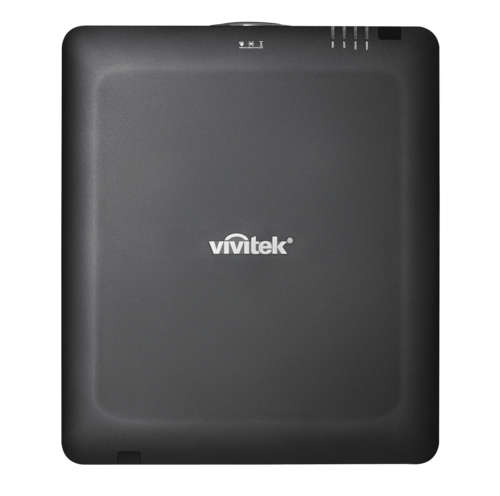

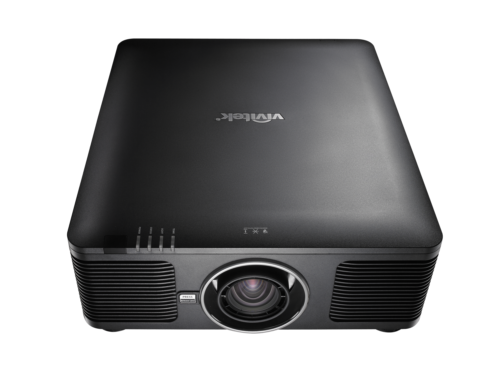

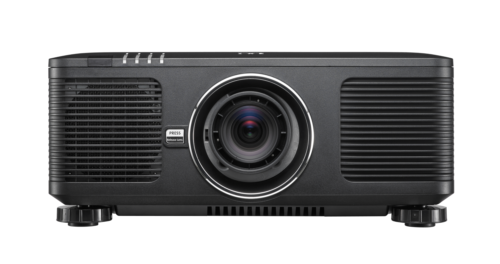

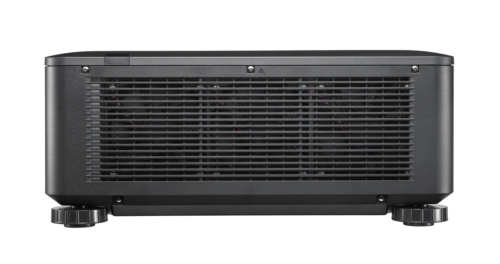

Vivitek DU8395Z
Brings Superb Laser Projector - 15000 Lumens
Power and performance
The DU8395Z is designed for advanced projection requirements such as mapping, edge blending or picture-in-picture mode. The WUXGA laser projector offers a constant light output of 15,000 lumens and a 3,000,000:1 dynamic contrast ratio for clear, crisp, and bright projection image. The device offers an compelling mix of features and connectivity options.Vivitek DU8395Z
Vivitek DU8395Z
Key features
DLP® technology for vibrant and rich picture quality
Impressive 15,000 ANSI lumens of brightness, WUXGA resolution, and 3,000,000:1 Dynamic contrast ratio for clear, crisp and bright projection
Long lasting laser light source for constant brightness level and color performance for +30,000 hours operations in Eco mode
Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 5.31-8.26:1 throw ratio range
Motorized lens with Lens Positioning Memory (LPS)
Supported 3G-SDI / HDBaseT™ interface for distribution of HD video and digital audio content
Excellent color performance Rec709, EBU, SMPTE, Dynamic Black Settings
Projection image alignment is built-in, along with multi-screen edge-blending, warping and keystone correction features and 360° installation angle flexibility
High Standard Anti-Dust IP6X compliance to extend projector life
Supported network & projector installation control software
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 15000 ANSI Lumens |
| Contrast Ratio | 30,000:1 / Dynamic: 3,000,000 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Lamp free design. Laser light source lasts up to 20,000 hours |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.67” DMD |
| Throw Ratio | 8 optional lenses from 0.38 to 8.26:1 throw ratio range |
| Zoom Ratio | Motorized Zoom & Focus |
| Lens Shift Range | Vertical: +64%, -33%; Horizontal: +24%, -14% |
| Offset | Motorized Lens Shift |
| Keystone Correction | Vertical ±40°, Horizontal ±60° |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

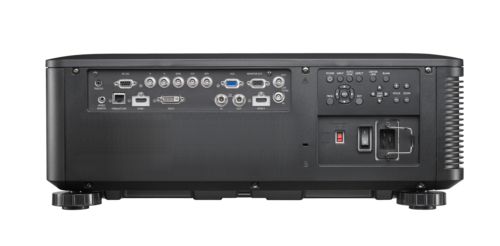

| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger, RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote) |
| Dimensions (W x D x H) | 500 x 580 x 205 mm |
| Weight | 29 kg |
| Noise Level | 42dB (Eco) |
| Power | Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Remote Control P/N: 5042221900 |
| Warranty | Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
| UPC Code | DU8395Z-BK: 813097 025111 |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
