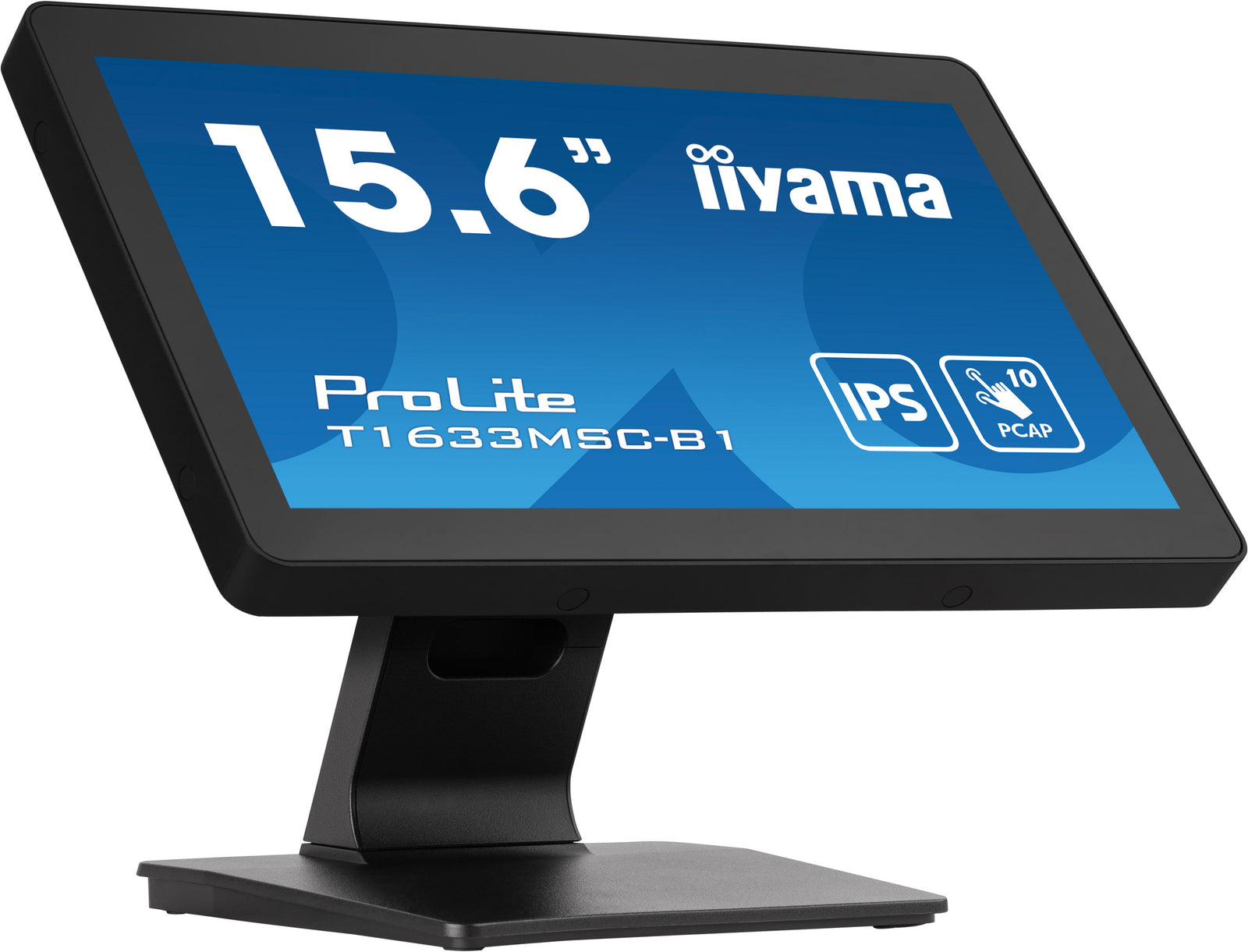

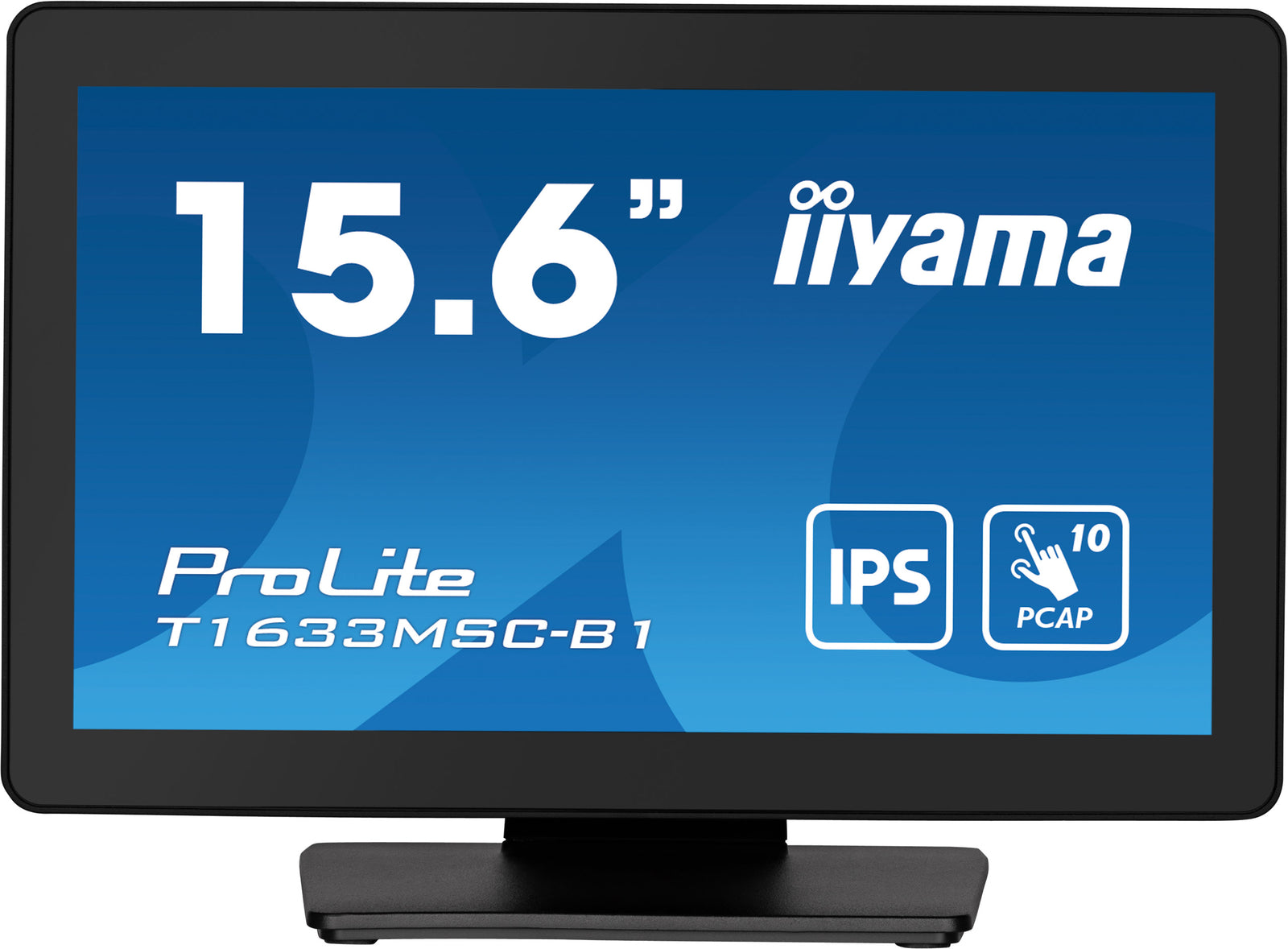

iiyama ProLite T1633MSC-B1 15.6" PCAP 10 Points Touch Screen Monitor

SKU: T1633MSC-B1
Part Number: T1633MSC-B1
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £301.90
Inc. VAT
Original price £301.90 - Original price £301.90
Original price £301.90

£244.16 (Excl. VAT)

Current price - £292.99 Inc. VAT
£292.99 - £292.99
Current price- - £292.99
(Inc. VAT )
Out of stock


Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at

iiyama ProLite T1633MSC-B1

15.6" PCAP 10 Points Touch Screen Monitor

  • Description
  • Specifications
  • Warranty
  • Downloads

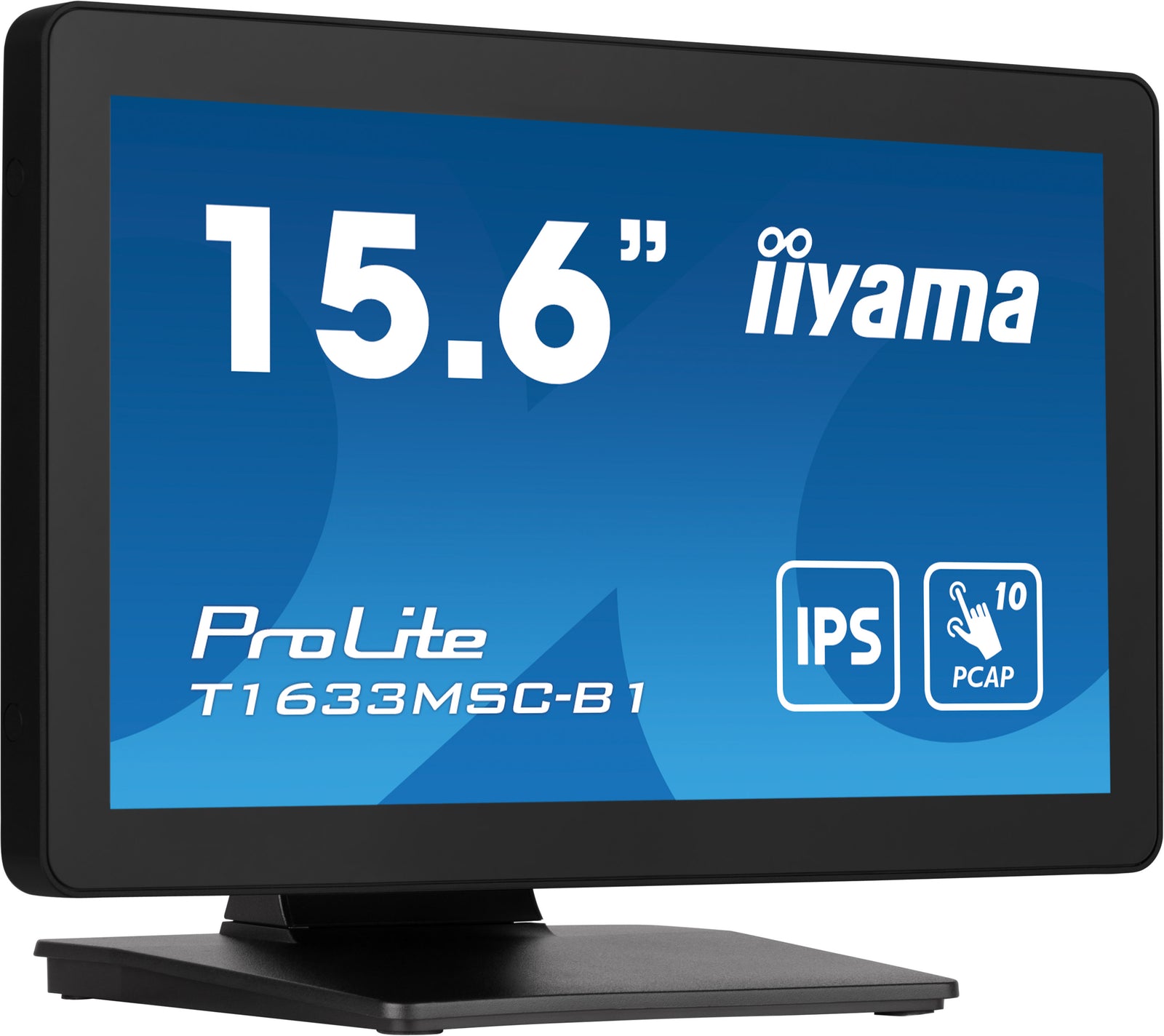

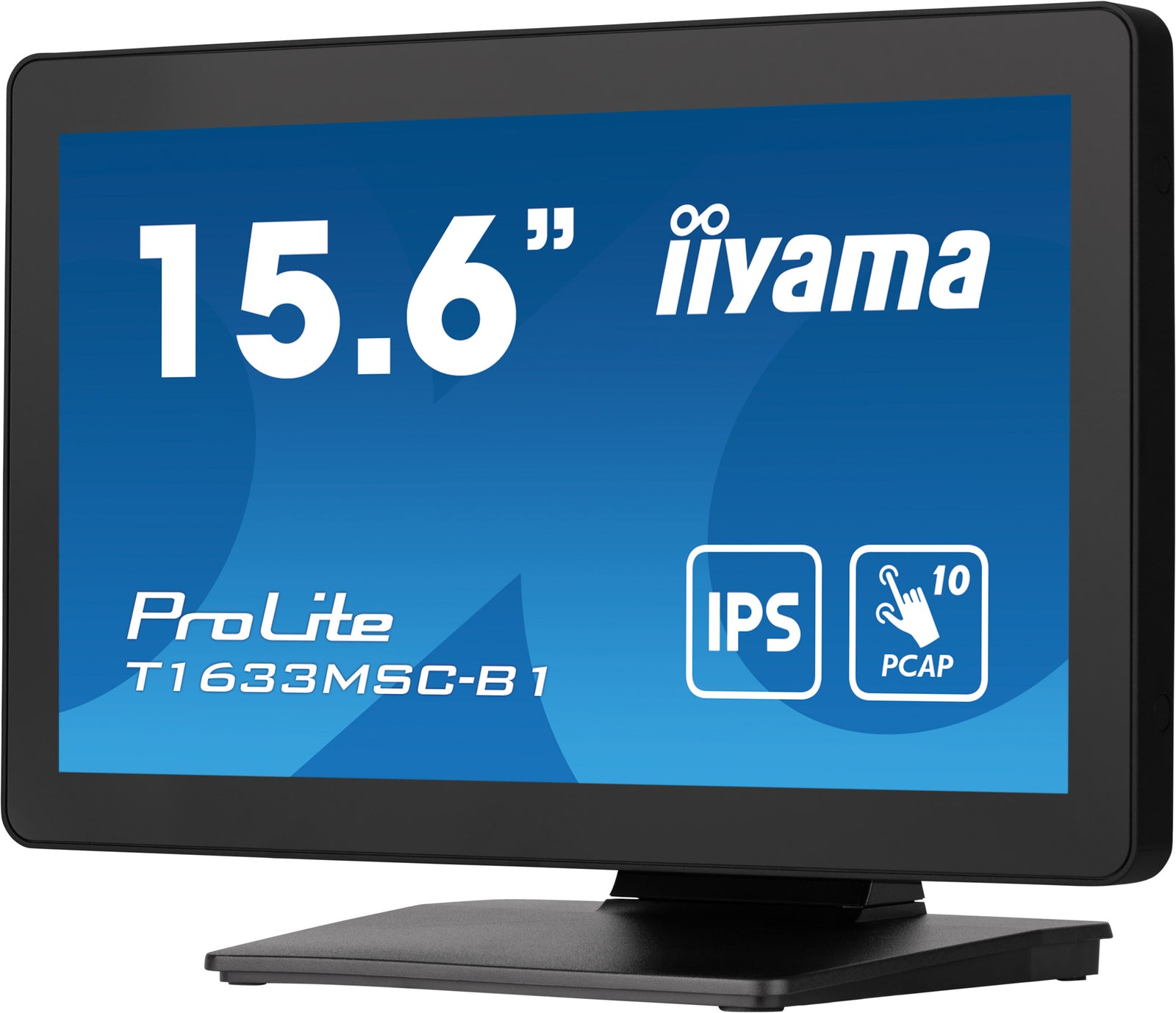

    15.6" PCAP 10 points multi-touch monitor with edge-to-edge glass and IPS panel technology

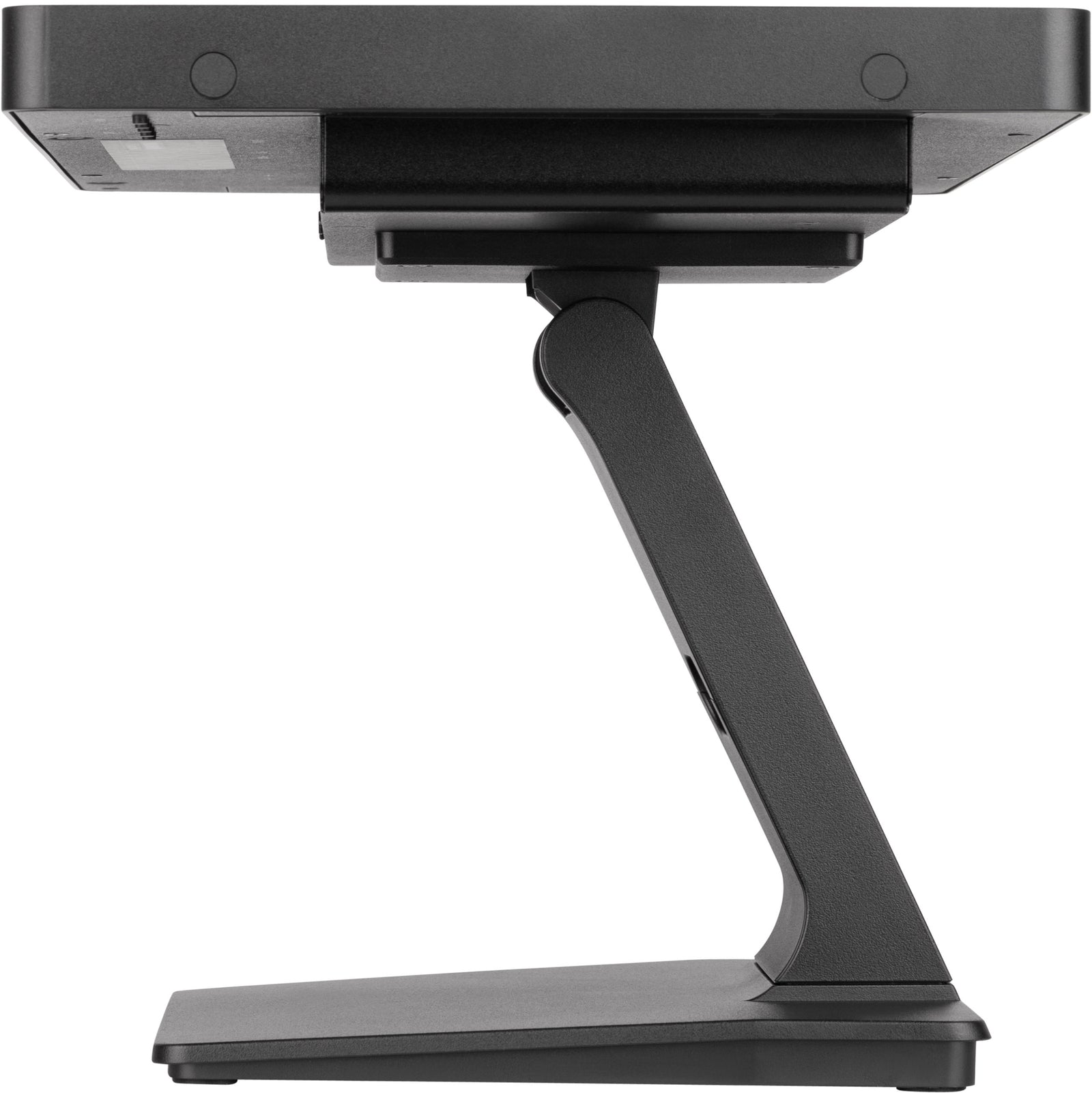

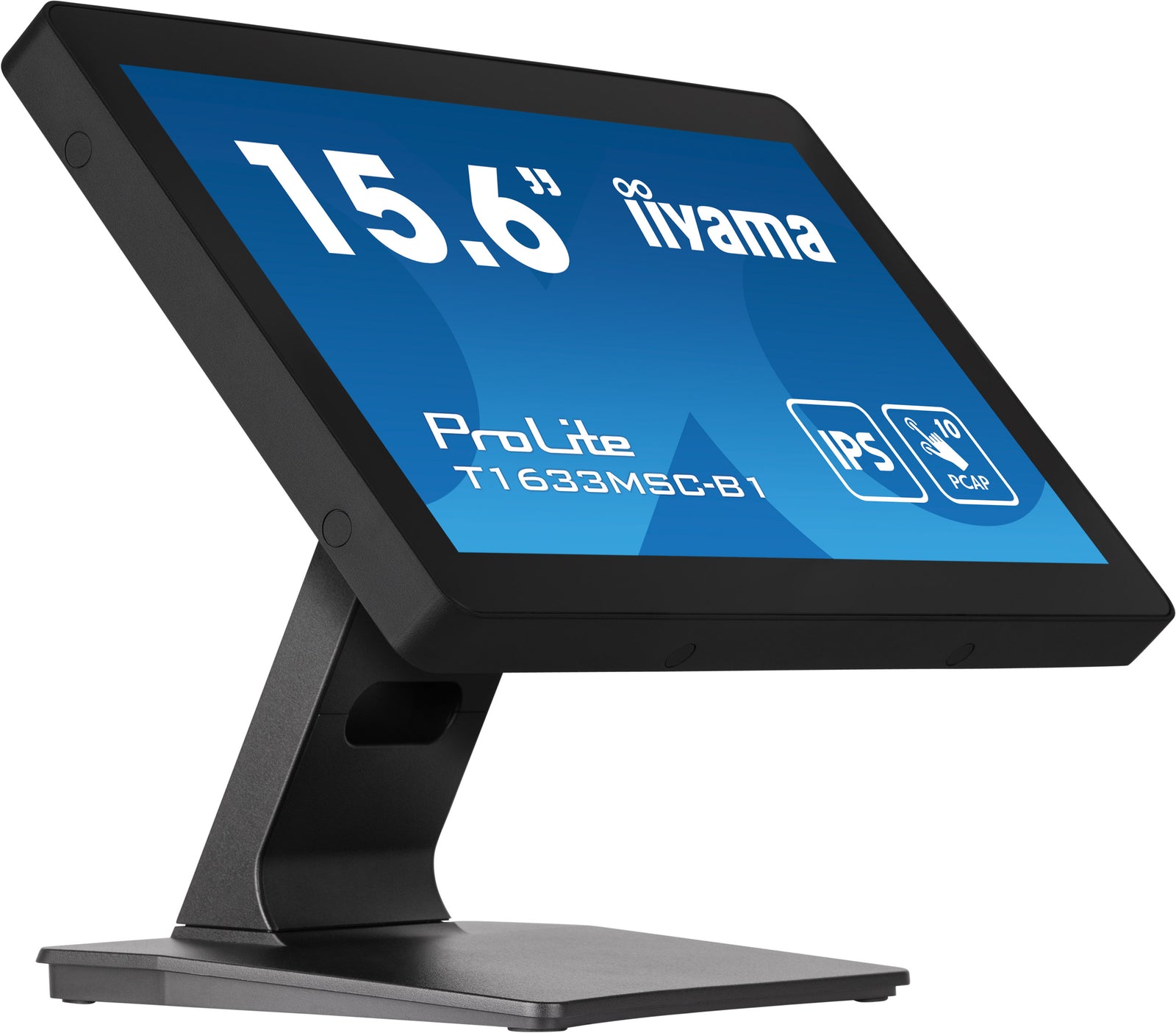

    The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

    Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

    The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

    A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.

    Front Facing Speakers support conferencing configurations with ultra clear sound quality from anywhere in the room.

    Design Edge to edge glass
    Diagonal 15.6", 39.5cm
    Panel IPS
    Native resolution 1920 x 1080 @60Hz
    Aspect ratio 16:9
    Panel brightness 450 cd/m²
    Brightness (with touch) 385 cd/m²
    Light transmittance 85%
    Static contrast 1000:1
    Response time (GTG) 5ms
    Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
    Colour support 16.7 million
    Horizontal Sync 30 - 68kHz
    Viewable area W x H 344.2 x 193.6mm, 13.6 x 7.6"
    Pixel pitch 0.179mm
    Bezel colour and finish Black, matte
    Recommended usage Retail
    Touch technology Projective capacitive
    Touch points 10 (HID, only with supported OS)
    Touch method Stylus, finger, glove (latex)
    Touch interface USB
    Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
    Palm rejection Yes
    Digital signal input HDMI x1, DisplayPort x1
    Audio output Speakers 2 x 2W
    HDCP Yes
    USB HUB x2 (2.0, DC5V, 500mA)
    Water and dust protection IP54 (front)
    OSD key lock Yes
    OSD languages EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL
    Control buttons Power, Menu, Volume +, Volume -, Input
    User controls Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)
    Convenience Kensington-lock™ prepared
    Blue light reducer Yes
    Plug & Play DDC2B

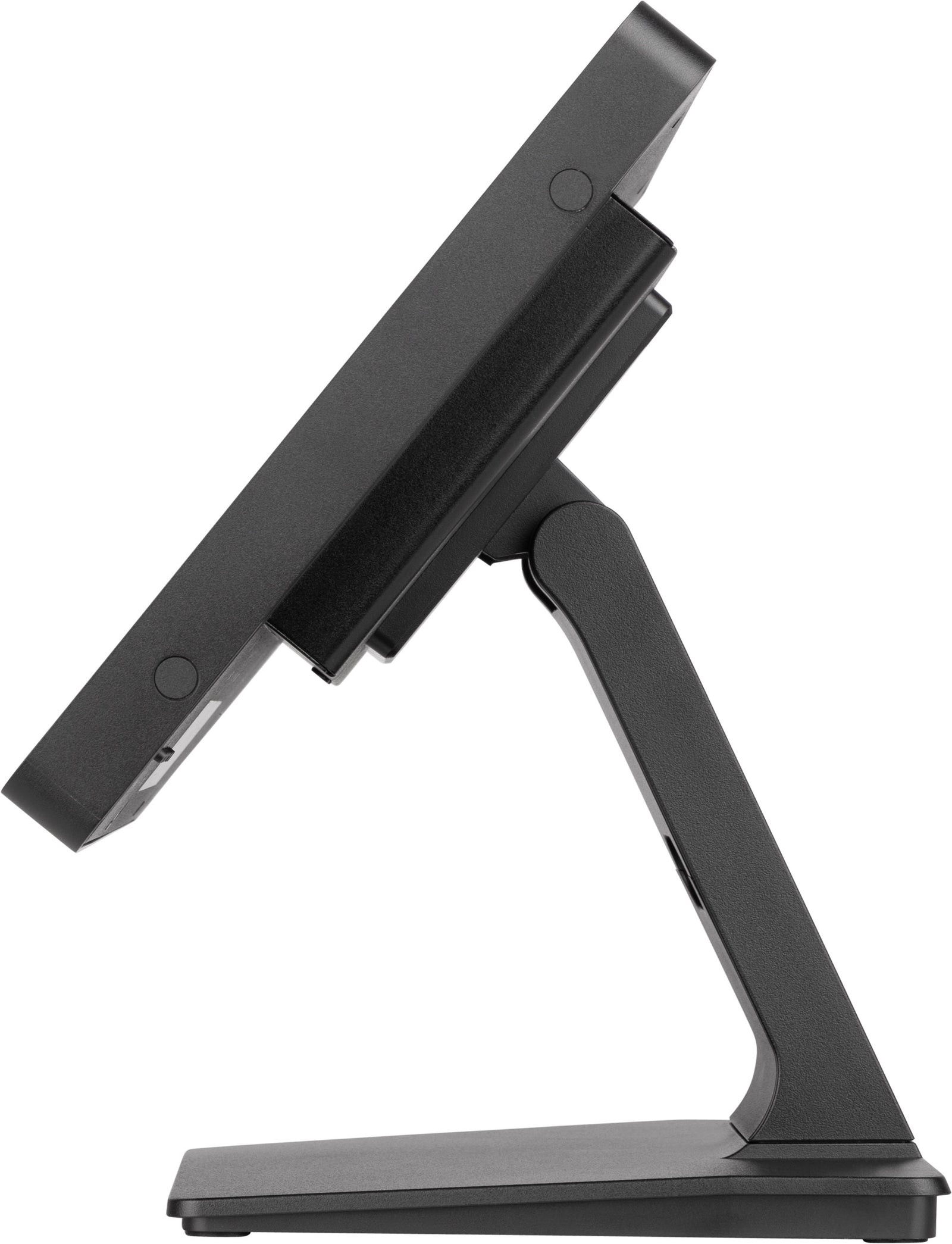

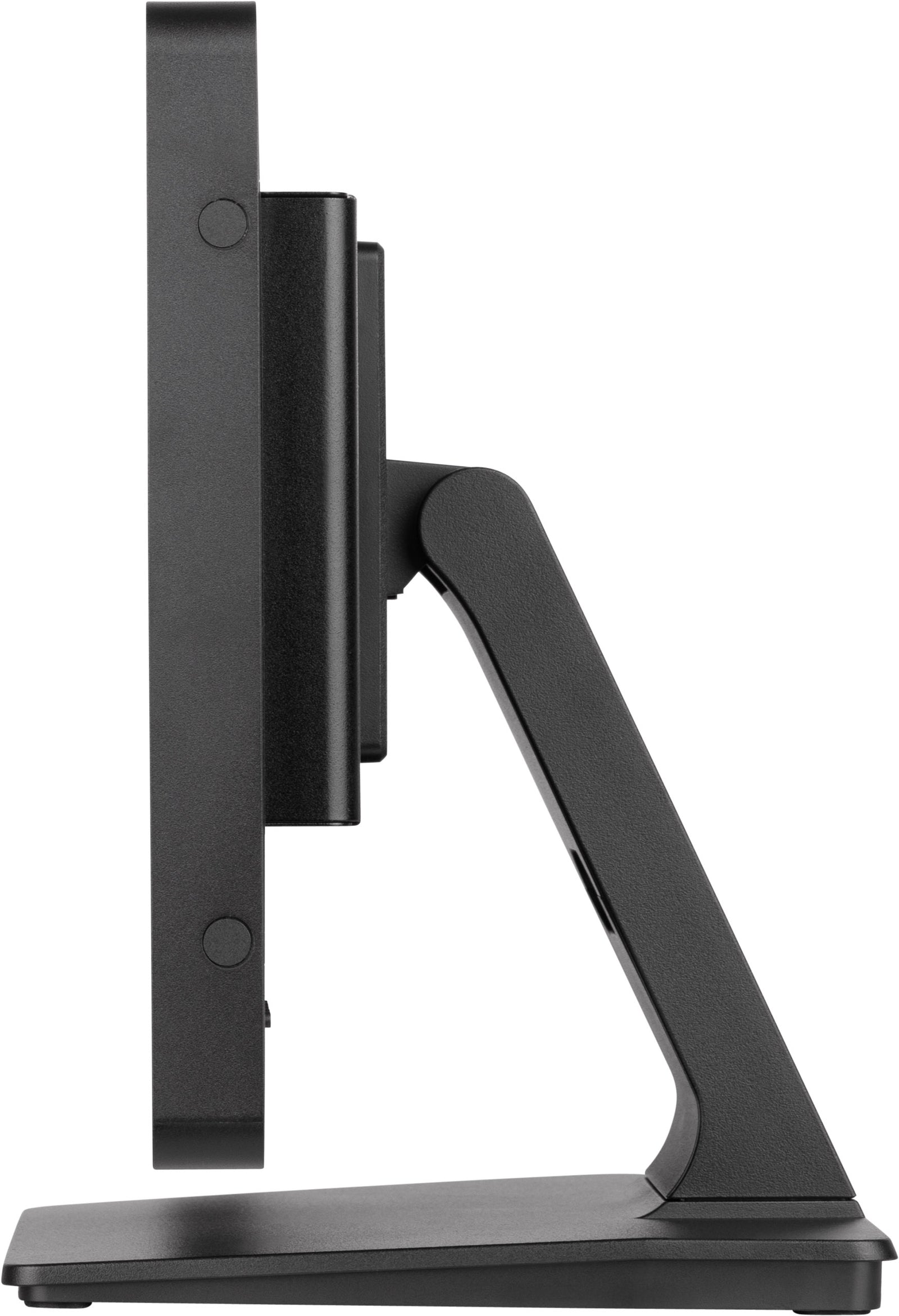

    Tilt angle 90° up; 5° down
    Fanless design Yes

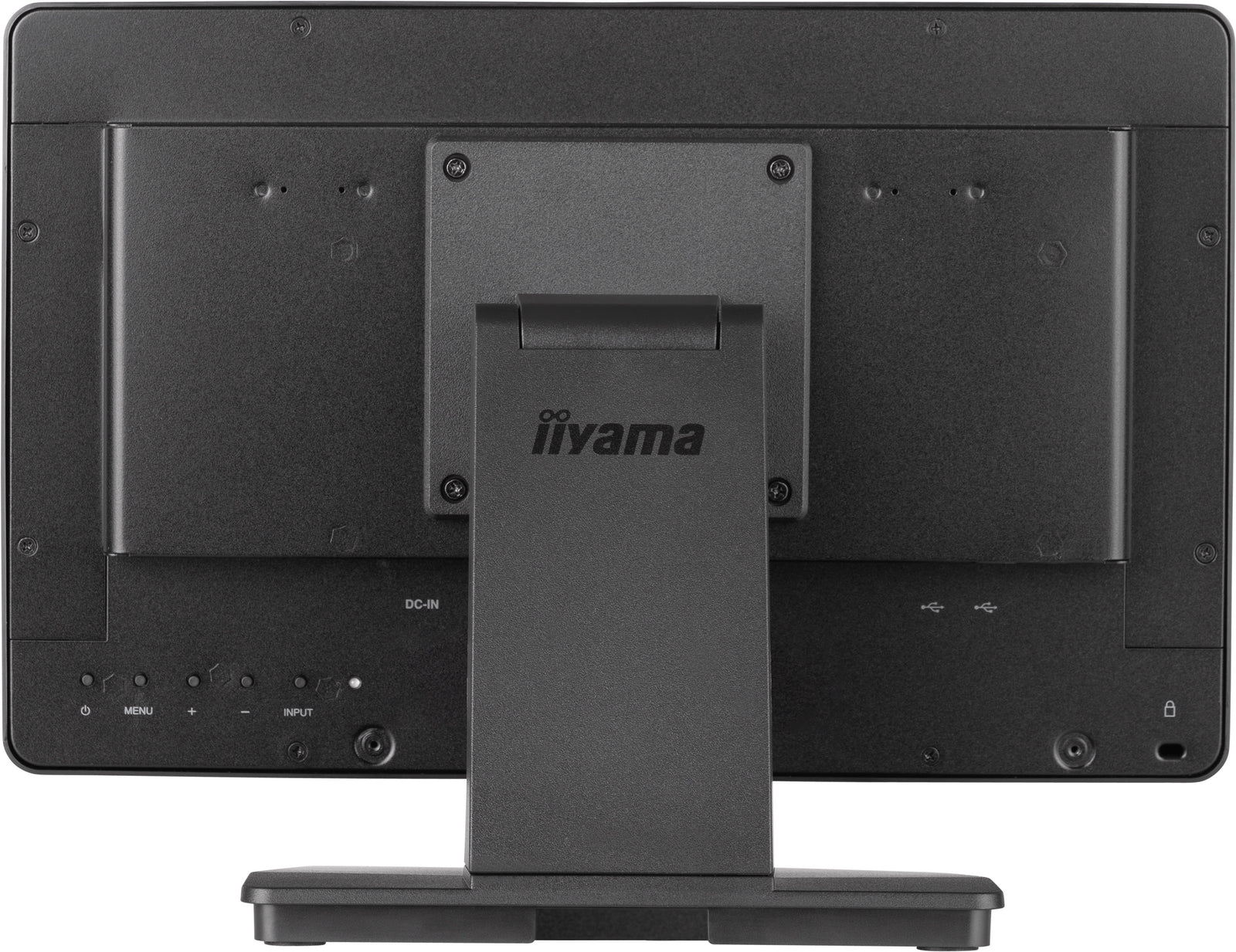

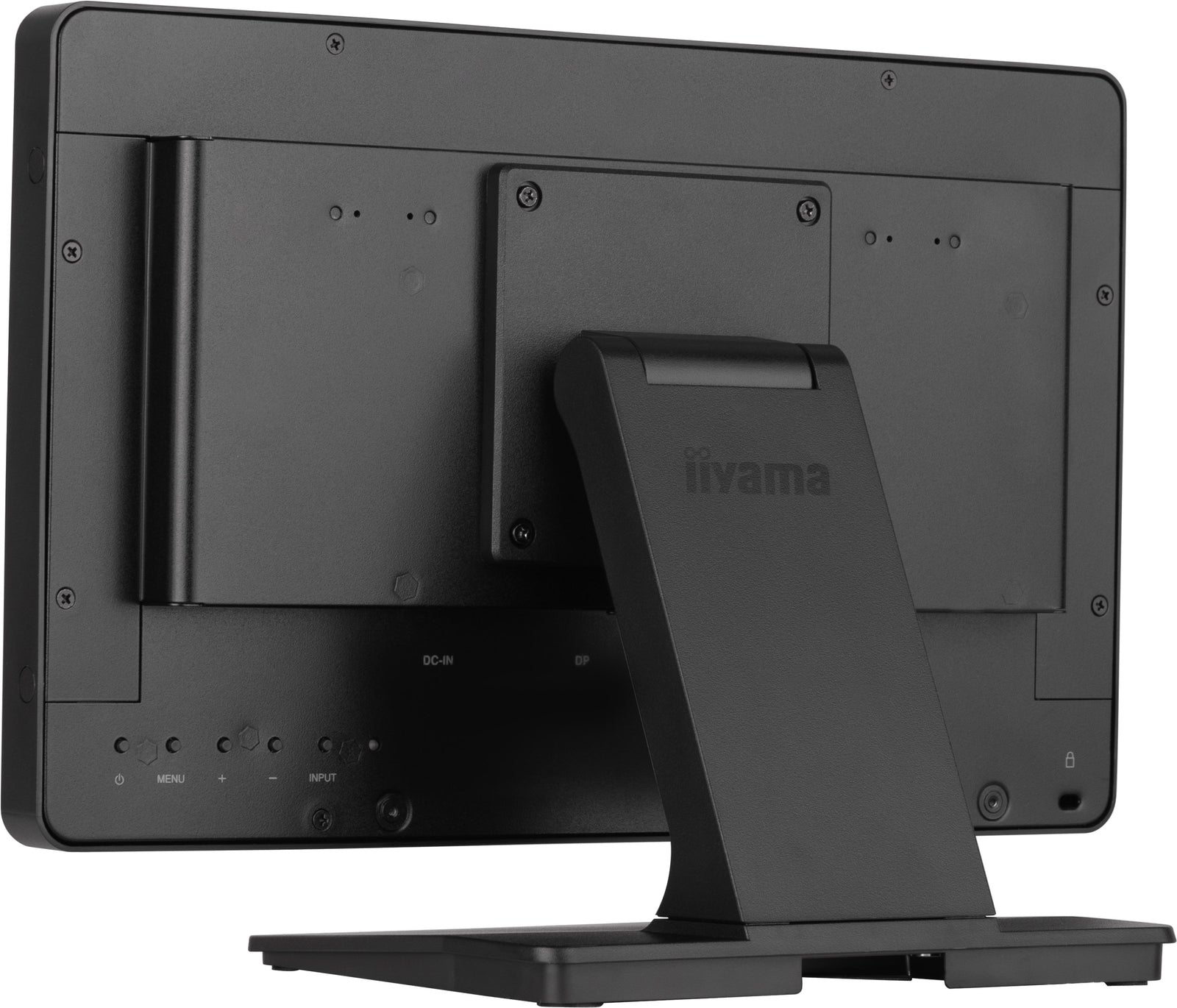

    VESA mounting 100 x 100mm

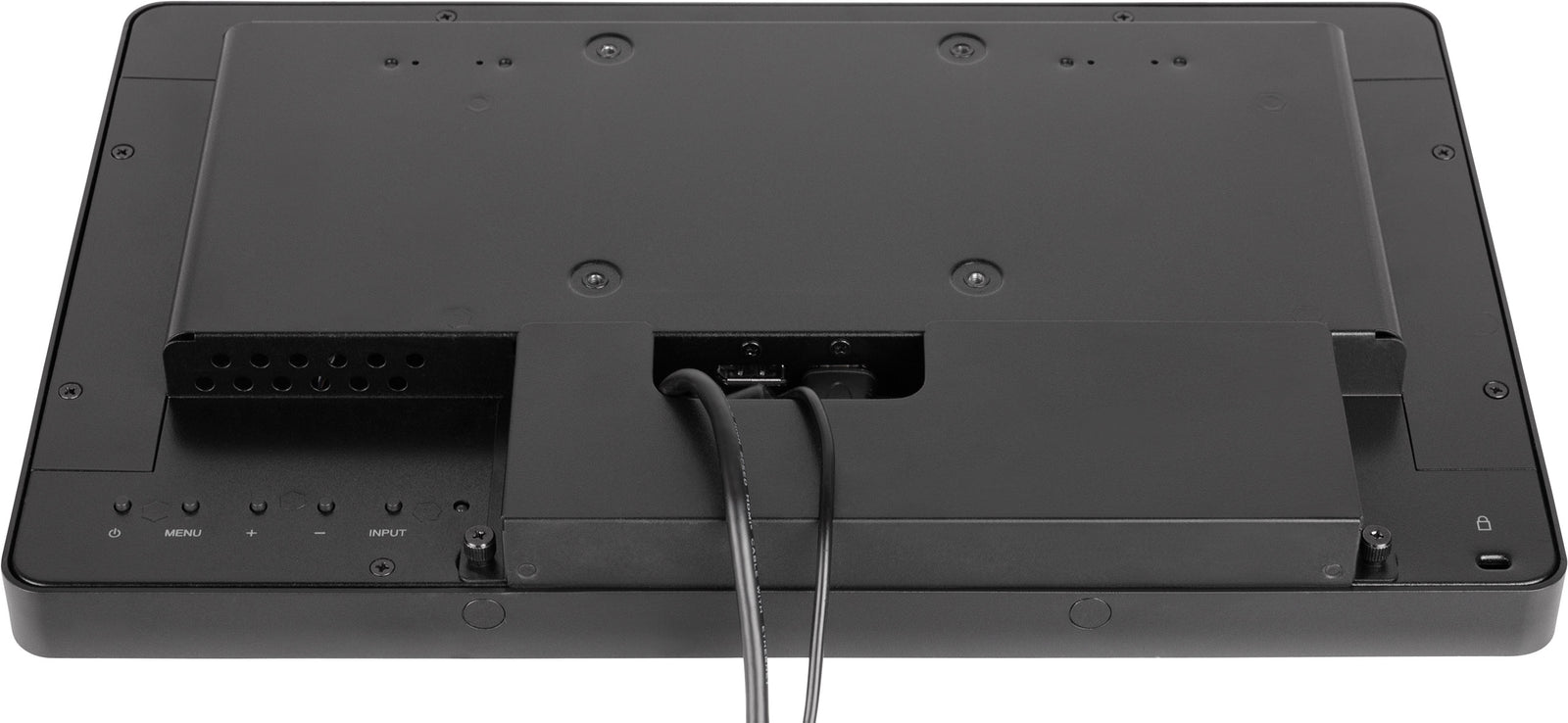

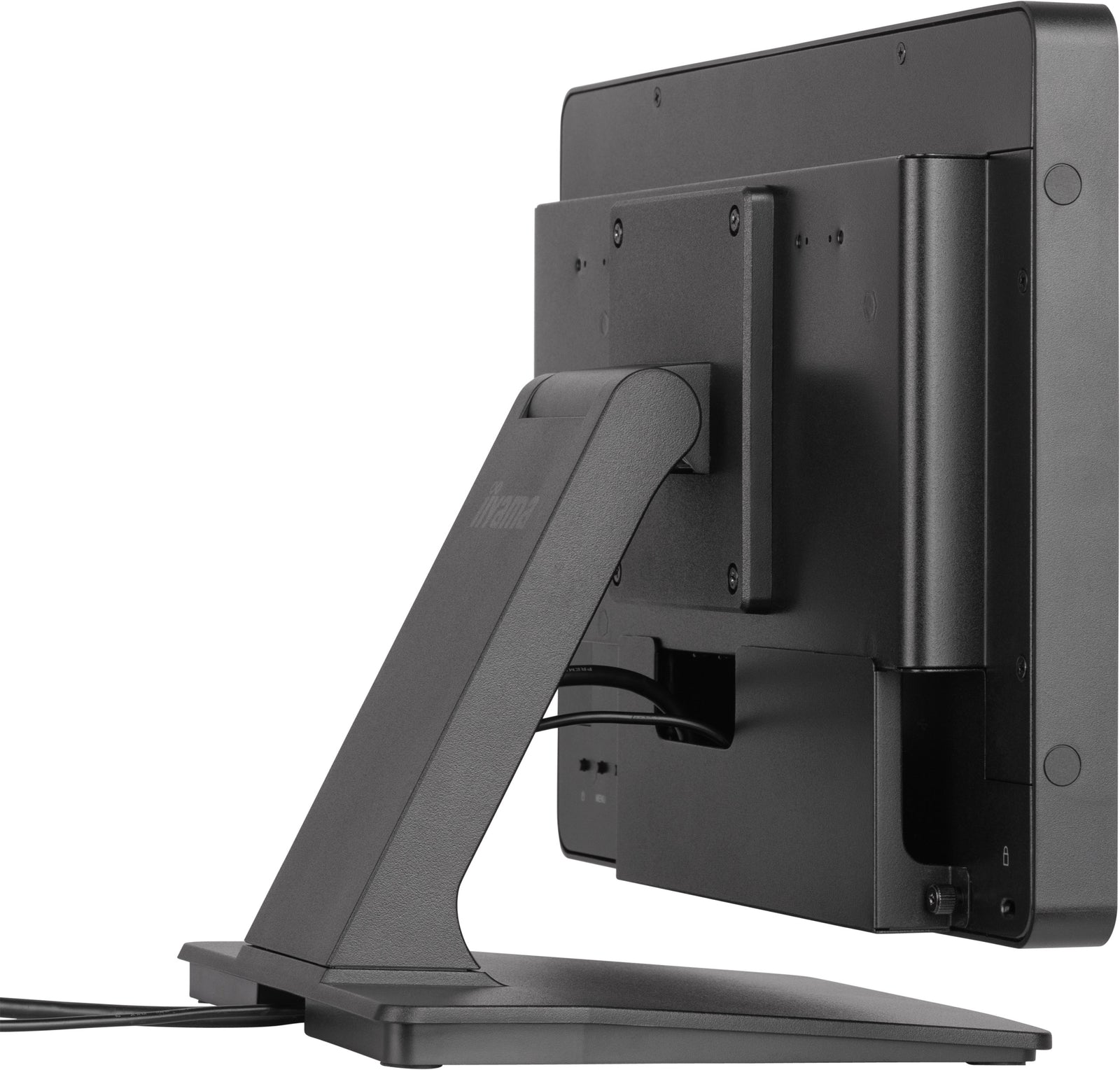

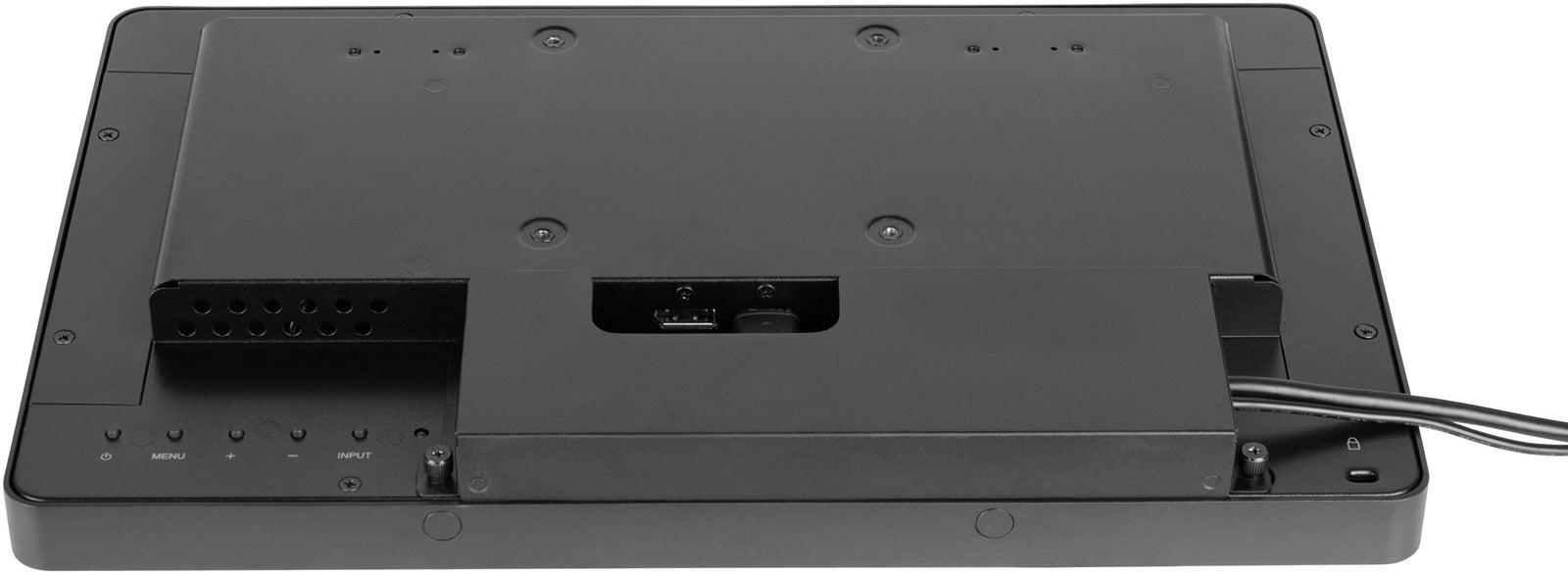

    Cable management system Yes
    MTBF 50,000 hours (excluding backlight)
    Cables Power, USB, HDMI
    Guides Quick start guide, safety guide
    Other AC adapter, Cable cover
    Power supply unit External
    Power supply DC 12V
    Power usage 12W typical, 8W stand by, 0.5W off mode
    Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
    Energy efficiency class C
    REACH SVHC Above 0.1%: Lead
    Product dimensions W x H x D 389 x 284 x 200mm
    Box dimensions W x H x D 475 x 343 x 169mm
    Weight (without box) 3.4kg
    Weight (without stand) 5.3kg
    EAN code 4948570122523
  • Warranty Product Cover
    Visioncare Desktop LCD products (Monitors)  (17" - 43")
    3 years on-site UK warranty. (Upgrades to 5 years available)
    LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available)
    LFD Large Format Displays Standard Warranty

    3 years collect and return (Upgrade to swap, installation & 5 years available) Download


    There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

    Step one - Check that all connections have been properly made.

    Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

    Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

    Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

    Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

    Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

    * Proof of purchase may be required



  • File Type Downloads
    User Manual Download
    Technical Specification Download
    Drawing Download
    EU Energy Label Download
    UK Energy Label Download
