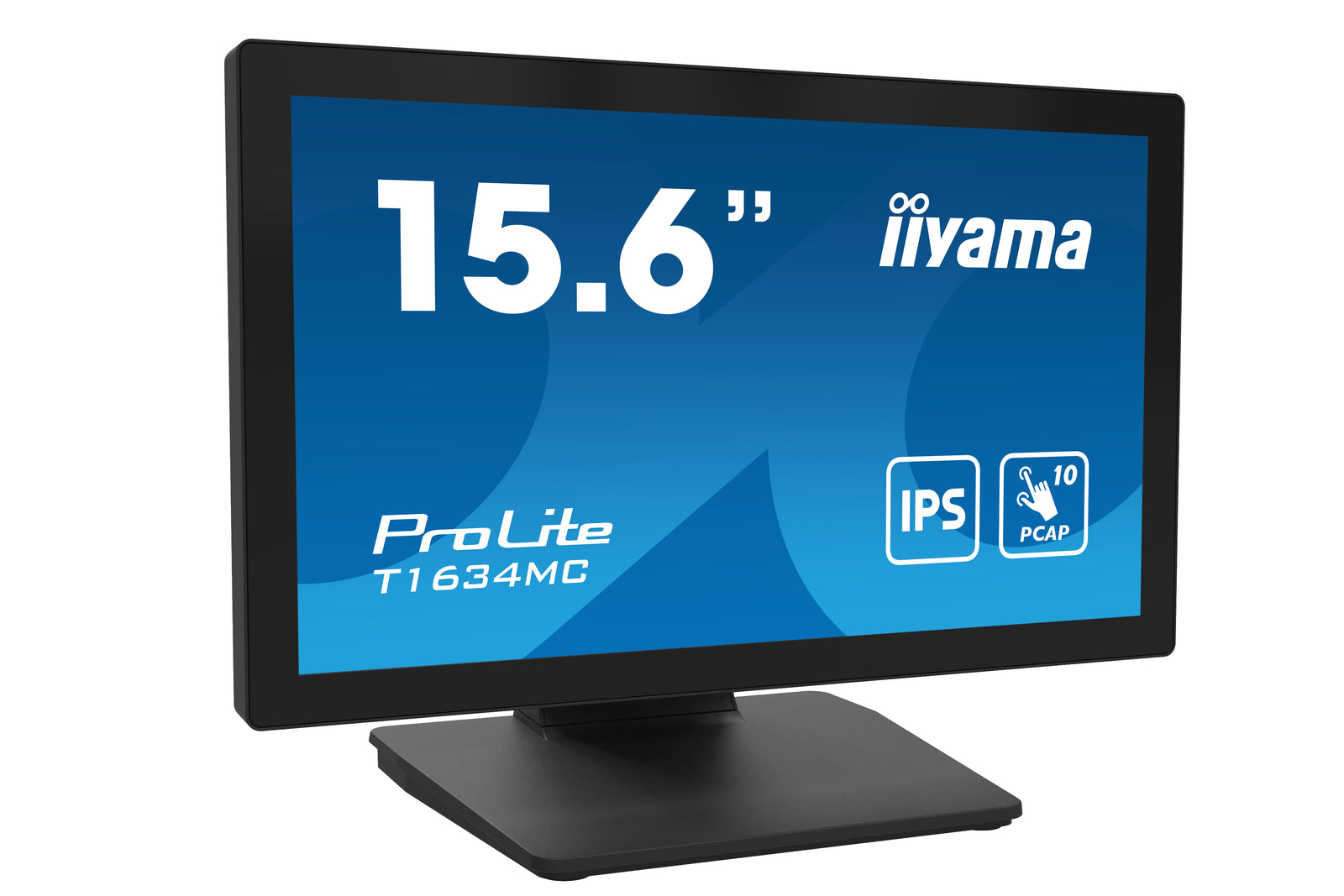

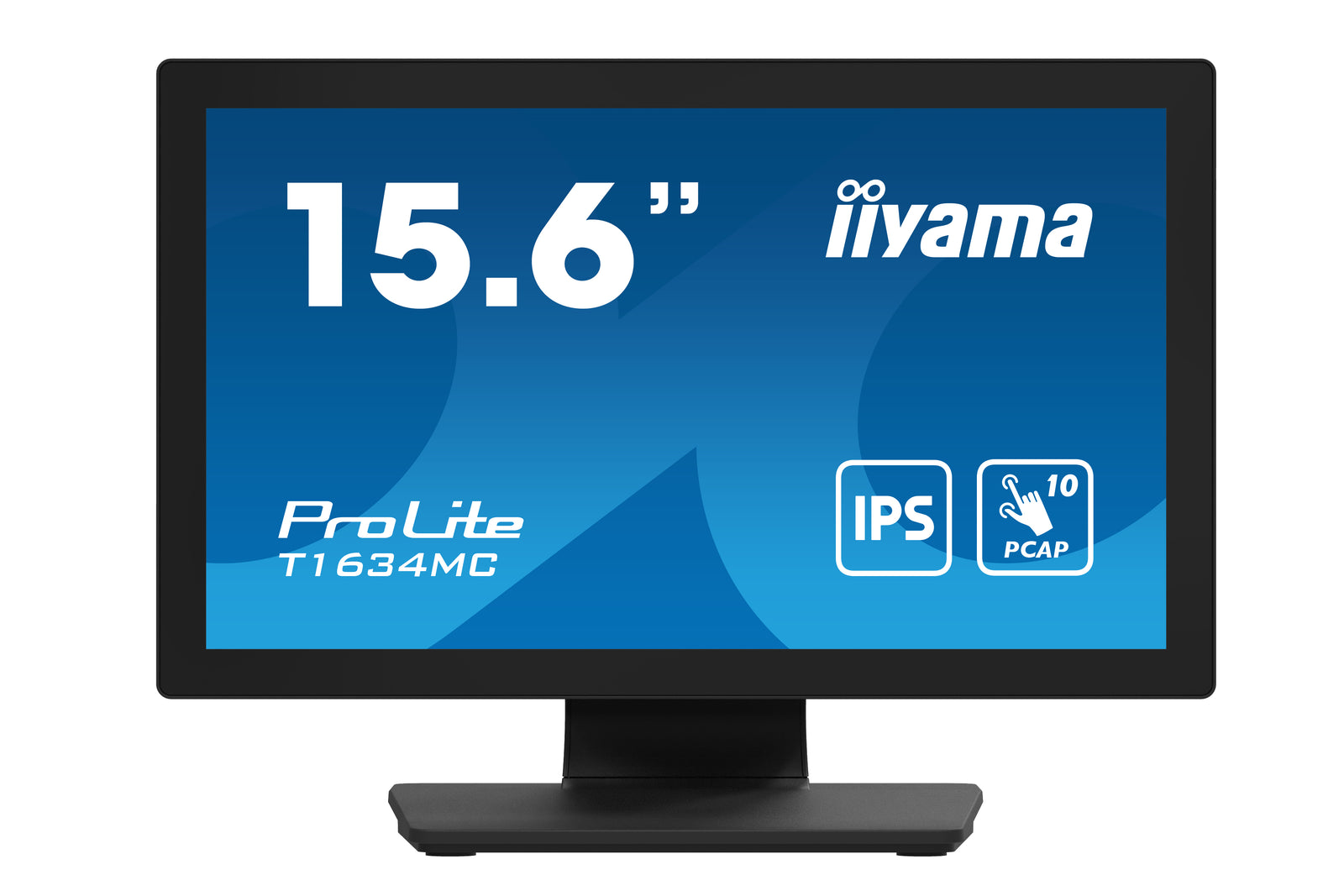

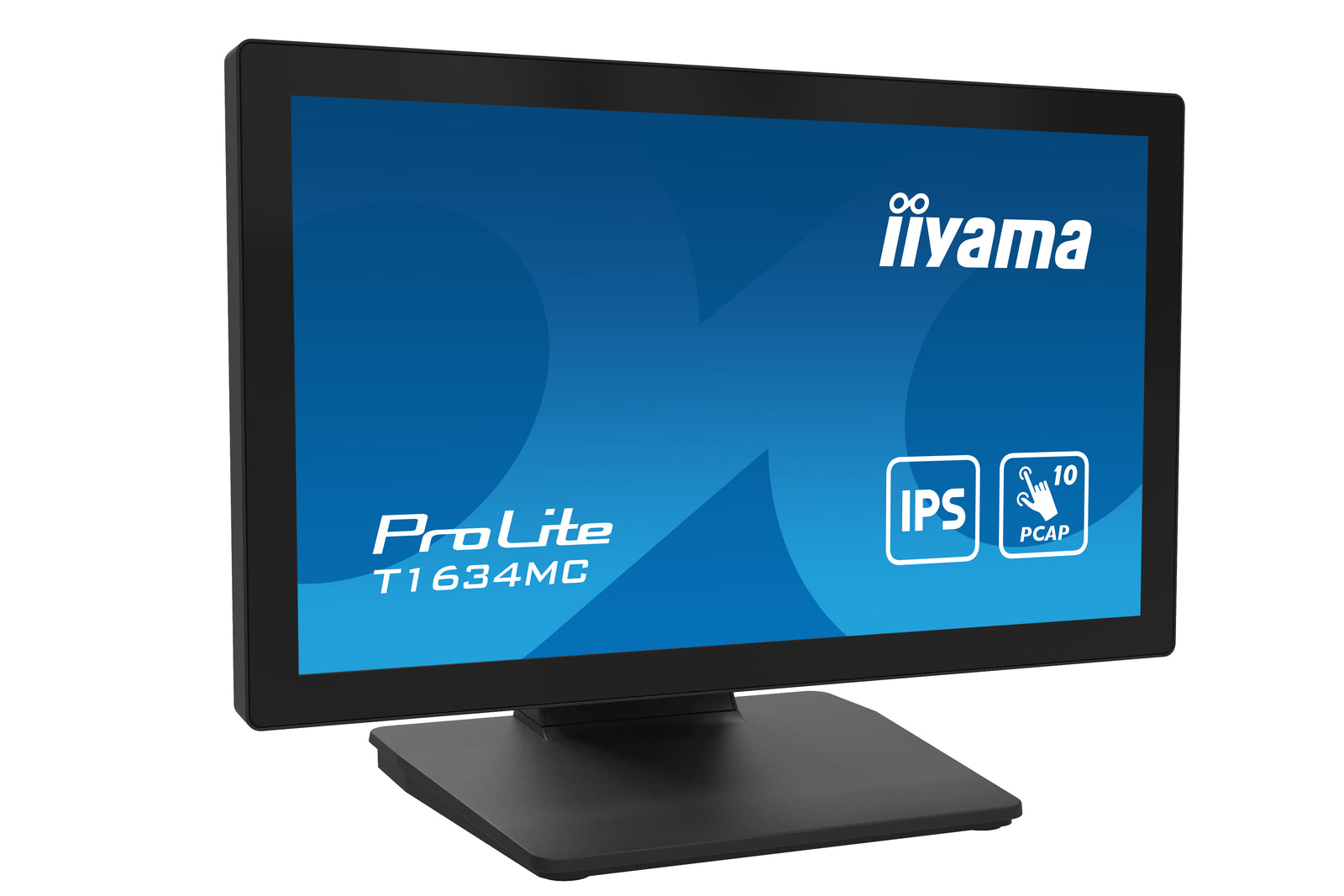

PROLITE T1634MC-B1S
15.6" Full HD PCAP 10-point touch monitor with edge-to-edge glass, IPS Panel Technology, and touch-through-glass function

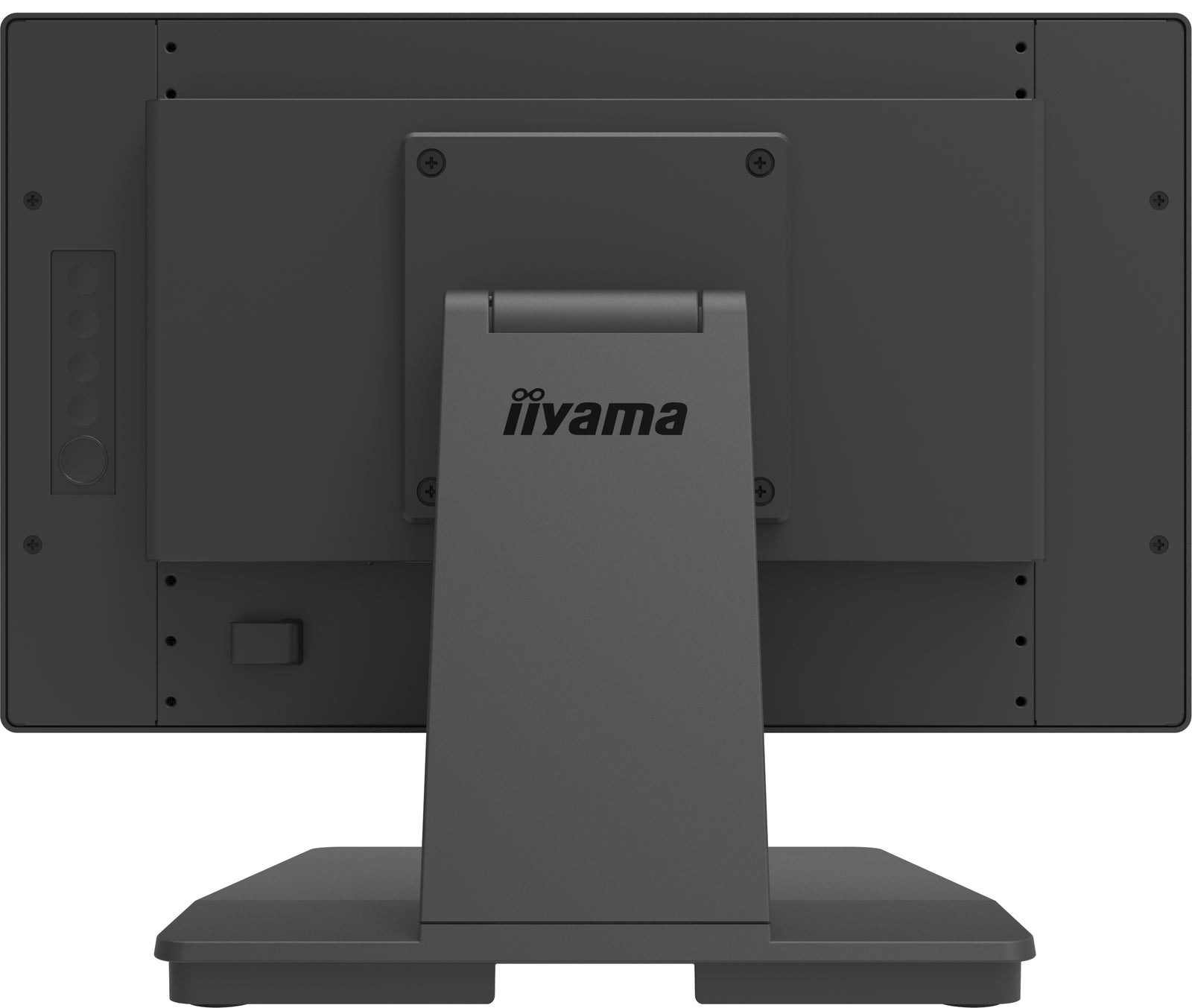

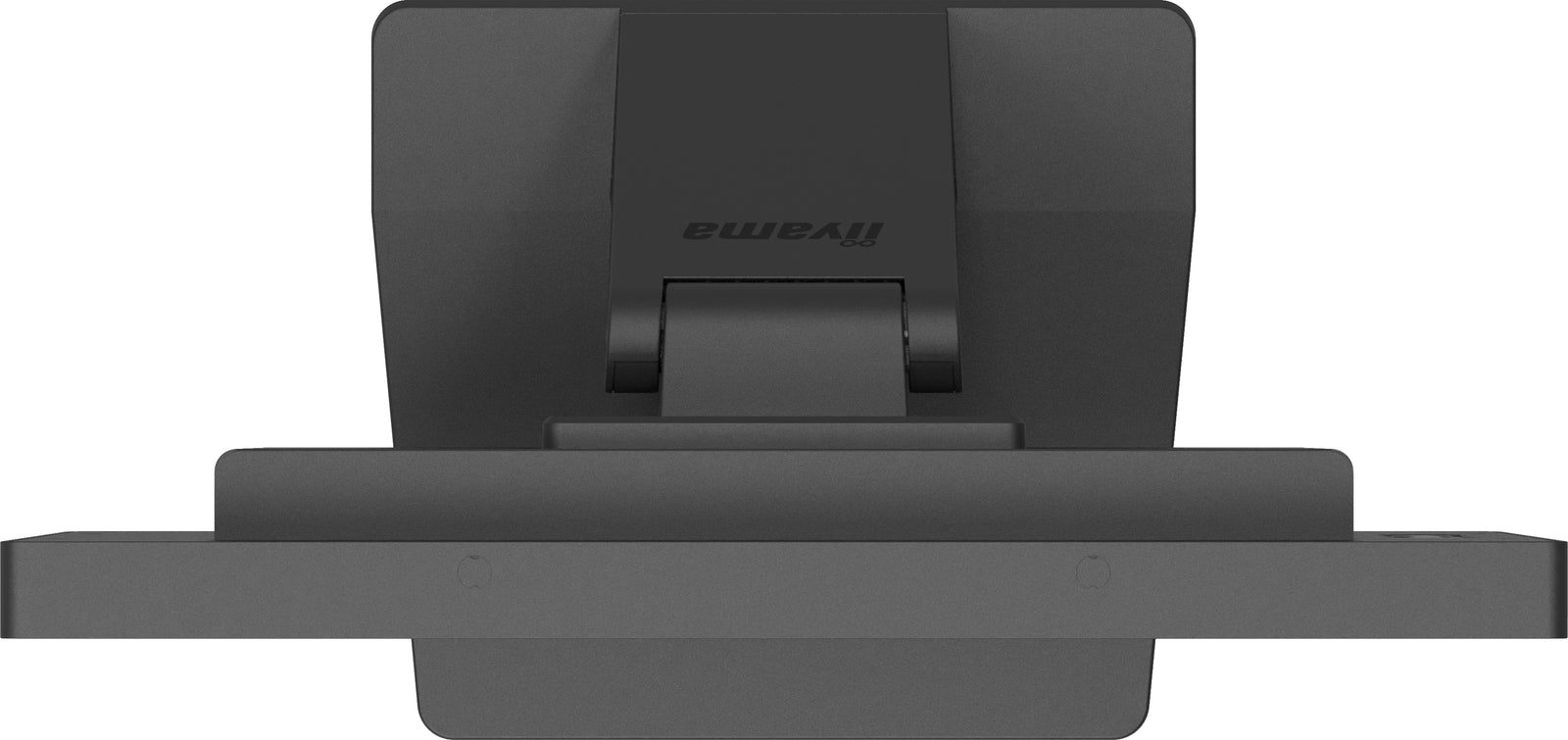

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye-catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colors and wide viewing angles. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel are dust and water-resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks, and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
TOUCH THROUGH-GLASS
This through-glass touch screen works right through the glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate offices, in-store for POS, or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when a human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human fingers (also latex gloved) and stylus pens.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high-definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected from water splashes against the enclosure from any direction.
| DISPLAY CHARACTERISTICS | |
|---|---|
| Design | Edge to edge glass |
| Diagonal | 15.6", 39.5cm |
| Panel | IPS Panel Technology LED |
| Native resolution | 1920 x 1080 @60Hz (2.1 megapixel) |
| Aspect ratio | 16:9 |
| Panel brightness | 450 cd/m² |
| Brightness | 405 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 700:1 with touch |
| Response time (GTG) | 25ms |
| Viewing zone | Horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support | 16.2 million (6bit + Hi-FRC) |
| Horizontal Sync | 30 - 84kHz |
| Viewable area W x H | 344.2 x 193.6mm |
| Pixel pitch | 0.179mm |
| Bezel colour and finish | Black, matte |
| TOUCH | |
| Touch technology | Projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | Stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 |
| DisplayPort x1 | |
| Monitor control input | External control pad TOUCHV01 |
| HDCP | Yes |
| FEATURES | |
| Extra | Anti-fingerprint coating, touch through-glass |
| Glass thickness | 2.4mm |
| Glass hardness | 7H |
| Water and dust protection | IP65 (front) |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | Picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | Landscape, face-up |

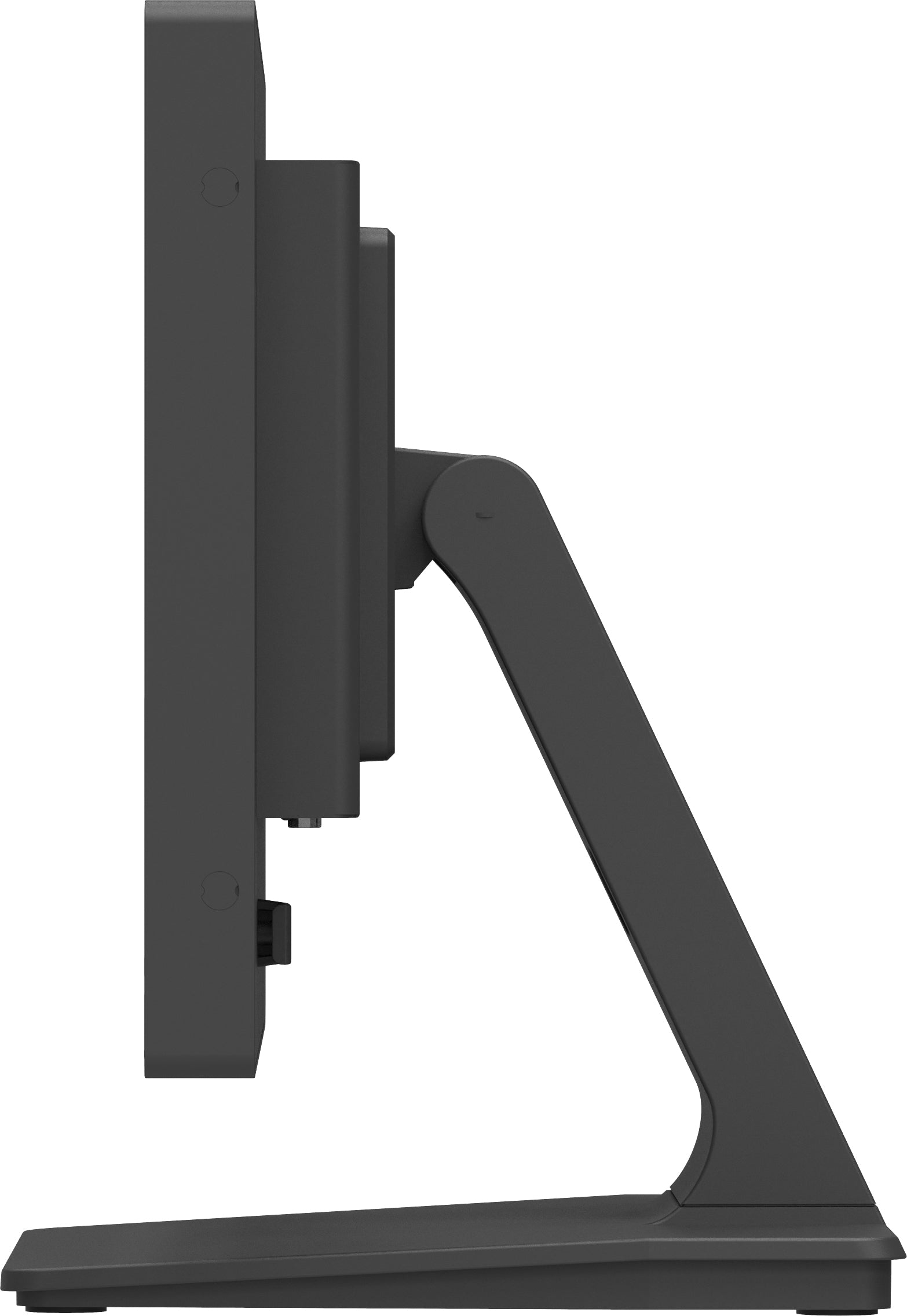

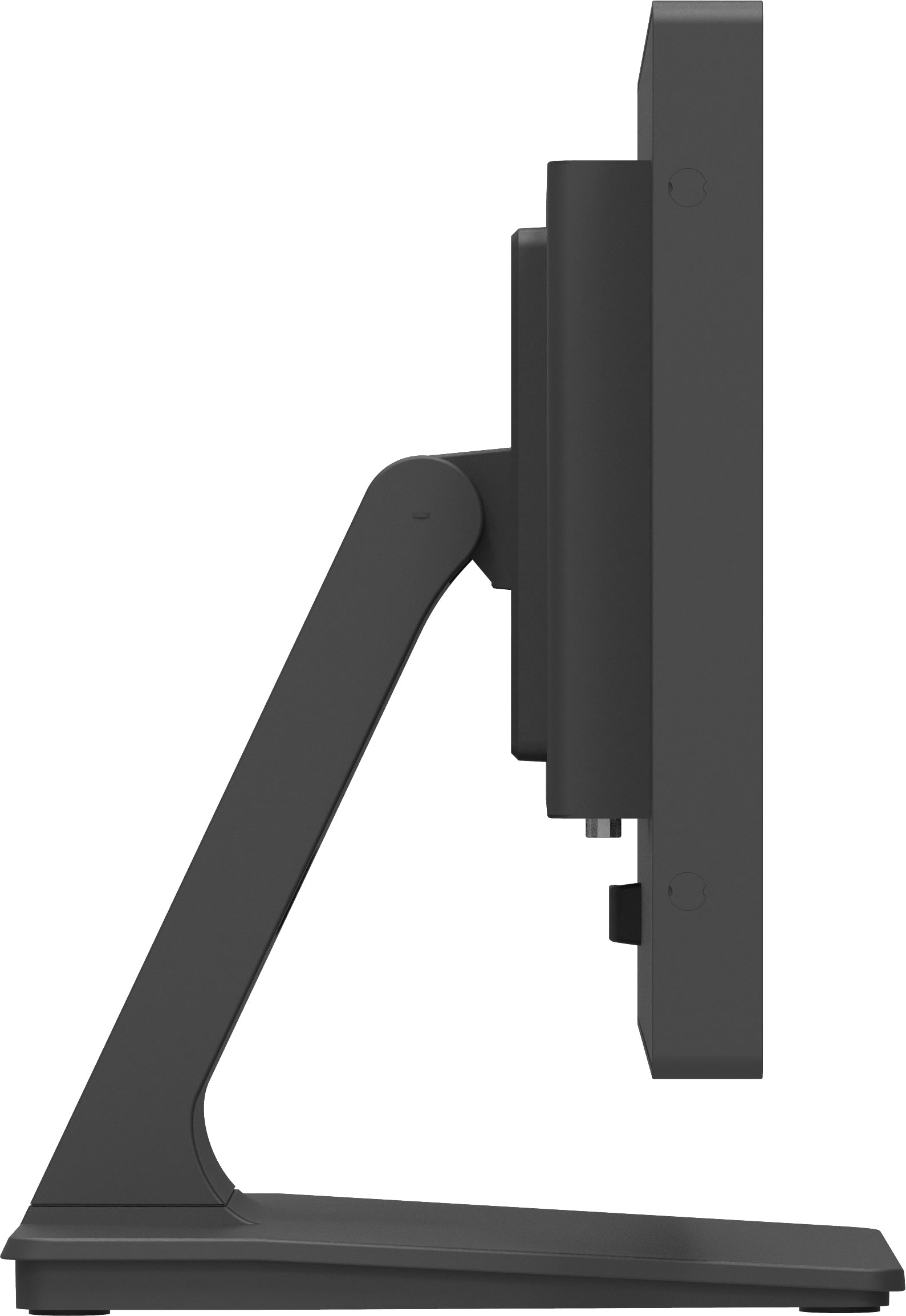

| Tilt angle | 90° up; 5° down |

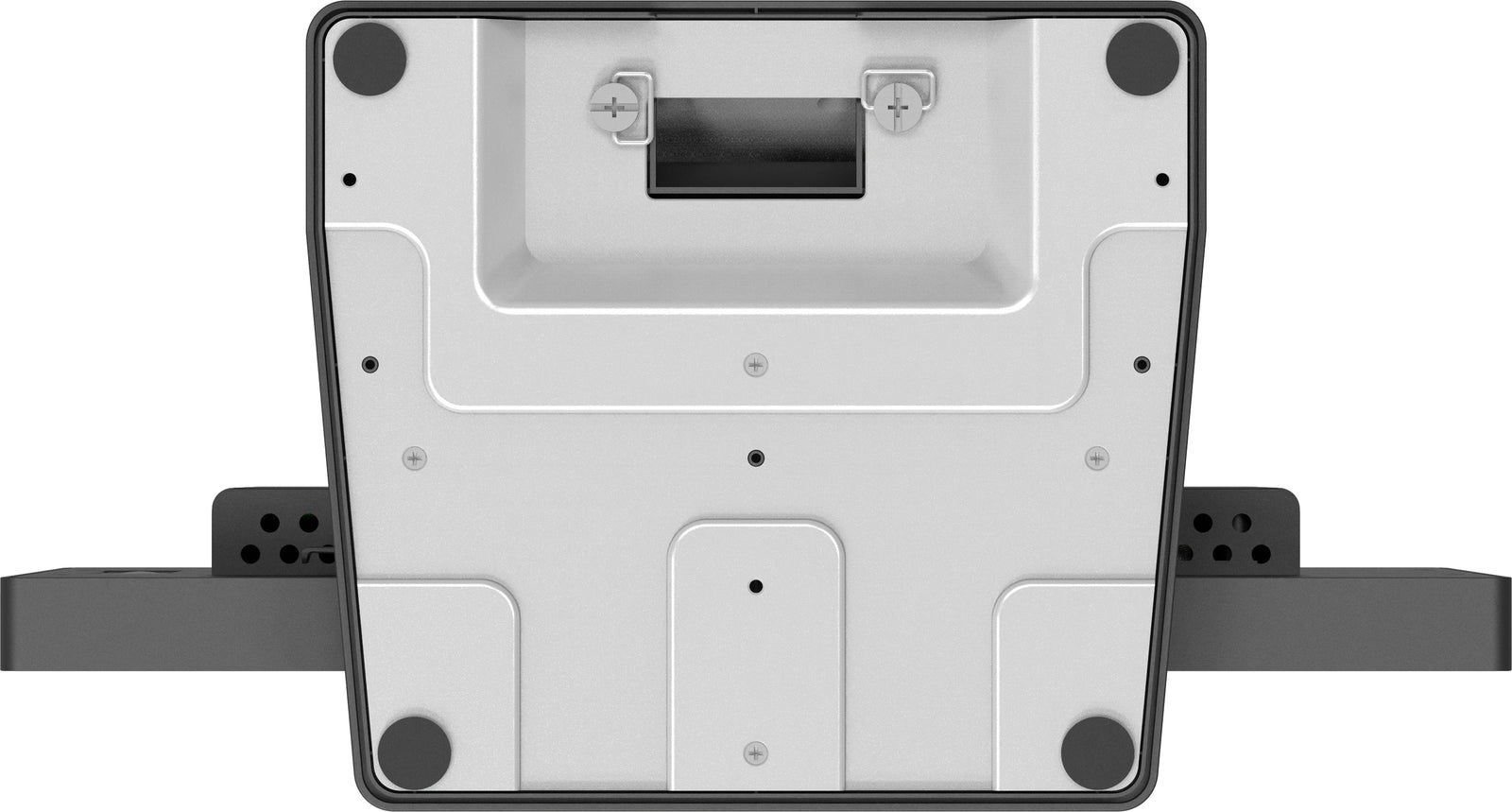

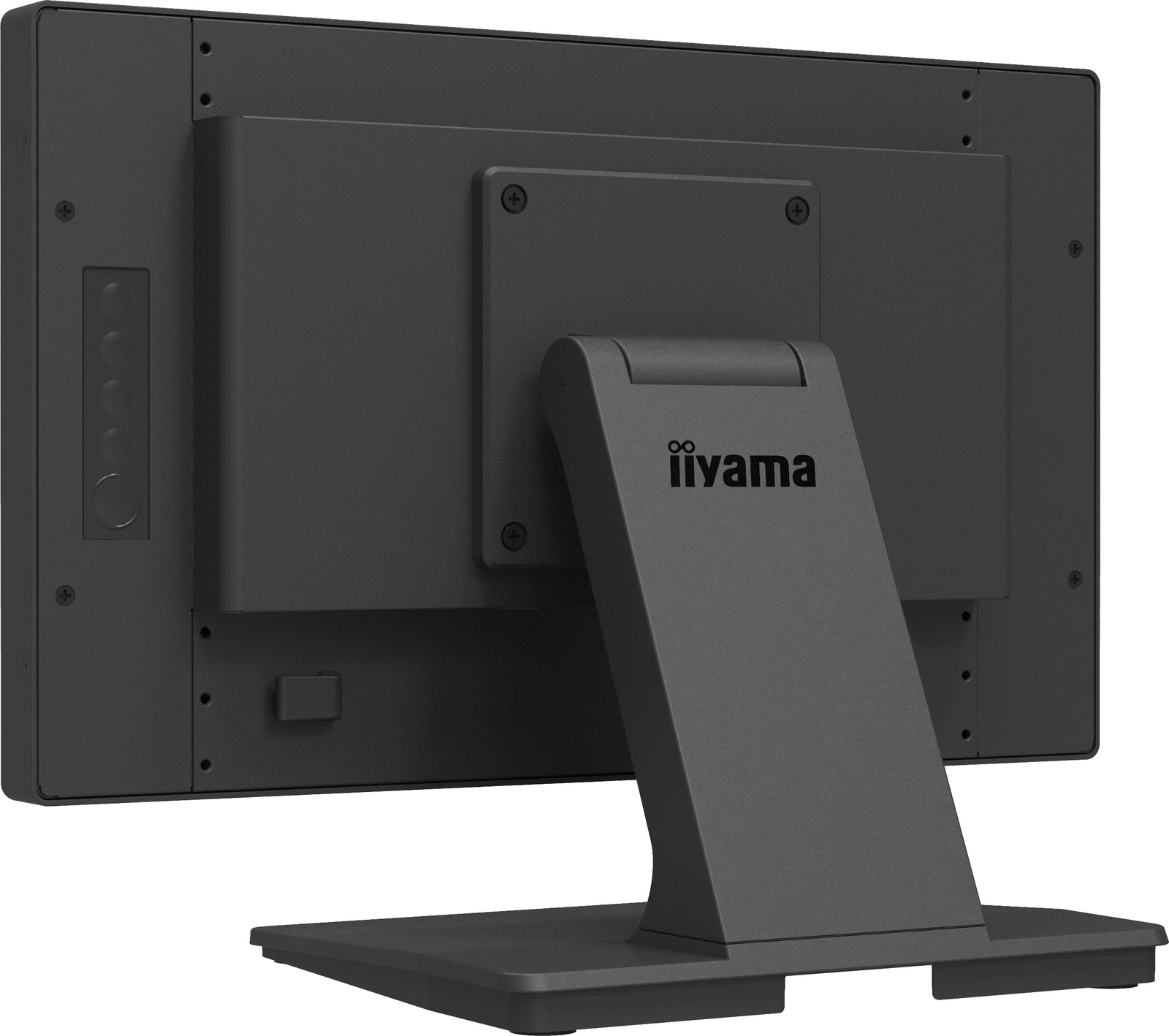

| VESA mounting | 100 x 100mm |
| ACCESSORIES INCLUDED | |

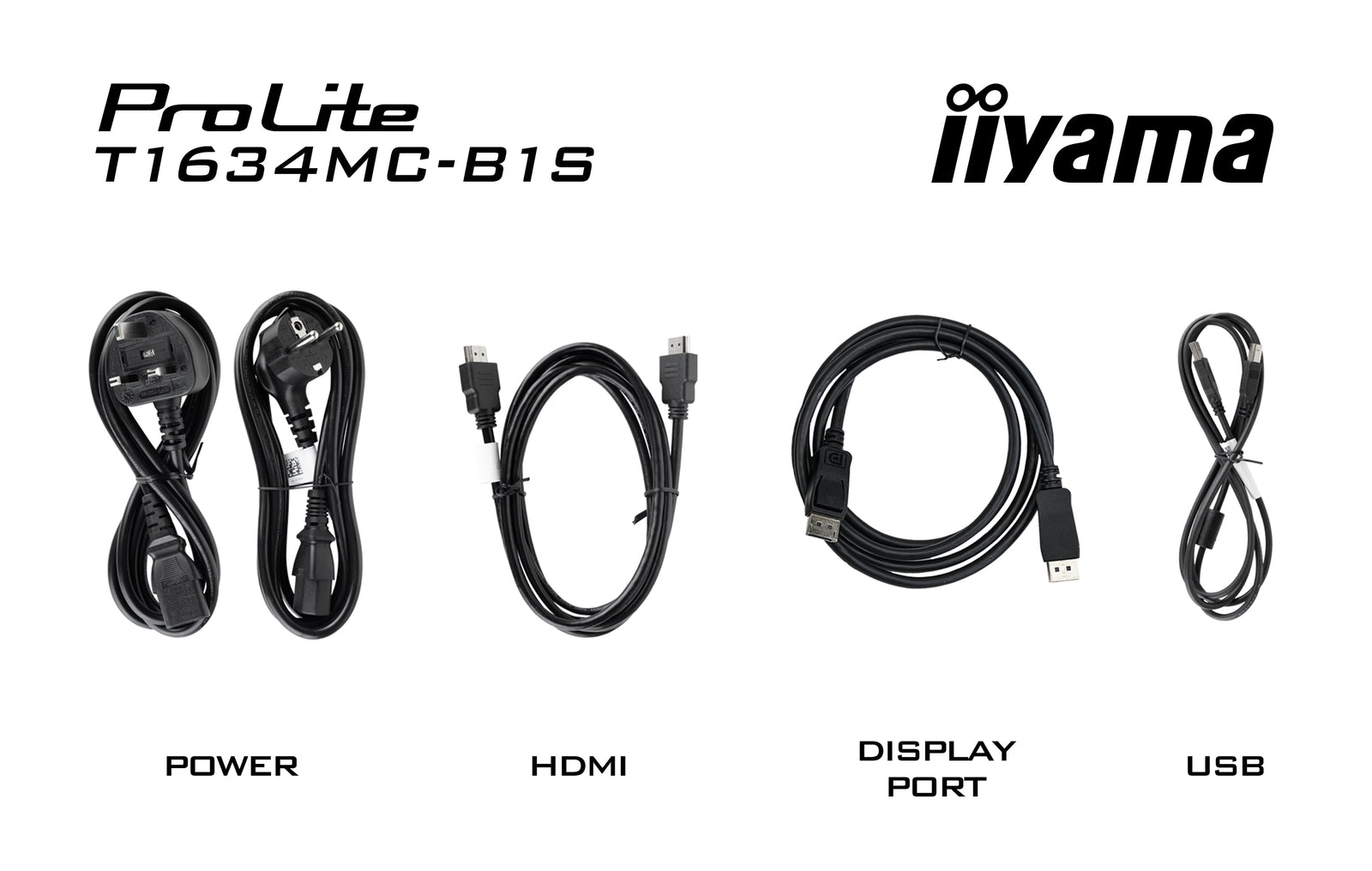

| Cables | Power, USB, HDMI, DP |
| Guides | Quick start guide, safety guide |
| Other | AC adapter |
| POWER MANAGEMENT | |
| Power supply unit | External |
| Power supply | DC 12V |
| Power usage | 18W typical, 1.5W standby, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | Above 0.1%: Lead |
| DIMENSIONS / WEIGHT | |
| Product dimensions W x H x D | 381 x 285.5 x 200mm |
| Box dimensions W x H x D | 445 x 355 x 150mm |
| Weight (without box) | 3.4kg |
| Weight (with box) | 5.18kg |
| EAN code | 4948570122110 |
| Warranty | Product | Cover |
| Visioncare | Desktop LCD products (Monitors) (17" - 43") |
3 years on-site UK warranty. (Upgrades to 5 years available) |
| Touchcare |
LCD touchscreen products | 3 years repair and return. (Upgrades to on-site & 5 years available) |
| LFD | Large Format Displays Standard Warranty |
3 years collect and return (Upgrade to swap, installation & 5 years available) Download |
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number, and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
| Document Type | Download Link |
|---|---|
| User Manual | Download |
| Technical Specification | Download |
| Drawing | Download |
| UK Energy Label | Download |
| Driver Instruction | Download |
| PCAP Driver for Windows XP | Download |
