Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

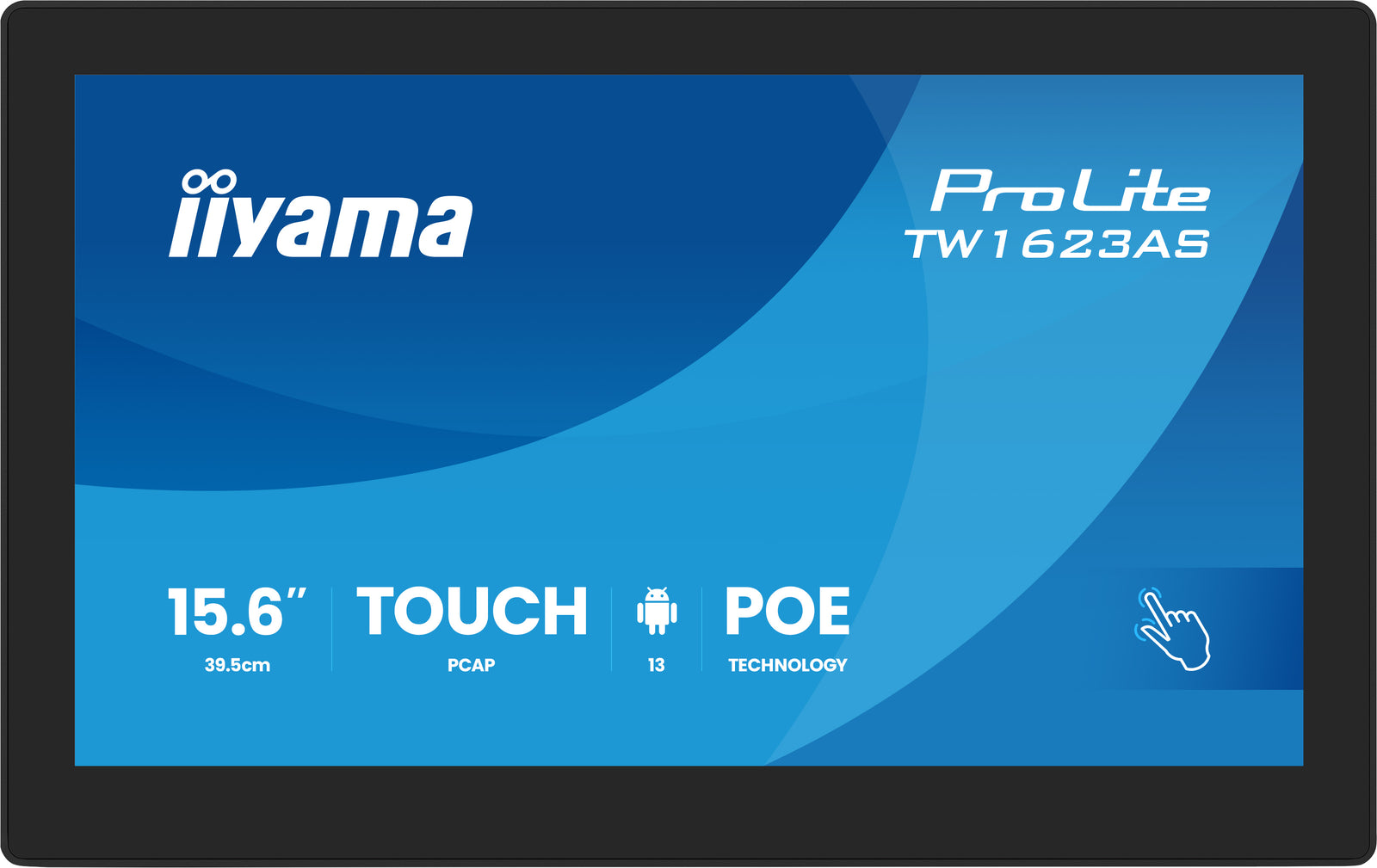

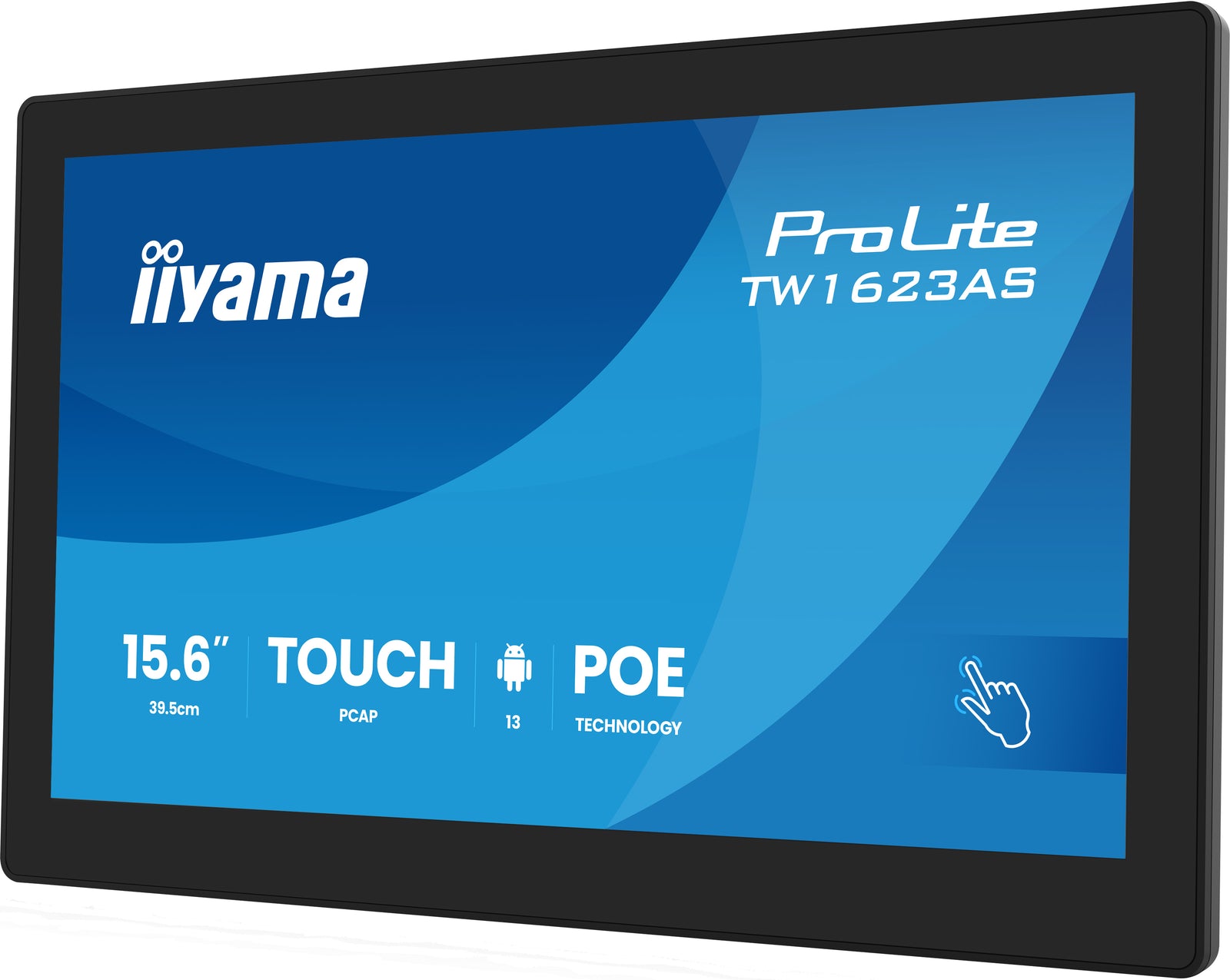

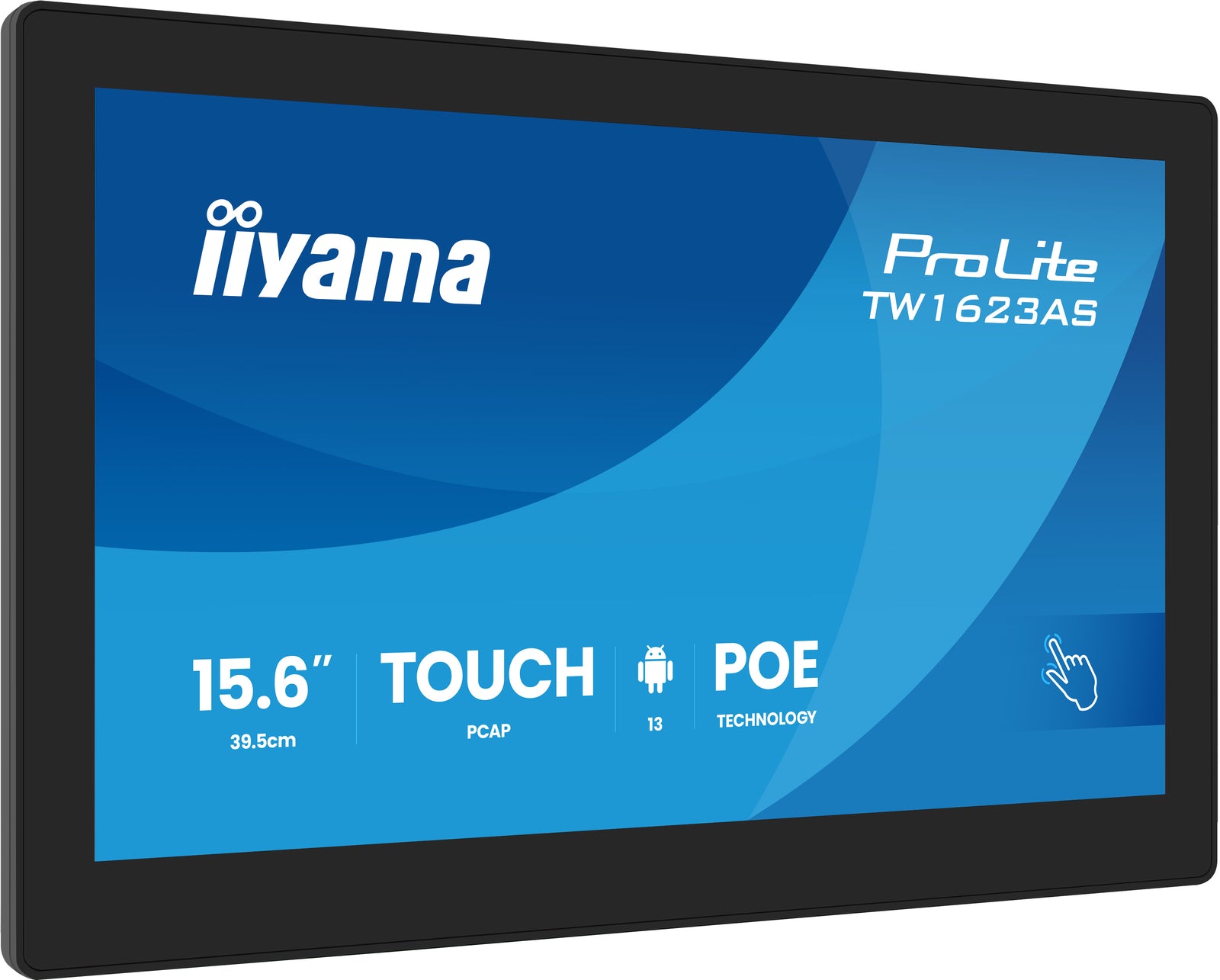

| Design | Edge to edge glass | Diagonal | 15.6", 39.5cm |
| Panel | IPS Panel Technology, LED | Native resolution | 1920 x 1080 (2MP HD) |
| Aspect ratio | 16:9 | Panel brightness | 450 cd/m² |
| Brightness | 387 cd/m² with touch | Light transmittance | 86% |
| Static contrast | 1000:1 with touch | Response time (GTG) | 30ms |
| Viewing zone | 170°/170°, RL: 85°/85°, UD: 85°/85° | Colour support | 16.7mln 8bit |
| Viewable area W x H | 344.2 x 193.6mm, 13.5 x 7.6" | Pixel pitch | 0.1792mm |
| Bezel colour & finish | Black, matte | Touch technology | Projective capacitive |
| Touch points | 10 (HID, OS support) | Touch method | Finger, glove, stylus |

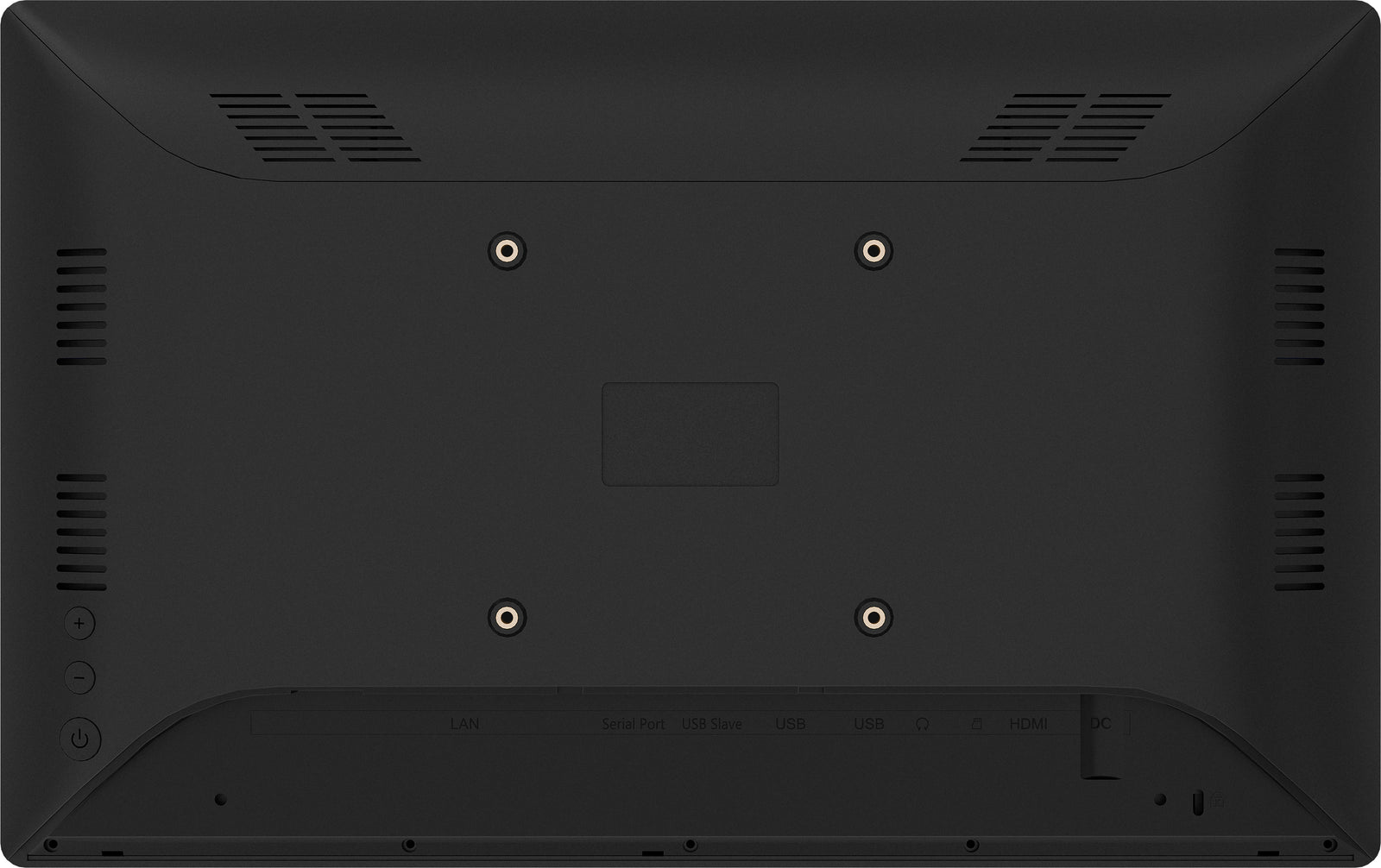

| Touch interface | USB | Digital output | HDMI x1 (mini, 1920x1080@60Hz) |
| Audio output | Mini jack x1 | Speakers | 2 x 2W |
| HDCP | Yes | USB ports | x3 |

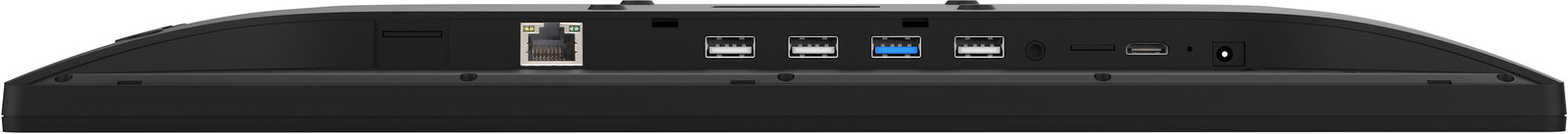

| RJ45 (LAN) | x1 (PoE IEEE802.3at/30W) | Microphone | x1 |
| Integrated software | Android 13 | CPU | Rockchip RK3568 Quad-core A55 up to 2.0GHz |
| GPU | Mali-G52 | Storage | 32GB eMMC |
| Memory | 4GB LPDDR4X | WiFi | IEEE802.11a/b/g/n/ac |
| Bluetooth | 5.2 | Extra | Auto-rotation, TF card slot, anti-fingerprint, anti-glare, PoE |
| Kiosk mode | Yes | Max. operating time | 24/7 |
| Glass thickness | 1.8mm | Glass hardness | 6H |
| Control buttons | Power, Vol +, Vol - | Applications | Lock app, restart, power schedule, calculator, calendar, Chrome, alarm, Gmail, Google, iiSignage², Play store, media apps |

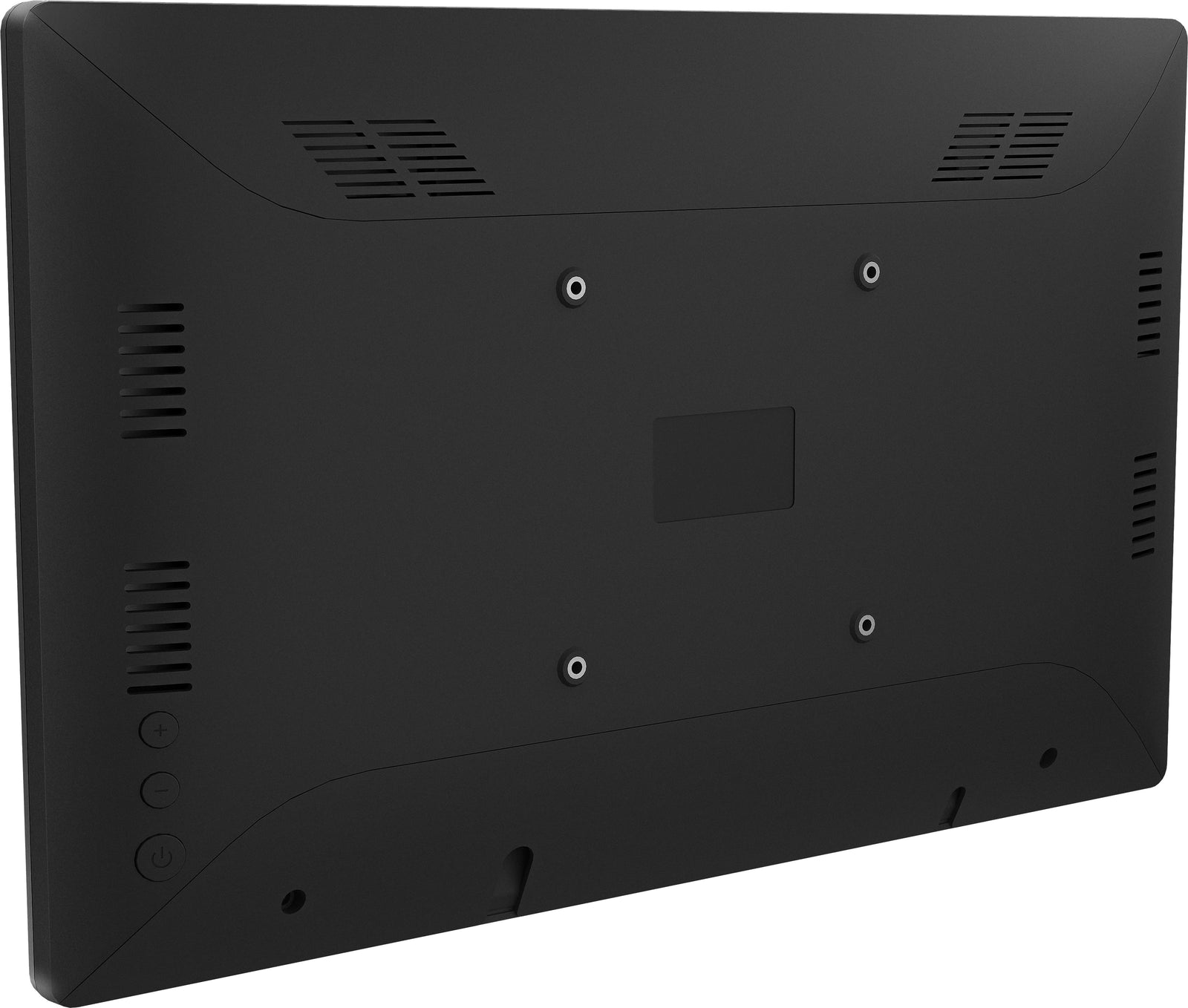

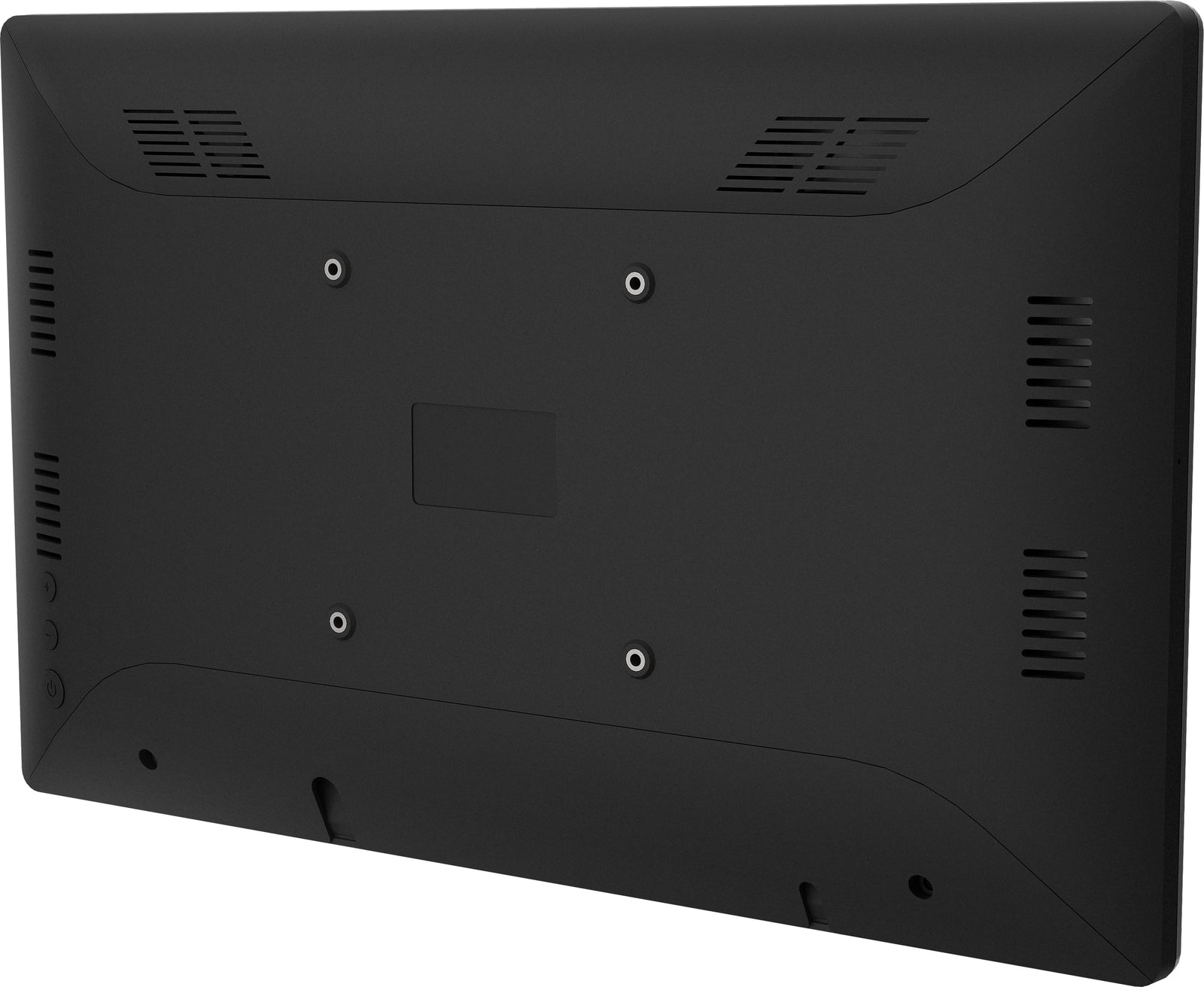

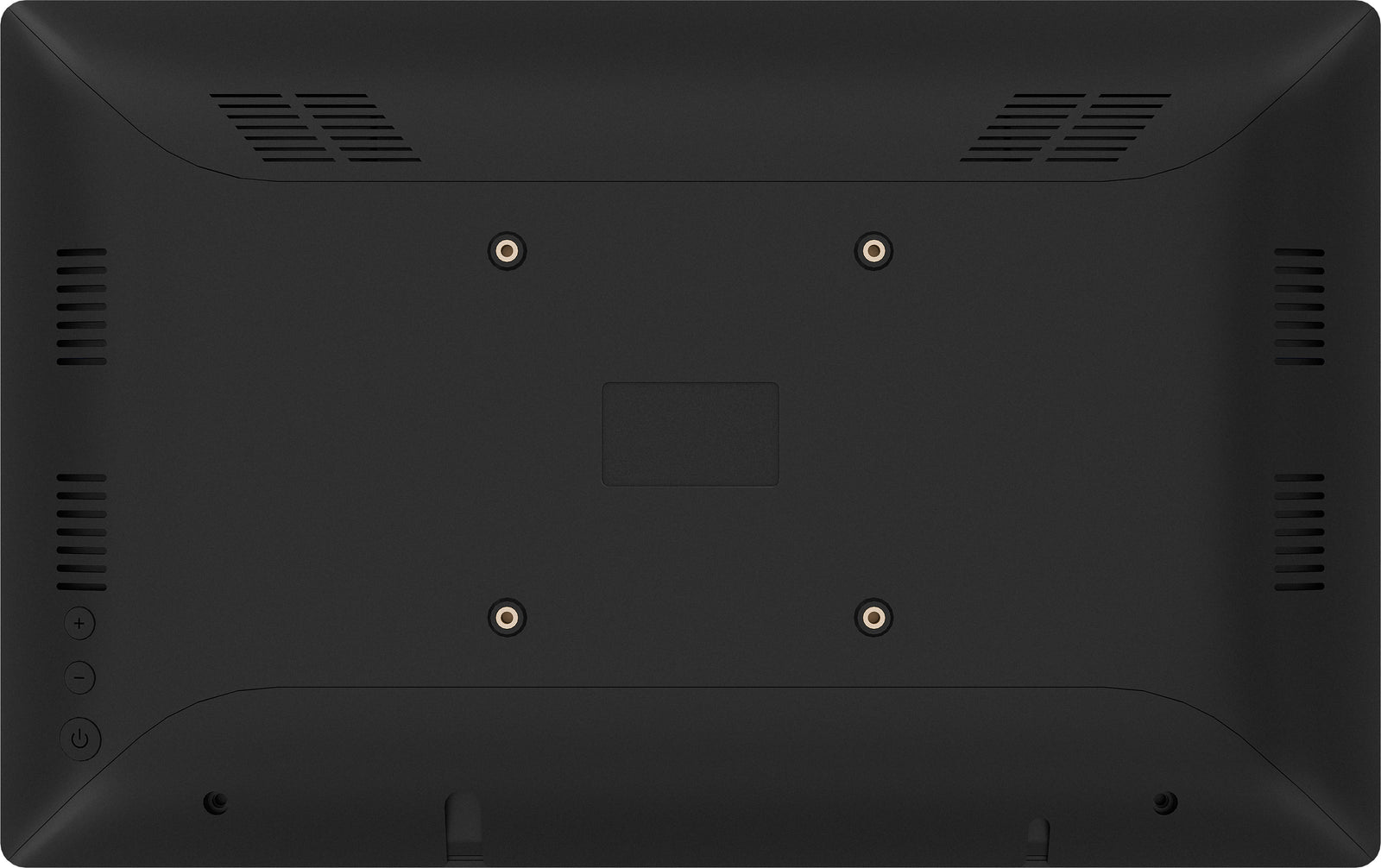

| Orientation | Landscape, portrait, face-up | VESA mounting | 100 x 100mm |
| Cable management | Yes | Guides | Quick start, safety guide |
| Other | AC adapter, plugs (EU/UK) | Cable cover | Yes |
| Power supply unit | External | Power supply | DC 12V |
| Power usage | 9W typical, 0.5W standby, 0.3W off | Regulations | CE, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| REACH SVHC | Above 0.1%: Lead | Product dimensions | 387 x 244 x 30.5mm |
| Box dimensions | 477 x 298 x 75mm | Weight (without box) | 1.5kg |
| Weight (with box) | 2.45kg | EAN code | 4948570126934 |
| Description | Downloads |
|---|---|
| User Manual | Download |
| Technical Specification | Download |
| Drawing | Download |
