IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

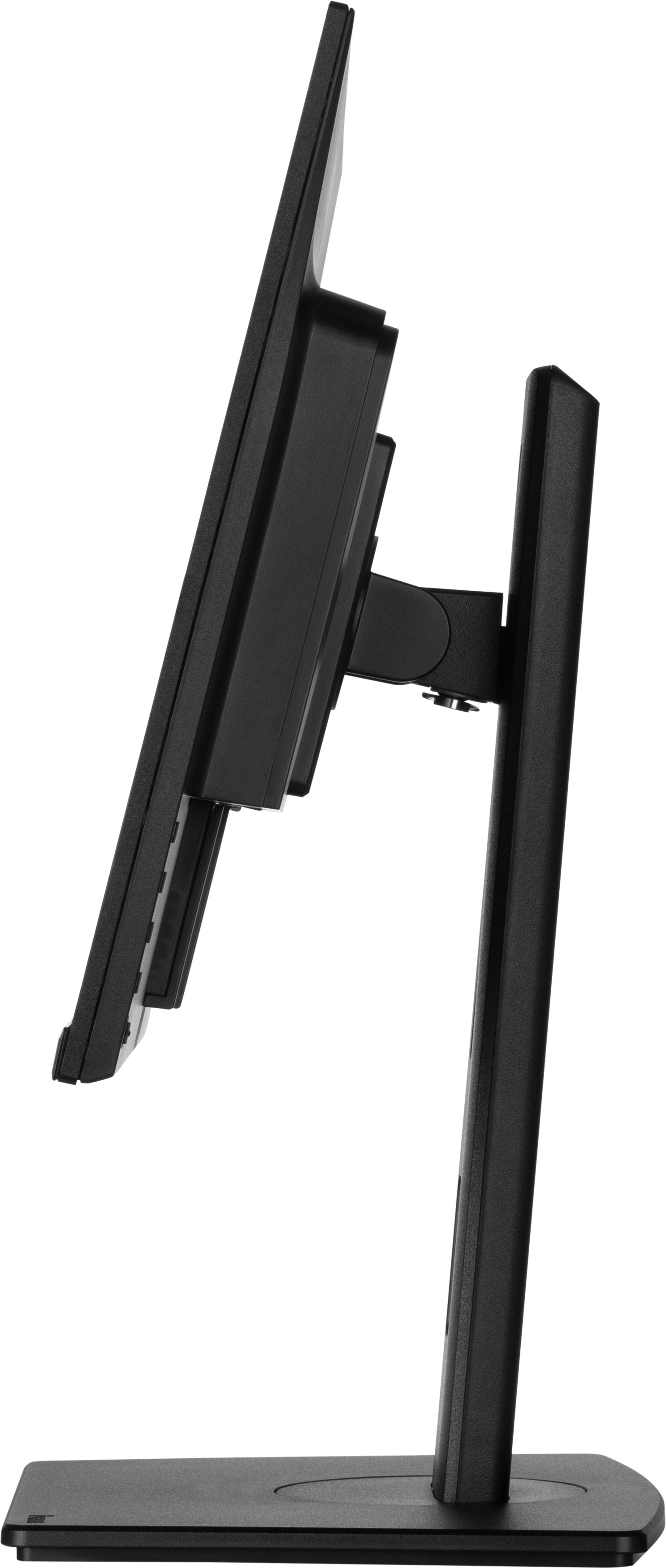

HAS (150MM) + PIVOT

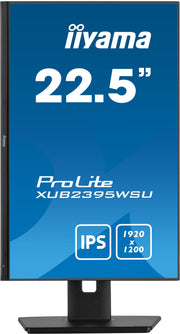

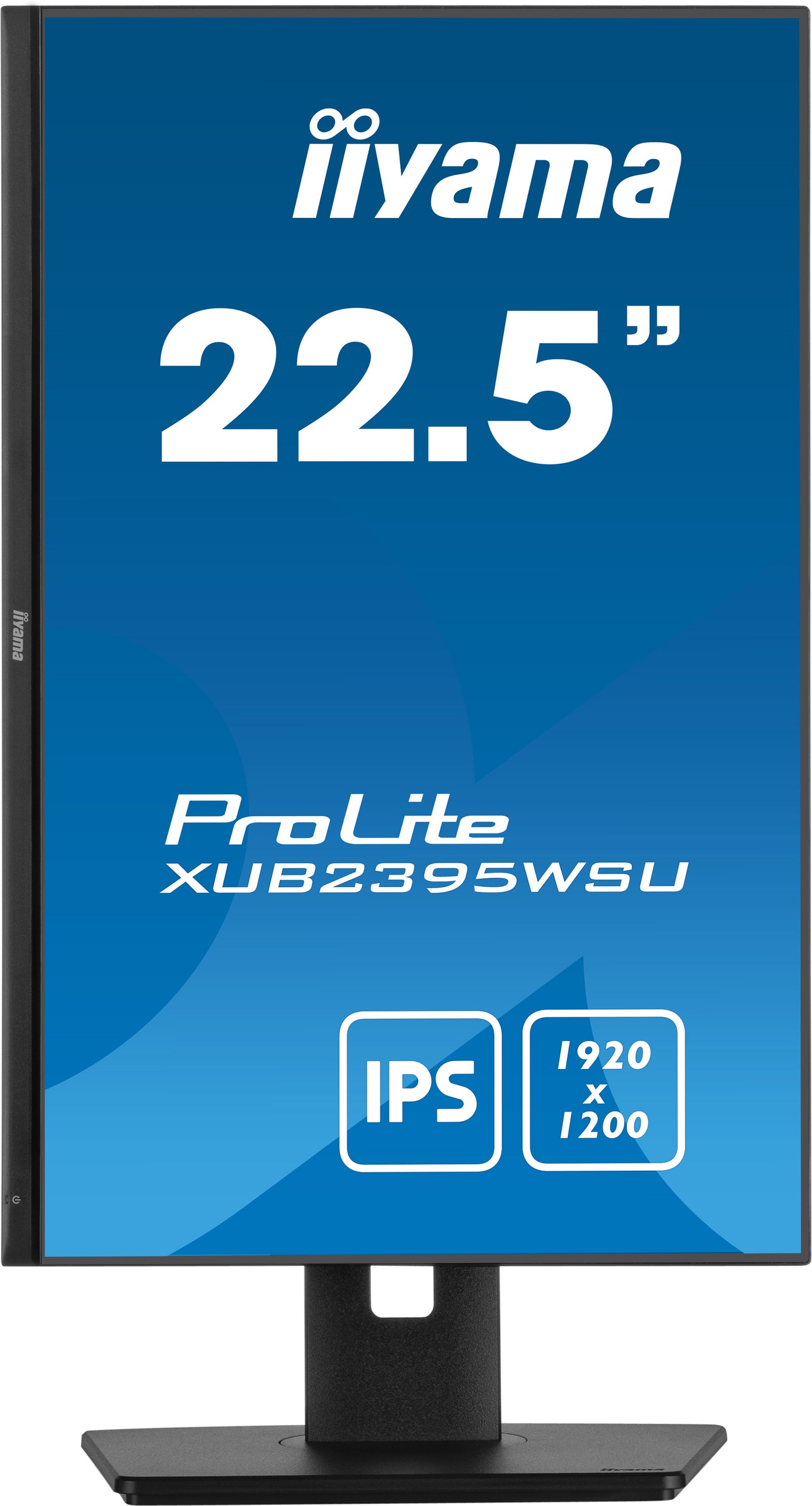

With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.
FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.
SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
| Specification | Details |
|---|---|

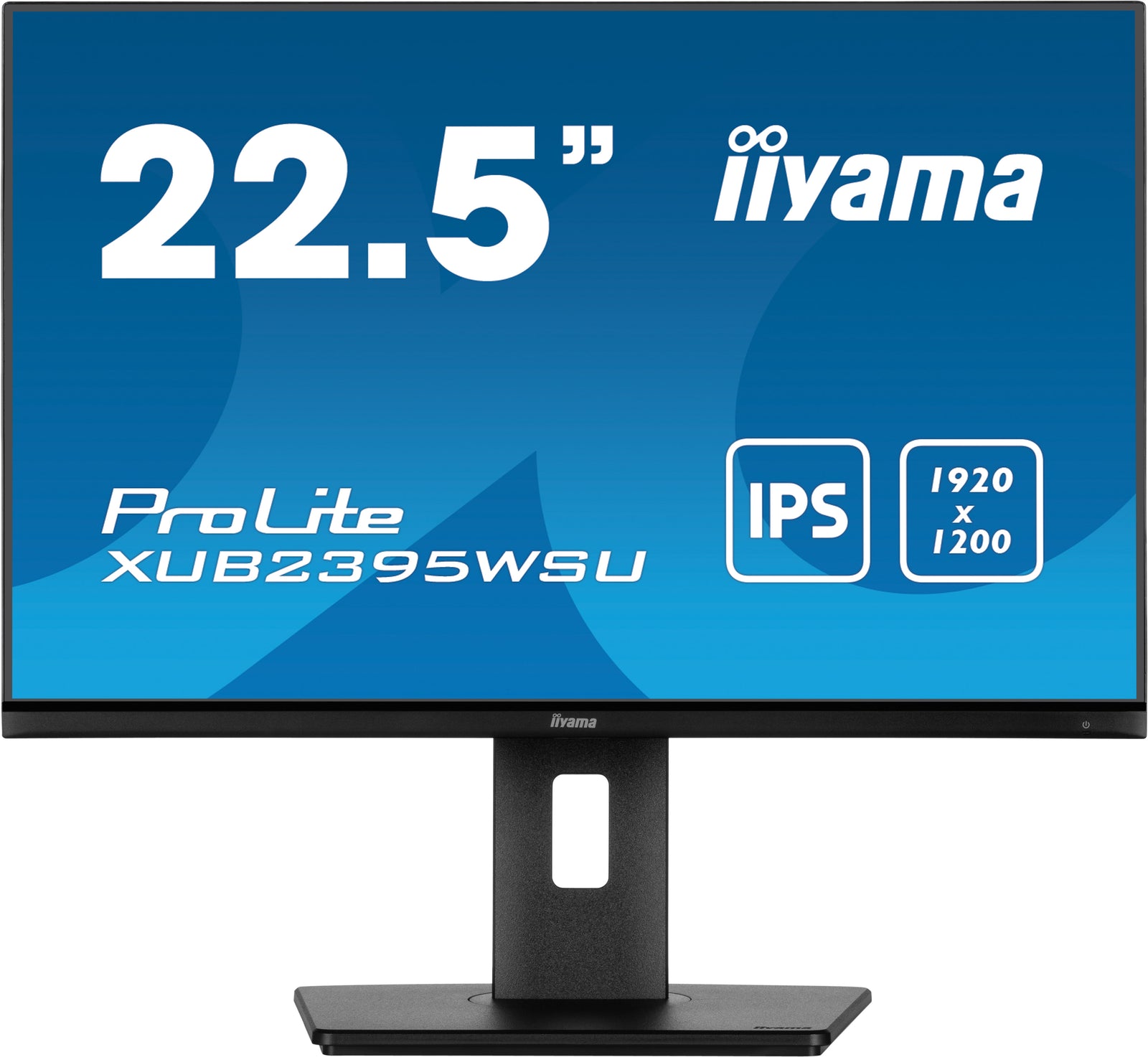

| Design | 3-side borderless |
| Diagonal | 22.5", 57cm |
| Panel | IPS LED, matte finish |
| Native resolution | 1920 x 1200 (2.3 megapixel WUXGA) |
| Aspect ratio | 16:10 |
| Panel brightness | 250 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 5M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89° |
| Colour support | 16.7 million (sRGB: 99%, NTSC: 72%) |
| Horizontal Sync | 48 - 75kHz |
| Viewable area W x H | 488.2 x 297.2mm, 19.2 x 11.7" |
| Pixel pitch | 0.254x0.248mm |
| Colour | Matte, Black |

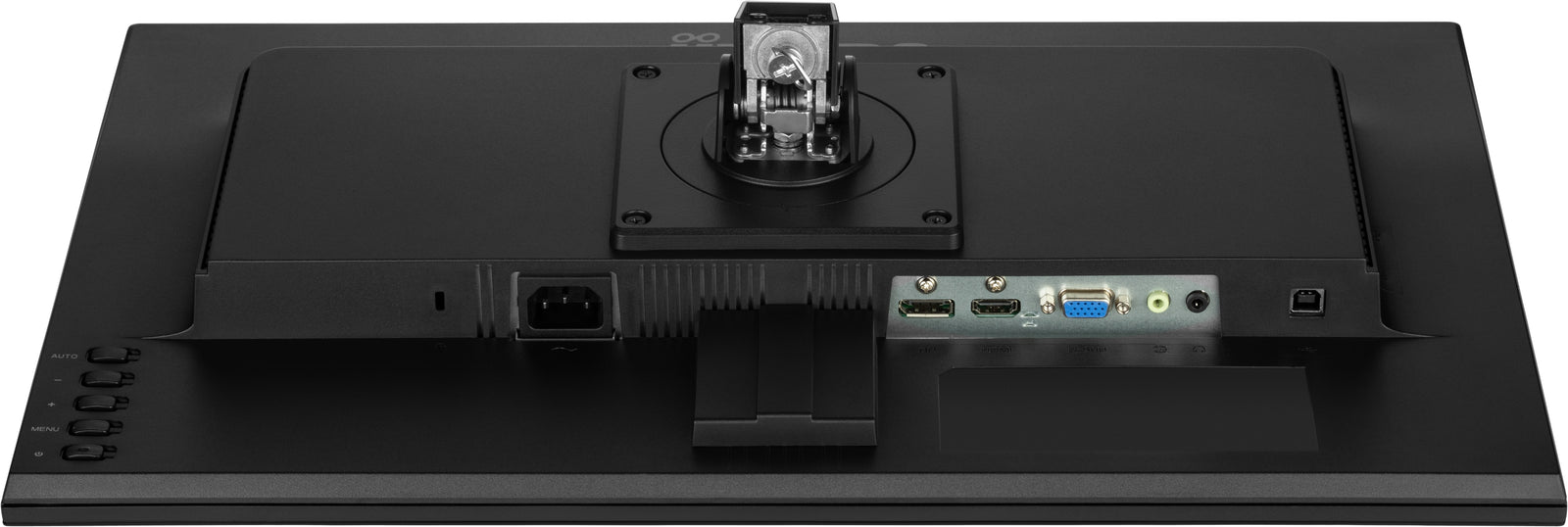

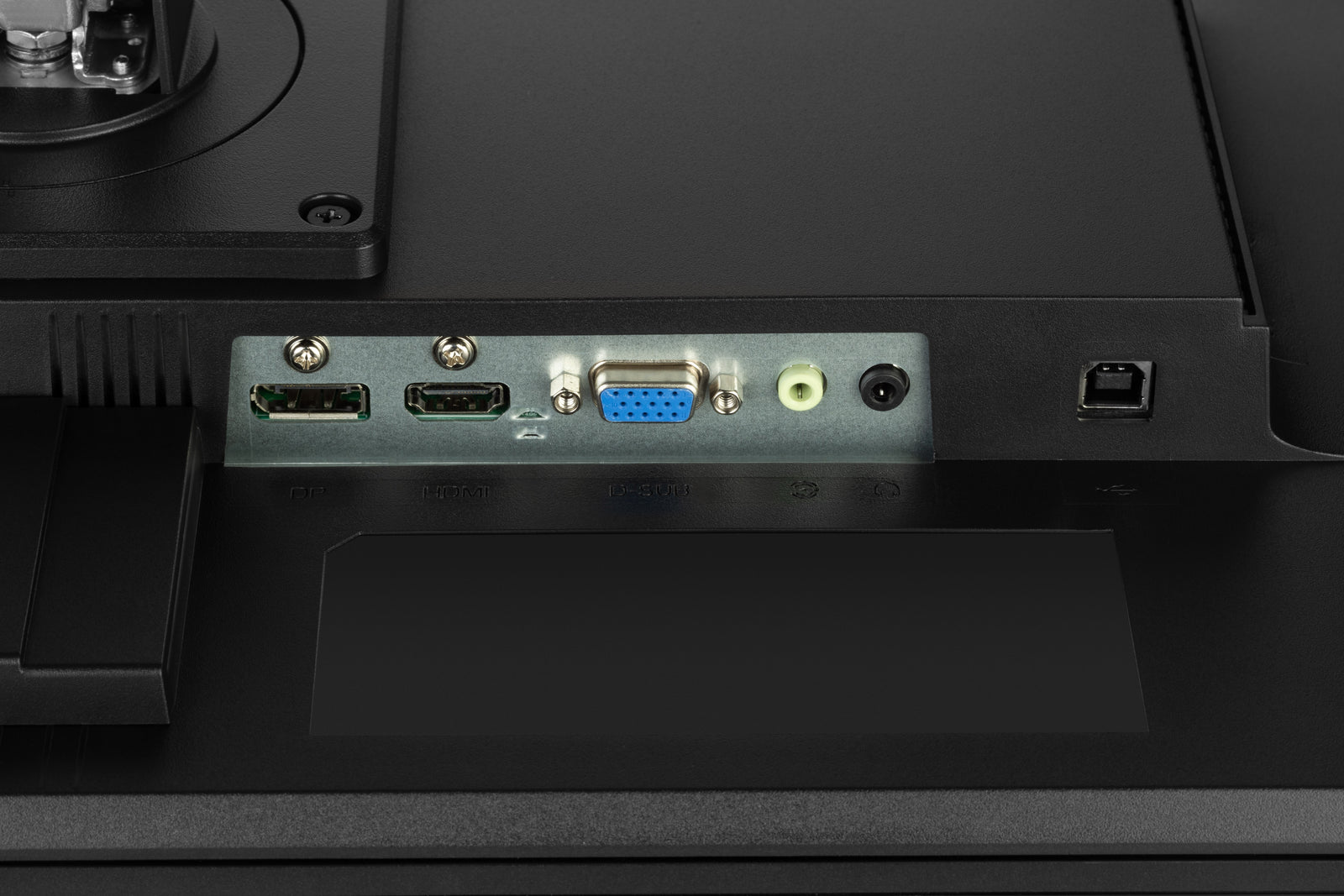

| Signal input | VGA x1 (max. 1920 x 1200 @60Hz), HDMI x1 (max. 1920 x 1200 @60Hz), DisplayPort x1 (max. 1920 x 1200 @75Hz) |

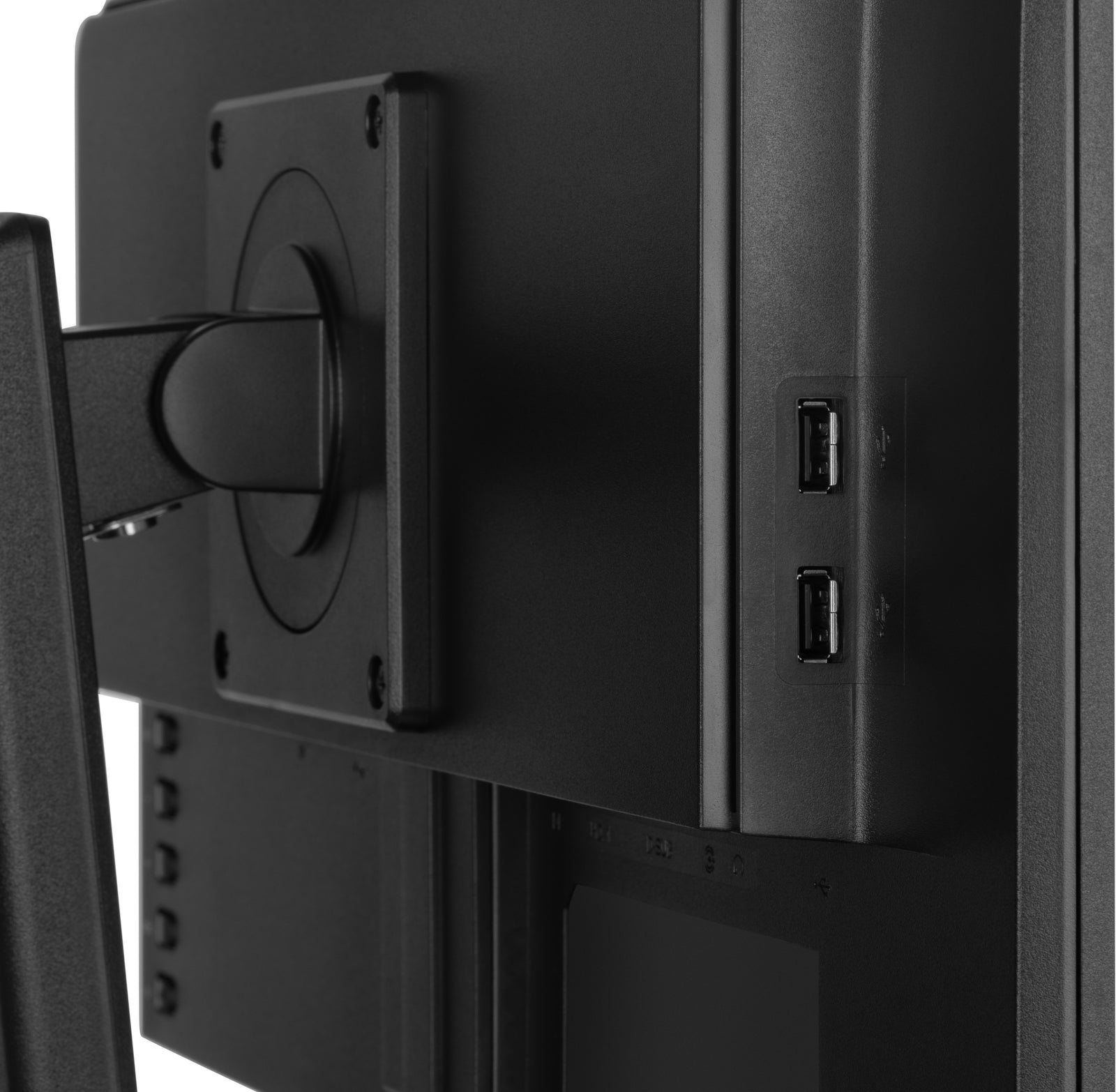

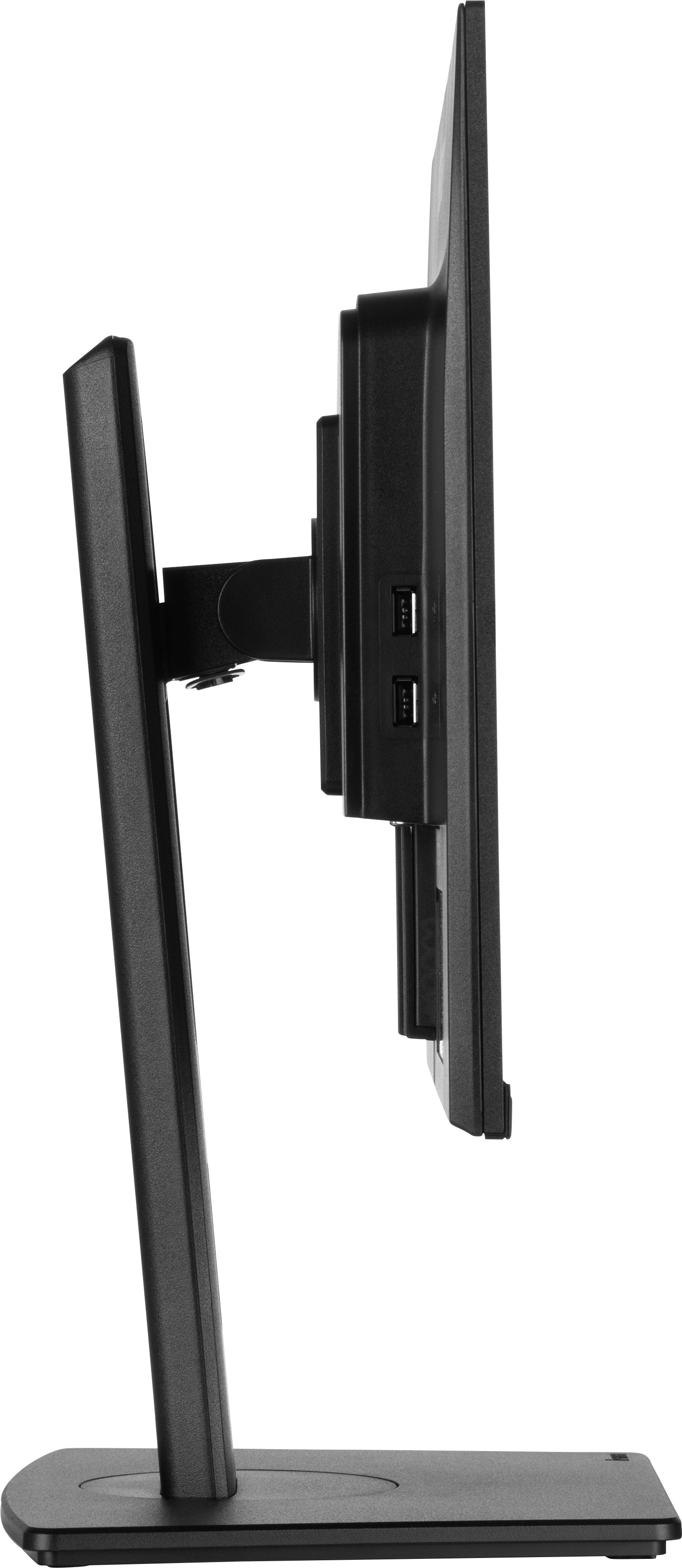

| USB HUB | x2 (v. 2.0 (DC5V, 500mA)) |
| HDCP | Yes |
| Headphone connector | Yes |
| Blue light reducer | Yes |
| Flicker-free | Yes |
| FreeSync support | DisplayPort |
| Extra | i-Style Colour |
| OSD languages | EN, DE, FR, RU, JP, NL, PL |
| Control buttons | Auto/Signal Select, -/ECO, +/Volume, Menu, Power |
| User controls | Luminance (Contrast, Brightness, i-Style Colour, ACR, Eco), Image settings (Pixel clock, Phase, H. position, V. position, Aspect ratio), Colour settings (Gamma, 6-axis, Colour temp.), OSD (H. position, V. position, OSD timeout, Language), Extra (Reset, DDC/CI, Signal select, OD, Audio source, Opening logo, FreeSync, Information) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |

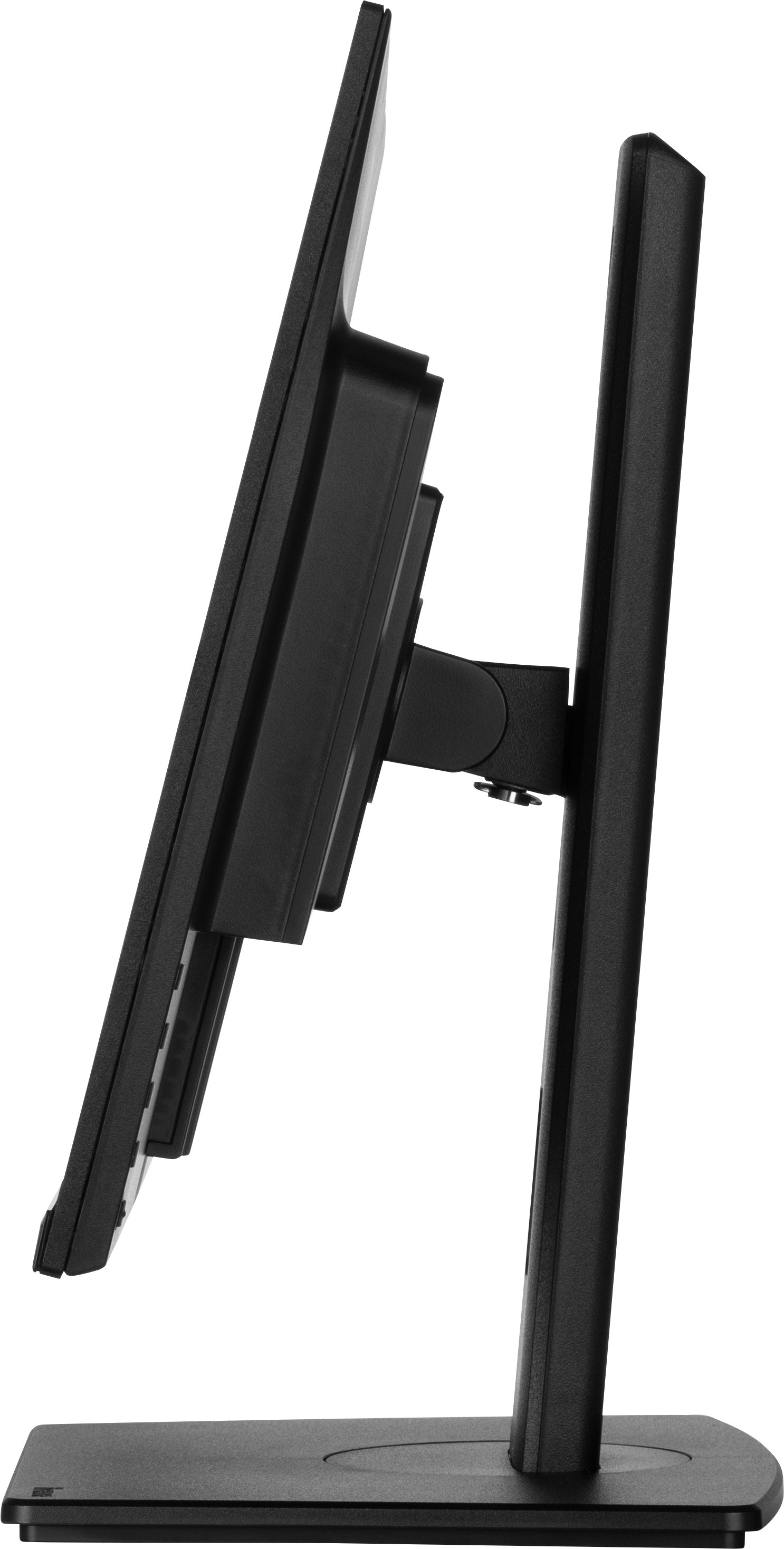

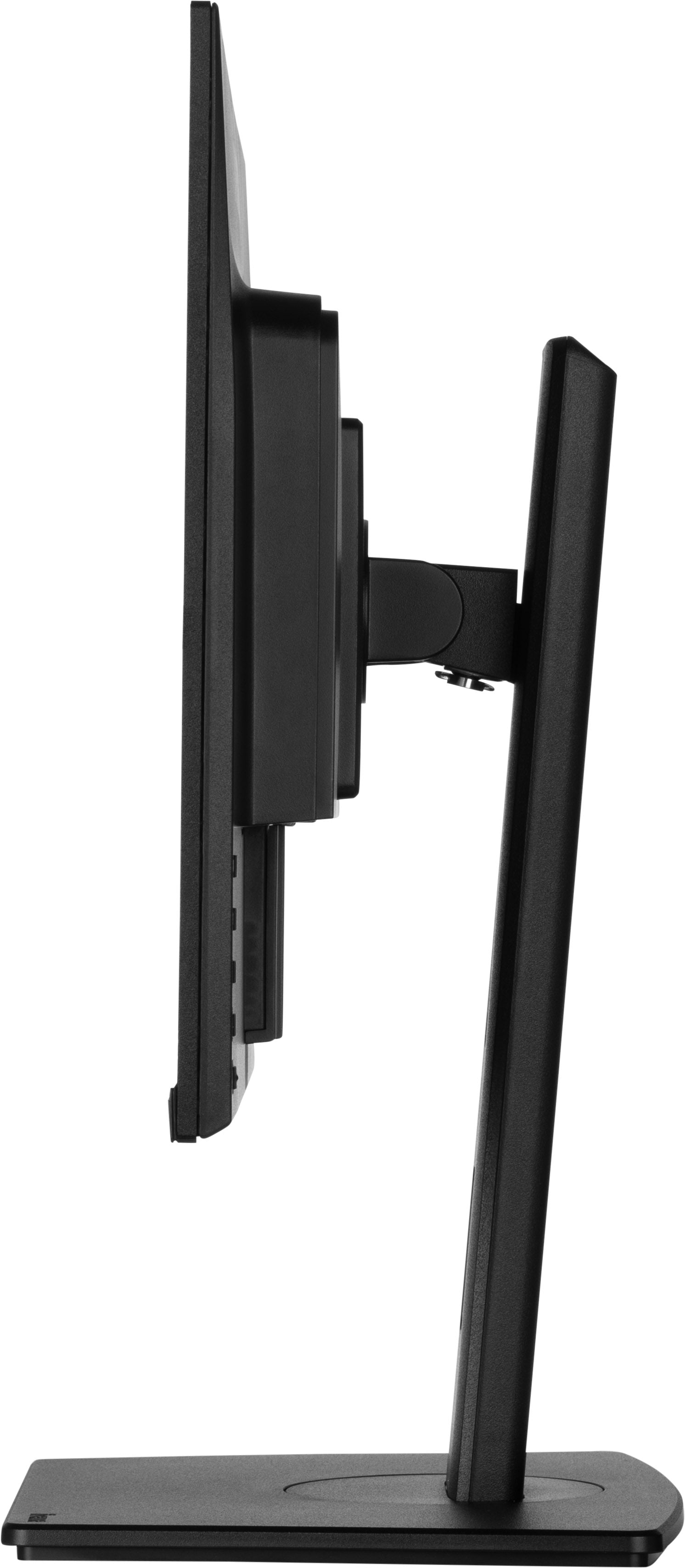

| Display position adjustments | Height, Swivel, Tilt, Pivot (Rotation both sides) |
| Height adjustment | 150mm |
| Rotation (PIVOT function) | 90° |
| Swivel stand | 90°; 45° Left; 45° Right |
| Tilt angle | 23° Up; 5° Down |

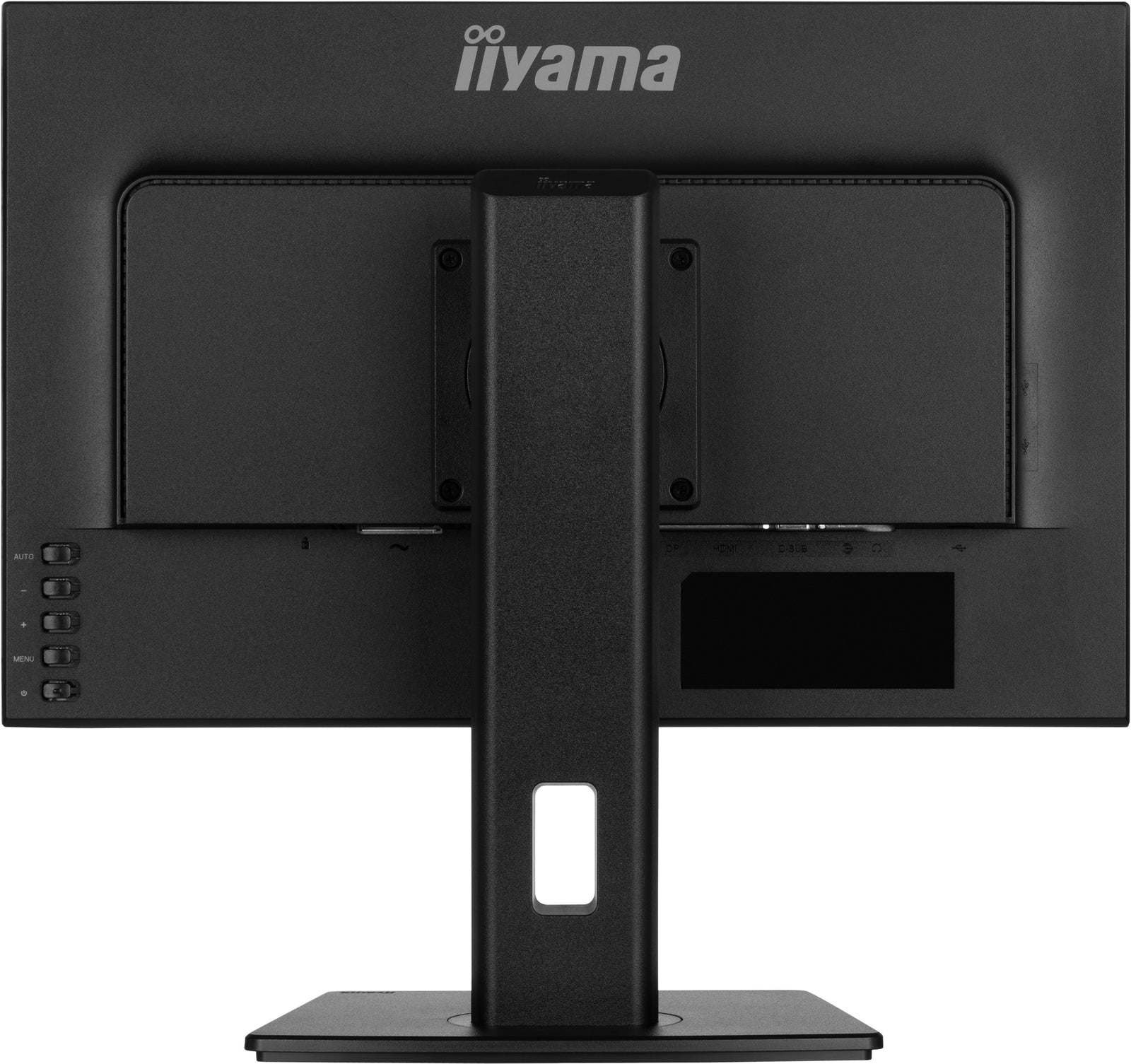

| VESA mounting | 100 x 100mm |
| Cable management system | Yes |

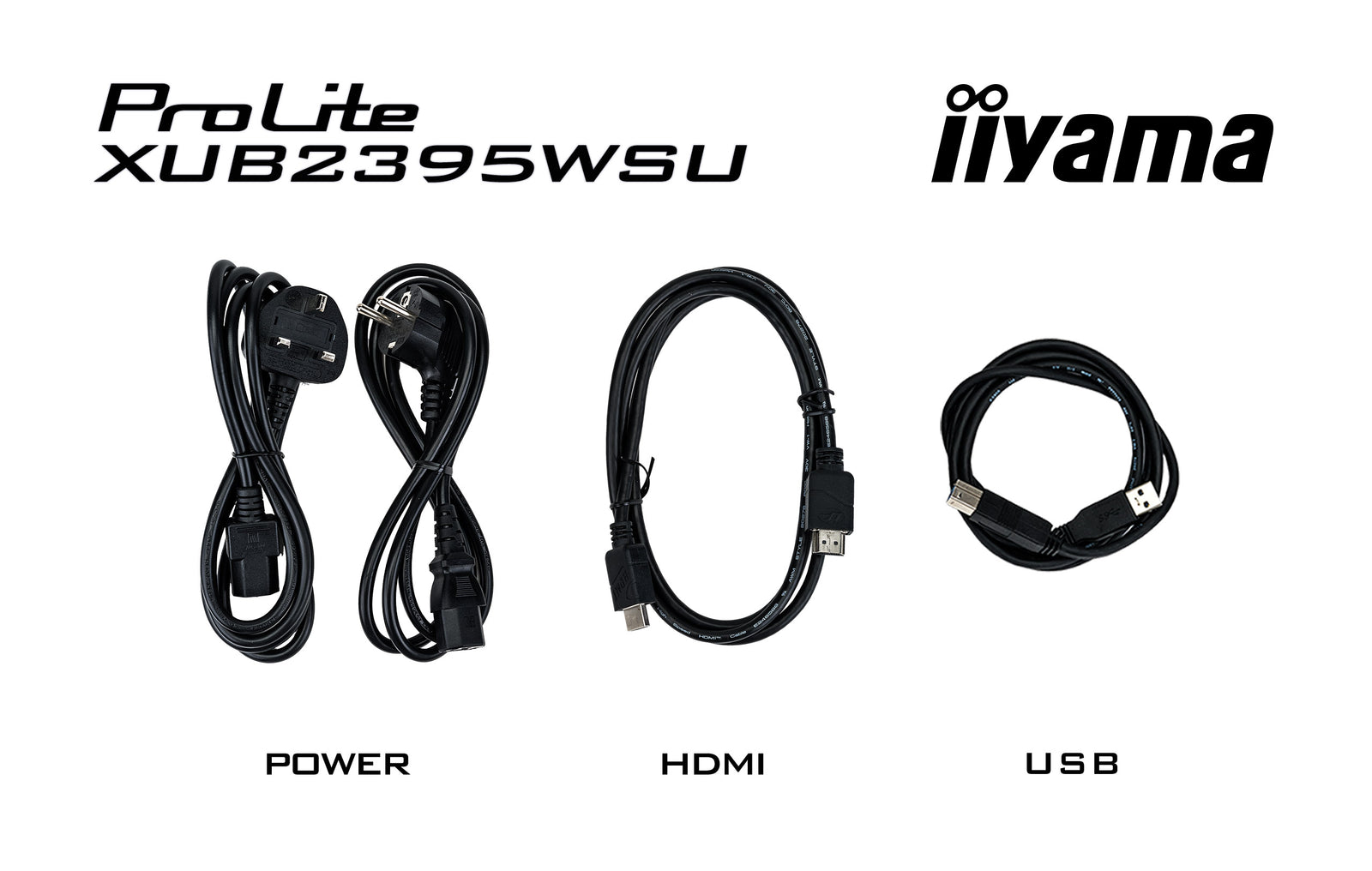

| Accessories included | Cables (Power, USB, DP), Quick start guide, Safety guide |
| Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 24W typical, 0.5W Standby, 0.3W Off mode |
| Regulations | TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class | E |
| REACH SVHC | Above 0.1%: Lead |
| Product dimensions W x H x D | 499 x 353 (503.5) x 209.5mm |
| Weight (without box) | 4.5kg |
| Weight (with box) | 6kg |
| EAN code | 4948570121458 |
| Description | Downloads |
|---|---|
| User manual | Download |
| Technical specification | Download |
| Drawing | Download |
| EU Energy Label | Download |
| UK Energy Label | Download |
