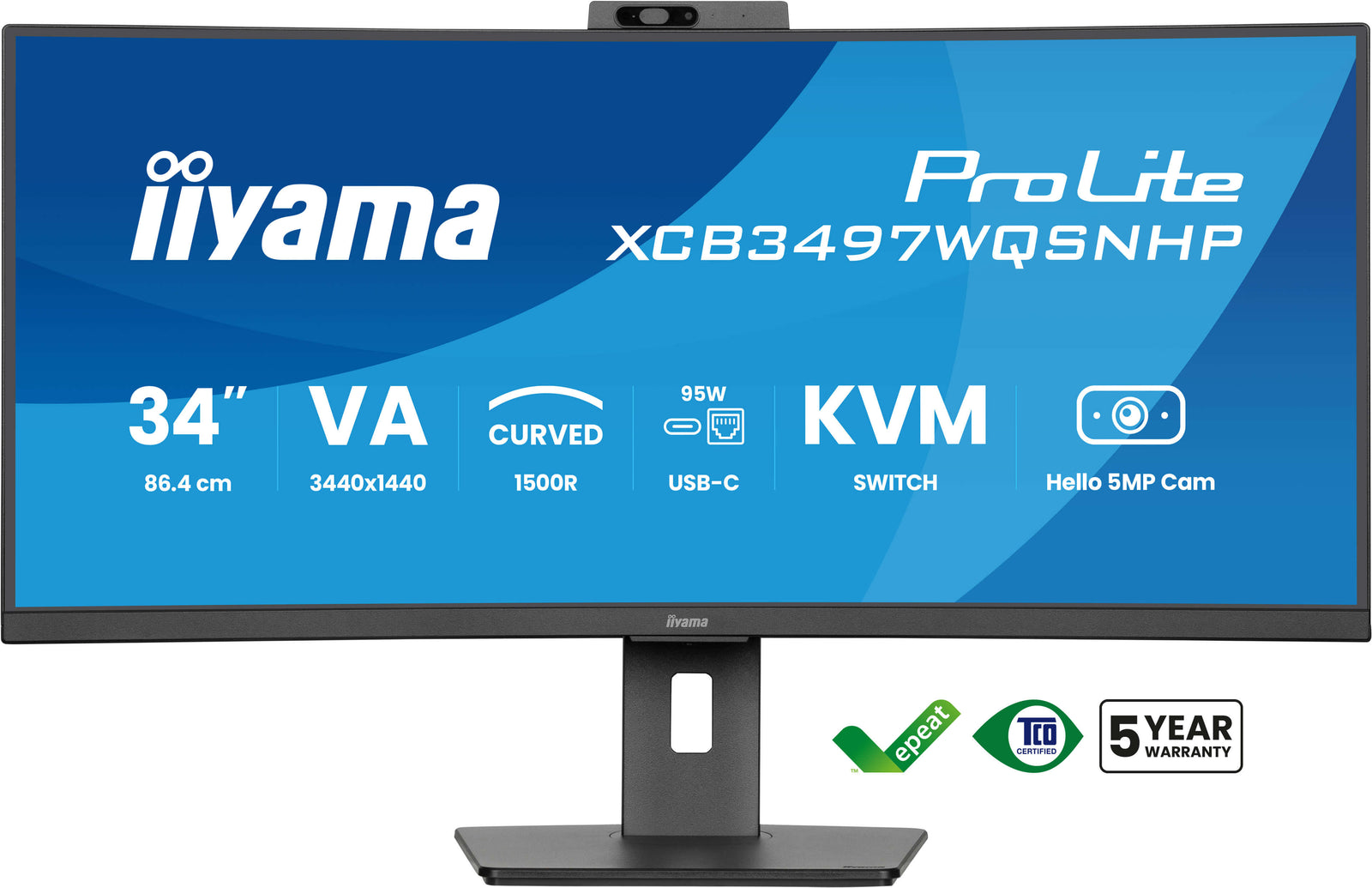

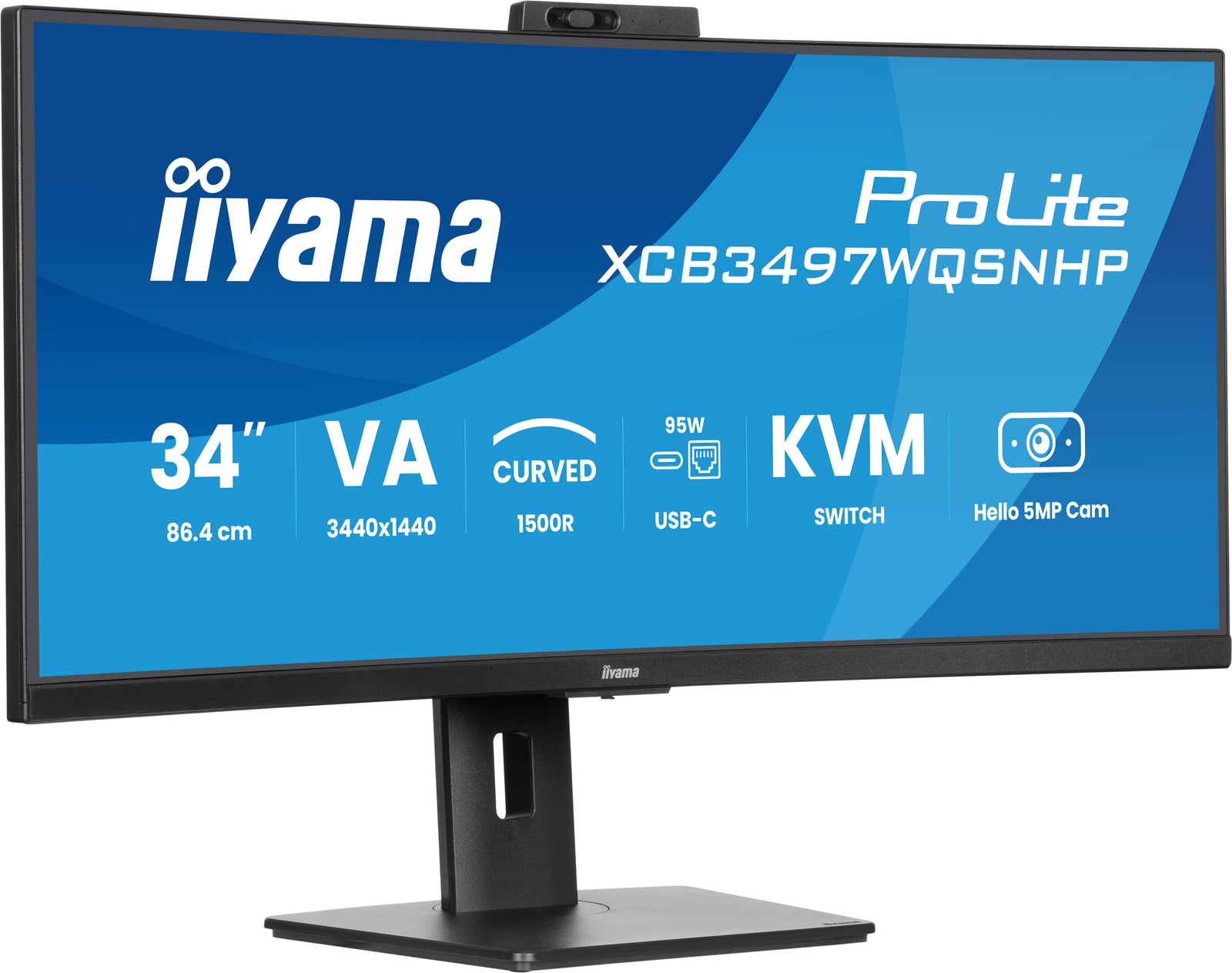

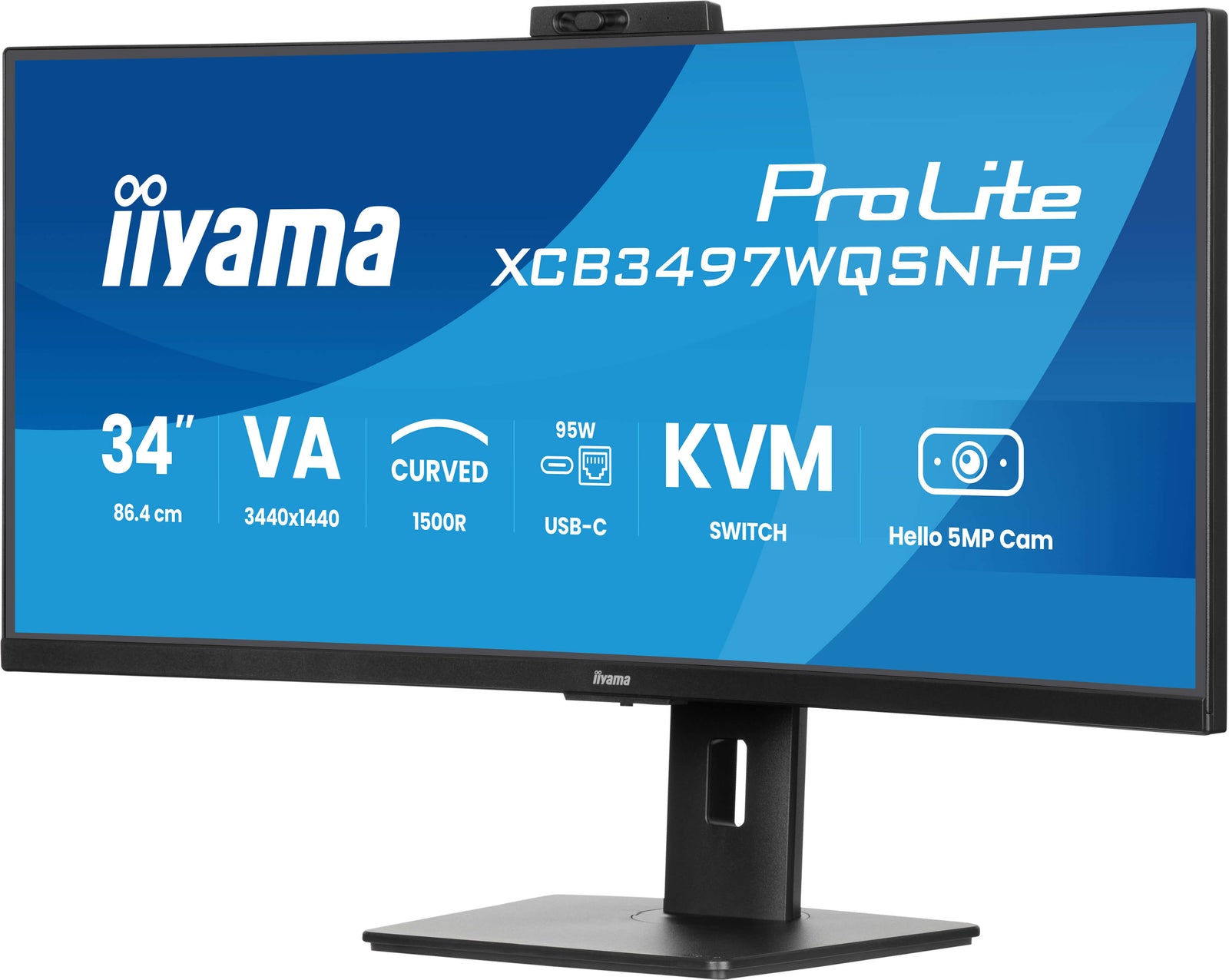

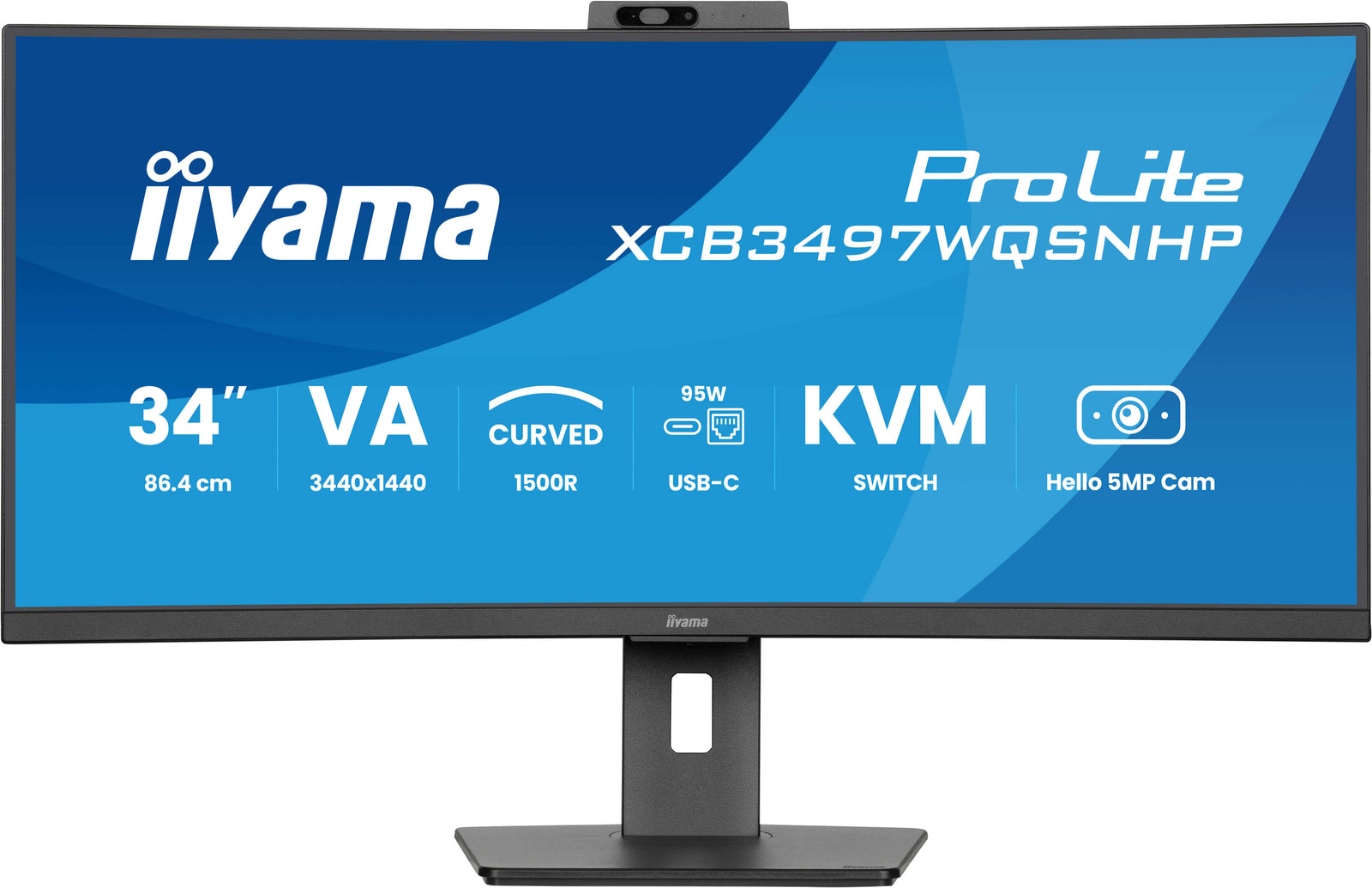

Meet the XCB3497WQSNPH — a 34" curved all-in-one monitor designed for effortless efficiency. With a built-in KVM switch and USB-C dock, you can seamlessly control multiple devices and connect your laptop with a single cable. The vibrant VA panel delivers stunning colors, deep contrast, and wide viewing angles for an immersive experience. Plus, smart features like a 5MP autofocus webcam with Windows Hello, a height-adjustable ergonomic stand, and eye-care technologies keep you comfortable and productive all day.
USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

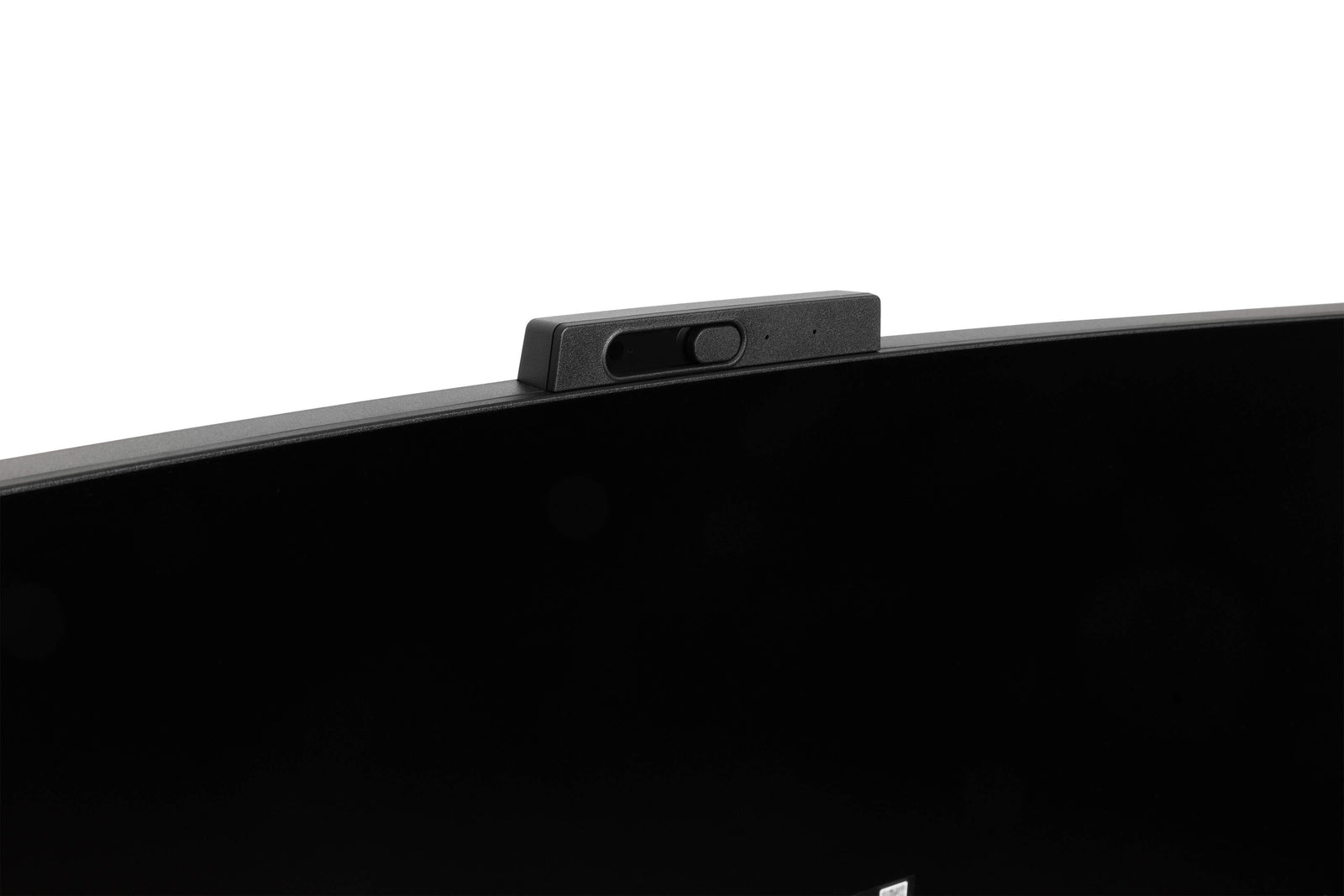

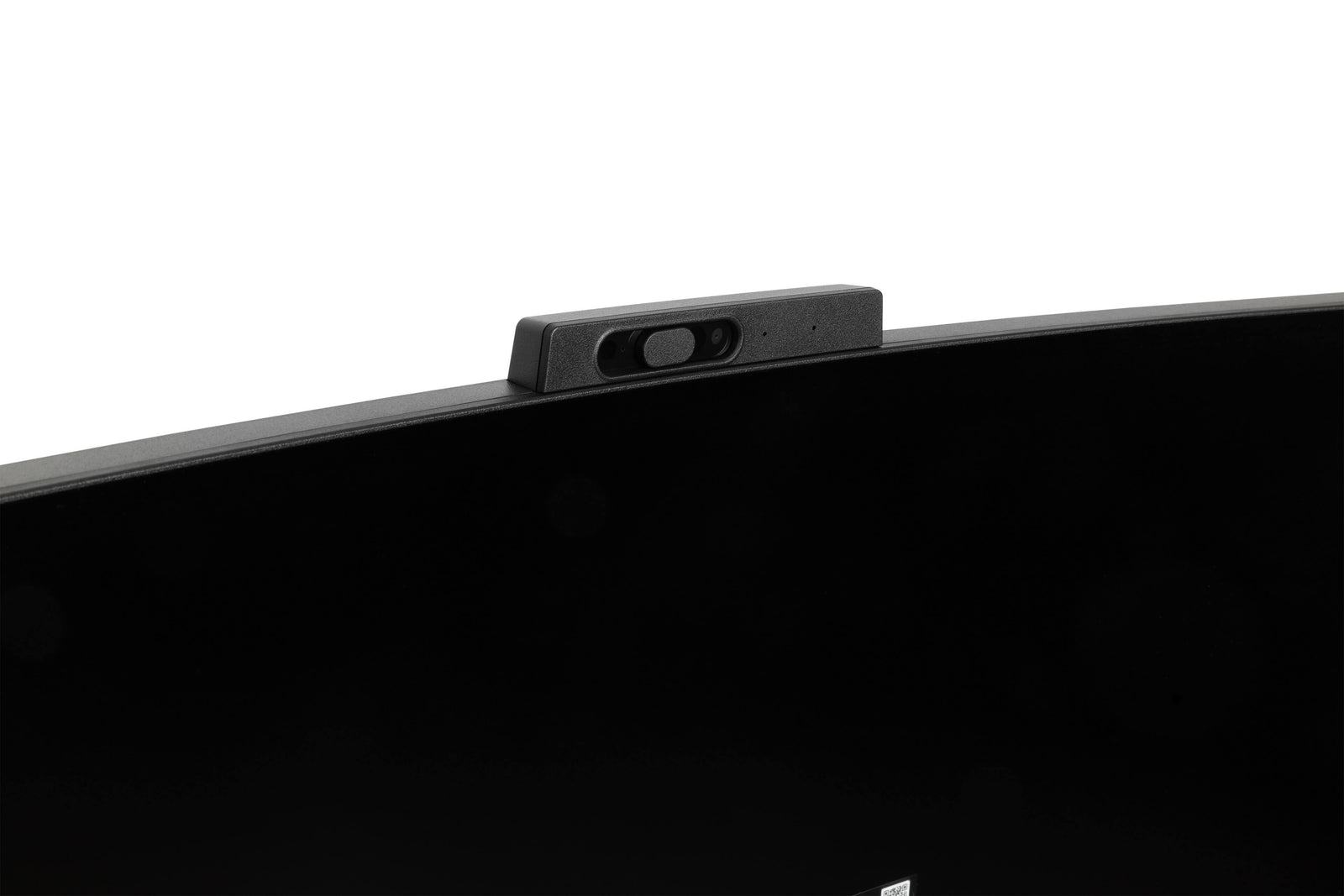

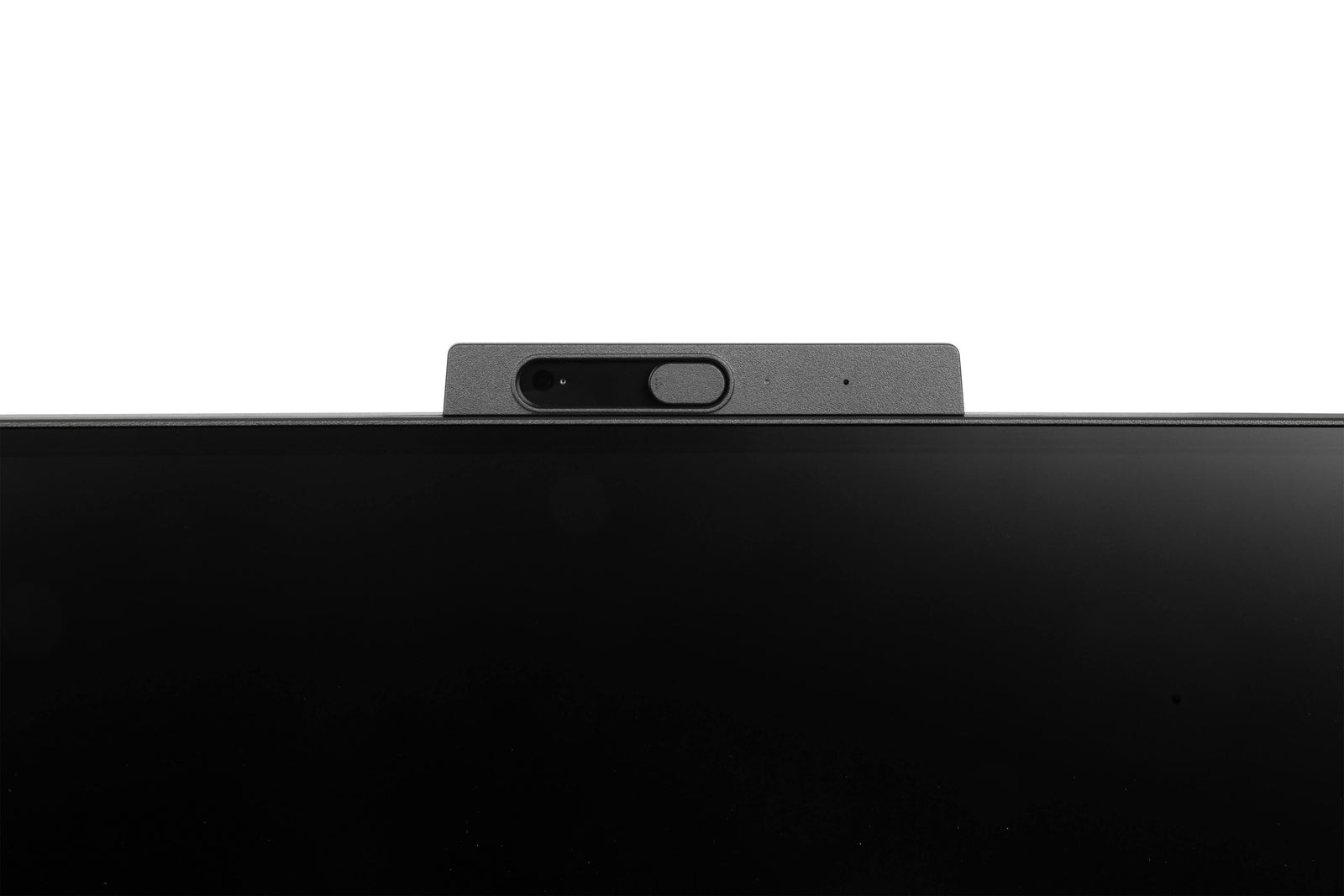

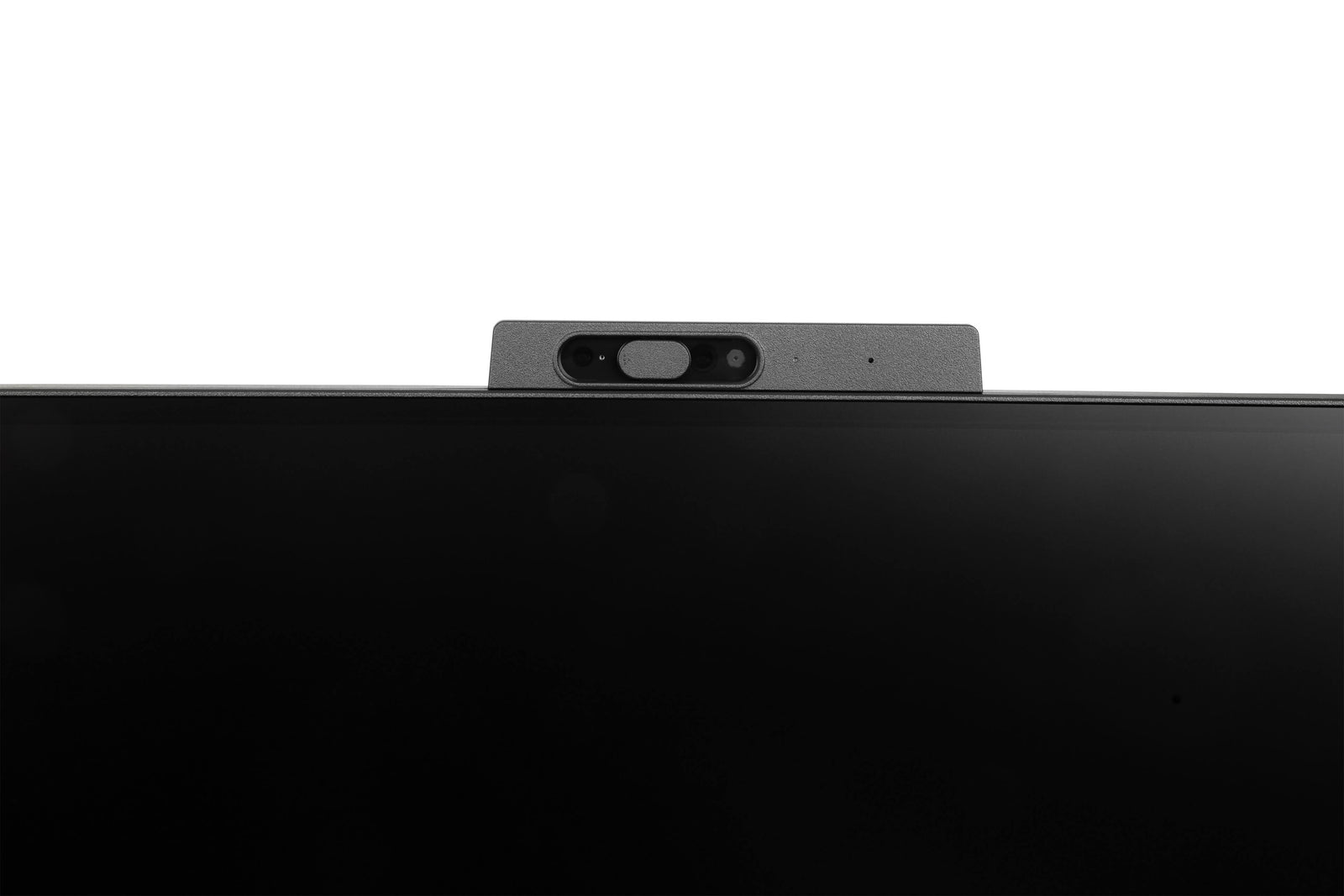

Windows Hello webcam
The built-in web camera with microphone and autofocus guarantees seamless compatibility with any video or web conferencing platform. Compliance with Windows Hello allows users to sign in to their devices using biometric authentication methods. It provides a convenient and secure way to access devices and applications without the need for passwords.
CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
ULTRA WIDE - UWQHD
UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.
| Category | Specification |
|---|---|
| DISPLAY CHARACTERISTICS | |
| Design | Curved |
| Diagonal | 34", 68.7 cm |
| Panel | VA panel, matte finish |
| Curved | 1500R |
| Native resolution | 3440 x 1440 @120Hz (UWQHD) |
| Aspect ratio | 21:9 |
| Panel brightness | 350 cd/m² |
| Static contrast | 3000:1 |
| Advanced contrast | 80M:1 |
| Response time (MPRT) | 0.4ms |
| Viewing zone | Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89° |
| Colour support | 16.7mln 8bit (sRGB: 99%; NTSC: 72%, DCI-P3 >90%) |
| Horizontal Sync | 30 - 180kHz |
| Viewable area W x H | 797.2 x 333.7mm (31.3 x 13.1") |
| Pixel pitch | 0.232mm |
| Colour | Matte, black |

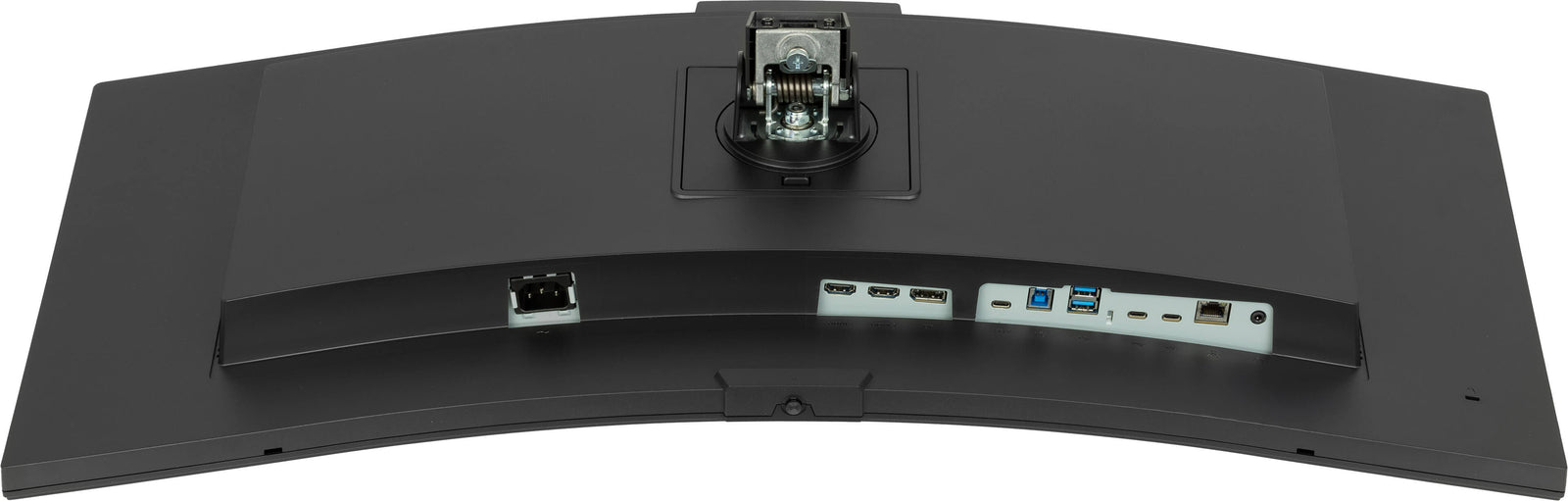

| INTERFACES / CONNECTORS / CONTROLS | |
| Signal input | HDMI x2 (v.2.0 and v.1.4, 3440x1440 @100Hz, 2560x1440 @120Hz) |
| DisplayPort | x1 (v.1.4, 3440 x 1440 @120Hz) |
| USB-C | x1 (3440 x 1440 @120Hz, PD 95W) |
| USB HUB | x4 (2x Type A v.3.2 Gen 1 (5Gbps, 4.5W), 2x Type C (5Gbps, 7.5W)) |
| USB-C DOCK | x1 (PD 95W, LAN, USB v.3.2 (Gen 1, 5Gbit)) |
| HDCP | Yes |
| Headphone connector | Yes |
| RJ45 (LAN) | x1 |
| FEATURES | |
| KVM switch | Yes |
| Blue light reducer | Yes |
| Flicker free | Yes |
| Adaptive Sync support | FreeSync Premium (HDMI: 2560x1440 @48-100Hz, DP/USB-C: 3440x1440 @48-120Hz) |
| Extra | Built-in 5MP webcam with autofocus, microphone, and privacy shutter |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons | Joystick (Power/Menu, Signal Select, Volume, i-Style colour, Blue Light Reducer) |
| MECHANICAL | |

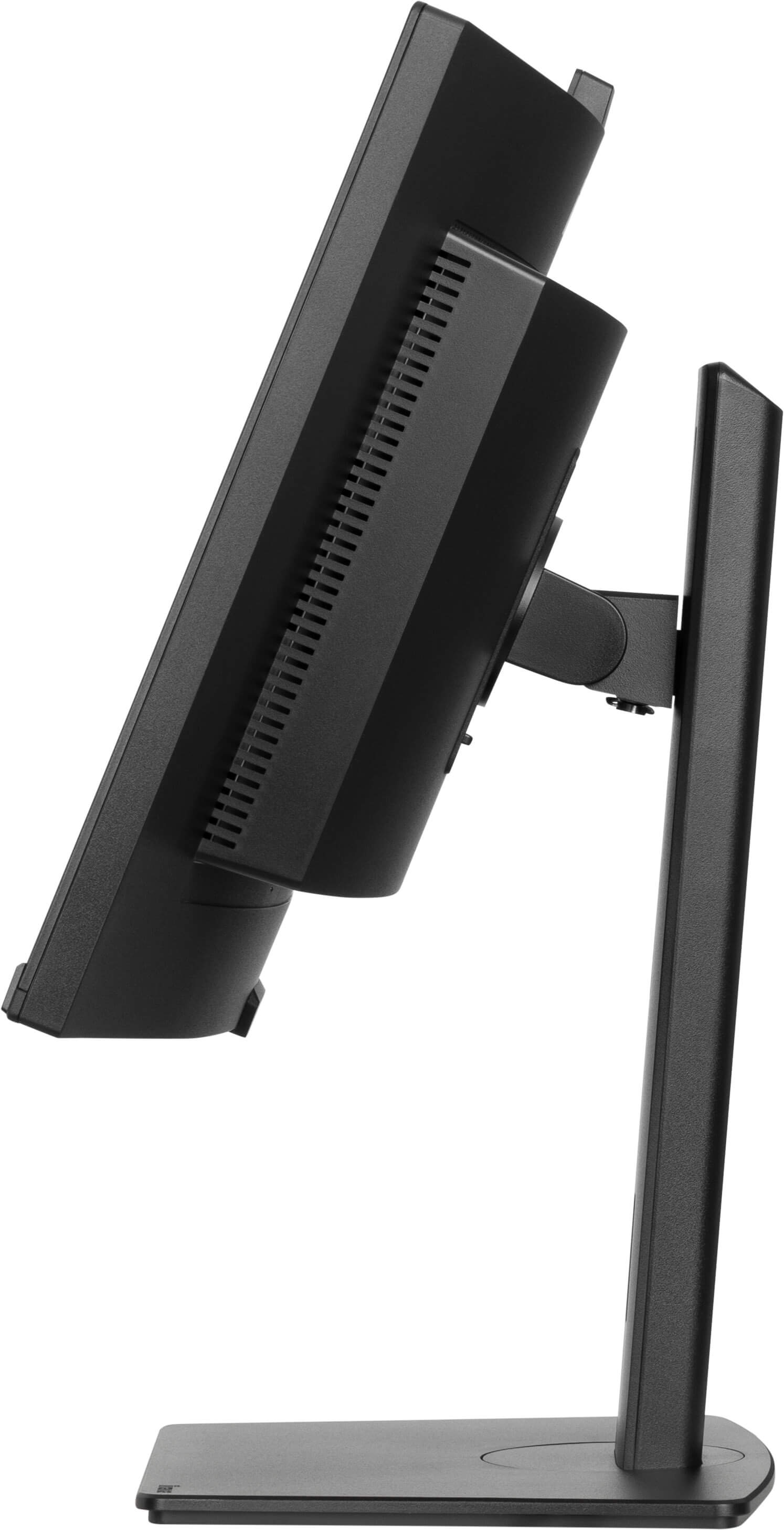

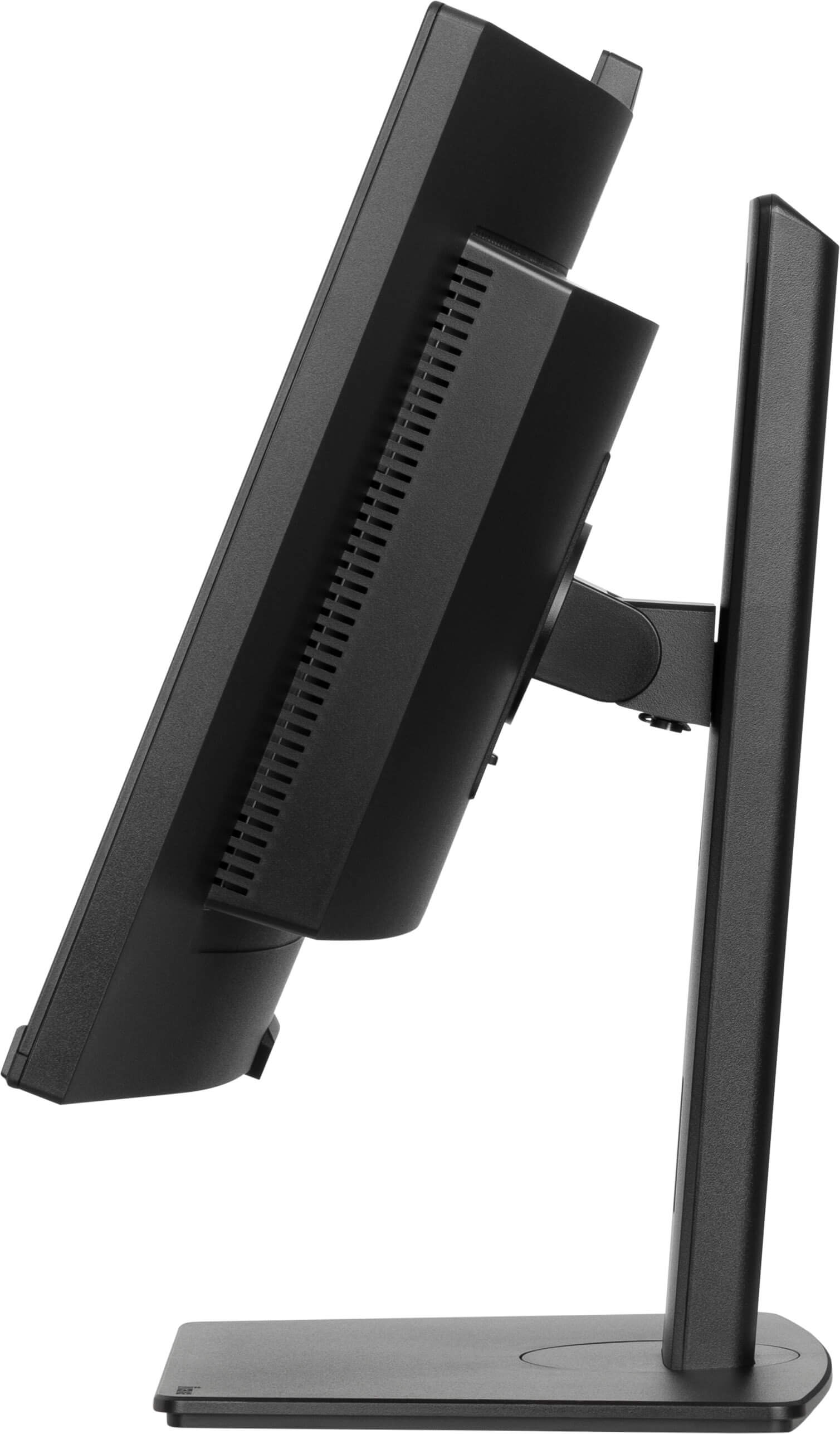

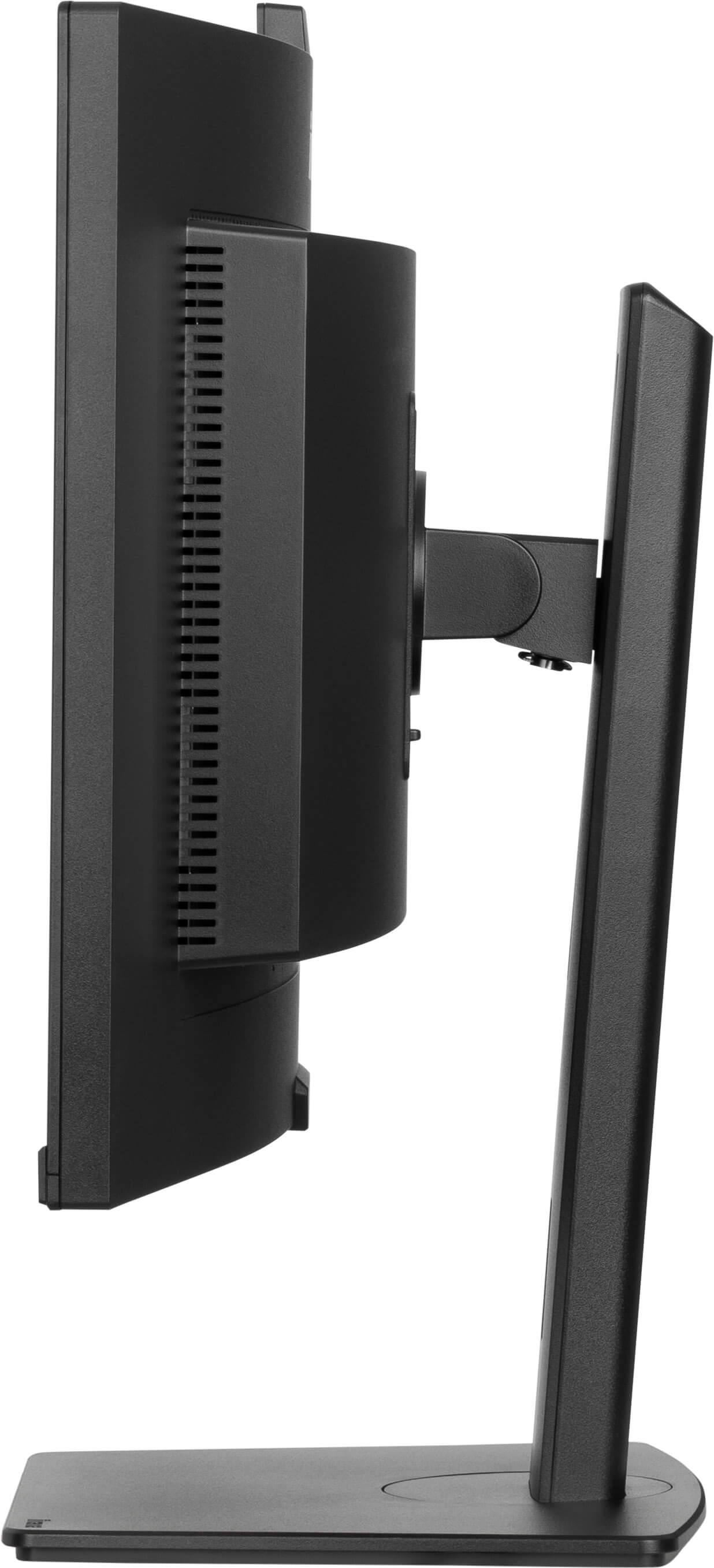

| Display position adjustments | Height, swivel, tilt |
| Height adjustment | 150mm |
| Swivel stand | 90° (45° left, 45° right) |
| Tilt angle | 23° up; 5° down |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| ACCESSORIES INCLUDED | |

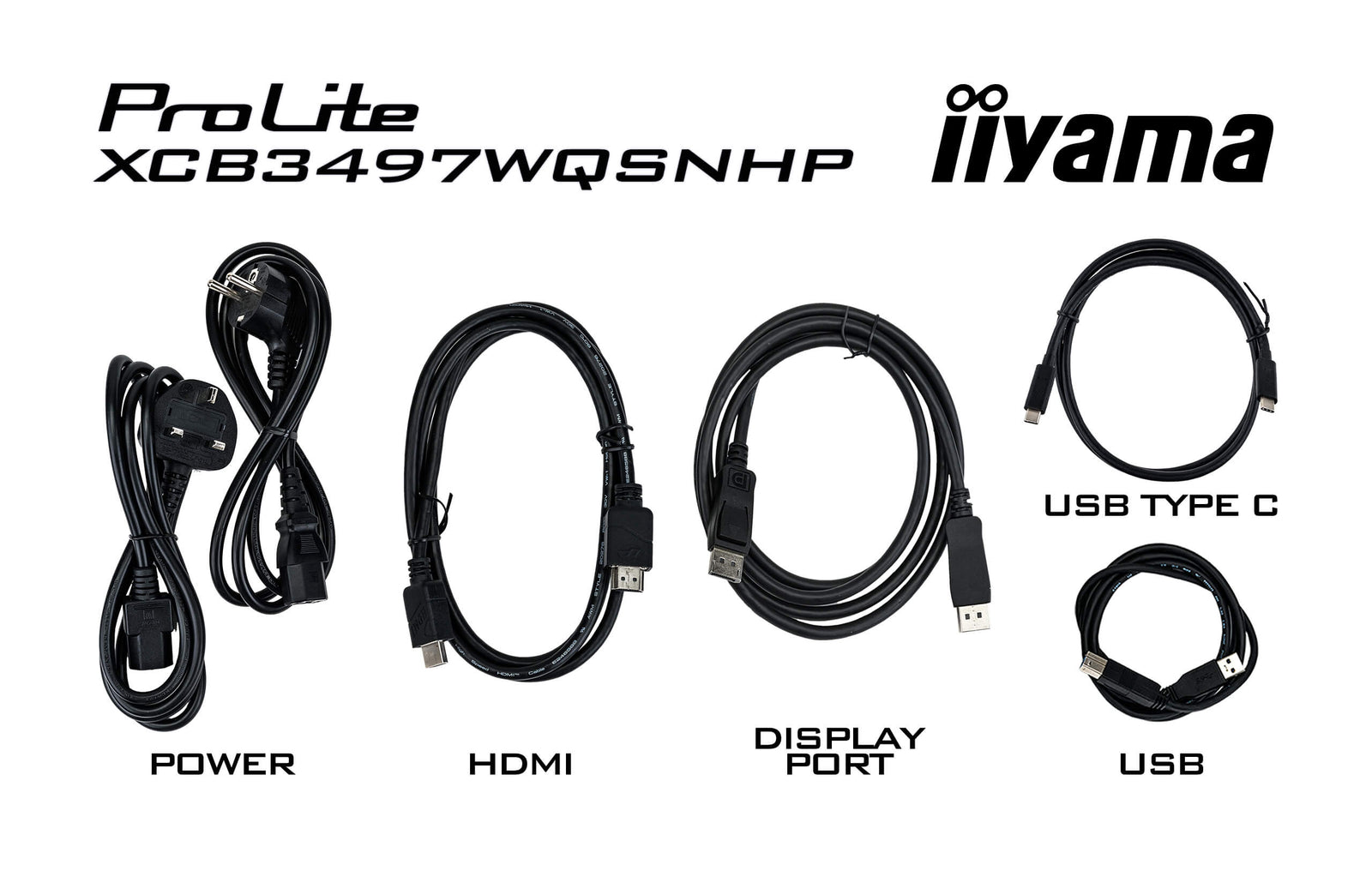

| Cables | Power, USB, HDMI, DP, USB-C |
| Other | Quick start guide, safety guide |
| POWER MANAGEMENT | |
| Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 55W typical, 0.5W standby, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | TCO Certified, CE, TÜV-GS, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA |
| Energy efficiency class | F |
| EPEAT Silver | *Registration varies by country |
| REACH SVHC | Above 0.1%: Lead |
| DIMENSIONS / WEIGHT | |
| Product dimensions W x H x D | 807 x 443 (592.5) x 239.5mm |
| Box dimensions W x H x D | 940 x 500 x 198mm |
| Weight (without box) | 9.7kg |
| Weight (with box) | 14.2kg |
| EAN code | 4948570125296 |
