Ultra short throw lens can make 100 inch projection screen from as little as 44cm away

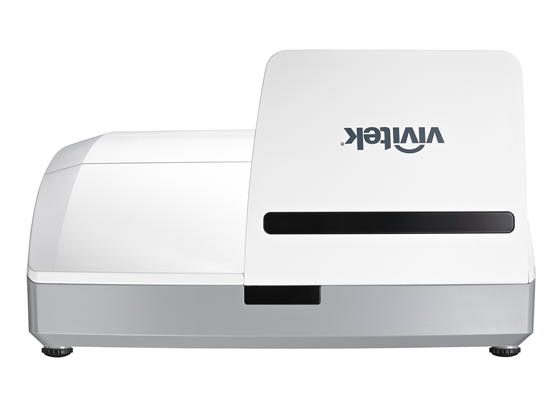

The DW770UST is the ultimate ultra-short-throw projector for the education with 3500 lumen of brightness and WXGA resolution . The projector offers a 100 inch diagonal 2.15 metre wide projection image from as little as 44cm away from the screen surface. As well as delivering an optimal viewing experience, the DW770UST ensures a high sound quality thanks to in-built 2x10W speakers. For added user convenience, the DW770UST feature integrated network monitoring and management solutions, including those from Crestron® RoomView™, as well as others.Vivitek DW770UST Front

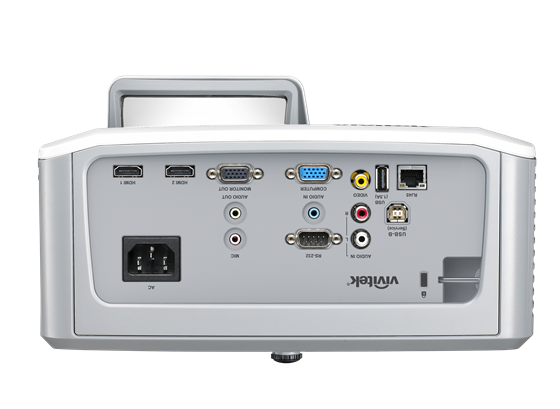

Vivitek DW770UST Rear IO
Key features
Ultra short throw lens to make 100 inch screen at only 44cm away
3,500 ANSI lumens of brightness, WXGA resolution, and 14,000:1 contrast ratio for clear, crisp and bright projection
2x 10W speakers and microphone input ensure you are clearly heard
Long lasting life with up to 12,000 hours lamp-life
Eco Friendly and Energy Saving with sleep timer and also auto-power-off when there is no signal input
Integrated network monitoring and management solutions including Crestron® RoomView™, and etc.
5 year education warranty
Compatible with NovoConnect wireless collaboration solution
| Feature | Specification |
|---|---|
| Native Resolution | WXGA (1280 x 800) |
| Brightness | 3500 ANSI Lumens |
| Contrast Ratio | 14,000:1 |
| Max. Supported Resolution | UHD (3840 x 2160) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | 6,000 / 12,000 Hours (Normal / Eco. Mode) |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Throw Ratio | 0.35:1 |
| Image Size (Diagonal) | 80"- 100" |
| Projection Distance | 283 - 446 mm |
| Projection Lens | F = 2.5, f = 5.1 mm |
| Zoom Ratio | Fixed 1x |
| Lens Shift Range | Limited Lens Shift Vertical ±1.7% |
| Offset | 120% |
| Keystone Correction | Vertical: +/- 40° |
| Speakers | 10W x 2 |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI (x2), Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, 3D-Sync, USB A (Power Only), USB B (Service), Microphone (Mini-Jack) |
| Dimensions (W x D x H) | 287.7 x 374.5 x 122.6 mm (not including height of mirror) |
| Weight | 5 kg |
| Noise Level | 33dB / 29dB (Normal / Eco. Mode) |
| 3D Ready (DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: 5811123650-SVV, Remote Control P/N: 5041841300, Optional Wall Mount: %WM-3 |
| Warranty | Education Warranty: 5 years projector / 3 years on lamp or 2,000 hours whichever comes first |
| UPC Code | 813097024268 |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
