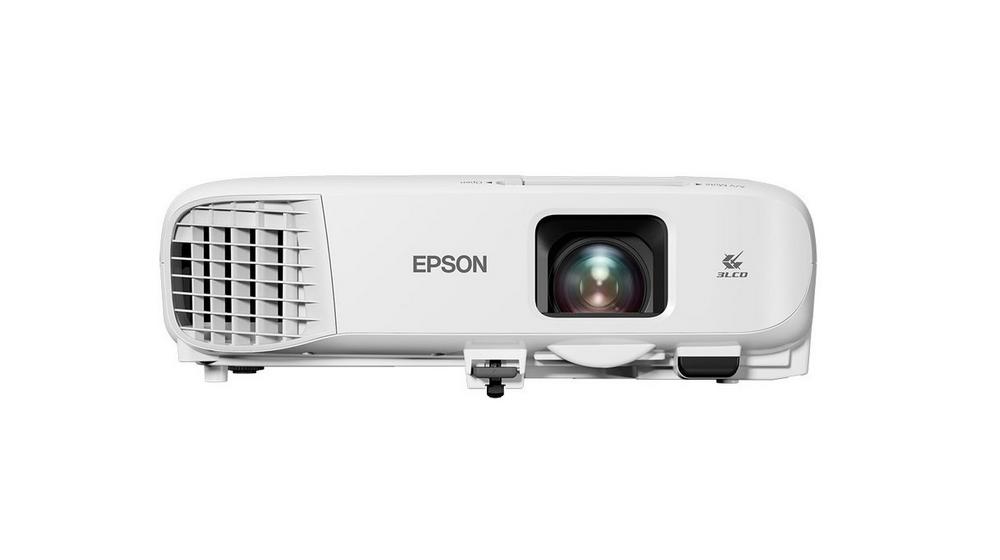

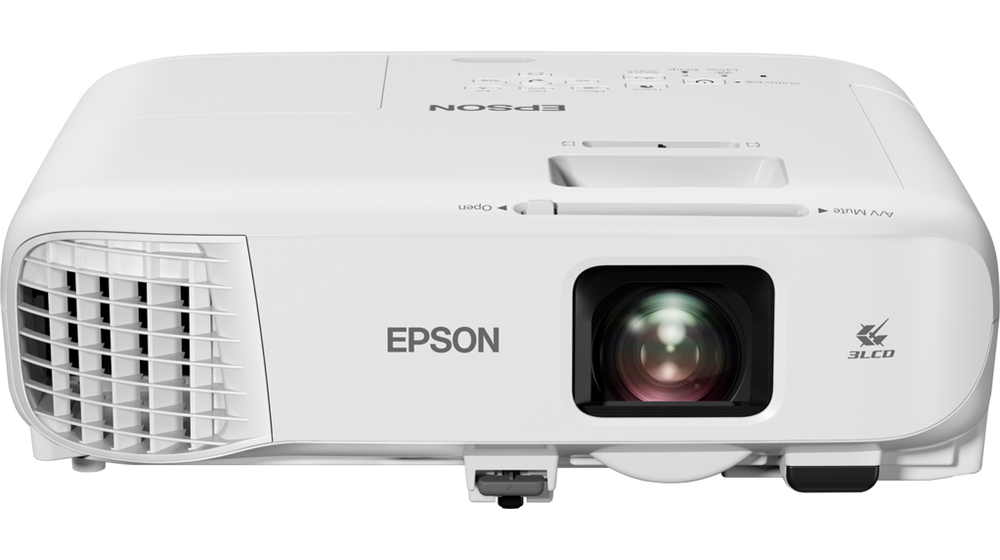

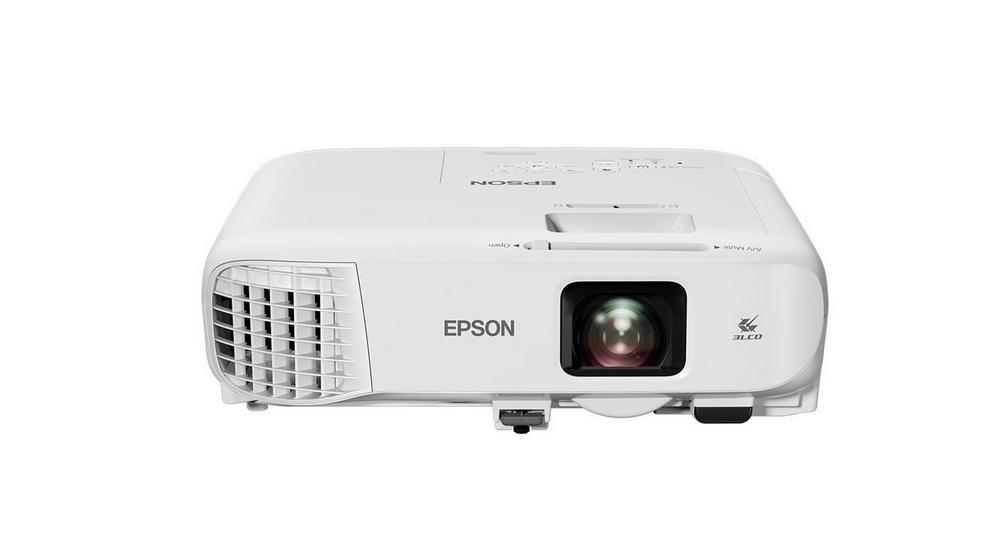

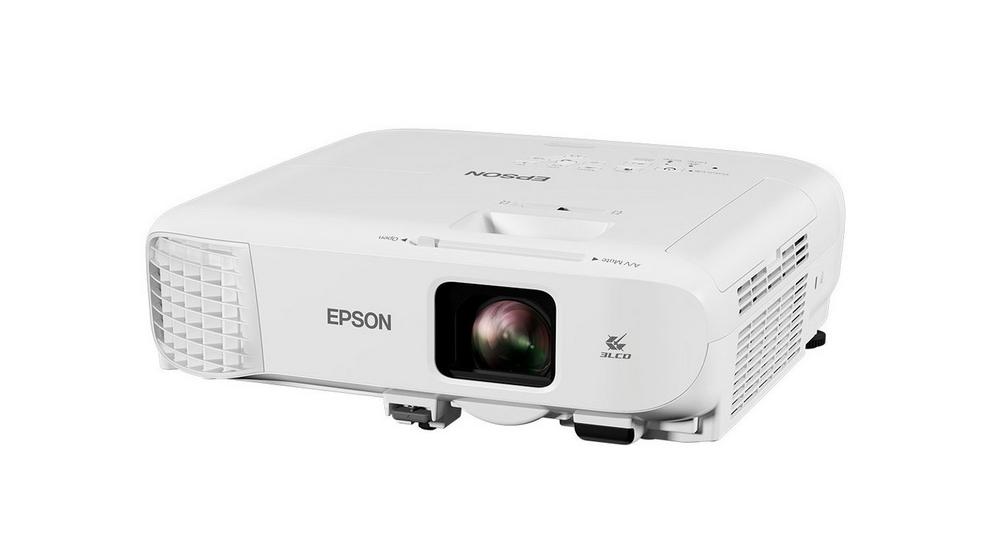

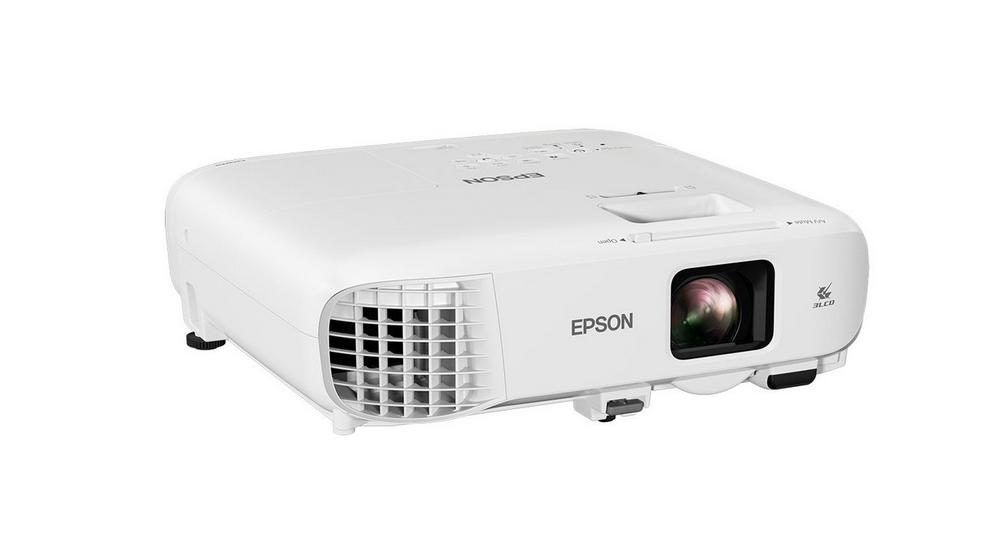

Epson V11H982040/EB-X49 Projector - 3600 Lumens
Compact display, optional wireless
High-quality bright images 3LCD technology and equally high White and Colour Light Output
Portable Small and light enough to be carried and used across several rooms
Wide connectivity options Network-enabled and wireless capable
Low total cost of ownership Lamp life up to 12,000 hours in Eco mode
Versatile and flexible control Project from many sources with HDMI and optional wireless connectivity
Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
| Technology | Projection System |
|---|---|
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.55 inch with C2 Fine |
| Image | |
| Color Light Output | 3,600 Lumen - 2,400 Lumen (economy) |
| White Light Output | 3,600 Lumen |
| Resolution | XGA |
| Aspect Ratio | 4:3 |
| Native Contrast | 16,000 : 1 |
| Light source | Lamp |
| Lamp | UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode) |
| Keystone Correction | Auto vertical: ± 30 °, Manual horizontal ± 30 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz - 120 Hz |
| Colour Reproduction | Up to 1.07 billion colours |
| Optical | |
| Throw Ratio | 1.48 - 1.77:1 |
| Zoom | Manual, Factor: 1.2 |
| Projection Lens Zoom Ratio | 1 - 1.2 : 1 |
| Lens | Optical |
| Screen Size | 30 inches - 300 inches |
| Projection Lens F Number | 1.49 - 1.72 |
| Projection Lens Focal Length | 16.9 mm - 20.28 mm |
| Offset | 8 : 1 |
| Connectivity | |
| USB Display Function | 2 in 1: Image/ Sound |
| Interfaces | USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | PJLink |
| Advanced Features | |
| Security | Kensington lock, Security cable hole, Wireless LAN unit lock |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other features | AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjection set-up by QR code |
| Video Color Modes | Blackboard, Dynamic, Presentation, sRGB, Theatre |
| Projector control | via: AMX, Crestron, Control4, Extron |
| General | |
| Power consumption | 286 Watt - On mode power consumption (Normal) |
| 327 Watt (Peak), 225 Watt (Eco), 0.3 Watt (Energy saving standby) | |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 302 x 249 x 87 mm (Width x Depth x Height) |
| Product weight | 2.7 kg |
| Noise Level | Normal: 37 dB (A) - Economy: 28 dB (A) |
| Supported Temperature | Operation 5° C - 35° C, Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 5 Watt |
| What's in the box | HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card |
| Positioning | Ceiling Mounted, Desktop |
| Colour | White |
| Other | Warranty 36 months Carry in, Lamp: 36 months or 1,000 h |
| Description | Downloads |
|---|---|
| User Manual |
Downloads |
| Datasheet |
Downloads |
