Picture/Display |
|
Diagonal screen size (inch) |
43 inch |
Diagonal screen size (metric) |
108 cm |
Display |
LED Full HD |
Panel resolution |
1920 x 1080p |
Brightness |
250 cd/m² |
Tuner/Reception/Transmission |
|
Digital TV |
DVB-T/T2/C |
HEVC FHD (up to 1080p60) |
Yes |
Analogue TV |
PAL |
IP Playback |
Multicast, Unicast, HLS |
OTT App Channels |
Android TV |
OS |
|
OS |
Android TV™ 9 (Pie) |
Pre-installed apps |
Netflix*, YouTube, Google Play Store*, Google Play Movies, Google Play Games, YouTube Music |
Memory size (Flash) |
16 GB* |
Hospitality Features |
|
Hotel mode |
Yes |
Switch-ON Settings Control |
Yes |
Volume limitation |
Yes |
Installation Menu Lock |
Yes |
Menu lock |
Yes |
Joystick Control Lock |
Yes |
Prison mode |
Yes |
Power control |
Quick Start Mode, Auto Power ON, Auto Power OFF |
Your brand |
Customisable Home Screen, Customisable Welcome App, Location Name (Geonames ID) |
CMND&Create |
Custom Dashboard (HTML&APK) |
CMND&Control |
Off-Line Channel Editor, Off-Line Settings Editor, Remote Management over IP/RF, TV Group management, Local Updates via USB, Instant Initial Cloning |
Control |
AppControl, JEDI Native Android TV Control, JSON API for TV Control-JAPIT, Serial Xpress Protocol, Crestron Connected, Joystick |
Interactive DRM |
VSecure, Playready Smoothstreaming, SecureMedia |
Revenue generation |
MyChoice |

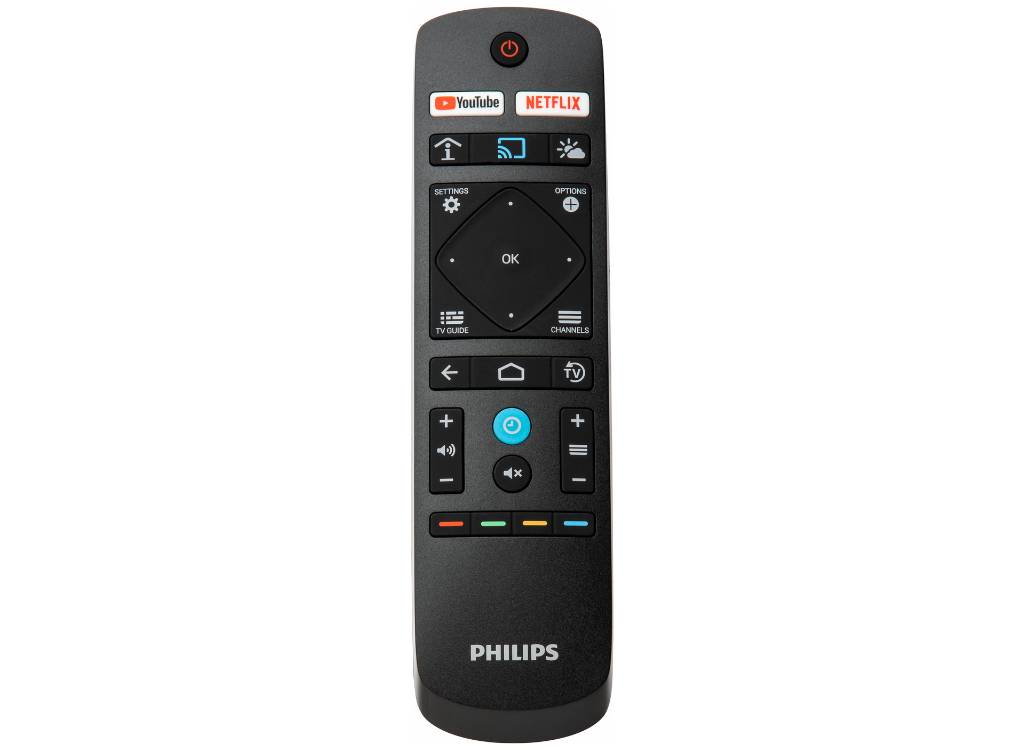

Remote Control |
Low-Battery Detection, RC Battery Door Lock, Glow-in-the-Dark Clock button |
CMND&Check-In |
Guest Name, Guest Language, Messages, Bill on TV, Express Checkout |
Sharing |
Chromecast built in, Secure Sharing, Network-managed Sharing |
Convenience |
Google Assistant*, Google Account Login, Weather Forecast, >40 Supported Menu Languages, Clock in OFF mode, Theme TV, Wake Up Alarm, Sleep Timer |
Healthcare features |
|
Control |
Multi-Remote Control, Nurse call system compatible |
Convenience |
TalkBack, Independent main speaker mute |
Safety |
Double isolation class II, Flame retardant |
Multimedia |
|
Video playback supported |
Formats: H.264/MPEG4 AVC, MPEG1, MPEG2, MPEG4, WMV9/VC1, HEVC. Containers: AVI, MKV, VP9 |
Music formats supported |
MP3, AAC, WAV, WMA (v2 up to v9.2), WMA-PRO (v9 and v10) |
Subtitle formats supported |
SRT, SMI, TXT |
Picture formats supported |
JPG, PNG, BMP, GIF |
Supp. Video Resolution on USB |
up to 1920x1080p@60Hz |
Audio |
|
Sound output Power |
20 (2x10) W |
Bathroom speaker out |
1.5 W Mono 8 ohm |
Speakers |
2.0, Down Firing |
Sound Features |
DTS-HD, Dolby Atmos Compatible, Dolby MS12D, AC-4, DTS Studio Sound |
Power |
|
Mains power |
AC 220-240 V; 50-60 Hz |
Ambient temperature |
0 °C to 40 °C |
Standby power consumption |
<0.3 W |
Energy Label Class |
F |
EU Energy Label power |
48 W |
Power Saving Features |
Eco mode |
EPREL registration number |
341833 |
Accessories |
|
Included |
Edge Stand, Remote Control 22AV1905B/00, 2 x AAA batteries, Power Cord, Warranty Leaflet, Legal and Safety brochure |
Optional |
Voice RC 22AV2025B/00, Digit RC 22AV2005B/00, Easy RC 22AV1601B/12, Healthcare RC 22AV1604B/12, External Clock 22AV1860A/12, DOCSIS Cable Modem 22AV1970A, Setup RC 22AV9574A/12 |
Wireless Connectivity |
|
Wireless LAN |
802.11 ac |
Wi-Fi-Direct |
Yes |
Side Connectivity |
|
Common Interface Slot |
CI+ 1.3.2 |
HDMI1 |
HDMI 1.4 |
Headphone out |
Mini-Jack |
USB1 |
USB 3.0 |
Rear Connectivity |
|
Bathroom speaker out |
Mini-Jack |
External power |
12 V, max 1.5 A |
External Control |
RJ-48 |
Antenna |
IEC-75 |
Digital Audio out |
Optical |
Ethernet (LAN) |
RJ-45 |
HDMI 2 |
HDMI 1.4 |
USB 2 |
USB 2.0 |
Connectivity Enhancements |
|
RJ48 |
IR-In/Out, Serial Xpress interface |
EasyLink (HDMI CEC) |
One touch play, System Standby, RC pass through, system audio control |
HDMI |
ARC (all ports) |
Auto Input Selection |
Yes |
Design |
|
Colour |
Black |

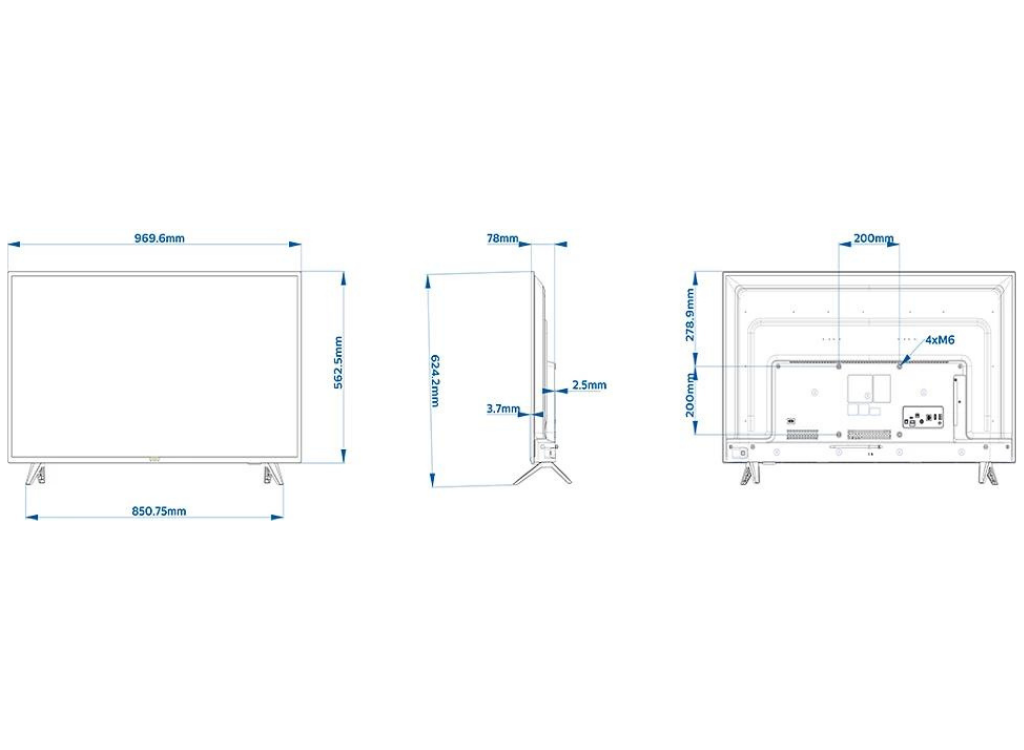

Dimensions |
|
Set Width |
970 mm |
Set Height |
563 mm |
Set Depth |
78/81 mm |
Product weight |
7.2 kg |
Set width (with stand) |
970 mm |
Set height (with stand) |
624 mm |
Set depth (with stand) |
194 mm |
Product weight (+stand) |
7.3 kg |
Wall-mount compatible |
200 x 200 mm |
M6 |
Yes |
What's in the box? |
|
Other items in the box |
Batteries for remote control, Remote Control, Warranty leaflet, Power cord, Tabletop stand |
