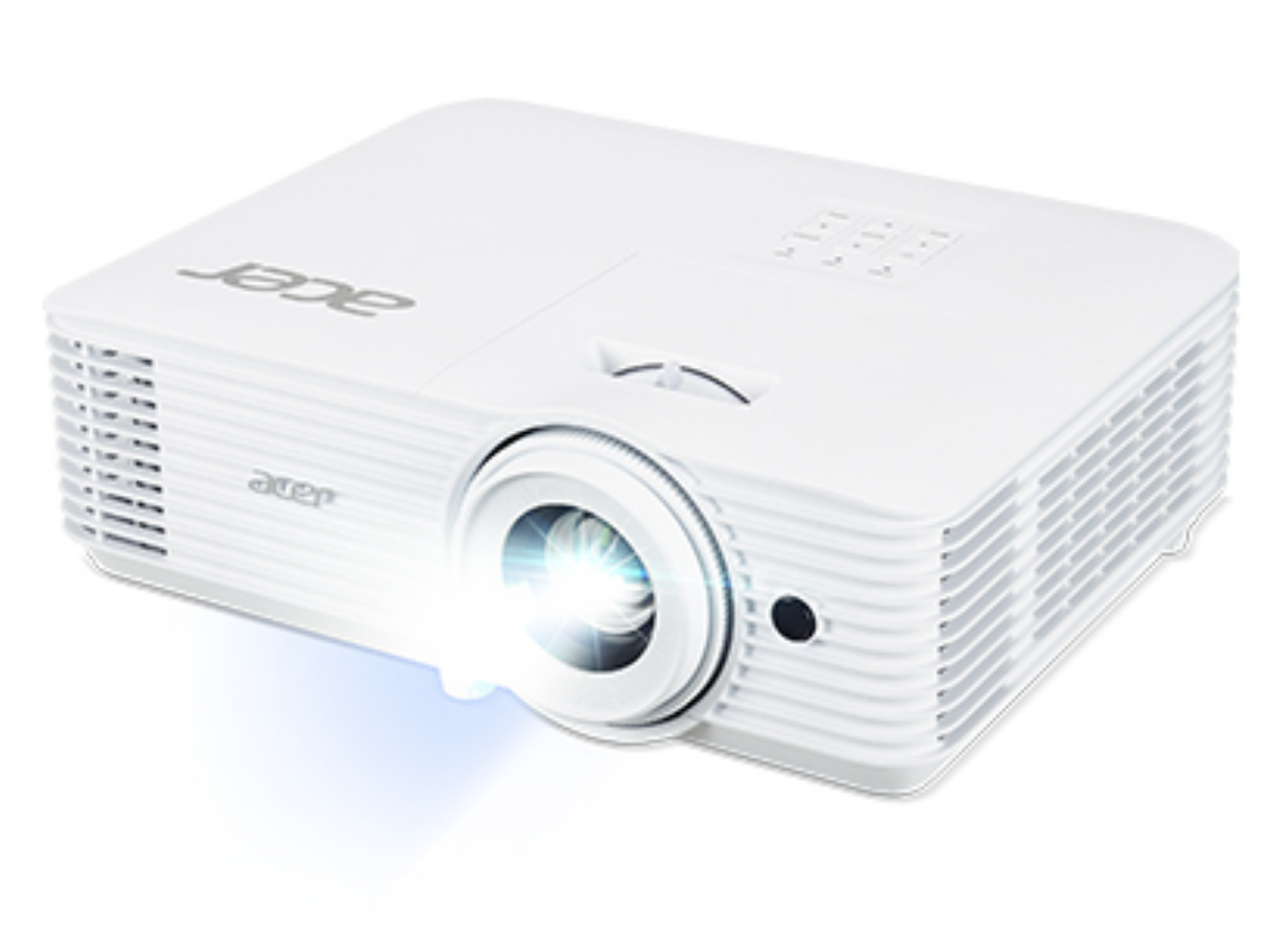

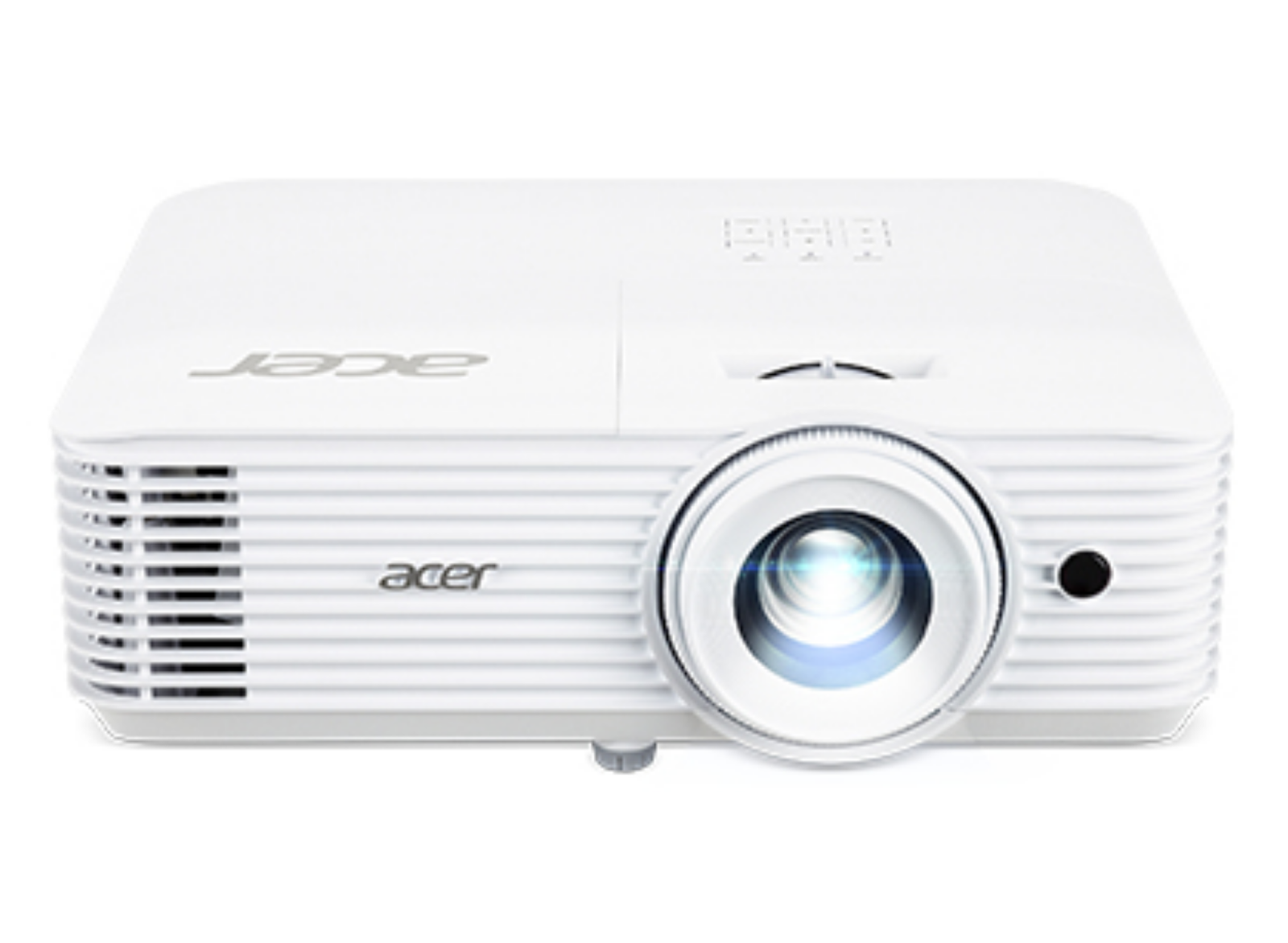

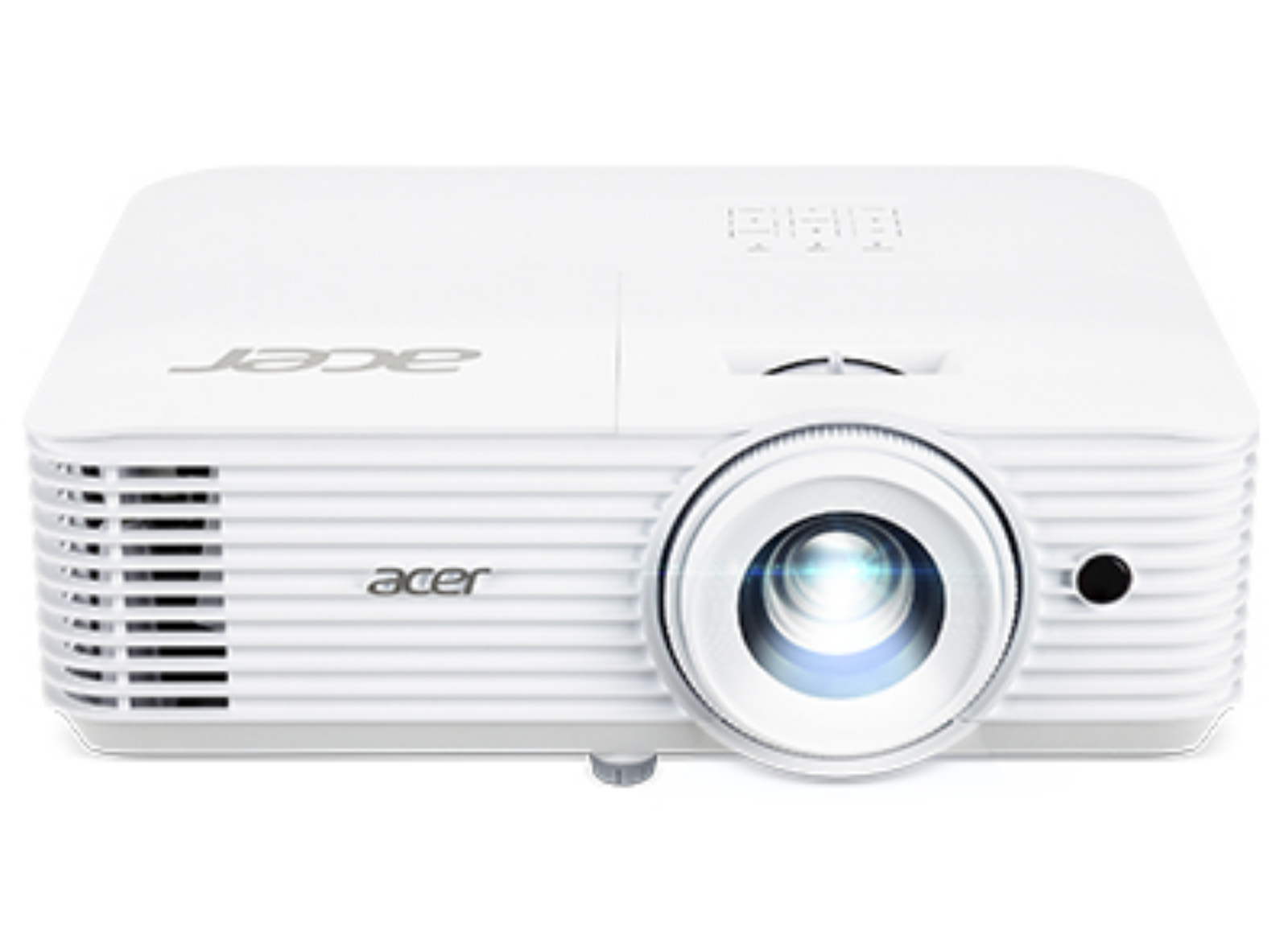

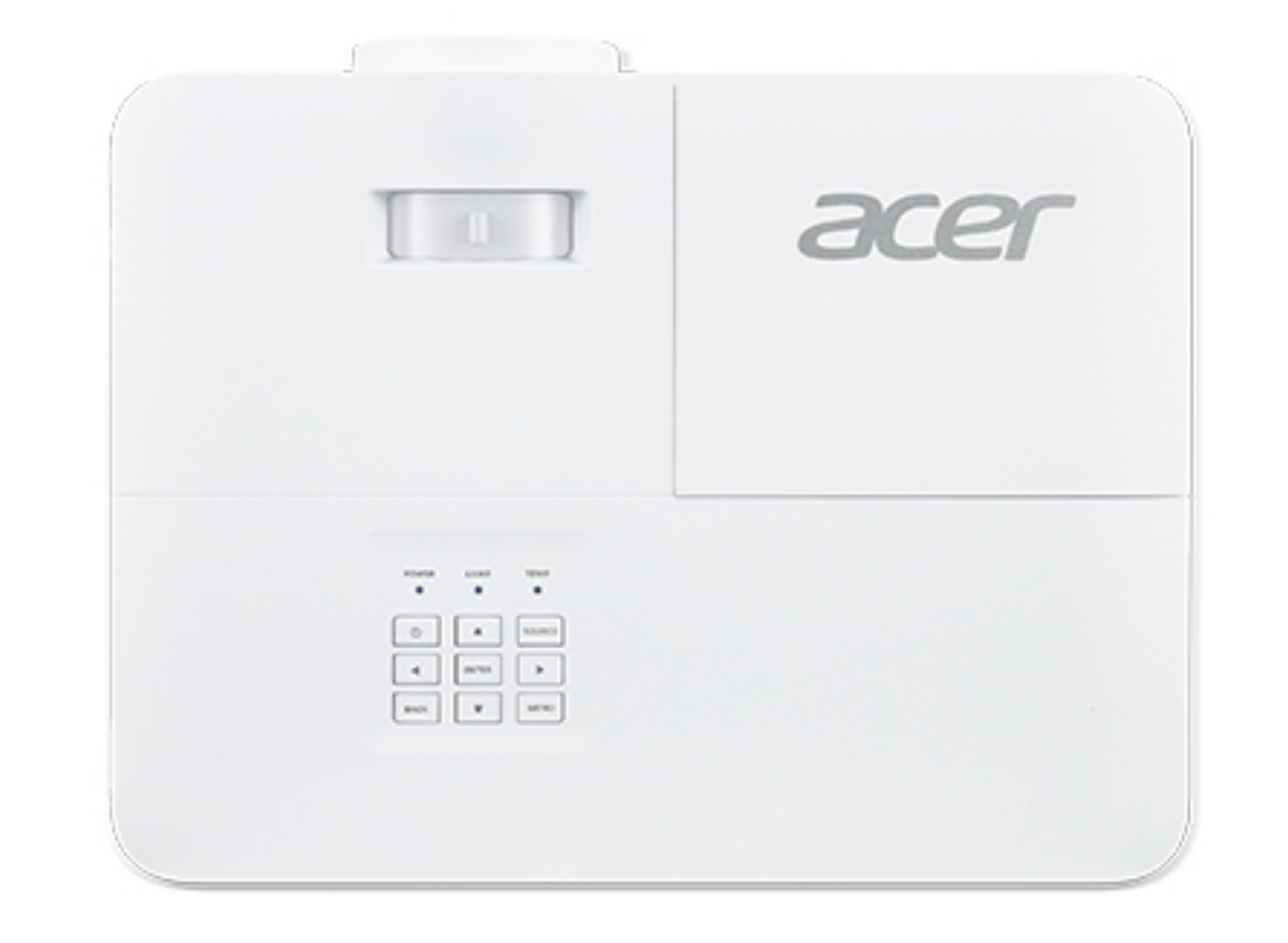

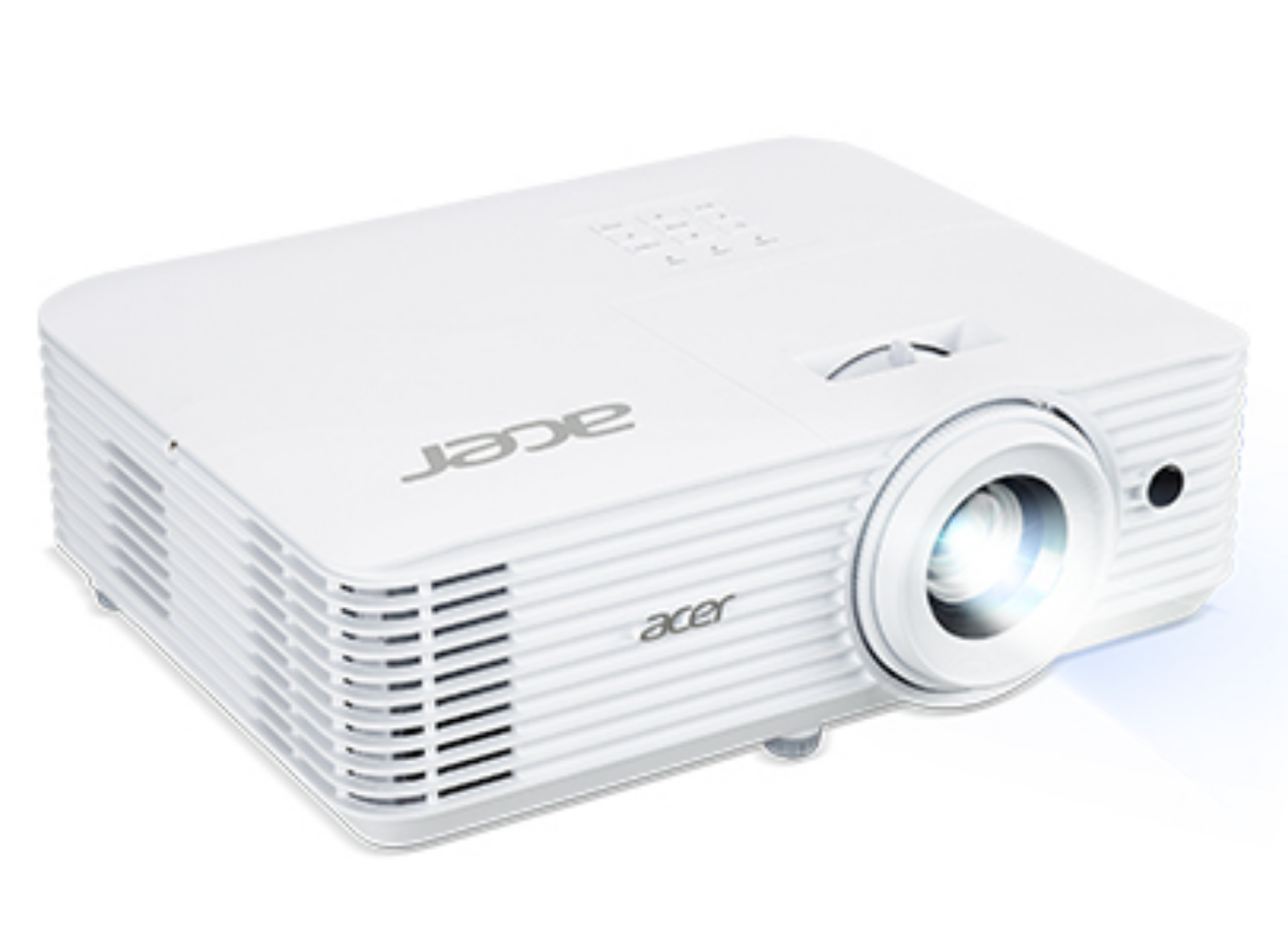

The Acer X1528 delivers FHD clarity and 5,200 lumens brightness for crisp and clear visuals. With ColorBoost3D™, LumiSense™, and eco-friendly features, it's perfect for meetings – offering ease of use and exceptional performance.
5,200 Lumens Brightness
See crystal-clear, vibrant images from a distance in lecture halls, auditoriums or any large venues with up to 5,200 lumens of brightness.
FHD Resolution
A 100” image of pure beauty in 1080p Full HD looks so real, you’ll swear you’re looking out the window.
Acer ColorSafe II
Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.
Automatic Vertical Keystone Correction
Finding the right angle for your presentation is easier with auto keystone correction, which corrects vertical distortion.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.
Acer ColorBoost3D™
Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D™ technology.
Acer LumiSense™
Acer LumiSense™ adjusts the image brightness and color saturation based on the content you're viewing.
ISFccc Professional Calibration
Get the most out of your projector’s images with professional calibration from an ISF-qualified technician.
Environmentally Friendly Acer EcoProjection
Reduce power consumption by up to 70% and extend your lamp life to up to 15,000 hours with Acer EcoProjection.
| Projection System | DLP™ | Light Source | Lamp OSRAM 240 W E30.1 |
| Light Source Life | 5000 hours (Standard), 10000 hours (ECO) | Native Resolution | 1920 x 1080 |
| Maximum Resolution | 1920 x 1200 | Brightness | 5200 ANSI Lumens (Standard), 4160 lm (ECO), (Compliant with ISO 21118 standard) |
| Aspect Ratio | 16:9 (Native), 4:3 (Supported) | Contrast Ratio | 10,000:1 |
| Image Size | 28" (71.1 cm) ~ 305" (774.7 cm) | Keystone Correction | +/- 40° (Vertical, Manual & Auto) |
| Throw Ratio | 1.48 to 1.62 (1524 mm@2000 mm) | Zoom Ratio | 1.1x |
| Digital Zoom Detail | Digital Zoom & ImageShift (0.8X-1.0X) | Lens | F = f/2.5~f/2.67, f = 21.80 mm~24 mm, Manual Zoom, Manual Focus |
| Projection Offset (Half-Height) | 132% | Projection Mode | Front, Front Ceiling, Rear, Rear Ceiling |
| Vertical Sync Rate | 24 ~ 120 Hz | Horizontal Sync Rate | 15 to 100 kHz |

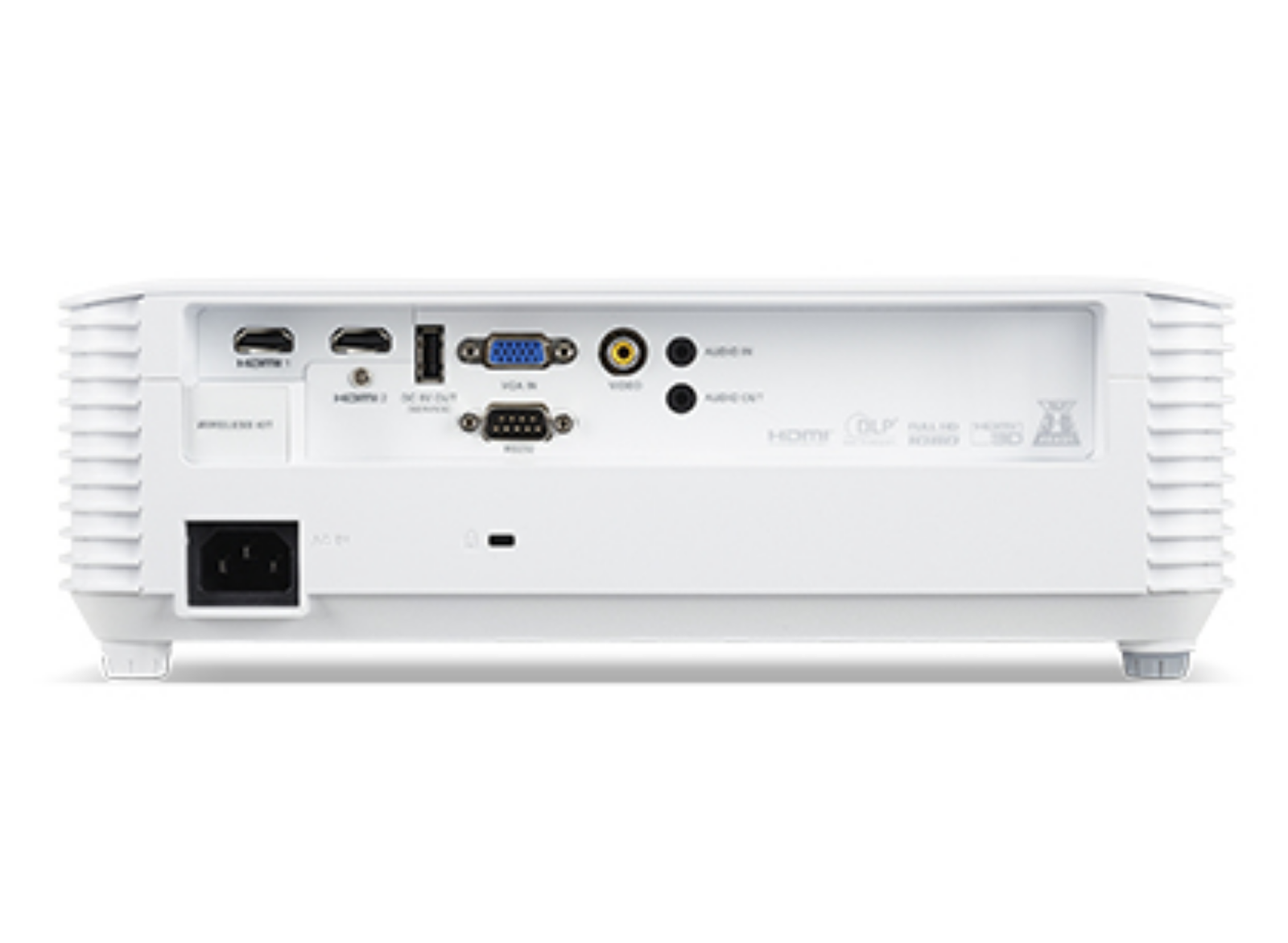

| HDMI | HDMI1.4b (HDCP 1.4) | Audio In | x1, 3.5mm mini jack |
| Audio Out | x1, 3.5mm mini jack | S/PDIF | USB Type-A Out |
| USB Type-A Out | x1, DC Out (5V/1.5A) | Speaker | x1, 3 W Speaker |
| RS232 | x1, D-sub | 3D Support | DLP 3D Ready, HDMI 3D Ready, 144Hz 24p 3D |
| Security | Security Bar | Kensington Lock | |
| Input Lag | 33ms@60Hz | Portrait Operation | No |
| 360° Operation | No | Power Consumption | 290Watts (Standard), 210 W (ECO), 0.5Watts (Standby) |
| Installation | Ceiling Mountable | Dimensions (W x D x H) | 313 mm (12.32") x 240 mm (9.45") x 113.70 mm (4.48") |
| Weight (Approximate) | 2.9 kg (6.4 lb) | Optional Accessories | Lamp (MC.JTG11.003) |
| Standard Accessories | X1528 DLP Projector | Standard Accessories | AC Power Cord |
| Standard Accessories | Battery for remote control | Standard Accessories | Lens Cap |
| Standard Accessories | Quick Start Guide | Standard Accessories | Remote Control |
| Standard Accessories | Security Card | Standard Accessories | HDMI Cable |
