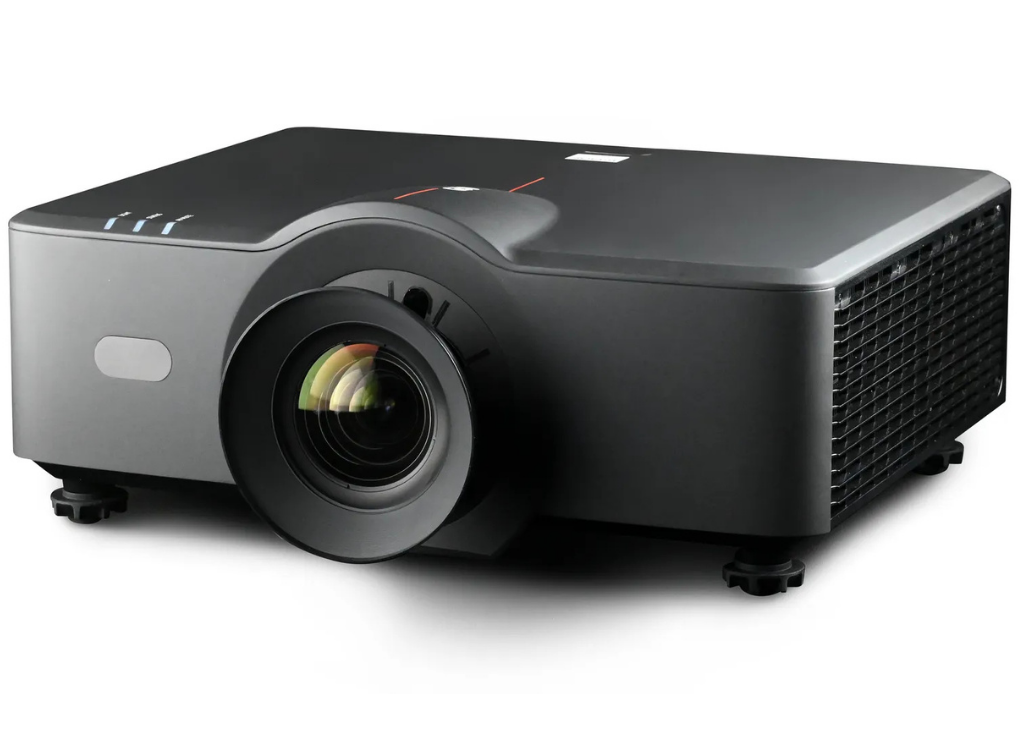

Barco G50‑W6 DLP Laser Phosphor Projector - 6000 Lumens | Lens Not Included
The G50-W6 is an affordable and compact, yet powerful, single-chip WUXGA projector designed for single and multi-channel projections for boardrooms, museums, exhibitions, experience centers, and entry-level simulation applications. It is part of the economical G50 series and the Barco smart line projectors. With a great price-performance ratio, the G50s are the most compact and energy efficient projectors on the market.
The laser phosphor light source ensures great image quality, with superb colors and image uniformity. These are the smallest projectors in our offering with the highest light efficiency visualizing high-quality content at its best.
Their uniform compact size, the compatibility with Barco’s extensive G-series lenses and the wide lens shift range enlarge the projectors flexibility, which allows you to choose the perfect fit for your specific environment.
In addition, G50 owners can benefit from the valued Barco service and support. The G50 allows for an Insights Management Suite subscription, our cloud-based IoT platform to monitor, diagnose and control your projectors. And thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer.
| Projector type | Single chip DLP laser phosphor projector | Technology | Single chip DLP laser phosphor projector |
| Resolution | 1,920 x 1,200 (WUXGA) | Brightness | 5,400 ANSI lumens / 6,000 center lumens / 6,400 ISO lumens |
| Brightness uniformity | 90% | Contrast ratio | 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 750,000:1 |
| Light source | Laser phosphor | Light source lifetime | Up to 20,000hrs |
| Aspect ratio | 16:10 | Orientation | 360° rotation, no restrictions |
| Sealed DLP™ core | Yes | Color correction | Yes |
| CLO | Constant light output | Keystone correction | Yes |
| Image processing | Embedded warp & blend via Ptoolset | 3D | Active stereoscopic 3D |
| Lens type | G-lenses - 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1 | Optical lens shift | Vertical up to 100%, Horizontal up to 30% (lens dependent) |
| Motorized zoom & focus | Yes | Motorized lens shift | Yes |
| Inputs | 2 x HDMI™ 2.0b, 1 x Display Port 1.2a, 1 x HDBaseT, 1 x 3D SYNC In | Output | 1 x HDMI™ Out, 1 x 3D SYNC Out, 1 x DC 12V Out, 1 x Audio out (3.5mm) |
| Input resolutions | Up to 4K @60Hz (scaled to WUXGA) | Refresh rates | 24Hz to 60Hz (WUXGA & 4K/4KUHD) |
| Software tools | Projector Toolset | Control | RS232 (D-sub 9 pin), Wired In (3.5mm), RJ45 |
| Network connection | 10/100 Ethernet, RJ45 | Speakers | 10W / 6 Ohm *2 |
| Power requirements | 100-240V / 50-60Hz | Power consumption | 300W @110V, 290W @220V |
| Standby power | < 0.5W | BTU per hour | 1024 @110V, 990 @220V |
| Noise level | 32dB(A) - 36dB(A) | Operating temperature | 0 ~ 40 °C (sea level) |
| Operating humidity | 10 - 85% RH, non-condensing | Storage temperature | -10 ~ 60 °C |
| Storage humidity | 5 - 90% RH, non-condensing | Dimensions (WxLxH) | 486 x 376 x 181.2mm (without feet) |
| Weight | 11 kg / 24.25 lbs (without lens) | Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI | Warranty | Limited 3 years parts and labor |
| Note | Brightness levels +/- 10% |
