Laser Phosphor Technology
Unlike traditional lamp based projectors, the LS900WU is designed with laser phosphor technology, which provides virtually maintenance-free usage for a lower overall total cost of ownership.
Laser Phosphor
Lamp-free
High Brightness
Packed with 6,000 ANSI Lumens, the LS900WU projector is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
6,000
ANSI Lumens
Long-lasting Lifespan
Laser technology offers a lifespan up to 30,000 hours (8 hours per day for more than 10 years), delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.
30,000
hours Lifespan
Installation Flexibility

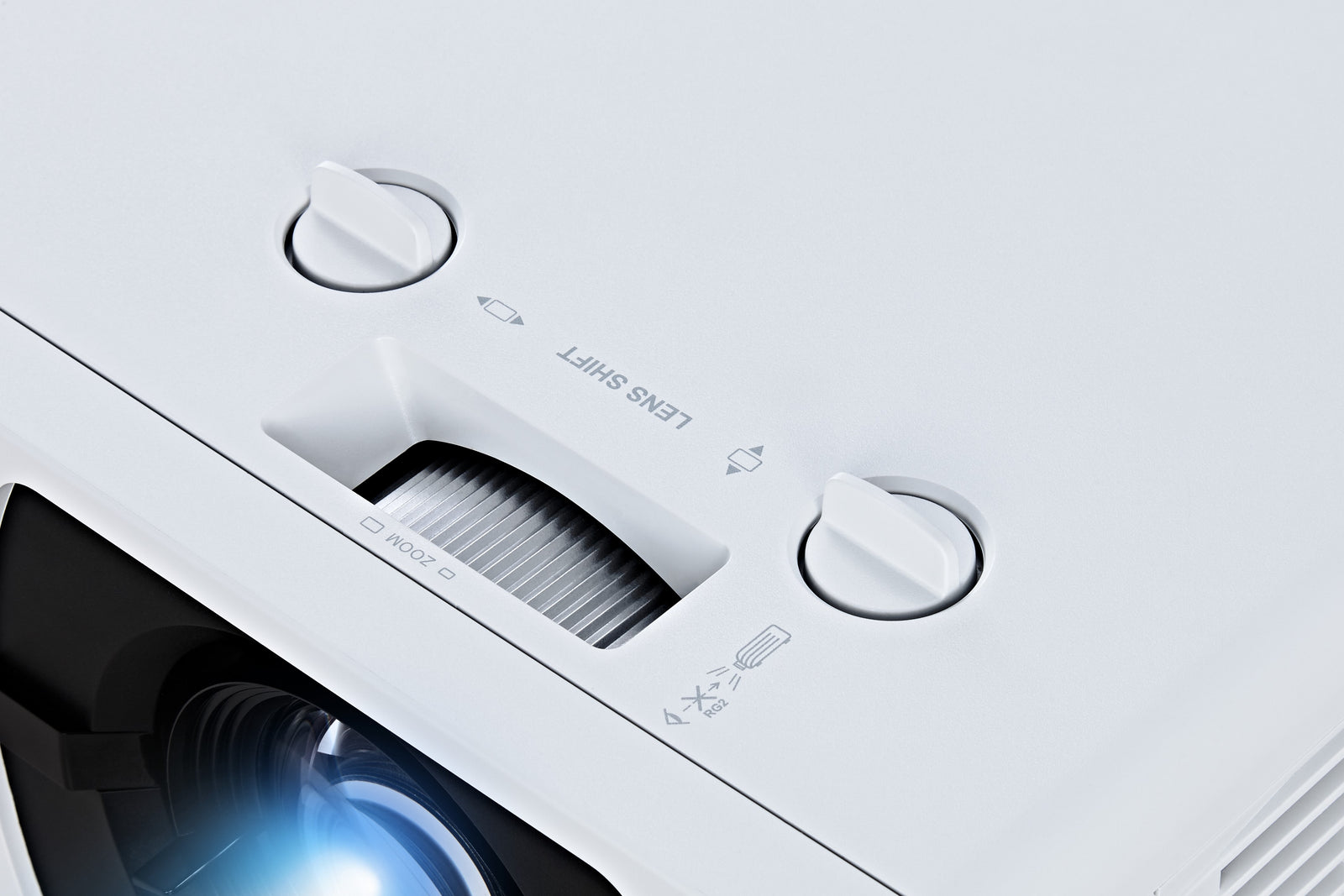

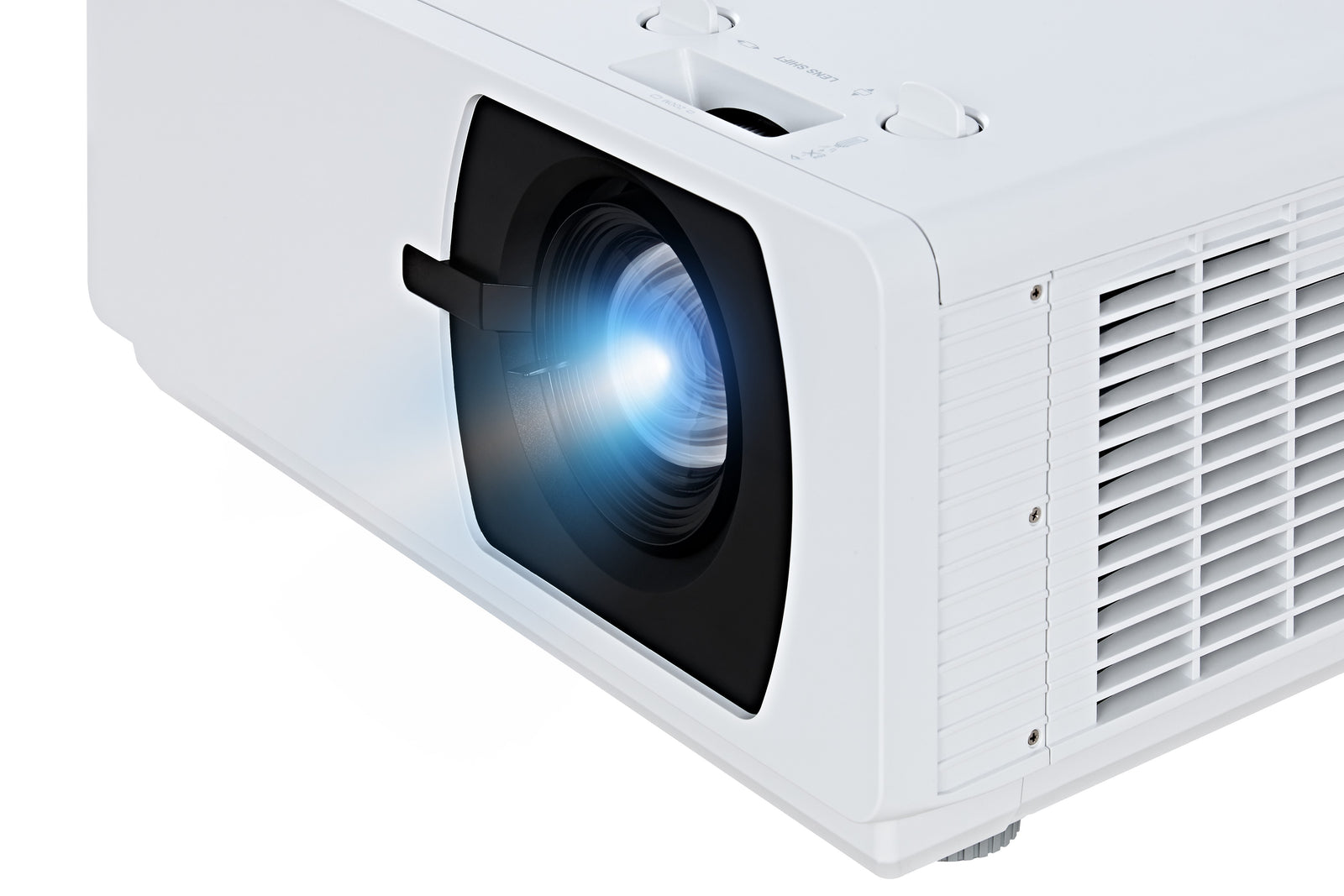

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy – providing flexible installation options with less placement restrictions.
H/V Lens Shift
Larger than Life Images
Equipped with a 1.65x optical zoom lens, the LS900WU provides mounting flexibility with a wider throw distance range.
1.65x
Optical Zoom
Built-in HDBaseT Receiver
The LS900WU’s built-in HDBaseT receiver is a cost-effective solution to transmit uncompressed high resolution audio and video at distance (100 meters for 1080p and 70 meters for 4K/2K) when combined with a cat6 cable and is compatible with any certified HDBaseT transmitter.
HDBaseT Receiver
360° Creative Applications
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
360-degree
Projection
90° Portrait Mode
Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.
Portrait Mode
Amazing Colour Accuracy
ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy true-to-life colour performance in both bright and dark environments without sacrificing image quality.
SuperColor™ Technology
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
HV Keystone
4 Corner Adjustment
Network Management
This projector comes equipped with Crestron RoomView, AMX Control4 and ViewSonic vController, an easy-to-use network management tool.
LAN Control
Sealed Optical Engine with IP6X
The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
IP6X
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.
Projector Software Update
Go Lamp Free for the Environment
The lamp free, laser light projection source is more environmentally friendly, contributes to a mercury-free environment, and also promotes sustainable development.
Mercury-free
Non-stop 24/7 Operation
With an advanced cooling design, the LS900WU enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
24/7 Operation

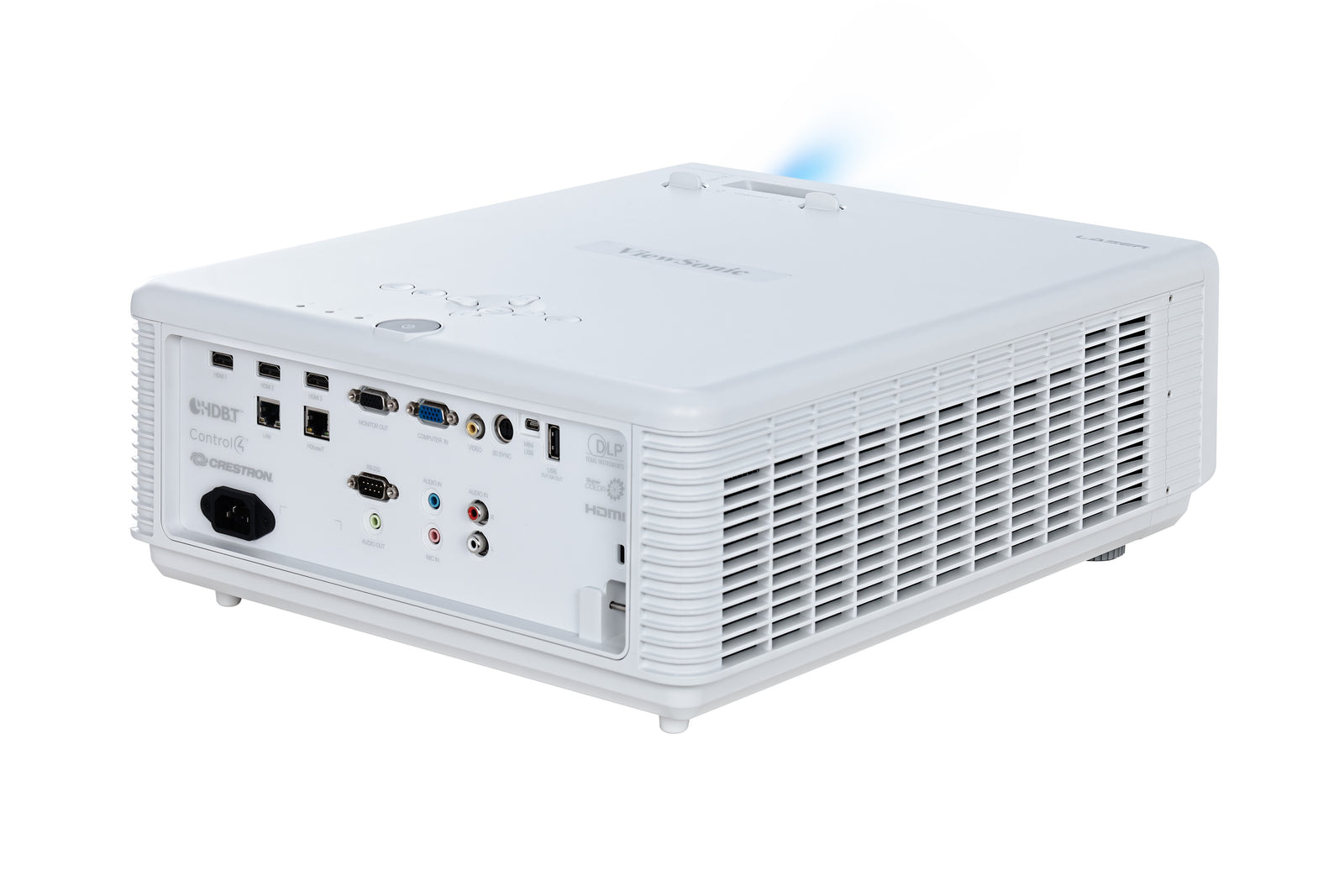

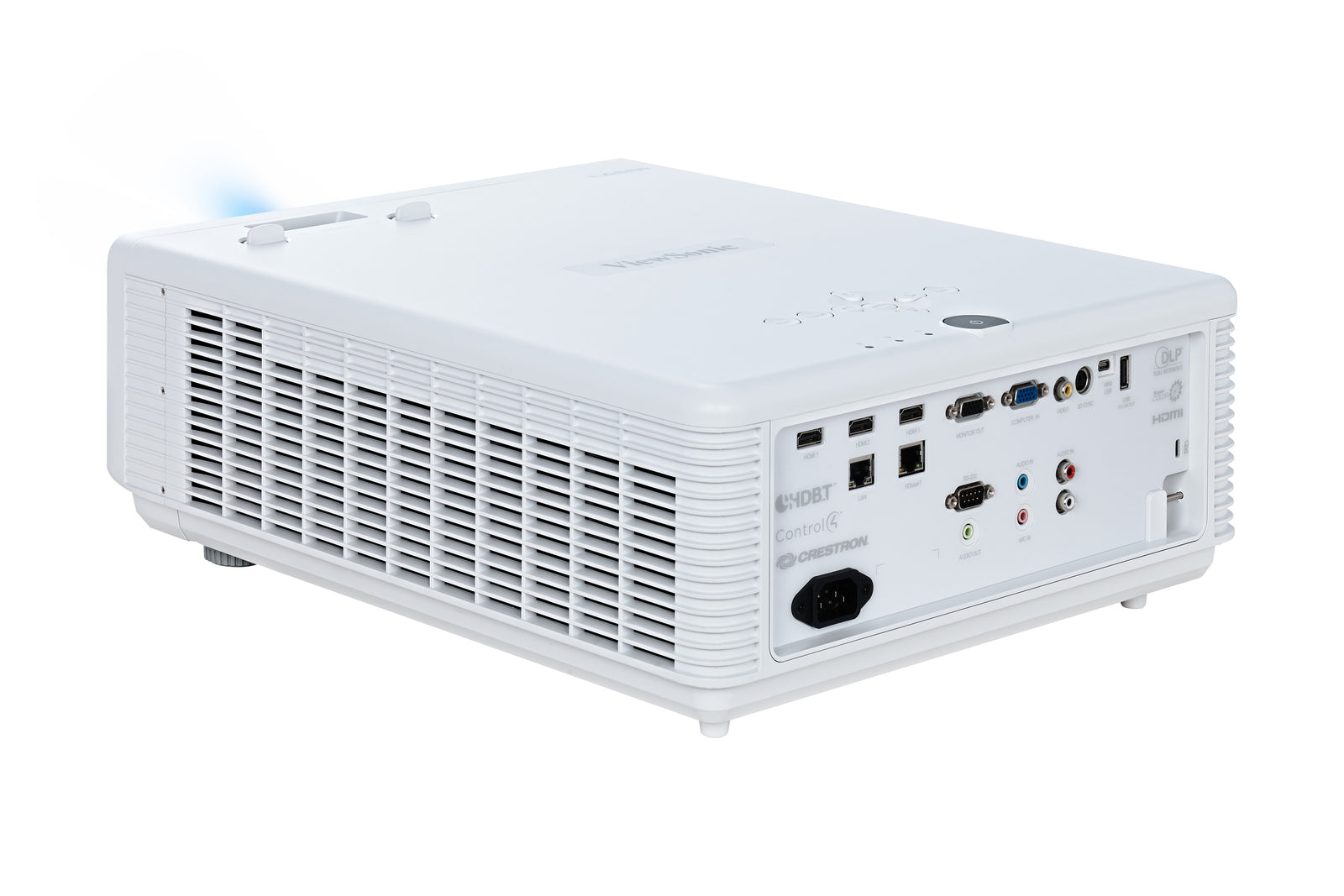

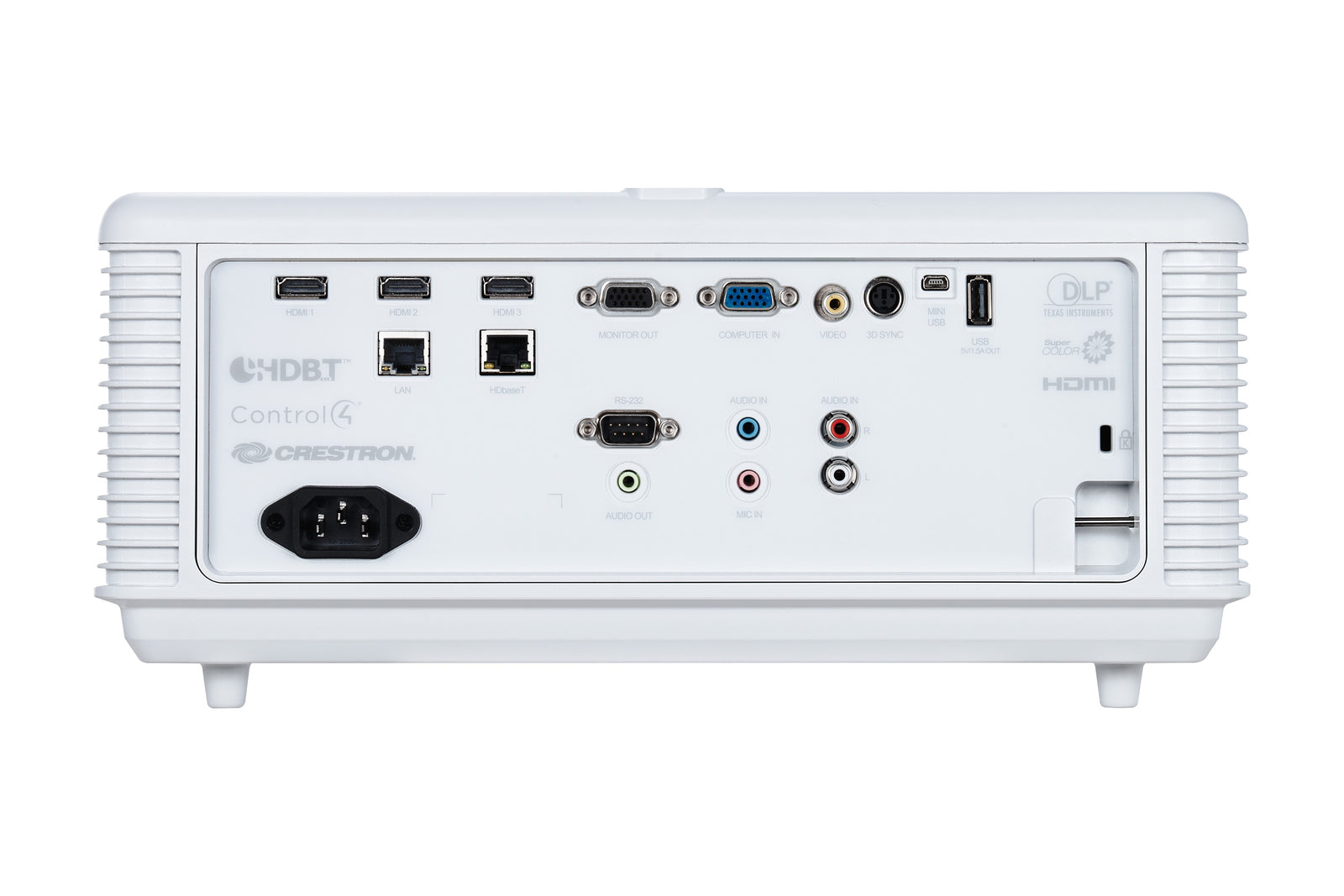

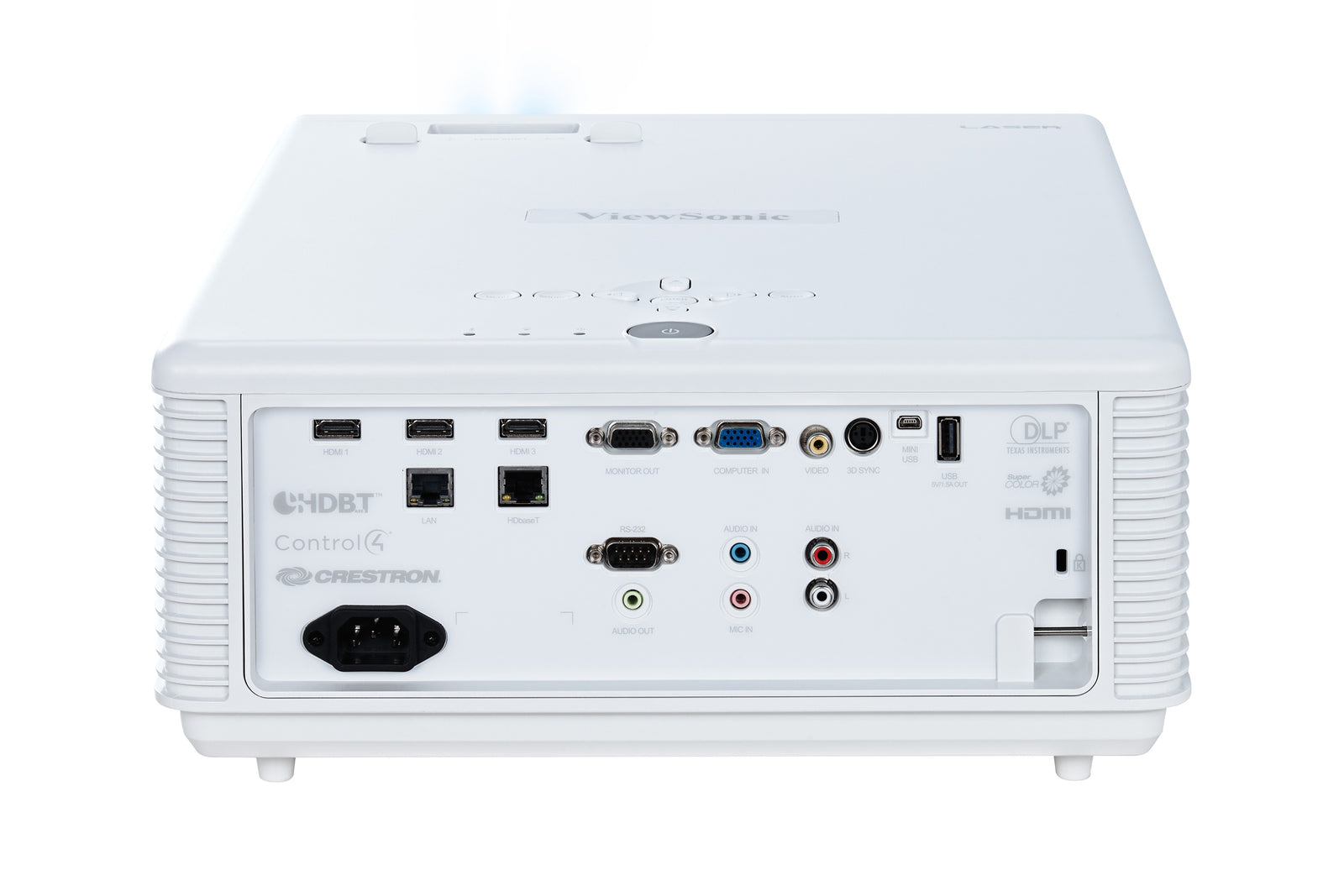

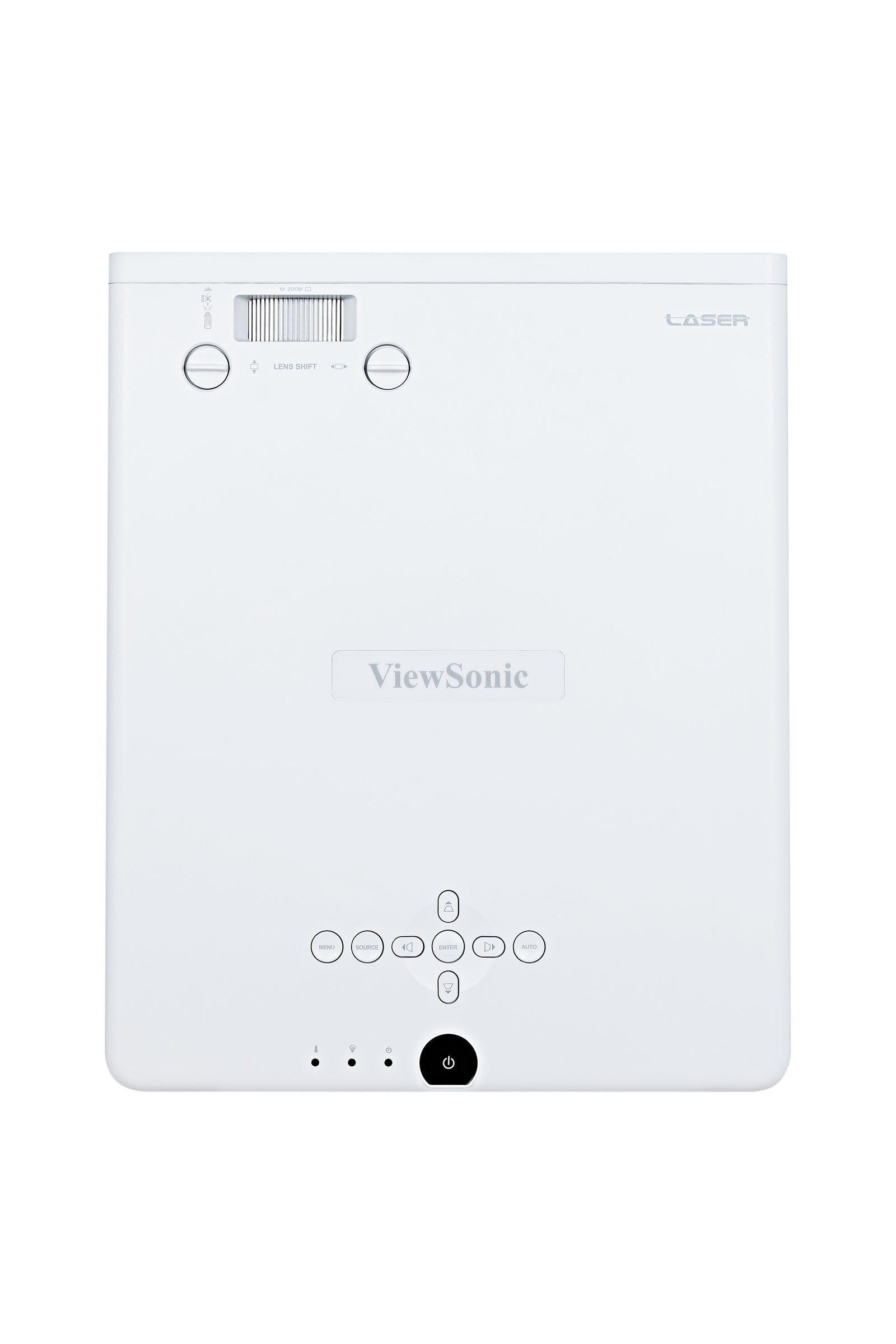

Exterior & Rear I/O Connectors
1-Power key & Top IR

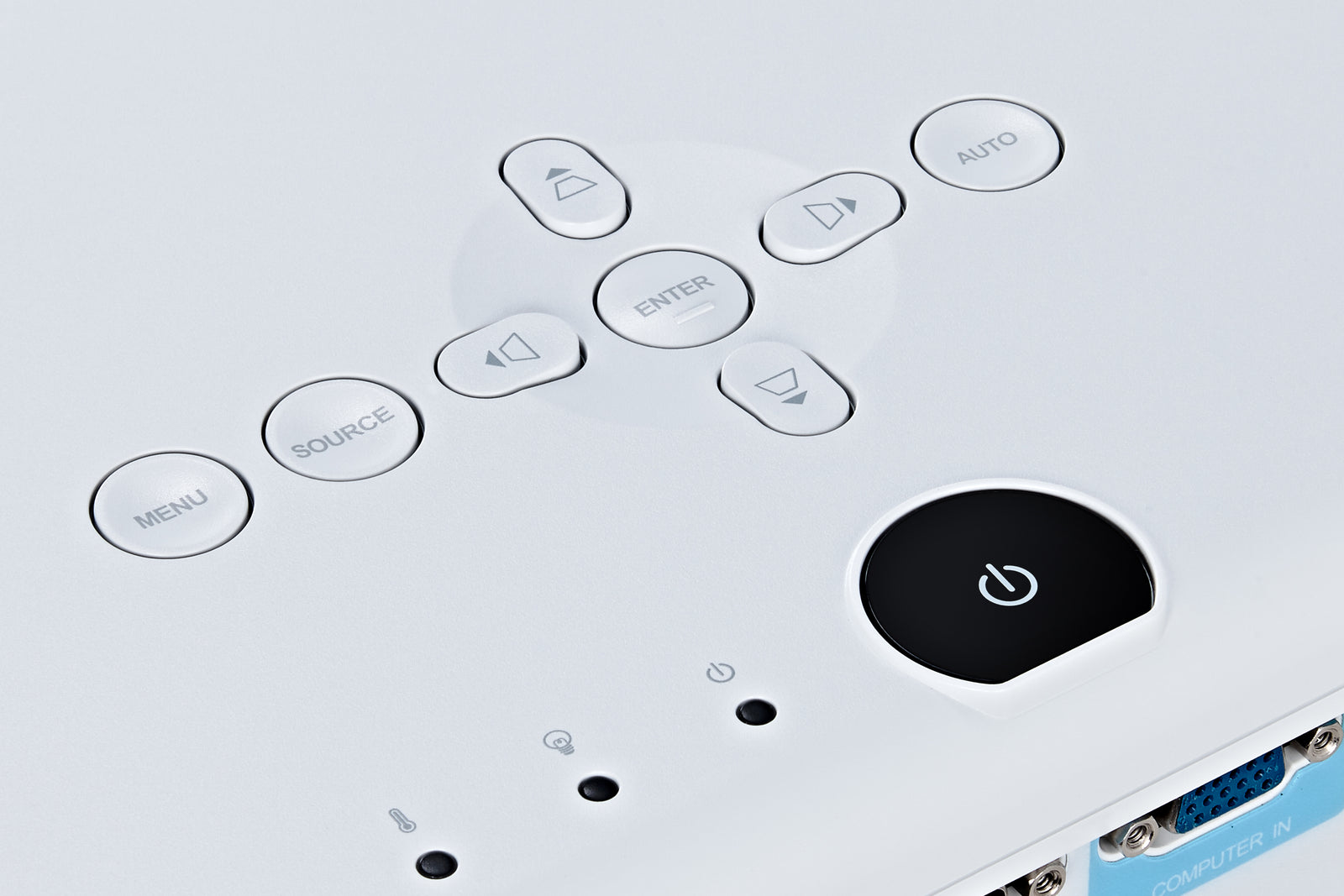

2-Keypad
3-Adjustment foot
4-Front IR
5-Horizontal lens shift adj.
6-Optical zoom 1.65X
7-Vertical lens shift adj.
8-Focus adjustment
9-Lens
10-Monitor out
11-Computer in
12-HDMI x 3
13-LAN (RJ45)
14-HDBaseT (RJ45)
15-RS232
16-Video
17-3D sync (VESA)
18-Mini USB (Service)
19-USB Type A (5V/1.5A)
20-Kensington lock
21-Audio in (R/L)
22-Audio in / Mic in
23-Audio out
| Projection System | 0.67" WUXGA | Native Resolution | 1920x1200 |
| Brightness | 6000 ANSI Lumens | Contrast Ratio (SuperEco) | 3,000,000:1 |
| Display Colour | 1.07 Billion Colours | Light Source Type | Laser Phosphor System |
| Light Source Life (Normal) | 20,000 Hours | Light Source Life (SuperEco) | 30,000 Hours |
| Lamp Watt | Laser Bank x 4 | Lens | F=2.45-3.13, f=17.23-27.9mm |
| Projection Offset | 130% ±10% | Throw Ratio | 1.15 - 1.9 |
| Optical Zoom | 1.65x | Digital Zoom | 1.0x - 2.0x |
| Image Size | 50" - 300" | Throw Distance | 1.24 - 7.43m (100"@2.48m) |
| Keystone | H:+/-30°, V:+/-25° | Lens Shift (Vertical) | Yes (+9.2%, -2.4%) |
| Lens Shift (Horizontal) | Yes (+2.5%, -2.5%) | Audible Noise (Normal) | 34dB |
| Audible Noise (Eco) | 32dB | Input Lag | 16ms |
| Resolution Support | VGA(640x480) to WUXGA_RB(1920x1200) | HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM | Horizontal Frequency | 15K - 102KHz |
| Vertical Scan Rate | 23 - 120Hz | Computer In | 1 (Share with Component) |
| Composite | 1 | HDMI | 3 (HDMI 1.4 / HDCP 1.4) |
| Audio-in (3.5mm) | 1 | Audio-in (RCA R/L) | 1 |
| Microphone In | 1 | 3D VESA (Sync) | 1 |
| HDBaseT | 1 | RJ45 Input (LAN) | 1 (LAN Control) |
| Monitor Out | 1 | Audio Out (3.5mm) | 1 |
| Speaker | 5W x 2 | USB Type A (Power) | 1 (5V / 1.5A) |
| RS232 (DB 9-pin) | 1 | RJ45 | 1 |
| USB Type Mini B (Service) | 1 | Power Supply Voltage | 100-240V ±10%, 50/60Hz (AC In) |
| Operating Temperature | 0~40℃ | Net Weight | 11.0kg |

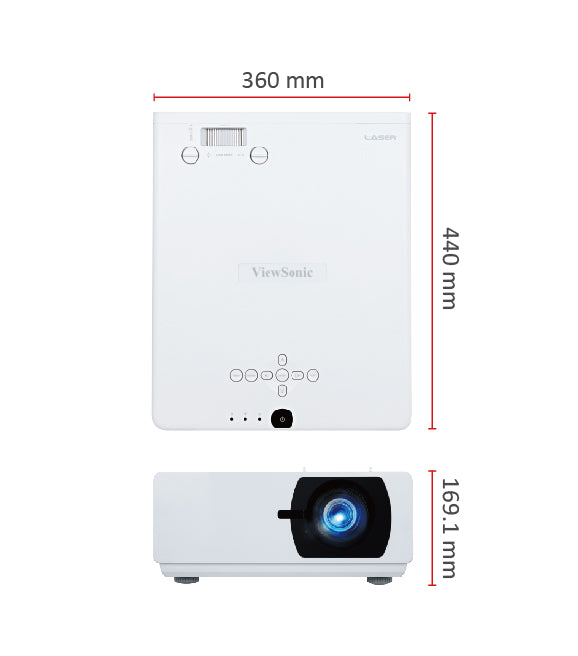

| Dimensions (WxDxH) | 360x440x161mm (with Adjustment Foot) | OSD Language | 22 Languages (English, French, Spanish, etc.) |
| Standard Accessories | Power Cord, VGA Cable, Remote Control (with Laser Pointer), QSG |
| Description | Downloads |
|---|---|
| Datasheet | Download |
