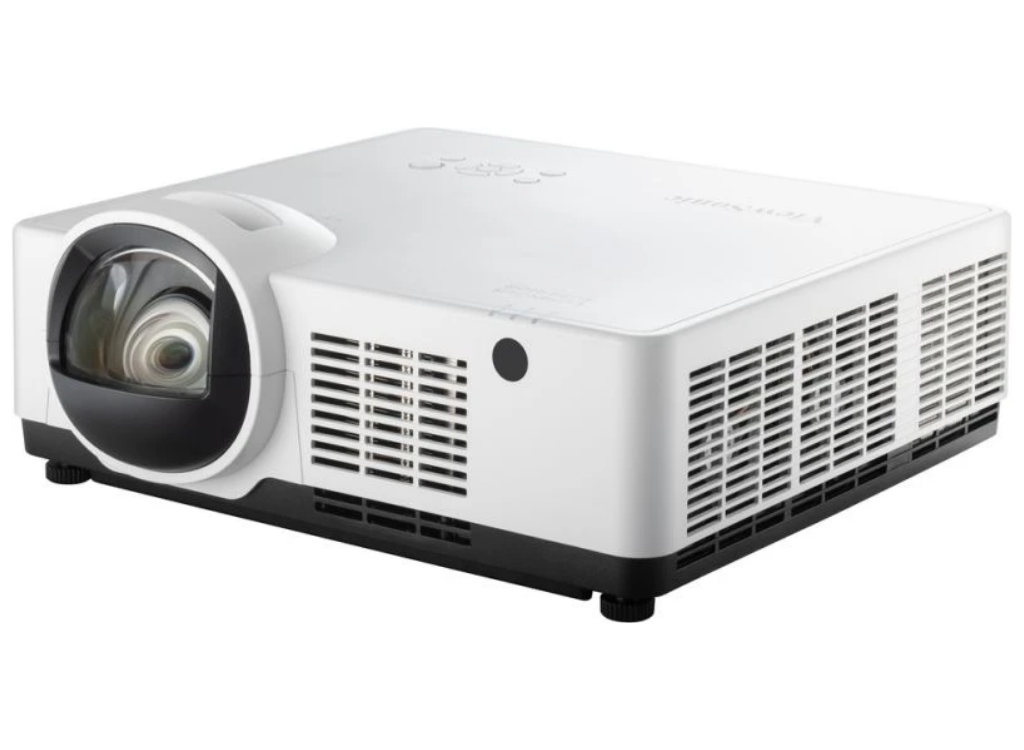

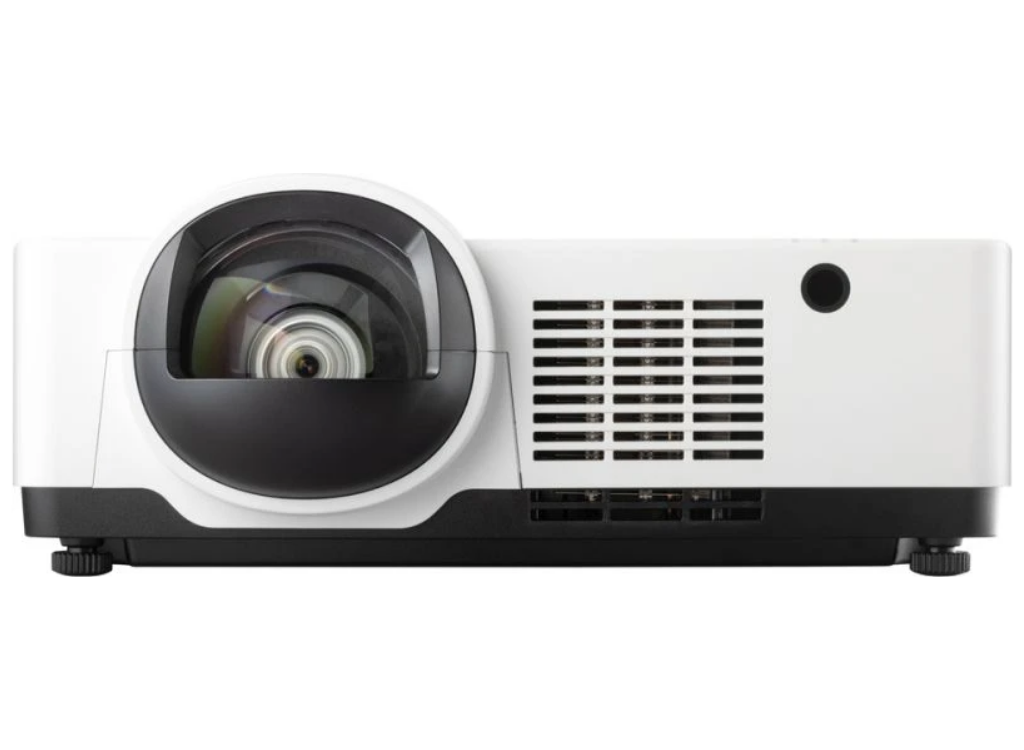

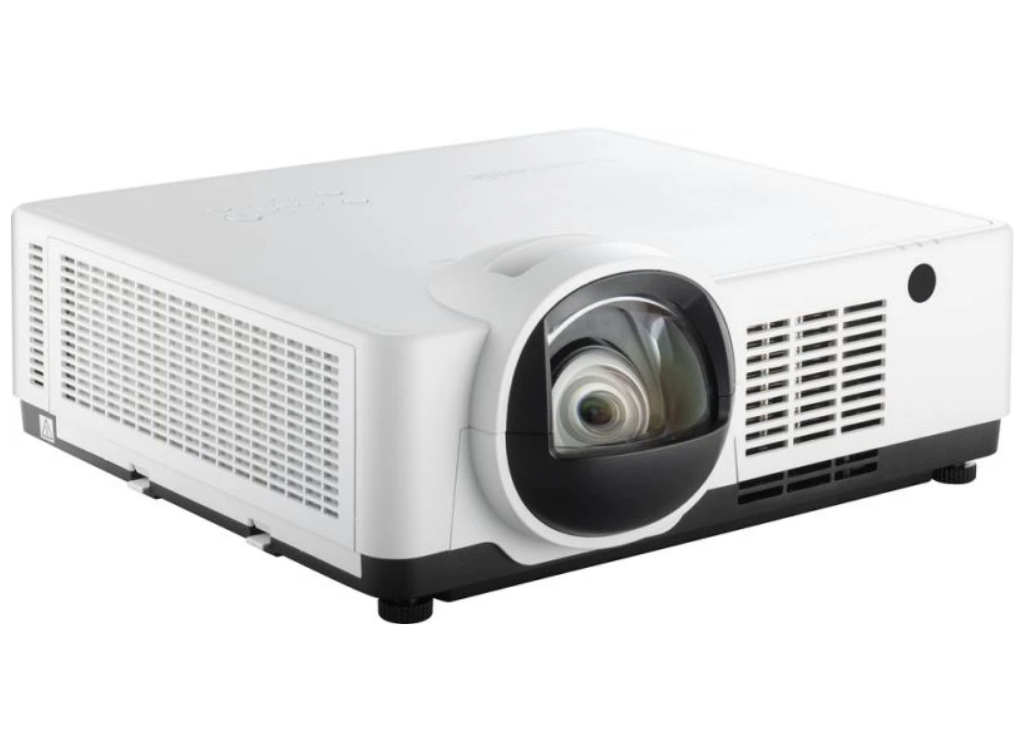

ViewSonic LSC600WU-ST WUXGA Short Throw Laser Installation Projector - 6000 Lumens
The LSC600WU-ST is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can display an ultra-large screen up to 180” in WUXGA resolution. With a 0.44 short throw ratio, it can project a 100” image from just 0.95 m away, enabling a seamless viewing experience without shadows. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V keystone correction, 360° projection, and warping capabilities, the LSC600WU-ST offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues

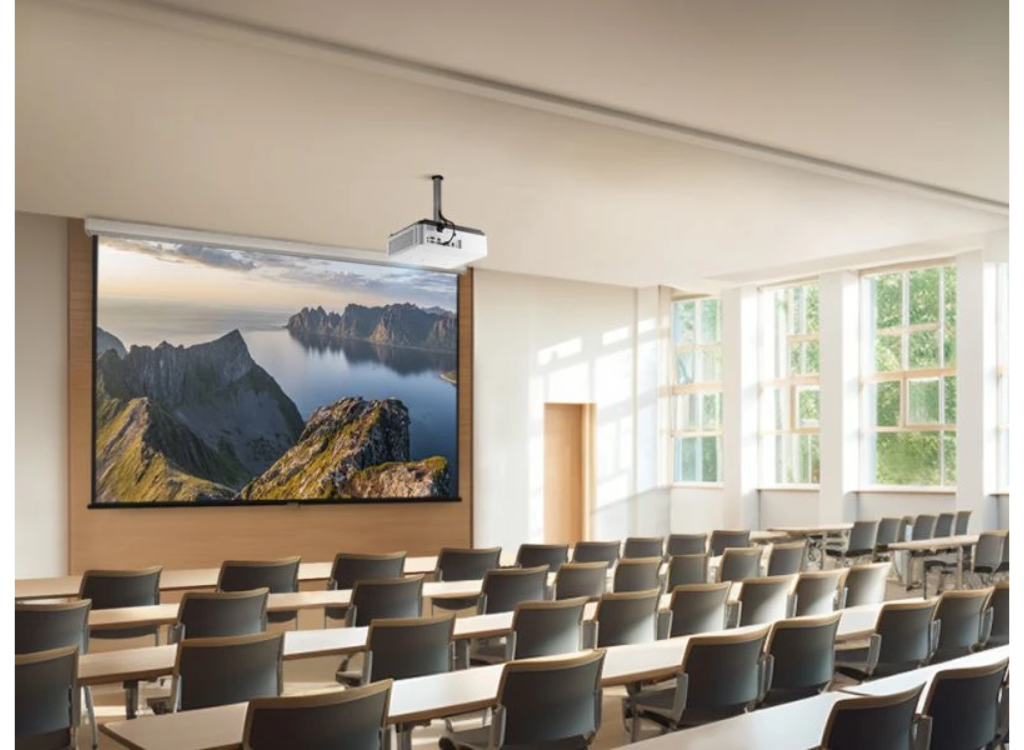

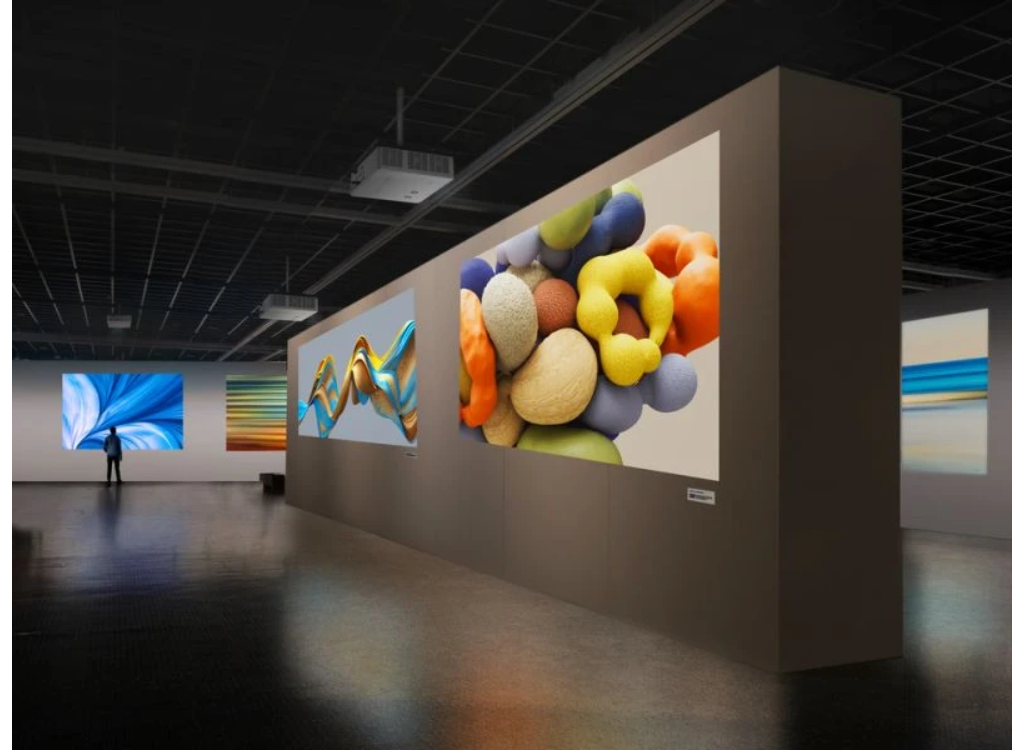

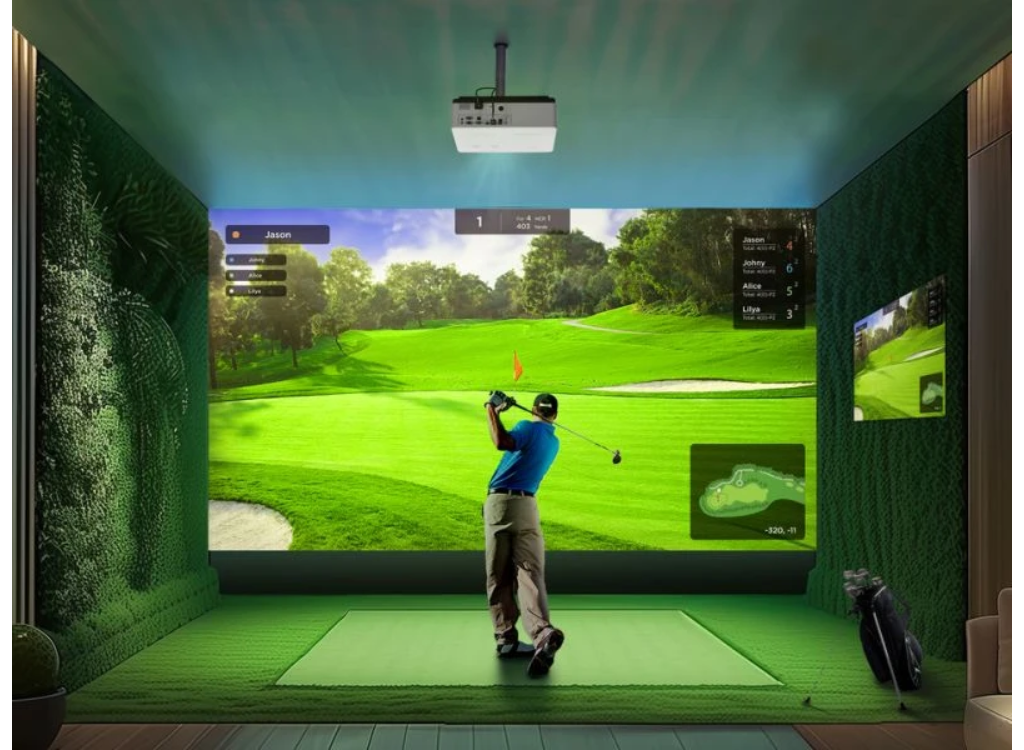

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
6,000 ANSI Lumens
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 180”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 180”
No Shadows, No Blinding Lights
The 0.44 short throw offers a 100” visuals from only 0.95m away. When projecting onto a wall, there are no distracting shadows, providing seamless viewing experience.
Short Throw Ratio
Next-Gen Meeting Experience with 21:9 Aspect Ratio

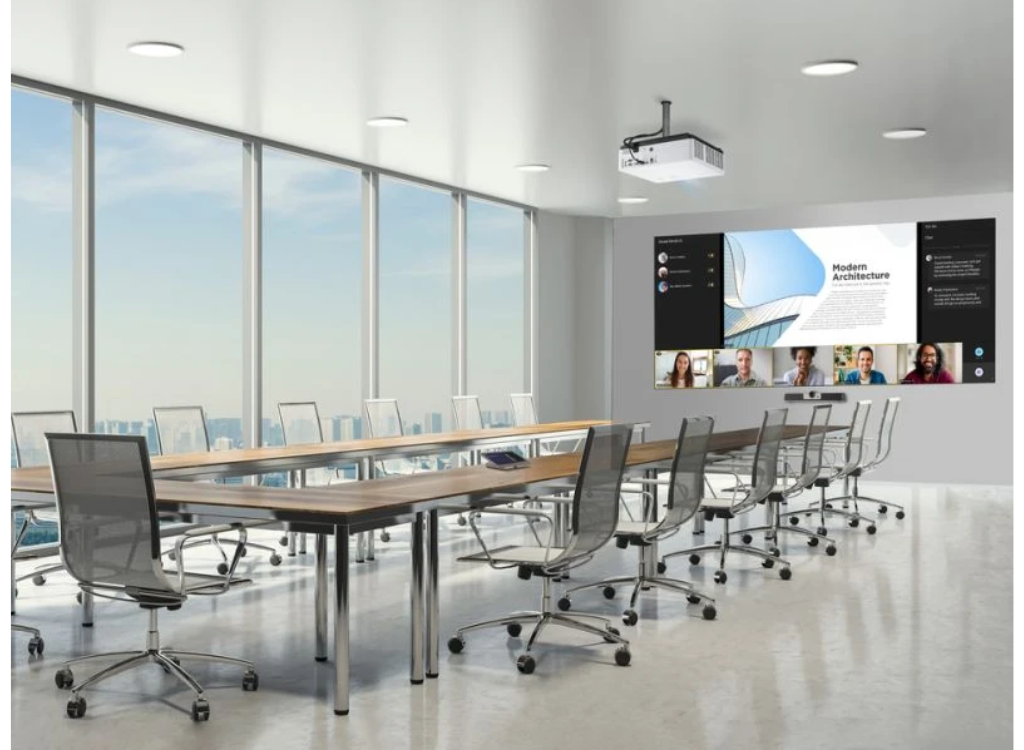

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control

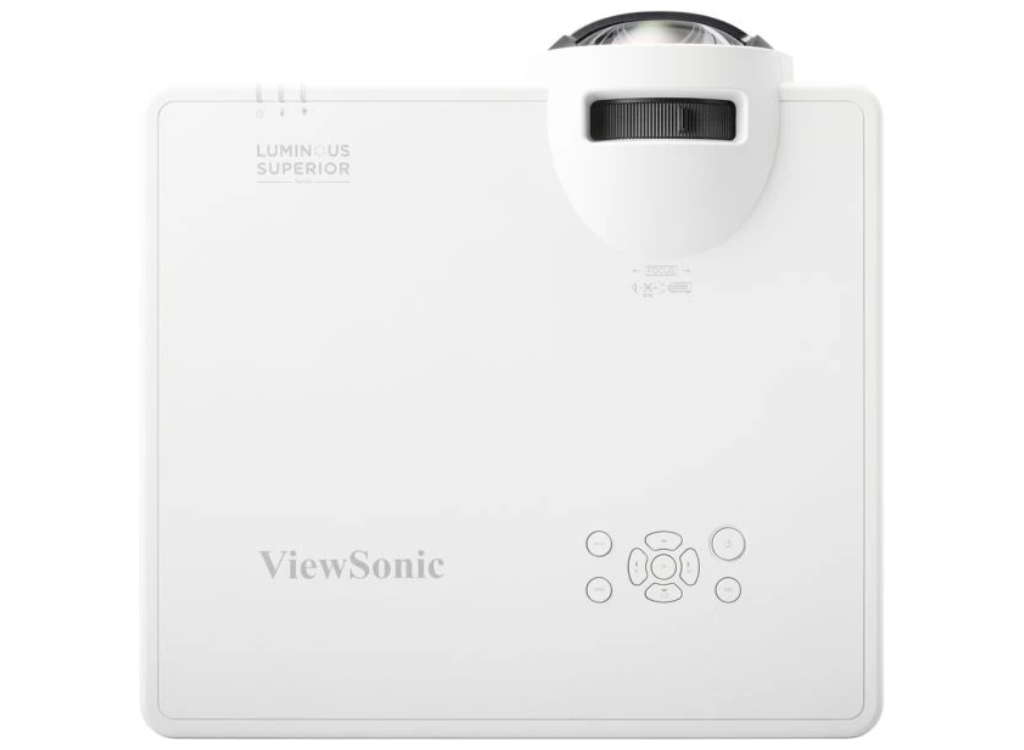

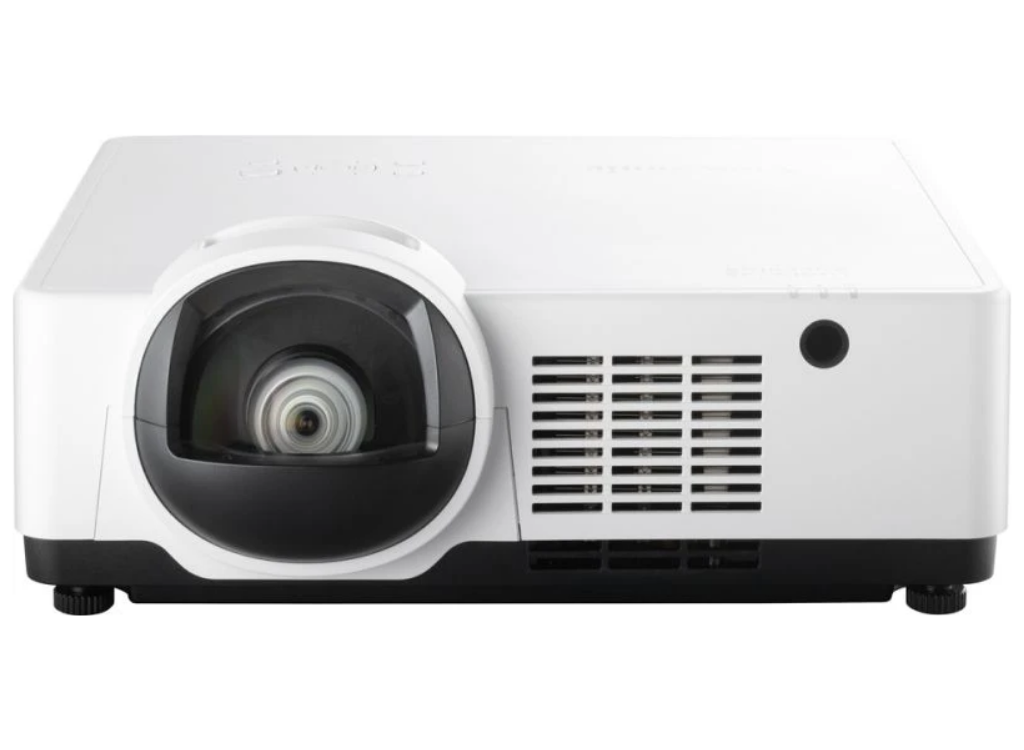

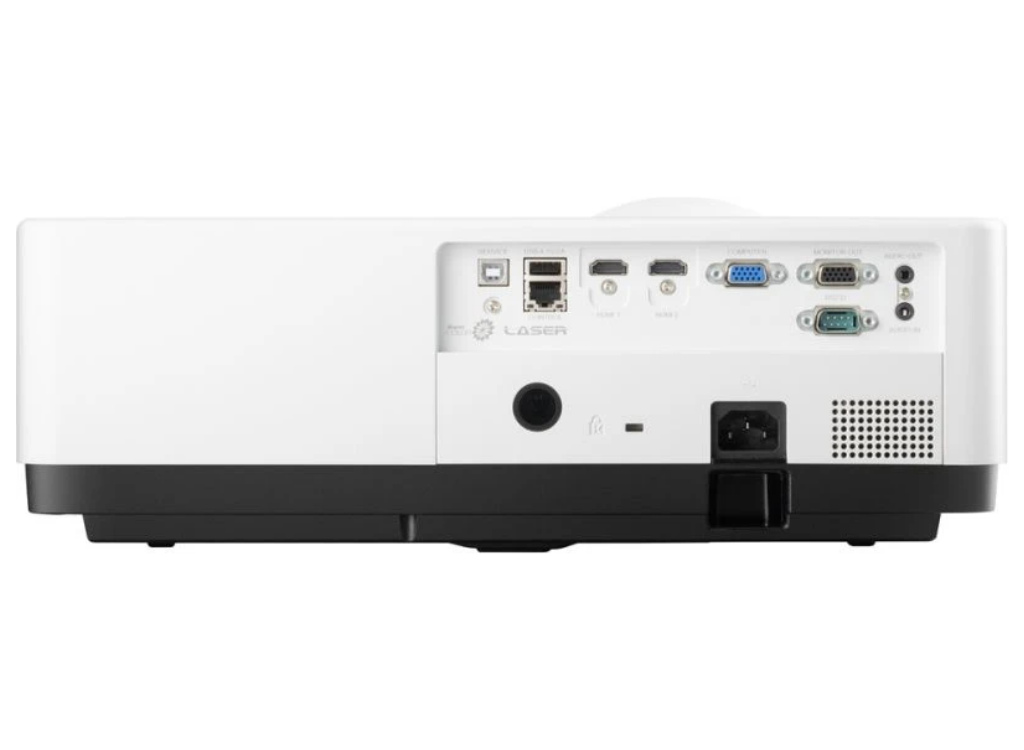

Dimensions & I/O Ports
1-Front IR
2-Service
3-USB-A (5V/2A)
4-HDMI x2
5-Computer
6-Monitor Out
7-RS232
8-Audio Out
9-Audio In
10-RJ45
11-Rear IR
12-AC In
13-LED Indicator
14-Keypad
15-Focus Ring
16-Power Button
| Specification | Details |
|---|---|
| Projection System | 3LCD (3x0.64" with MLA) |
| Native Resolution | 1920x1200 |
| Brightness | 6000 ANSI Lumens |
| Brightness (Center Lumens) | 6500 |
| Contrast Ratio | 3000000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | Laser Phosphor |
| Light Source Life (Normal Mode) | 20,000 hours |
| Light Source Life (SuperEco Mode) | 30,000 hours (Eco) |
| Lens | F=1.6, f=6.39mm |
| Projection Offset | 98% +/-5% |
| Throw Ratio | 0.44 |
| Optical Zoom | Fixed |
| Digital Zoom | 1.0x-4.0x |
| Image Size | 55"-180" |
| Throw Distance | 0.521-1.71m (100"@0.948m) |
| Keystone | H:+/-15°, V:+/-15° |
| Audible Noise (Normal) | 35dB |
| Audible Noise (Eco) | 25dB |
| Input Lag | 60ms |
| Resolution Support | VGA(640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15K-100KHz |
| Vertical Scan Rate | 23-85Hz |
| Inputs and Outputs | Description |
| Computer in (share with component) | 1 |
| AV in (3.5mm) | 1 |
| HDMI | 2 (HDMI 1.4/ HDCP 1.4) |
| USB Type A | 1 (5V/2A) |
| Monitor out | 1 |
| Audio-out (3.5mm) | 1 |
| Speaker | 16W |
| USB Type A (Power) | 1 (USB2.0 - 5V/2A, share with USB A Input) |
| Control | Description |
| RS232 (DB 9-pin male) | 1 |
| RJ45 (LAN control) | 1 |
| USB Type B (Services) | 1 |
| Others | Description |
| Power Supply Voltage | 100-240V +/- 10%, 50/60Hz (AC in) |
| Power Consumption | Normal: 335W, Standby: <0.5W |
| Operating Temperature | 0~40℃ |
| Carton | Brown |
| Net Weight | 8.0kg |
| Gross Weight | 11.03kg |
| Dimensions with Adjustment Foot | 405x404x164mm |
| Packing Dimensions | 510x498x260mm |
| OSD Language | 25 languages including English, German, French, etc. |
| User Guide Language | 20 languages including English, S-Chinese, etc. |

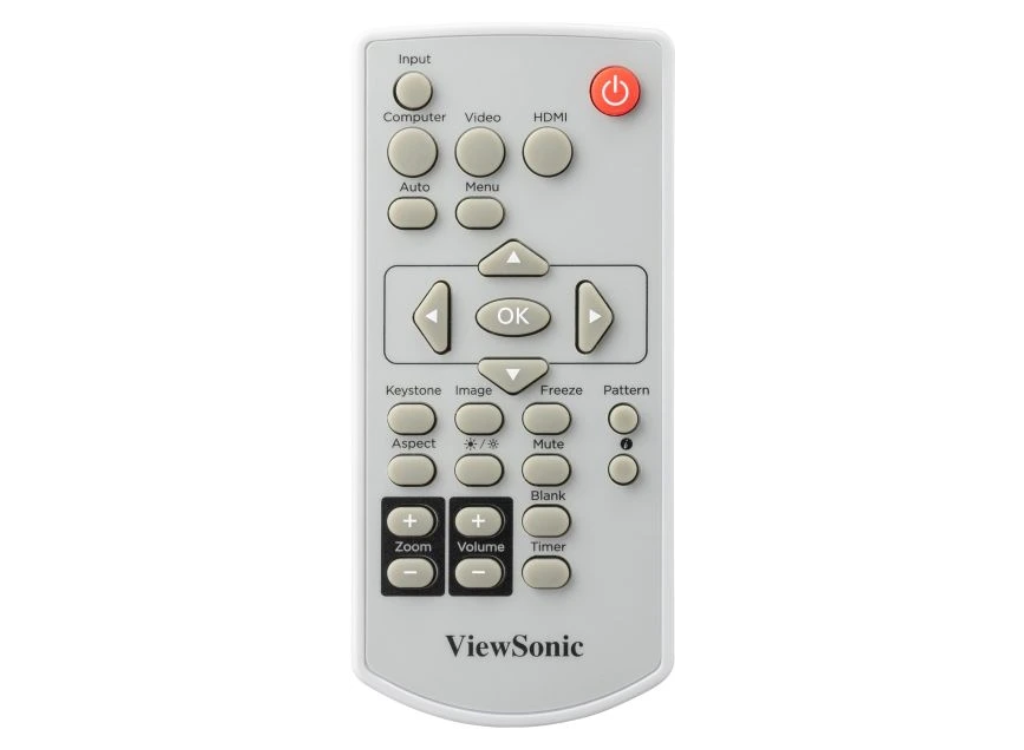

| Standard Accessory | Power Cord, Remote Control, QSG, Air Filter, Warranty Card (CN Only) |
| Optional Accessory | Air Filter, Wall/Ceiling Mount: PJ-WMK-007 |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
