| Panel | | Screen Size | 49" |
| Panel Technology | IPS | Back Light Type | Edge |
| Aspect Ratio | 16:9 | Native Resolution | 3,840 x 2,160 (4K UHD) |
| Refresh Rate | 60 Hz | Brightness (Typ.) | 500 nit |
| Contrast Ratio | 1,100 : 1 (Typ.) | Dynamic CR | 1,000,000 : 1 |
| Color gamut | BT709 95% | Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.07 Billion Colors (10 bit (D)) | Response Time | 8ms (Tr) / 10ms (Tf (Typ.)) |
| Surface Treatment (Haze) | 28% (Typ.) | Life Time (Min.) | 50,000 Hrs |
| Operation Hours (Hours / Days) | 24 / 7 | Portrait / Landscape | Yes / Yes |
| Mechanical | | Specification | |
| Bezel Color | Black | Bezel Width | 11.4 mm (Even) |
| Weight (Head) | 11.4 kg | Packed Weight | 14.2 kg |
| Monitor Dimensions (W × H × D) | 1,104.3 × 635.5 × 29.7 mm | Carton Dimensions (W × H × D) | 1,215 × 742 × 142 mm |

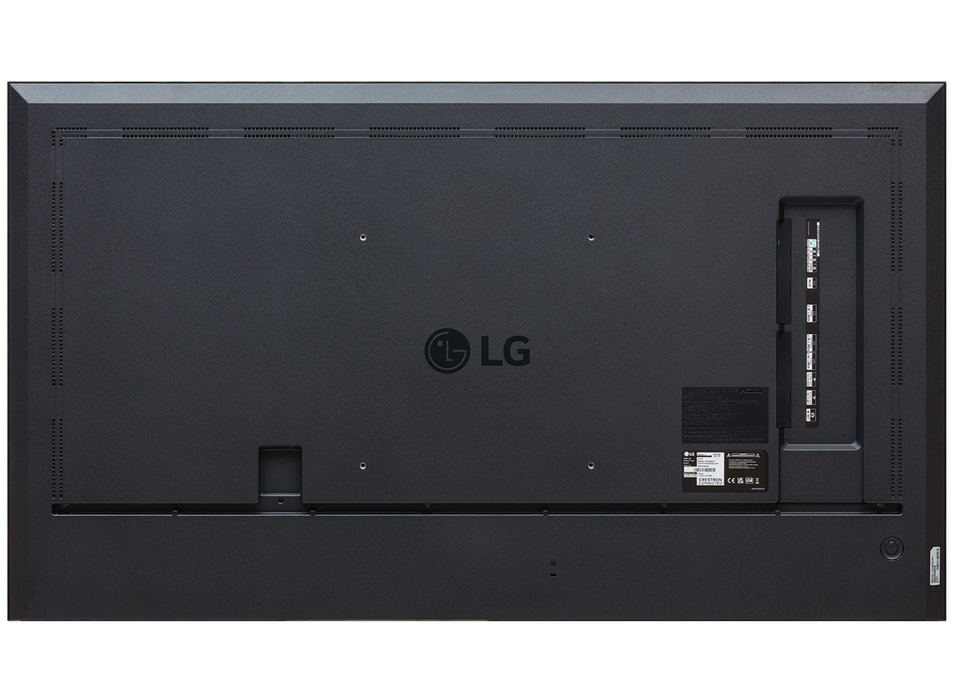

| Handle | No | VESA™ Standard Mount Interface | 300 × 300 mm |
| Key Feature | Internal Memory 16 GB, Wi-Fi & Bluetooth (Built-in), Temperature Sensor, Auto Brightness Sensor (Built-in for Europe only, sold separately in other regions), Acceleration (Gyro) Sensor, Local Key Operation, webOS 8.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Cisco Certification (TBD), Crestron Connected, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom | Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C | Operation Humidity | 10 % to 80 % |
| Power | | Power Supply | AC 100-240 V ~, 50/60 Hz |
| Power Type | Built-In Power | Power Consumption | |
| Typ./Max. | 87W / 134W | Smart Energy Saving (70%) | 61W |
| DPM | 0.5 W | Power off | 0.5 W |
| BTU (British Thermal Unit) | 297 BTU/Hr(Typ.), 457 BTU/Hr(Max.) | Standard (Certification) | |
| Safety | CB / NRTL | EMC | FCC Class "B" / CE / KC |
| ePEAT(US only) | Yes (Carbon "Reducing CO2") (TBD) | ErP / Energy Star | Yes / Yes |
| OPS Compatibility | | OPS Type Compatible | No |
| OPS Power Built In | No | Software Compatibility | SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare |

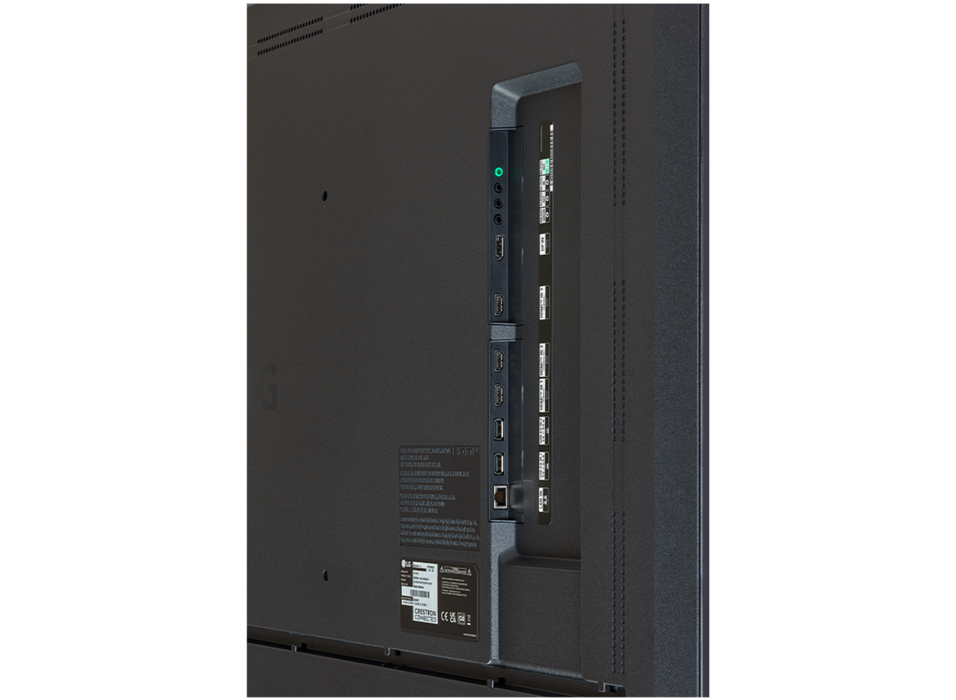

| Connectivity | | Input | HDMI (3, 3840x2160@60Hz, HDCP 2.2/1.4), DP (3840x2160@60Hz, HDCP 2.2/1.4), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), IR (5pin Phone-jack / support internal IR), USB 2.0 Type A (2) |
| Output | Audio, RS-232C (4 Pin Phone-Jack), IR (No (Support IR Daisy Chain via RS232C In/Out)) | Sound | |
| Speaker | 10 W × 2 | Language | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski |
| Accessory | | Basic | Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender, IR/Light Sensor Receiver (EU/EK Only), Magnetic Sheet (2, EU/EK Only) |
| Optional | Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light Sensor Receiver (ACC-L) | Special Feature | |
| IP Rating | IP5X | Conformal Coating (Power Board) | Yes (Partial Space Coating) |
