43" 4K UHD
3840 × 2160 resolution provides detailed CCTV and surveillance imagery.
Official Partner
Agneovo SMQ-4301 Security Monitor - 43" 4K Surveillance Display With BNC
In Stock3 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
AG Neovo SMQ-4301 · 43" Security Monitor
AG Neovo SMQ-4301 43" 4K Security & Surveillance Monitor with BNC
The AG Neovo SMQ-4301 is a professional 43-inch 4K UHD security monitor engineered for CCTV, surveillance and security monitoring environments requiring continuous operation, detailed 4K images and compatibility with both modern and legacy video systems.
With 3840 × 2160 UHD resolution, 350 cd/m² brightness, IPS panel technology, HDMI 2.0, DVI, VGA and BNC composite connectivity, the SMQ-4301 provides a flexible monitoring display for control rooms, CCTV installations and professional security systems.
43" 4K UHD
3840 × 2160 resolution
350 cd/m²
Professional surveillance display
BNC + HDMI
Legacy and digital CCTV connectivity
24/7 Operation
Commercial-grade monitoring design
Description
Professional CCTV Display
43-inch 4K surveillance monitor built for security applications.
The AG Neovo SMQ-4301 security monitor combines a 43-inch IPS panel with native 4K UHD resolution to provide the detail required for professional CCTV and surveillance monitoring.
Unlike a standard consumer television, the SMQ-4301 has features specifically suited to professional security installations, including BNC composite connectivity, Anti-Burn-in technology, CCTV Mode, RS232 control and LAN connectivity.
- 43-inch IPS surveillance display
- 3840 × 2160 4K UHD resolution
- 350 cd/m² brightness
- 1200:1 contrast ratio
- 178° horizontal and vertical viewing angles
- 5ms response time
- HDMI 2.0, DVI, VGA and BNC inputs
- RS232 and LAN control
- Anti-Burn-in technology
- Designed for 24/7 monitoring
AG Neovo SMQ-4301 specifications at a glance.
IPS Panel
Wide 178° viewing angles for monitoring environments with multiple operators.
BNC Connectivity
Composite BNC connectivity supports integration with compatible legacy CCTV systems.
24/7 Monitoring
Commercial-grade construction is designed for continuous security monitoring.
Anti-Burn-in
AG Neovo Anti-Burn-in technology helps reduce image retention during prolonged use.
Remote Control
RS232 and LAN connections simplify control and management of professional installations.

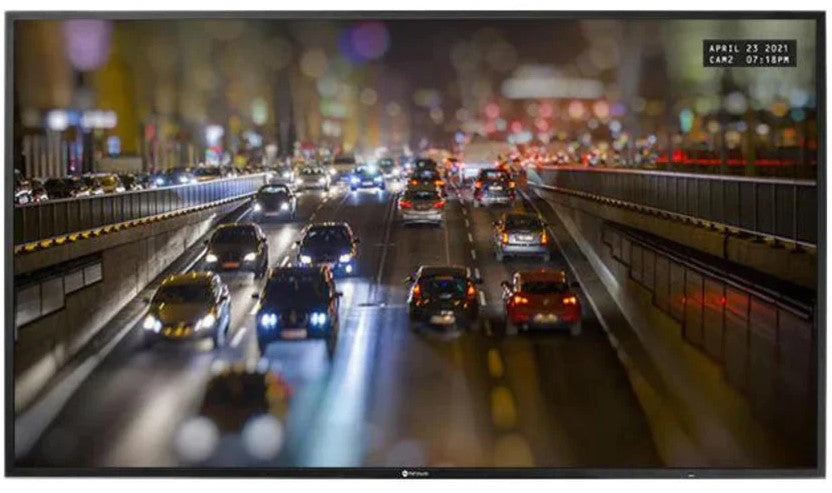

4K CCTV Monitoring
See intricate surveillance details in 4K.
The SMQ-4301 uses a native 3840 × 2160 4K UHD panel, providing four times the pixel count of Full HD.
Higher resolution is particularly valuable in surveillance applications because operators can inspect detailed CCTV footage more closely. This can assist when viewing details such as faces, vehicles and number plates within suitable source footage.
- 3840 × 2160 UHD resolution
- 1.07 billion display colours
- 350 cd/m² brightness
- 1200:1 contrast ratio
- 178° / 178° viewing angle

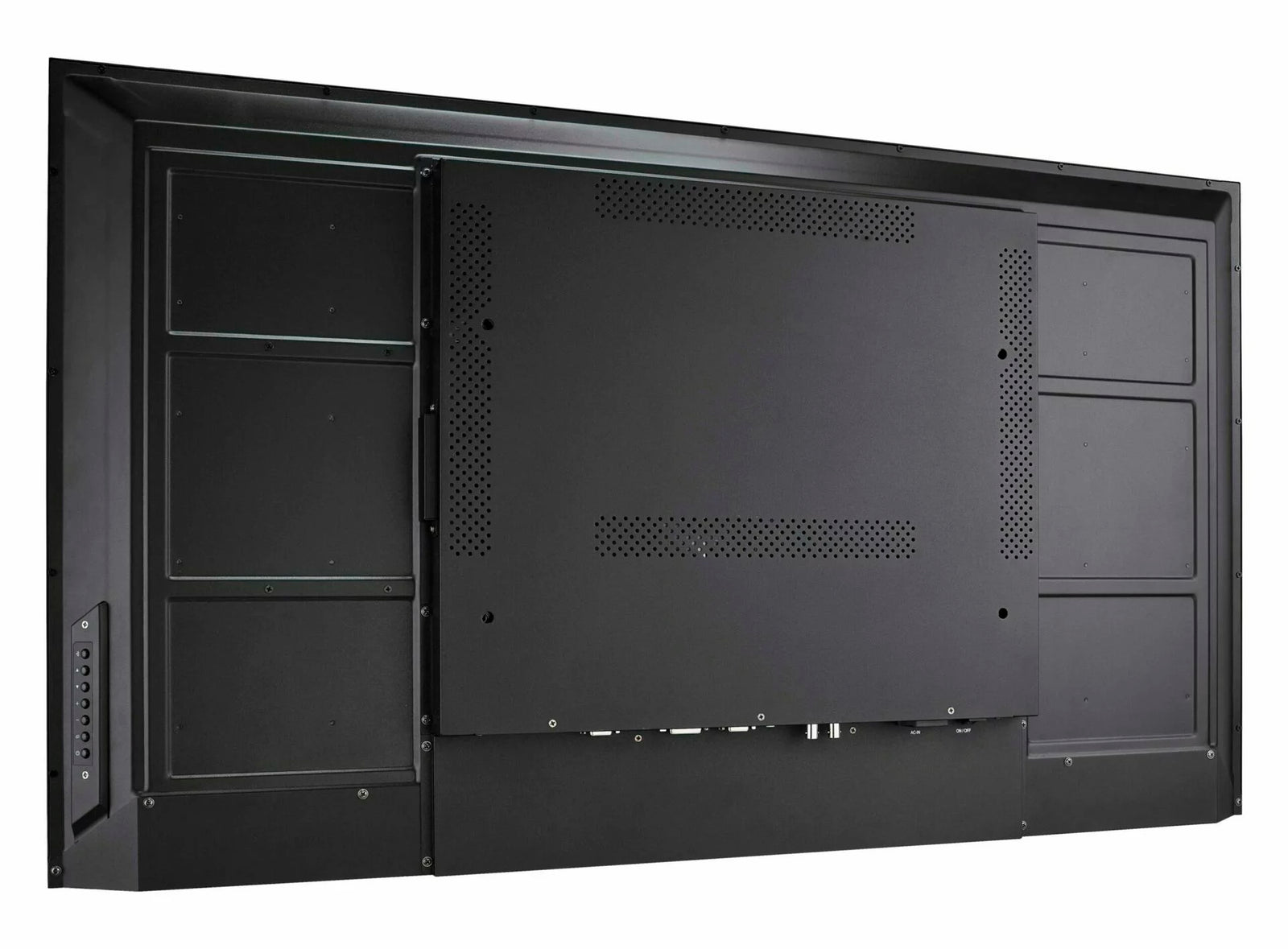

Commercial Metal Housing
Metal casing for dependable security monitoring.
The SMQ-4301 uses a durable metal housing designed for professional environments.
The casing supports heat dissipation and provides greater physical durability than the lightweight housings commonly found on consumer displays.
This makes the monitor better suited to demanding CCTV, surveillance and control-room installations where displays may operate for extended periods.
24/7 Reliability
Built for continuous surveillance environments.
Security monitoring frequently requires displays to remain operational throughout the day and night.
The AG Neovo SMQ-4301 combines commercial-grade components with a professional panel and metal enclosure to support 24/7 continuous operation.
AG Neovo's Anti-Burn-in technology provides an additional layer of protection against image retention when static security interfaces remain on screen for long periods.
- 24/7 continuous operation
- Commercial-grade panel
- Metal enclosure
- Anti-Burn-in technology
- Designed for security monitoring
Dedicated CCTV Mode
Fine-tune CCTV images for improved visibility.
A dedicated CCTV Mode provides image settings intended for surveillance footage and low-light monitoring applications.
Operators can adjust characteristics including sharpness, saturation, contrast and brightness to optimise the displayed image for the surveillance source being monitored.
This provides greater control than relying solely on generic picture presets intended for television or entertainment use.
Enhanced Gamma Selection
Optimise light, shadow and colour balance.
Enhanced gamma selection provides additional control over how light, shadow and colour are represented on the SMQ-4301.
For surveillance operators, these controls can help optimise different video sources and monitoring environments where image conditions vary significantly.
Black-Level Alignment
Reveal more detail in dark surveillance scenes.
Security footage is frequently captured at night or in poorly illuminated environments.
The SMQ-4301 provides black-level adjustment so operators can optimise dark areas of CCTV images and improve the visibility of details contained within low-light footage.
Combined with the dedicated CCTV picture controls, this makes the SMQ-4301 particularly relevant for professional surveillance applications.
RS232 & LAN Management
Easy control and integration for security installations.
Built-in RS232 and RJ45 LAN connectivity provides control and management options for professional SMQ-4301 installations.
AG Neovo PID Command & Ctrl compatibility enables supported displays to be configured and maintained remotely, making the SMQ series suitable for installations involving multiple professional monitors.
- RS232 control
- RJ45 LAN connectivity
- Remote configuration
- Professional display management
- Multi-display deployment support

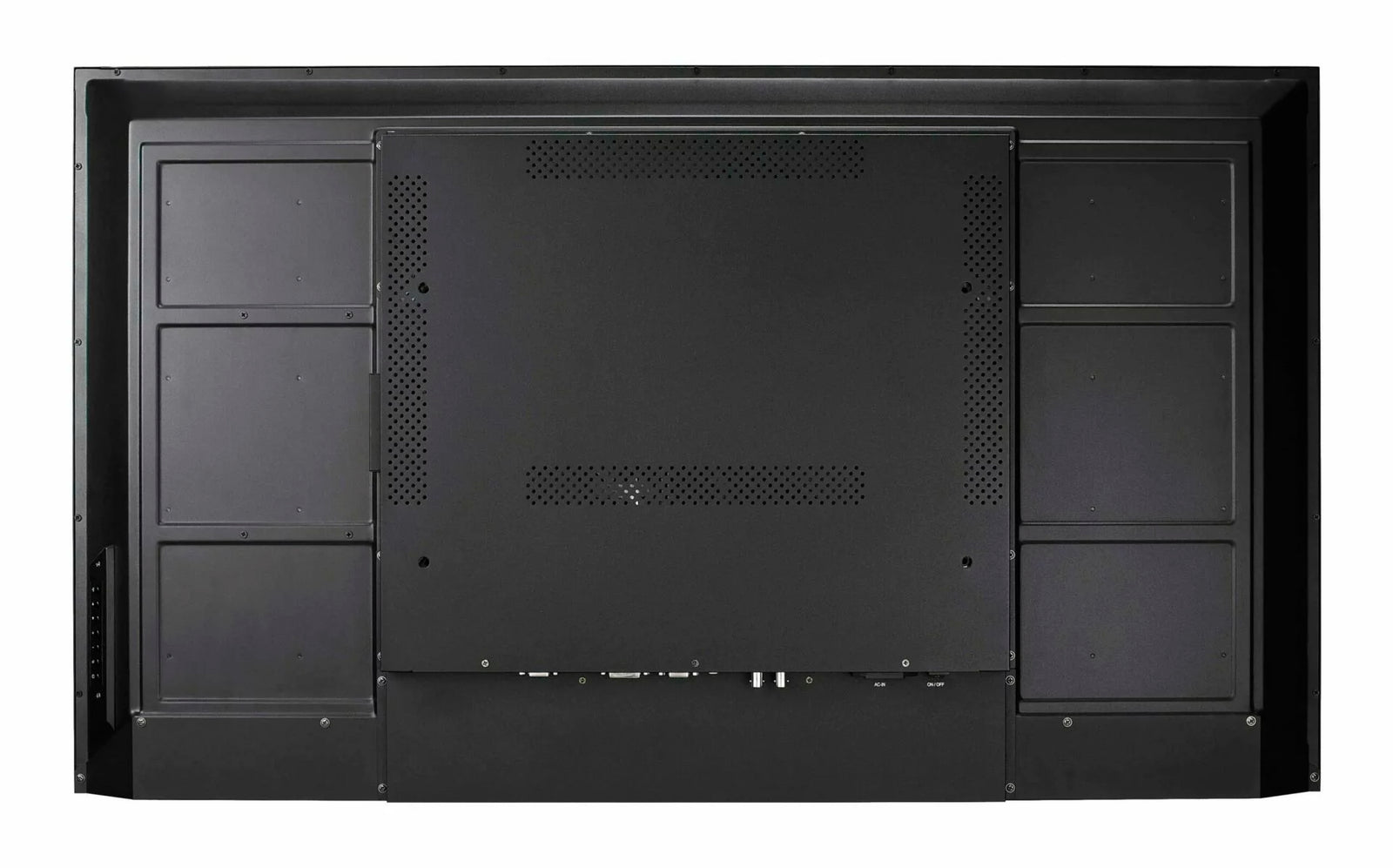

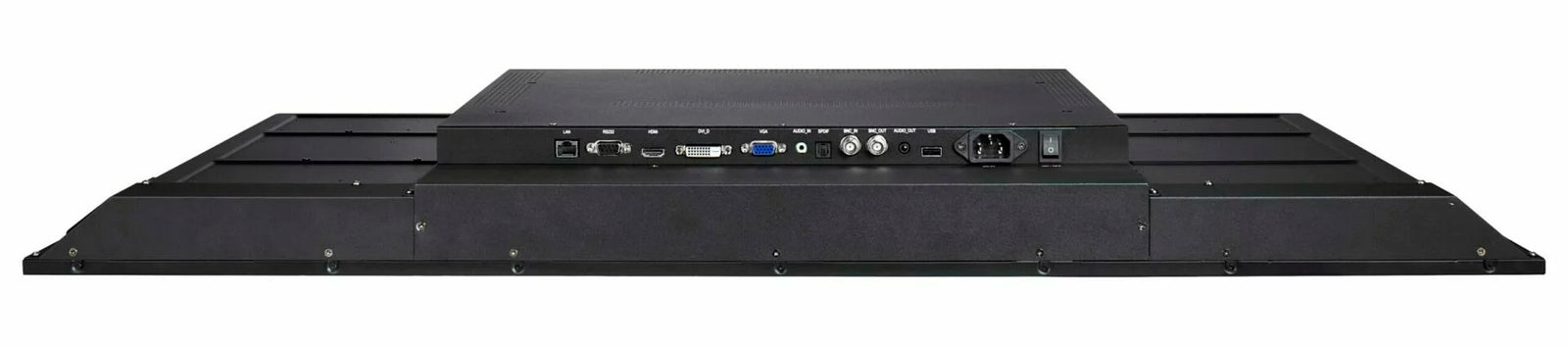

BNC & Digital Connectivity
Connect legacy CCTV and modern digital surveillance systems.
One of the key advantages of the AG Neovo SMQ-4301 surveillance display is its broad range of video inputs.
The monitor includes HDMI 2.0 for modern 4K sources alongside DVI, VGA and composite BNC connectivity.
This allows the SMQ-4301 to fit into both newer digital surveillance installations and compatible legacy security systems without automatically requiring the existing video infrastructure to be replaced.
- HDMI 2.0
- 24-pin DVI-D
- 15-pin VGA
- Composite BNC
- RS232
- RJ45 LAN
- USB 2.0 service port
- 3.5mm audio input
- S/PDIF audio output
43-Inch Security Display
Professional monitoring in a practical 43-inch format.
At 43 inches, the SMQ-4301 provides a substantial 4K monitoring area without requiring the wall space of the larger models in the SMQ series.
It can therefore suit CCTV control areas, security desks, monitoring rooms and installations where detailed surveillance footage needs to remain clearly visible.
The display supports a 400 × 200mm VESA mounting pattern for compatible professional mounting solutions.
Specifications
AG Neovo SMQ-4301 Technical Specification
AG Neovo SMQ-4301 specifications.
Technical specifications for the AG Neovo SMQ-4301 43-inch 4K UHD security and surveillance monitor.
| Specification | AG Neovo SMQ-4301 |
|---|---|
| Display | |
| Panel Type | IPS |
| Panel Size | 43" |
| Maximum Resolution | 3840 × 2160 UHD |
| Pixel Pitch | 0.245mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Display Colours | 1.07 billion |
| Response Time | 5ms |
| Surface Treatment | Anti-glare treatment, Haze 1%, 3H hard coating |
| Horizontal Frequency | 15kHz - 135kHz |
| Vertical Frequency | 24Hz - 86Hz |
| Video & Connectivity | |
| HDMI | HDMI 2.0 × 1 |
| DVI | 24-pin DVI-D |
| VGA | 15-pin D-Sub × 1 |
| Composite Video | BNC × 1 |
| RS232 Input | 9-pin D-Sub |
| LAN | RJ45 × 1 |
| USB | USB 2.0 × 1 - service port |
| Audio | |
| Audio Input | 3.5mm stereo audio jack |
| Audio Output | S/PDIF |
| Internal Speakers | 5W × 2 |
| Power | |
| Power Supply | Internal |
| Power Requirements | AC 100-240V, 50/60Hz |
| On Mode | 75W |
| Standby Mode | <0.5W |
| Off Mode | <0.3W |
| Operating Environment | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 20% - 85%, non-condensing |
| Dimensions & Mounting | |
| VESA Mount | 400 × 200mm |
| Dimensions Without Base | 969.9 × 558.3 × 84.6mm |
| Product Weight Without Base | 9.0kg |
| Packaging Dimensions | 1070 × 663 × 153mm |
| Packaging Weight | 11.7kg |
| Compliance | |
| Certifications & Compliance | CE, LVD, WEEE, RoHS, REACH, EAC, UKCA |
| Accessories | |
| Supplied Accessories | Batteries, HDMI cable, power cord, quick start guide and remote control |
| Optional Mounting Accessories | Compatible ceiling, wall, floor, desk and video-wall mounting solutions are available depending on installation requirements. |
Warranty
AG Neovo Warranty
Three-year limited LCD display warranty.
AG Neovo states a three-year limited warranty for LCD monitor parts and LCD panels from the date of initial retail purchase, subject to its applicable warranty terms, conditions and exclusions.
Warranty coverage applies to qualifying defects in materials and workmanship under normal use. Damage caused by misuse, unauthorised repair, incorrect installation, accidents, shipping damage, power fluctuations or other excluded causes is not covered.
Warranty policies may be revised by the manufacturer. Customers should refer to the documentation supplied with the product for the applicable warranty conditions.
Downloads
SMQ-4301 Downloads
AG Neovo SMQ-4301 documentation.
AG Neovo SMQ Series Video
See the professional surveillance display in action.
Watch the AG Neovo SMQ security monitor video to explore the display's professional surveillance and monitoring capabilities.

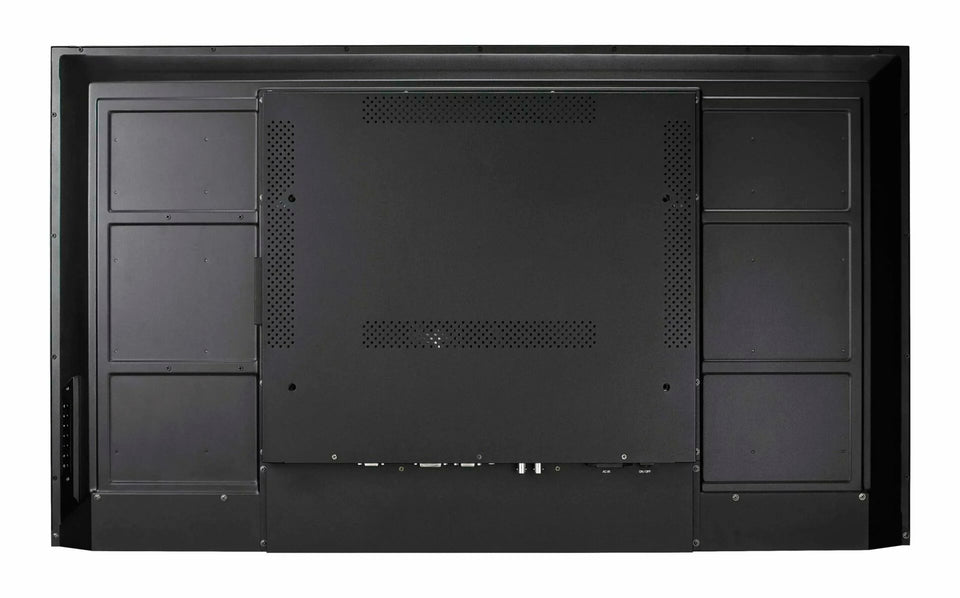

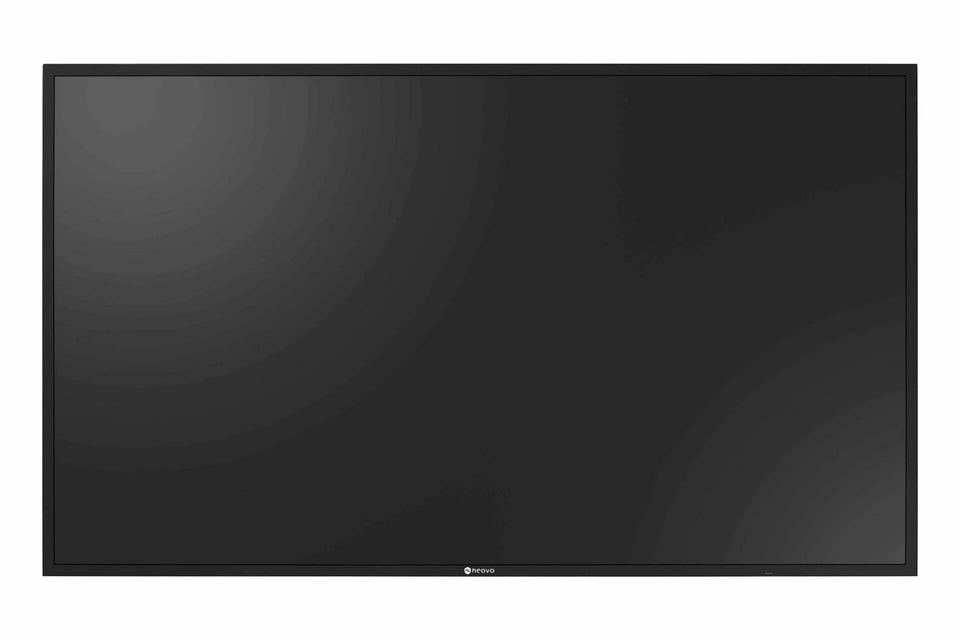

AG Neovo SMQ-4301 Gallery
43-inch 4K surveillance monitor details.
Security Monitor Applications
Where can the AG Neovo SMQ-4301 be used?
CCTV Monitoring
Monitor compatible security camera and recorder feeds on a dedicated 43-inch professional 4K display.
Security Control Rooms
Suitable for professional environments where surveillance images need to remain visible throughout extended shifts.
Retail Security
Monitor CCTV feeds across shops, shopping environments, stockrooms and customer-facing premises.
Commercial Buildings
Use as part of compatible security installations in offices, commercial premises and managed buildings.
Transport & Logistics
Monitor compatible security footage across entrances, loading areas, warehouses and operational spaces.
Legacy CCTV Systems
BNC connectivity can help integrate the SMQ-4301 with compatible analogue and legacy surveillance equipment.
AG Neovo SMQ Security Monitor Range
Need a larger surveillance display?
The 43-inch SMQ-4301 provides a practical format for professional CCTV monitoring, while larger SMQ security monitors provide additional screen area for larger control rooms, multi-camera layouts and installations with longer viewing distances.
43"
AG Neovo SMQ-4301
You are viewing this
55"
AG Neovo SMQ-5501
View 55" model
65"
AG Neovo SMQ-6501
View 65" model
Frequently Asked Questions
AG Neovo SMQ-4301 FAQs.
What is the AG Neovo SMQ-4301?
The AG Neovo SMQ-4301 is a professional 43-inch 4K UHD security and surveillance monitor designed for CCTV and commercial monitoring applications.
What resolution does the SMQ-4301 have?
The SMQ-4301 has a native 3840 × 2160 4K UHD resolution.
Is the AG Neovo SMQ-4301 designed for 24/7 operation?
Yes. The SMQ-4301 is designed for continuous 24/7 professional monitoring.
Does the SMQ-4301 have BNC connectivity?
Yes. It includes a composite BNC connection for integration with compatible CCTV and surveillance systems.
Does the SMQ-4301 support HDMI?
Yes. The monitor includes an HDMI 2.0 input alongside DVI, VGA and BNC connectivity.
How bright is the AG Neovo SMQ-4301?
The SMQ-4301 is specified at 350 cd/m² brightness.
What panel technology does the SMQ-4301 use?
The display uses an IPS panel with 178° horizontal and vertical viewing angles.
Does the SMQ-4301 have Anti-Burn-in technology?
Yes. AG Neovo Anti-Burn-in technology is included to help reduce image retention during extended monitoring applications.
Does the SMQ-4301 have a CCTV picture mode?
Yes. The display provides dedicated CCTV image settings for professional surveillance applications.
Can the SMQ-4301 be controlled remotely?
The monitor includes RS232 and RJ45 LAN connections for professional control and integration.
What VESA mounting pattern does the SMQ-4301 use?
The AG Neovo SMQ-4301 supports a 400 × 200mm VESA mounting pattern.
How much does the SMQ-4301 weigh?
The monitor weighs approximately 9.0kg without its base.
What are the SMQ-4301 dimensions?
Without its base, the monitor measures approximately 969.9 × 558.3 × 84.6mm.
Is there a larger version of the SMQ-4301?
Yes. ScreenMoove also offers the AG Neovo SMQ-5501 55-inch security monitor and AG Neovo SMQ-6501 65-inch security monitor .
Where can I download the SMQ-4301 datasheet?
You can download the AG Neovo SMQ-4301 datasheet directly from ScreenMoove.
43" Professional Security Monitor
Is the AG Neovo SMQ-4301 right for your surveillance system?
The AG Neovo SMQ-4301 combines 43-inch 4K UHD resolution, IPS panel technology, 350 cd/m² brightness, BNC and HDMI connectivity, CCTV image controls, Anti-Burn-in technology, RS232/LAN management and 24/7 operation for professional security and surveillance installations.
Technical Highlights
- Display size / Screen sizes
- 43"
- Resolution
- Ultra HD (4K)
- Panel type
- IPS Panel
- Screen type
- Flat
- Brightness
- 350 cd/m2
- Response time
- 5ms
- Display orientation
- Landscape Only
- Operating hours
- 24/7
- Operating system
- None
- Player features
- USB Plug and Play
- VESA patterns
- 400x200
- Warranty
- 3 Year Warranty
Agneovo SMQ-4301 Security Monitor - 43" 4K Surveillance Display W...SKU: SMQ-4301
£651.45
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
