4K UHD 3840 x 2160 resolution
Versatile connectivity: VGA, DVI, HDMI, Composite (BNC) inputs
Composite (BNC) passive loop-through output port
Anti-Burn-in technology prevents image ghosting
RS232/LAN connection for easy control and management
SEE INTRICATE DETAILS IN 4K

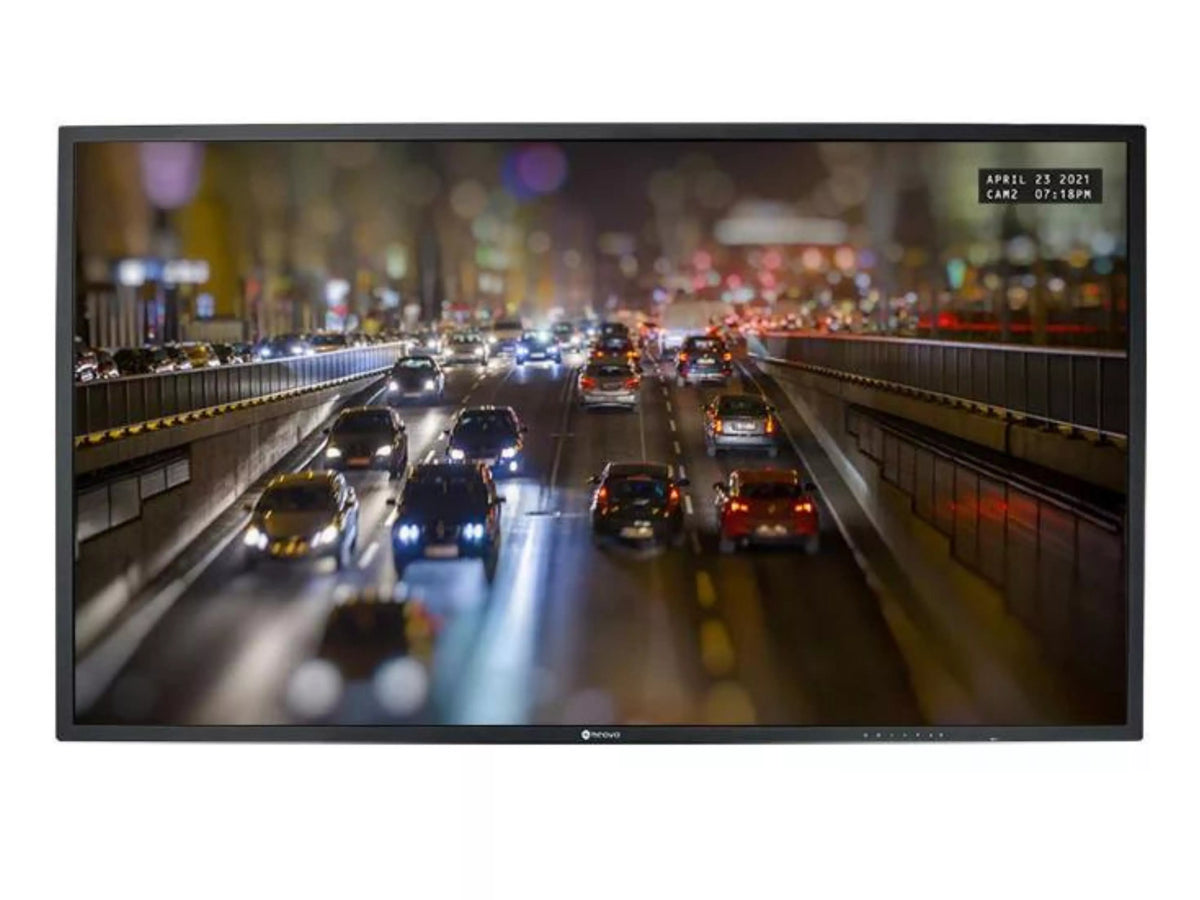

The SMQ-6501 features 3840 x 2160 pixels, offering finer video footage. The high resolution enables zoom-in with clear detail as CCTV evidence. As a result, the operator can zoom in on a license plate number or the lines on a face. Furthermore, the panel enables the operator to view smooth 4K video and graphics with a new level of detail and clarity.
METAL CASING ENSURES RELIABLE MONITORING
The outer metal case provides enhanced heat dissipation, offering a high level of strength and durability. In turn, this improves the cooling performance to ensure 24/7 proper operation.
TAILOR-MADE FOR RELIABILITY
The SMQ-6501 security display adopts a commercial-grade panel and incorporates high-quality components to ensure 24/7 continuous operations. Furthermore, the patented Anti-burn-in™ Technology adds another protection level in mission-critical environments.
FINE-TUNE CCTV IMAGES FOR MAXIMUM CLARITY AND DETAIL
A special pre-configured CCTV Mode maximizes image clarity in low-light footage. You can make granular adjustments and quickly fine-tune your video footage with sharpness, saturation, contrast, brightness, and more. As a result, you don’t need to waste time constantly testing and re-adjusting because the SMQ-6501 already has it all figured out!
ENHANCED GAMMA SELECTION
Offering an enhanced gamma selection makes for excellent visual optimization. As a result, you can easily improve the light, shadow, and colour balance quality of your videos.
VISIBLE DETAILS IN DARK SCENES
The technology lets you make black-level adjustments, which facilitate the display of more details in video surveillance images captured in the nighttime or low-light environments.
EASY CONTROL AND INTEGRATION
The built-in RS232 / LAN connections and AG Neovo PID command & Ctrl software allow you to easily control, configure and maintain multiple-display installations in a simple and intuitive way. The software provides intuitive web and mobile interfaces for remote management and OSD-related settings.
SUPERIOR COMPATIBILITY
The SMQ-6501 is a large-scale 4K surveillance display with built-in BNC and HDMI connections that supports both legacy systems wired over BNC and the 4K digital CCTV systems to display videos.
| Feature | Specification |
|---|---|
| Panel Type | IPS |
| Panel Size | 64.5" |
| Max. Resolution | UHD 3840 x 2160 |
| Pixel Pitch | 0.372 mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle (H/V) | 178°/178° |
| Display Colour | 1.07B |
| Response Time | 5 ms |
| Surface Treatment | Anti-Glare Treatment (Haze 1%), 3H Hard Coating |
| Frequency (H) | 15KHz~135KHz |
| Frequency (V) | 24Hz ~ 86 Hz |
| Signal Input | HDMI 2.0 x 1, DVI 24-Pin DVI-D, VGA 15-Pin D-Sub x 1, Composite BNC x 1 |
| Signal Output | Composite BNC x 1 |
| External Control | RS232 In 9-Pin D-Sub, LAN RJ45 x 1 |
| Other Connectivity | USB 2.0 x 1 (Service Port), Stereo Audio Jack (3.5 mm) for Audio In and Audio Out, S/PDIF |
| Internal Speakers | 10 W x 2 |
| Power Supply | Internal |
| Power Requirements | AC 100-240V, 50/60 Hz |
| On Mode | 123W (On) |
| Standby Mode | <0.5W |
| Off Mode | <0.3W |
| Operating Conditions | Temperature: 0°C-40°C (32°F-104°F), Humidity: 20%-85% (non-condensing) |
| Storage Conditions | Temperature: -10°C-60°C (-4°F-140°F), Humidity: 10%-95% (non-condensing) |
| Mounting | VESA FPMPMI, Yes (600 x 400 mm) |
| Dimensions | Product w/o Base: 1476.7 x 851.7 x 79.8 mm (58.1" x 33.5" x 3.1"), Packaging: 1660.0 x 1045.0x 220.0 mm (65.4" x41.1" x8.7") |
| Weight | Product w/o Base: 26.0 kg (57.3 lb), Packaging: 36.5 kg (80.5 lb) |
| Certifications & Compliance | CE, LVD, WEEE, RoHS, REACH, EAC, UKCA |
| Supplied Accessories | Batteries, HDMI Cable, Power Cord, Quick Start Guide, Remote Control |
| Optional Accessories | Ceiling Mount (Landscape only): CMP-01 + LMK-01, Wall Mount (Landscape only): LMA-02, LMK-01, LMK-03, Floor Mount (Landscape only): FMC-03 + LMK-04, FMC-04 + LMK-04, FMC-05B, FWL-01B |
AG Neovo provides the following limited warranty. This limited warranty applies only to the original End User and to no other purchaser or transferee.
AG Neovo warrants its LCD Monitor products and parts against defects in materials and workmanship under normal use for a period of Three (3) Years for parts from the date of initial retail purchase. AG Neovo warrants LCD Panel for a period of Three (3) years from the date of initial retail purchase. During this period, AG Neovo will repair or replace a defective product or part without charge.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
The AG Neovo warranty obligations for the product are limited to the terms set forth below.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
AG Neovo warrants its accessories to be free from defects in material and workmanship under normal operating conditions for a period of 12 months limited warranty.
Changes to or updates of the following warranty conditions and procedures can be found at the AG Neovo website or may be obtained from AG Neovo by contacting your local AG Neovo office.
AG Neovo has the right to revise the policy.
Please contact local AG Neovo office to get detailed information.
For information on obtaining warranty service, call your AG Neovo dealer, AG Neovo’s Customer Support hotline, or email service centers.
Europe | +31-10-442-57-37 | service.nl@agneovo.com
| Document Type | Downloads |
|---|---|
| Data Sheet | Download |
| User Manual | Download |
| Declaration | Download |
| EEI Label | Download |
| Technical Drawing | Download |
