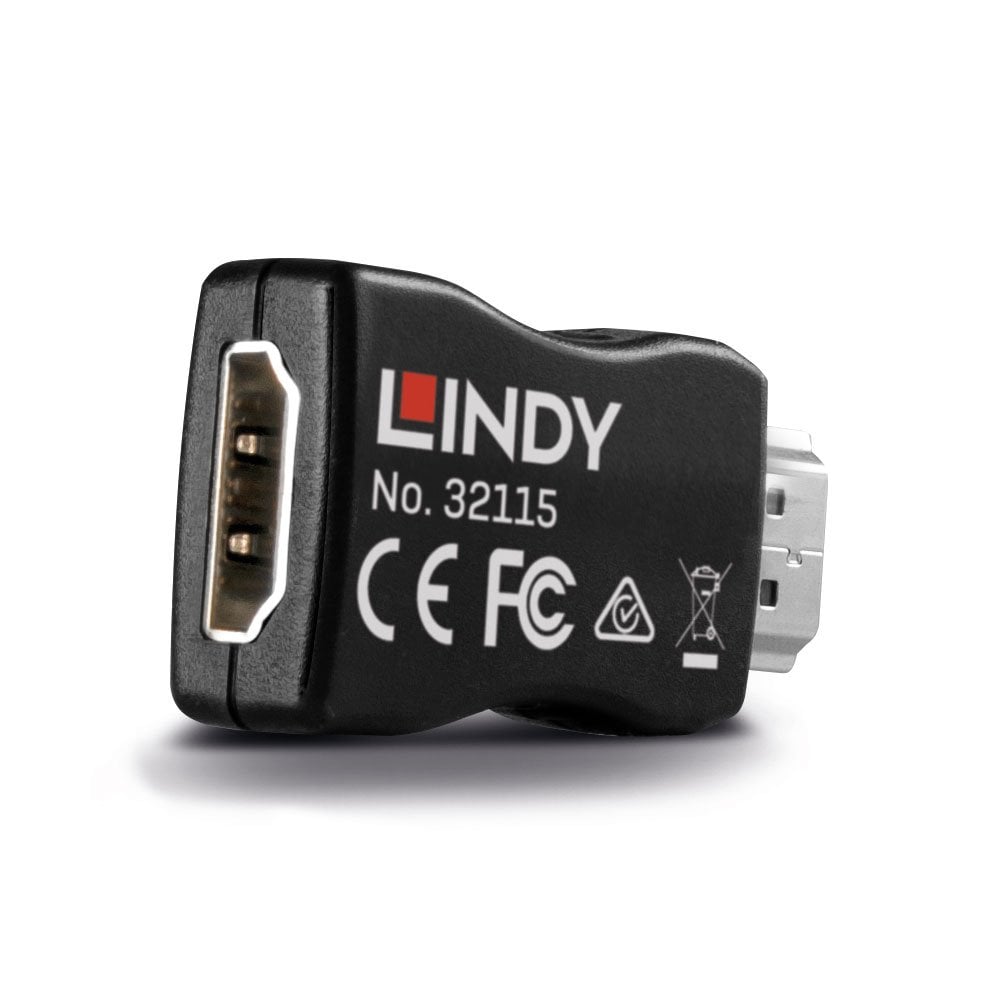

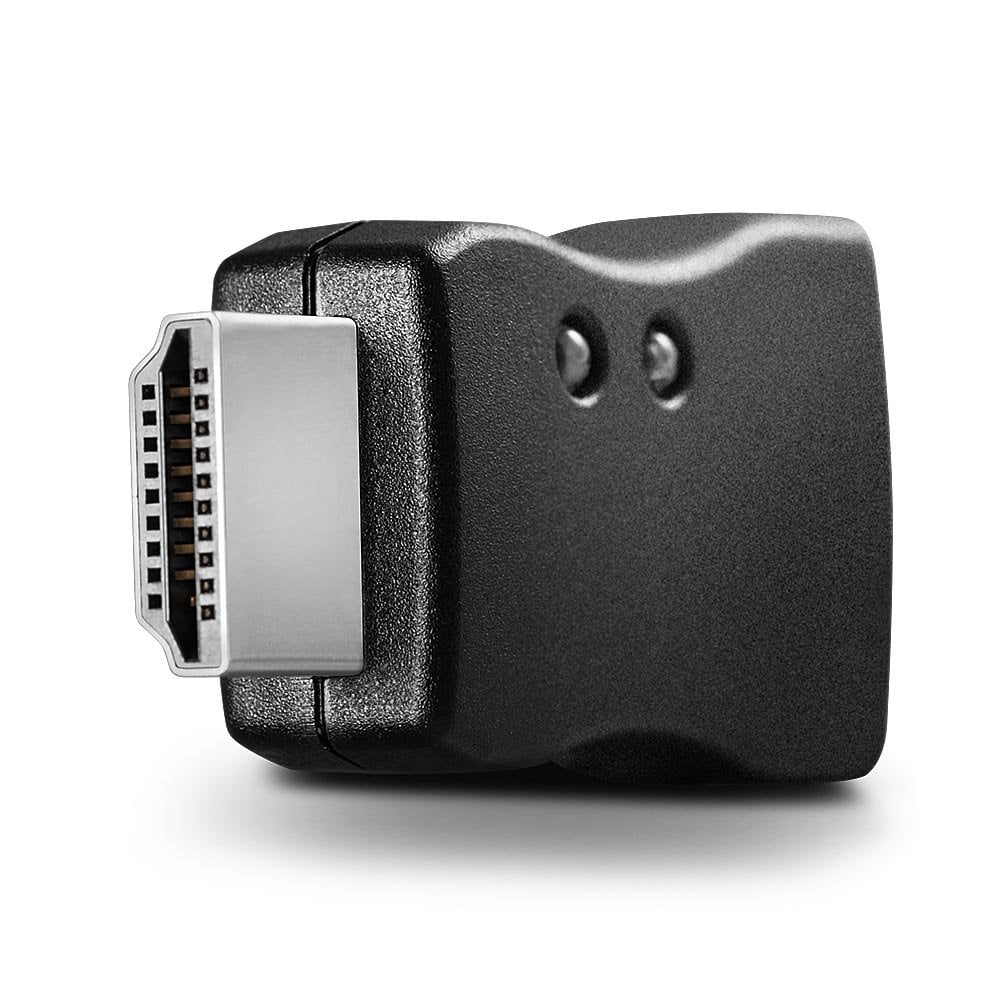

The Lindy HDMI® 4K60 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters.
It can also be used in place of a monitor to keep the graphics card of a PC or Server awake for remote access via IP. With support for resolutions up to Ultra HD 4K 60Hz (via cloning) including High-Dynamic Range and with the ability to pass–through HDCP 2.2 content, the Emulator is suitable for use with the very latest PC and AV applications.
Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily clone the EDID data from a HDMI® display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds.
It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| AV Interface | HDMI® | Interface Standard | 2.0 |
| Supported Bandwidth | 18 Gbps | Max Resolution | 3840x2160@60Hz |
| Video EDID | 640x480p 60/67/72/75Hz, 720x480p/i 60Hz, 720x400p 70Hz, 720x576p/i 60/50Hz, 800x600p 56/60/72/75Hz, 832x624p 75Hz, 1024x768p 60/70/75Hz, 1280x720p 50Hz, 1280x960p 60Hz, 1280x1024p 60/75Hz, 1152x870p 75Hz, 1152x864p 75Hz, 1440x480p 60Hz, 1440x576p 50Hz, 1440x900p 60Hz, 1600x1200p 60Hz, 1680x1050p 60Hz, 1920x1080p/i 60/50Hz, 1920x1200p 60Hz, 2560x1440p 60Hz, 3840x2160p 24/30/60Hz |
||
| Audio EDID | LPCM 2ch, 16/20/24-bit | HDCP Support | 2.2 |
| Special Features | HDR Support, CEC | Input | HDMI® Type A Male |
| Output | HDMI® Type A Female | Power | Via HDMI® Interface |
| Dimensions (WxDxH) | 24x34.3x11.8mm | Housing Material | ABS |
| Net Weight | 0.008kg (0.02lb) | Operating Temp | 0°C - 60°C (32°F - 140°F) |
| Storage Temp | -10°C - 70°C (14°F - 158°F) | Humidity | 0 - 80% RH (non-condensing) |
| Power Requirements | - | Colour | Black |
| Packaging Type | Polybag | Packaging Dimensions | 136x138mm (5.35x5.43in) |
| Gross Weight | 0.013kg (0.03lb) | Warranty | 2 Years |
| Certified | CE, UKCA, FCC, RoHS, REACH | Package Contents | EDID Emulator, Manual |
| Product No. | 32115 | EAN | 4002888321150 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
